• Optimized Motor Design: Ensures efficiency and precise bass reproduction
• Advanced Suspension System: Enhances durability and maintains accurate sound output
• Recommended Tuning: 35Hz for deep, rich bass tones
• Heavy-Duty Construction: Built to withstand extreme audio performance conditions

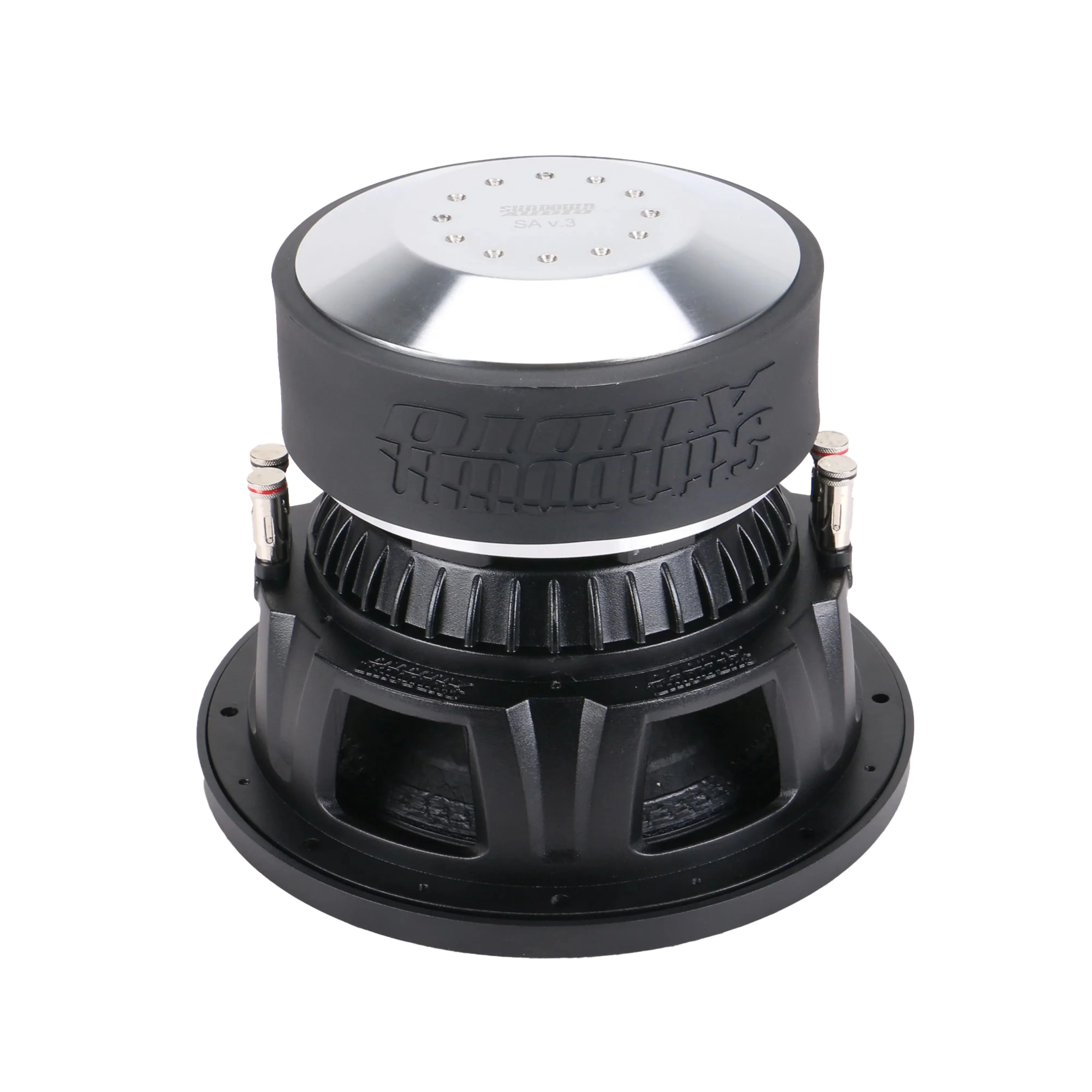

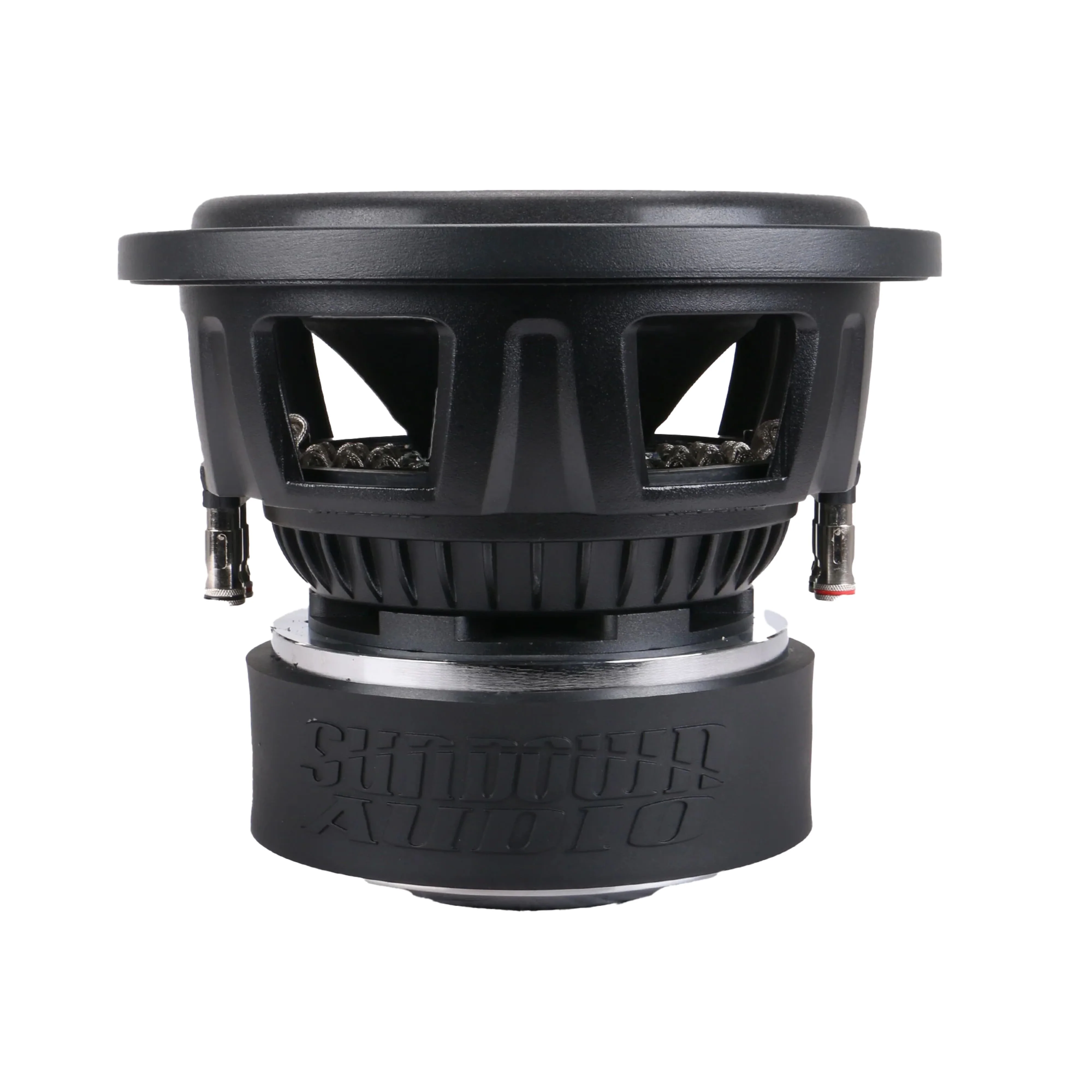

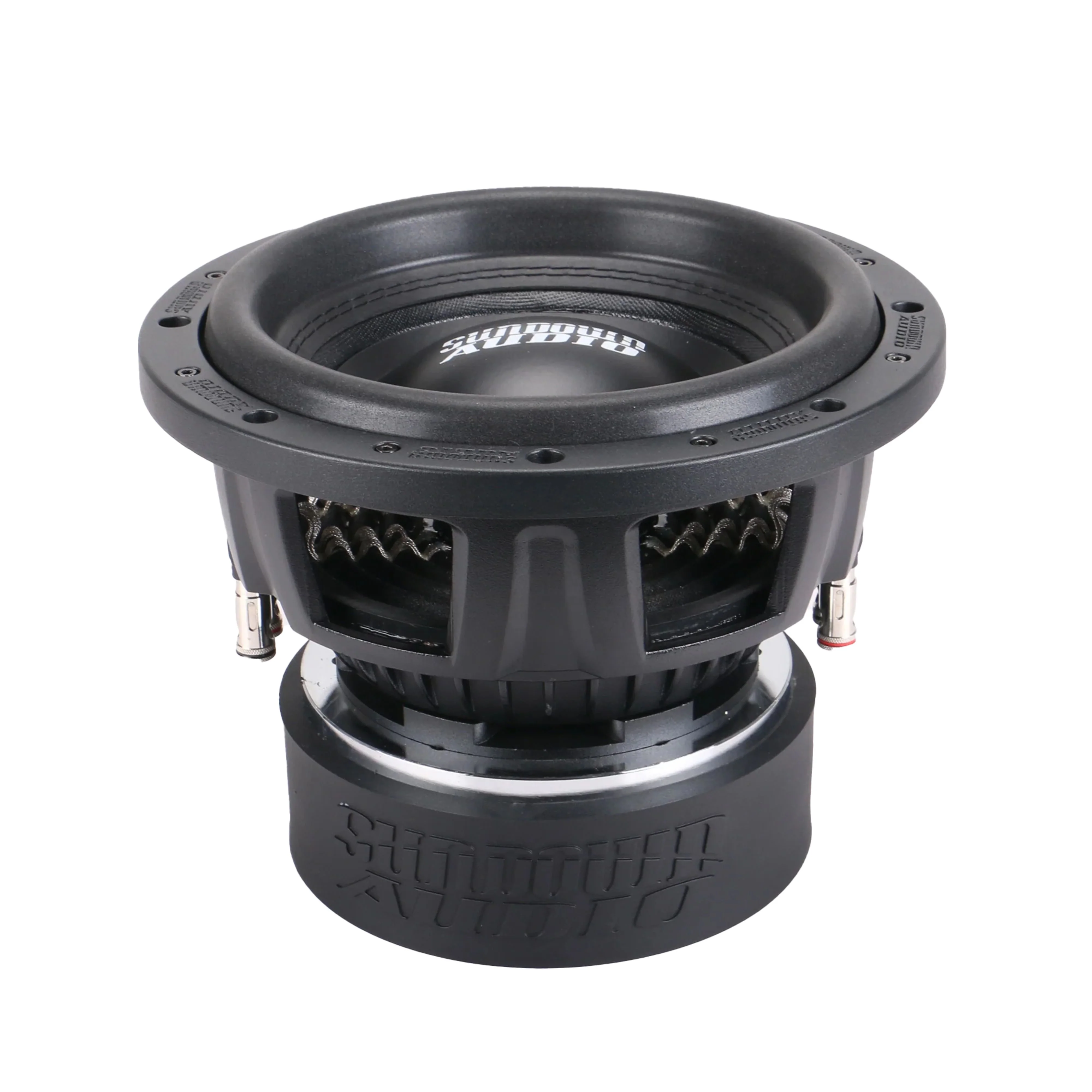

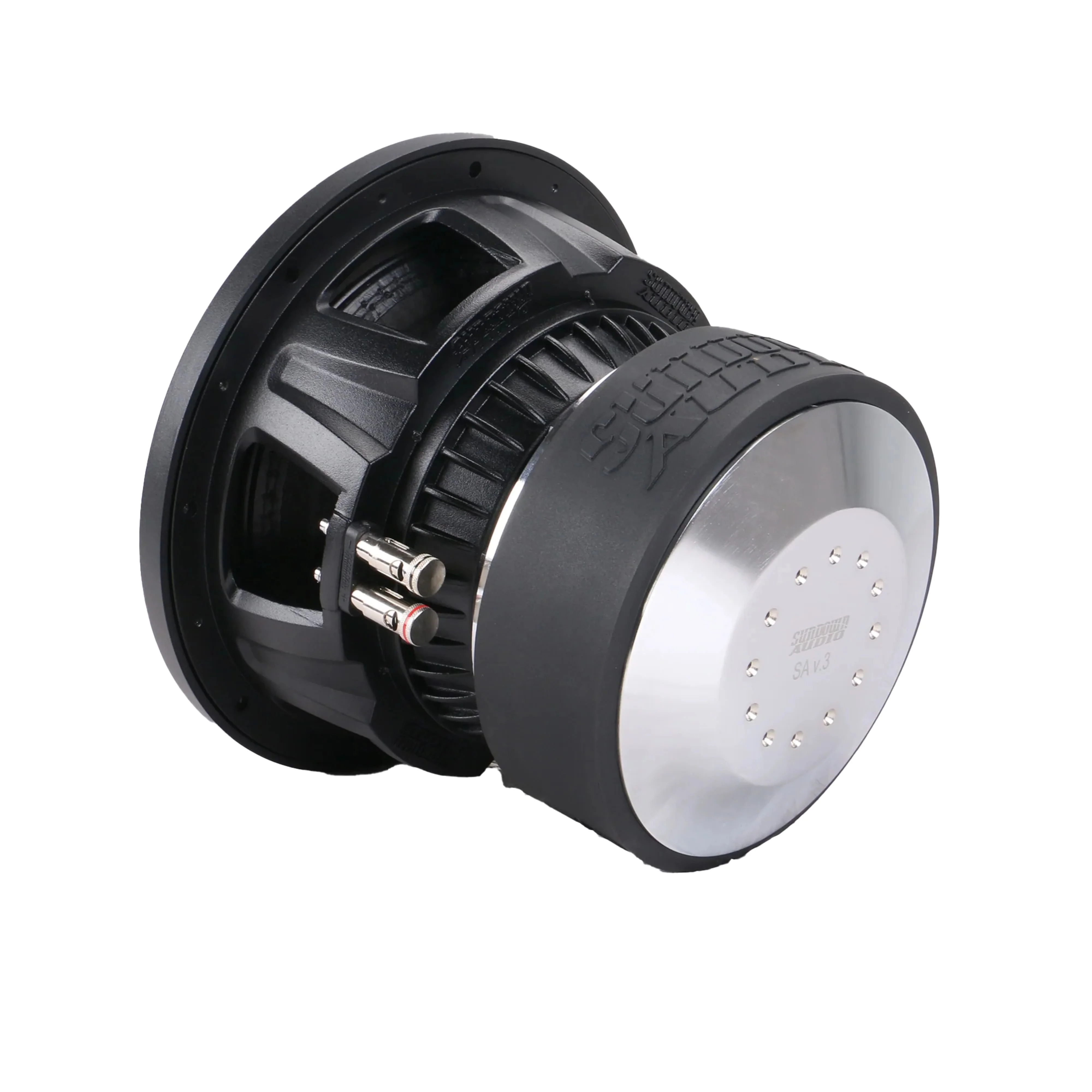

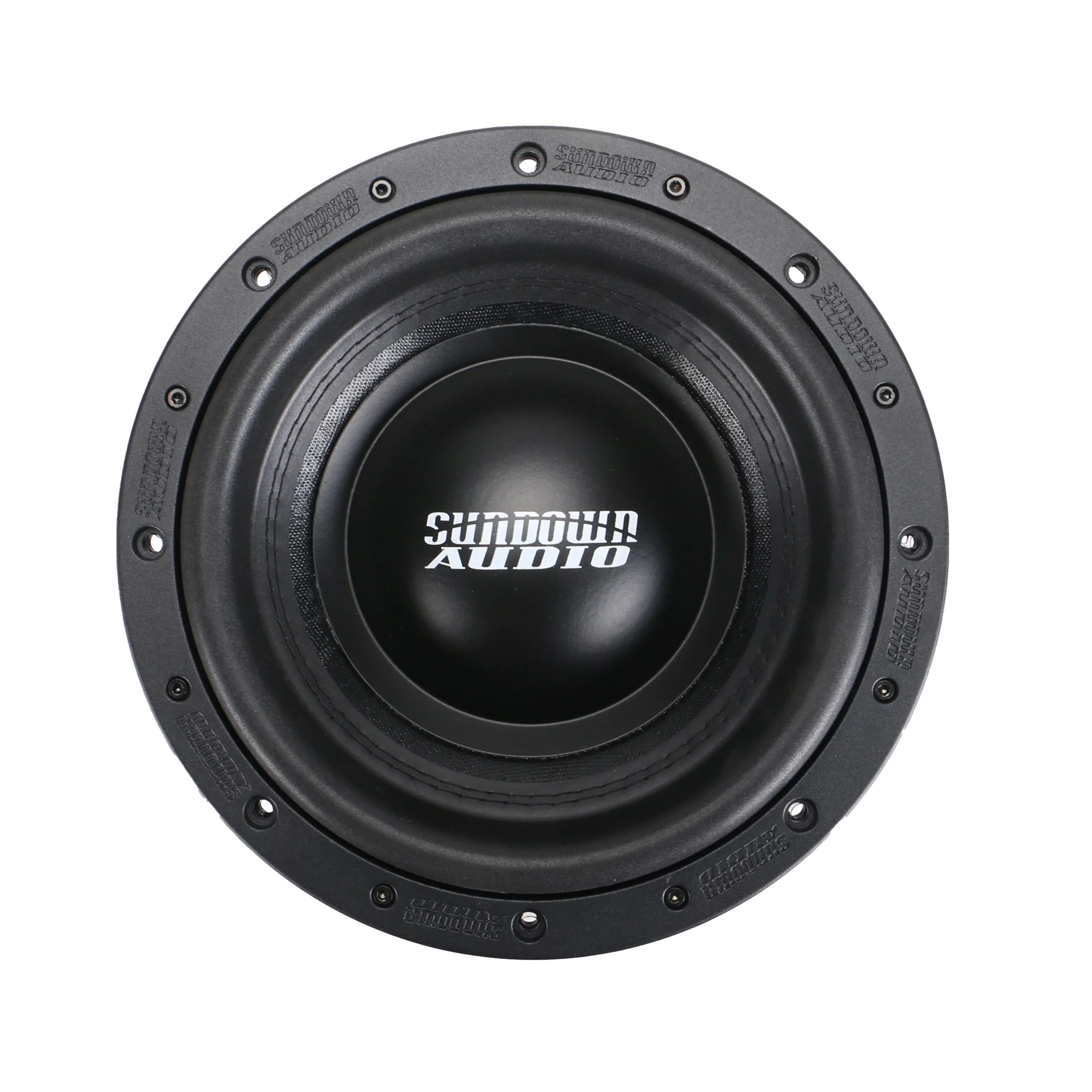

10" 1250 Watt RMS Dual 2 Ohm SA-Series v.3 Sundown Subwoofer - SAV3-10D2

This listing includes:

• (1) 10" 1250 Watt RMS Dual 2 Ohm SA-Series v.3

Designed for superior bass performance, the SA-Series v.3 10-inch subwoofer delivers exceptional power handling and efficiency. Built with high-quality components, this subwoofer is engineered to produce deep, accurate bass while maintaining durability under extreme conditions. With a peak performance of 1250W RMS, it is perfect for sealed or ported enclosures, ensuring powerful low-frequency output.

Features:

• High Power Handling – 1250W RMS ensures deep and powerful bass.


• Optimized Motor Design – Provides excellent control and efficiency for high-performance output.


• Advanced Suspension System – Enhances durability and precision sound reproduction.

Specifications:

• RE (Ohms): 3.4


• FS (Hz): 36


• VAS (L): 10.286


• Qes: 0.501


• Qms: 2.341


• Qts: 0.413


• Le (mH): 3.517


• BL (NA): 22.267


• Mms (Grams): 304.447


• Cms (uM/N): 57.024


• Sensitivity (dB @ 1w/1m): 82.5


• Xmax: 22mm

Measurements:

• Sealed Enclosure: 0.5 cu. ft.


• Ported Enclosure: 1.0 cu. ft.


• Recommended Tuning: 35Hz


• Recommended Port Area: 15 sq. in.


• Displacement: 0.17 cu. ft.


• Mounting Depth: 6.92 inches


• Outer Diameter: 11 inches


• Cutout Diameter: 9.5 inches


• Motor Diameter: 7.8 inches
