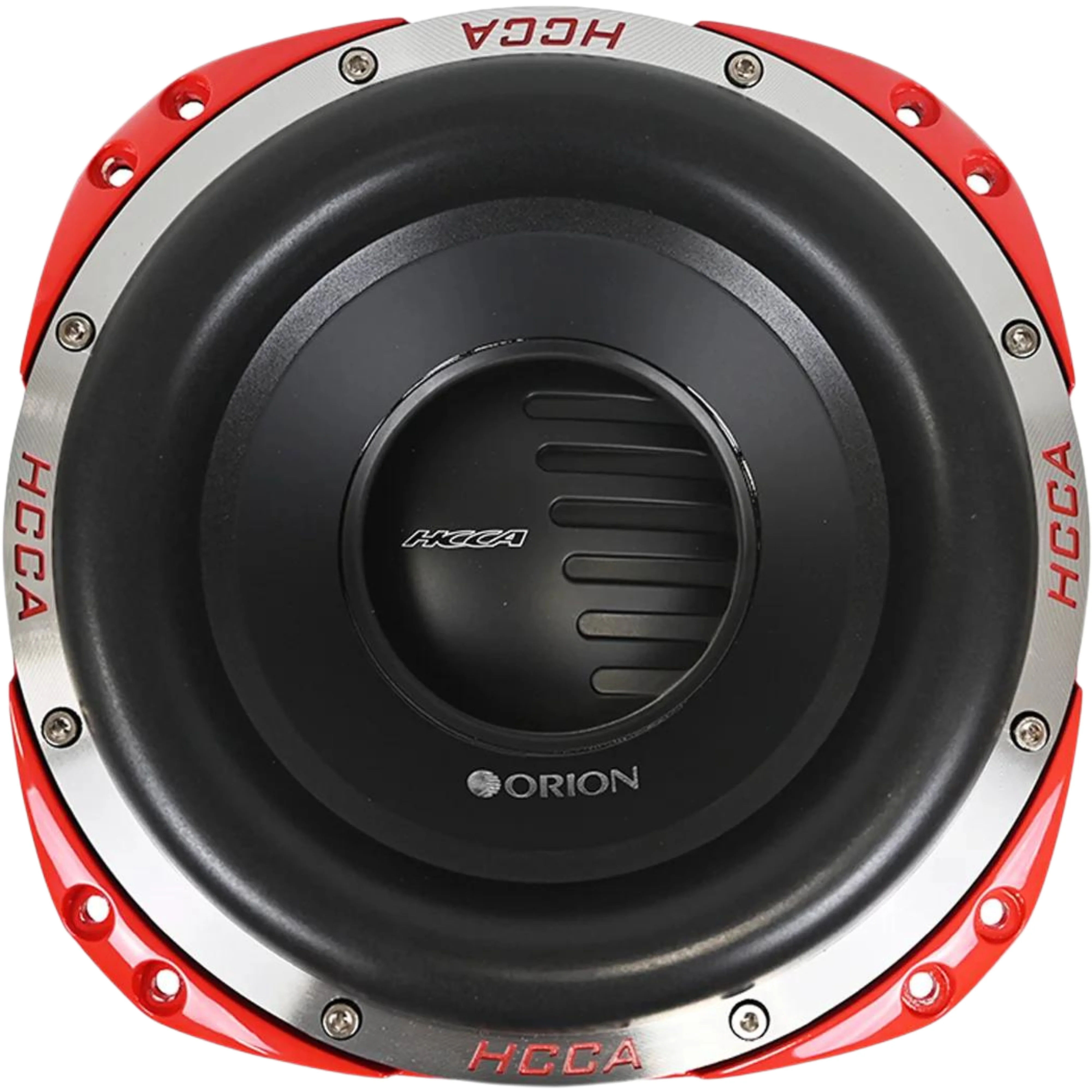

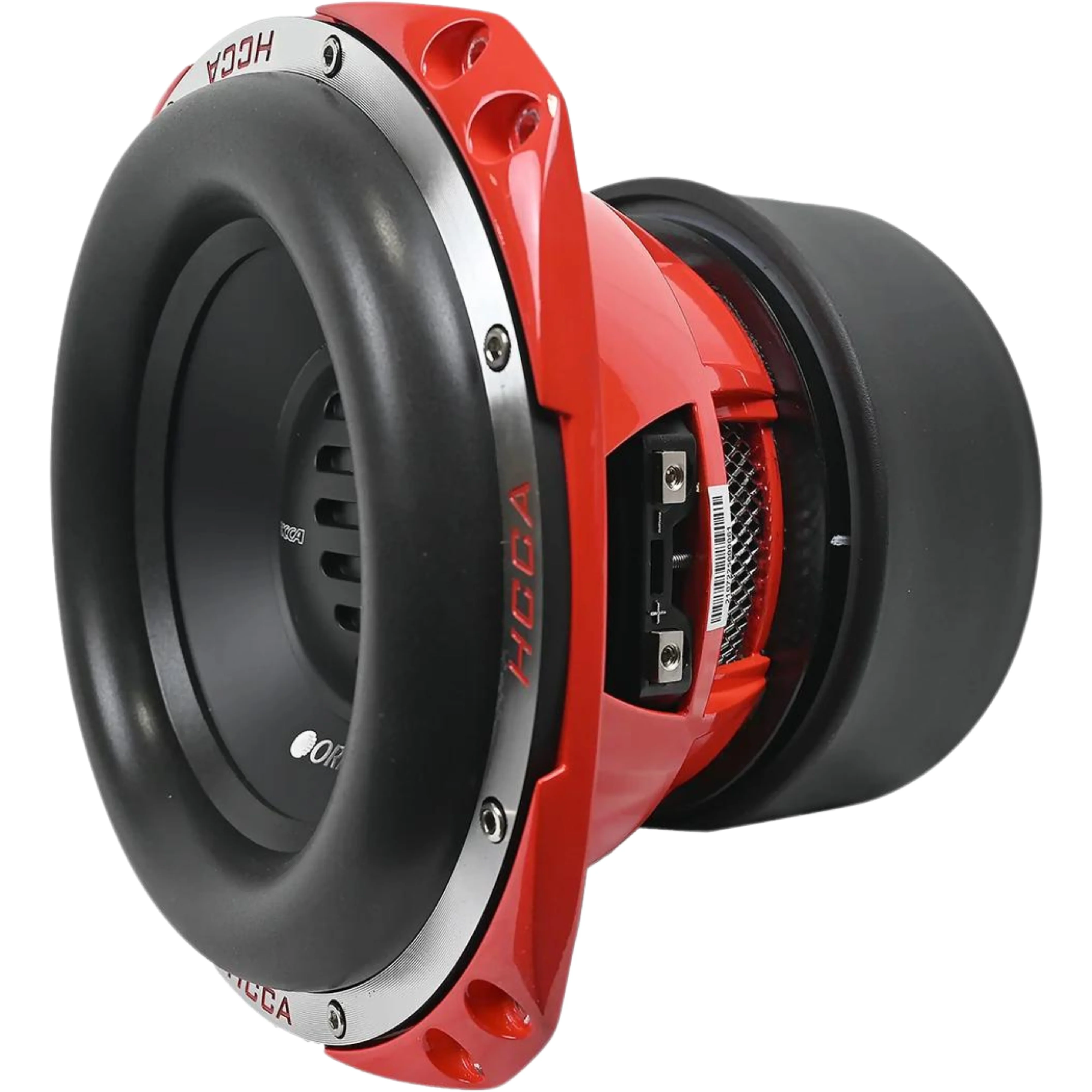

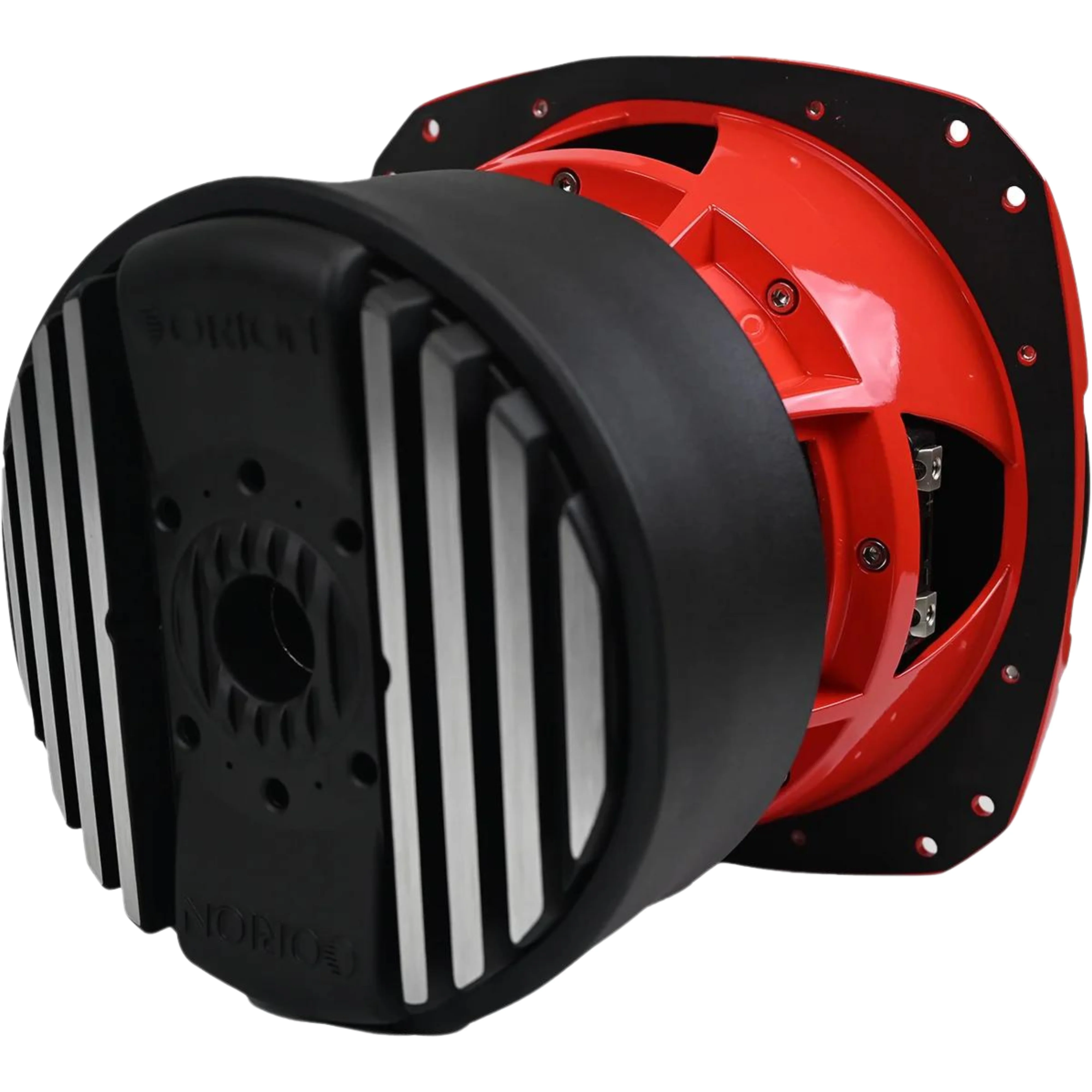

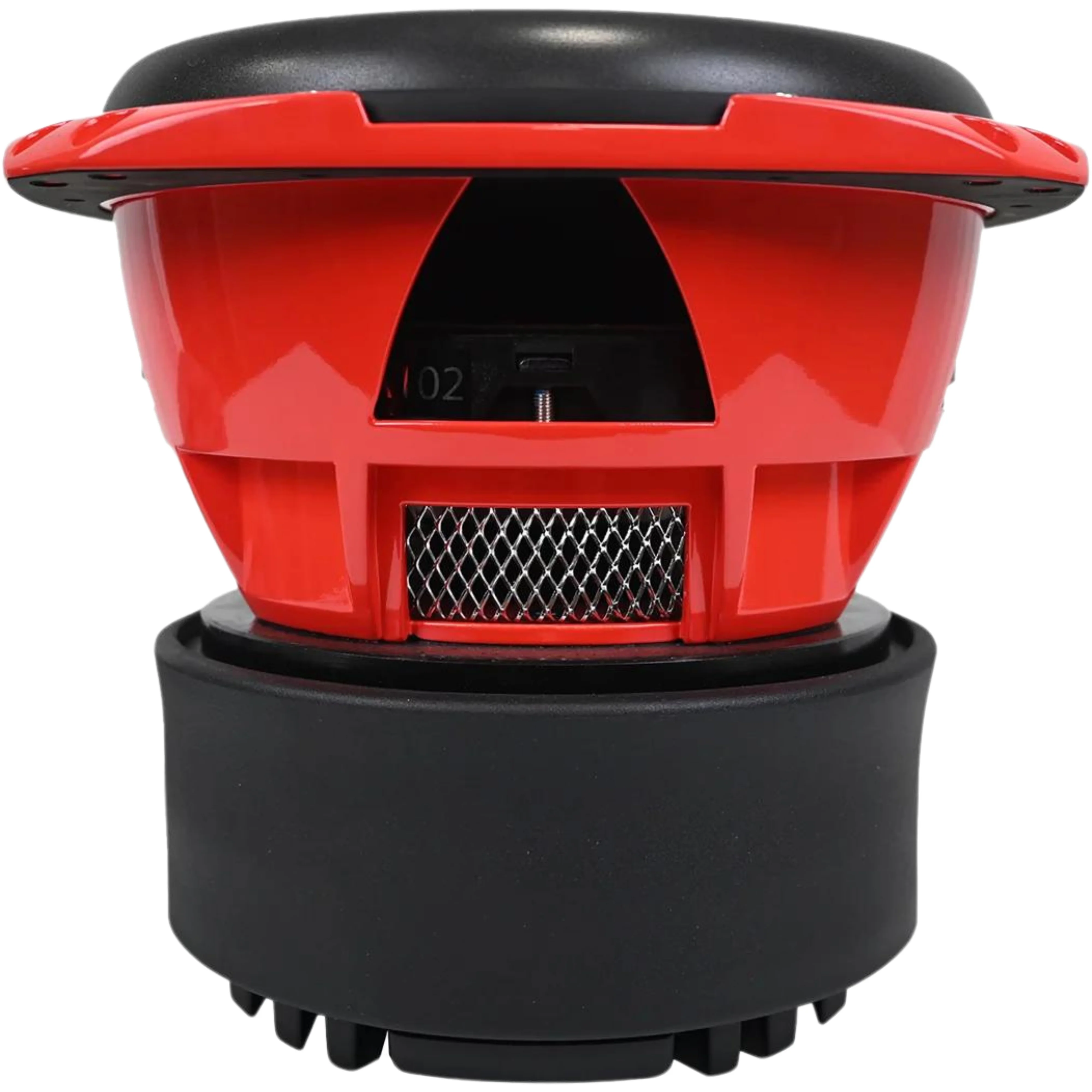

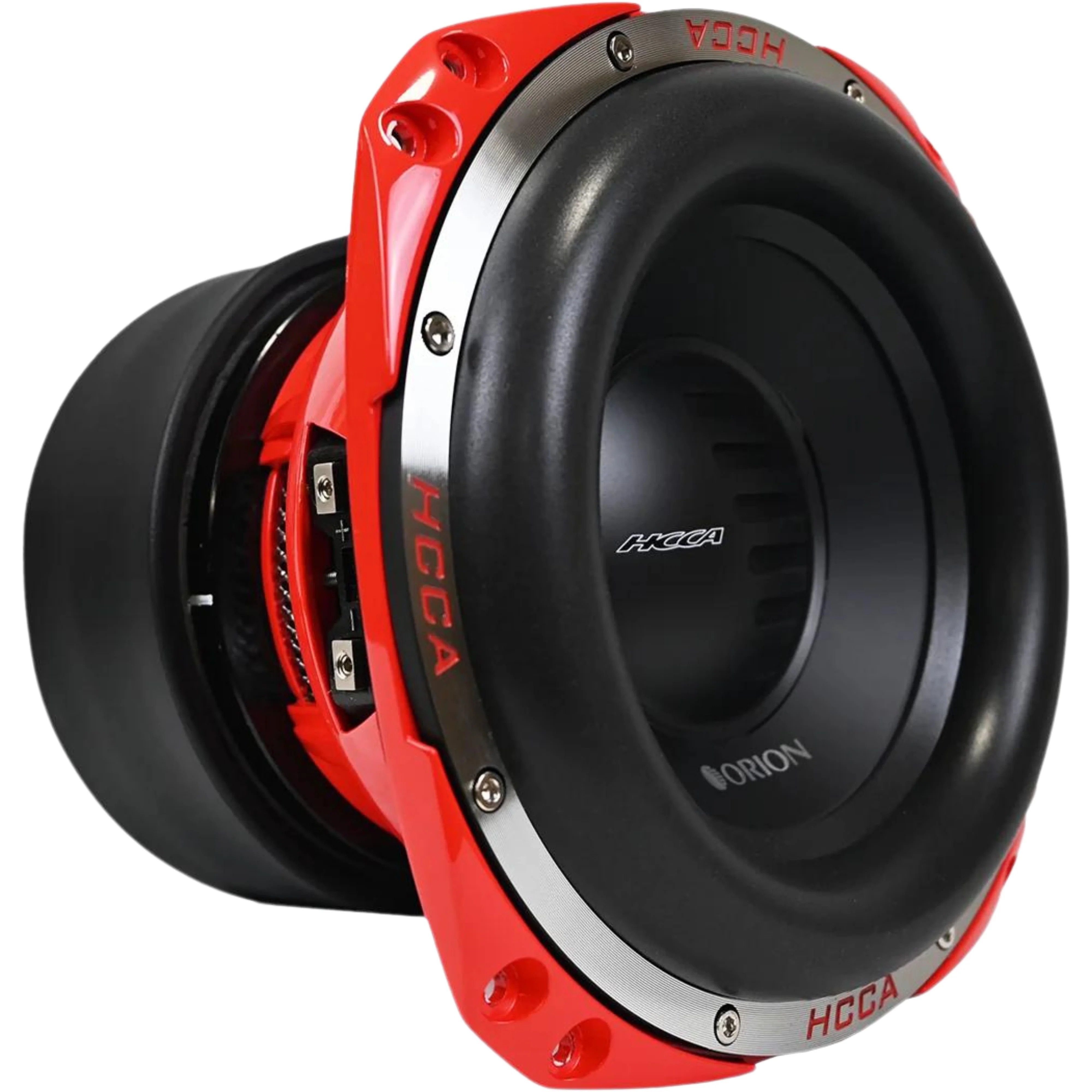

10" 2000W RMS / 8000W Peak 2-Ohm 3" DVC Subwoofer ORION HCAA Series /  HCCA102

This Listing Includes:

• (1) HCCA102 Subwoofer

Description:

Prepare to experience bass like never before with the ORION HCAA Series 10" Subwoofer. Engineered for those who demand extreme power and precision, this subwoofer delivers a massive 2000 watts RMS and an astounding 8000 watts peak power. With its dual 2-ohm voice coil configuration and a 3-inch DVC, this subwoofer is built to handle intense power levels, ensuring that every note hits with the kind of authority that shakes the ground. Whether you’re building a competition-grade system or just want to dominate the streets, the ORION HCAA Series subwoofer offers the ultimate in performance and reliability.

Download Owner's Manual

Enclosure Suggestions

Features:

• Competition-Grade Power: The Orion HCCA102 subwoofer is designed for intense competition, delivering a peak power of 8000 Watts and a robust RMS power of 2000 Watts, making it a powerhouse in any audio setup.
• Dual 2-Ohm Configuration: With a dual 2-ohm voice coil design, this subwoofer offers versatile wiring options, allowing you to optimize impedance for maximum performance.
• Precision Sound Reproduction: Crafted with a non-pressed paper cone and NBR rubber surround, this subwoofer ensures accurate and precise sound reproduction, even under high-power conditions.
• Deep Bass Response: Featuring a frequency response from 32 Hz to 100 Hz, the Orion HCCA102 subwoofer captures the deepest lows and delivers bass with exceptional clarity and resonance.
• Efficient Cooling System: Built with an advanced cooling system, this subwoofer effectively prevents overheating, ensuring consistent performance even during extended sessions.
• Flexible Wiring Options: The dual 2-ohm impedance allows for easy wiring to match your amplifier’s specifications, providing seamless integration into your sound system.
• Powerful Magnet Structure: Equipped with a high-quality ceramic magnet, this subwoofer generates strong magnetic fields, delivering powerful and precise bass that makes an impact.

Specifications:

• Subwoofer Size: 10" (Inches)
• Voice Coil Configuration: Dual 2-ohm
• Power Handling (Peak): 8000 Watts
• Power Handling (RMS): 2000 Watts
• Sensitivity: 86.51 dB
• Frequency Response: 32 Hz - 100 Hz
• Voice Coil Diameter: 3" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 264 Oz Triple Stack Ceramic

Measurements:

• Mounting Depth: 214mm / 8.425 (Inches)
• Cutout Diameter: 238mm / 9.37 (Inches)
• Overall Diameter: 268.5mm / 10.57 (Inches)
