• High power handling rated at 3,000 watts RMS with 6,000 watts peak for aggressive bass performance
• Massive 30mm Xmax delivers deep, controlled low frequency output without distortion
• Advanced X v4 coil design and heavy duty 9.25 inch motor provide strong thermal control and reliability
• Optimized for ported enclosures with recommended 1.5 cu ft tuning at 32 Hz for maximum output
• Built for serious daily and competition systems with proven Sundown Audio X-Series performance and durability

10" 3000 Watt RMS Dual 1 Ohm Car Audio Subwoofer Sundown Audio X-Series XV4

This Listing Includes:

• (1) X-Series XV4 10" Dual 1 Ohm Subwoofer

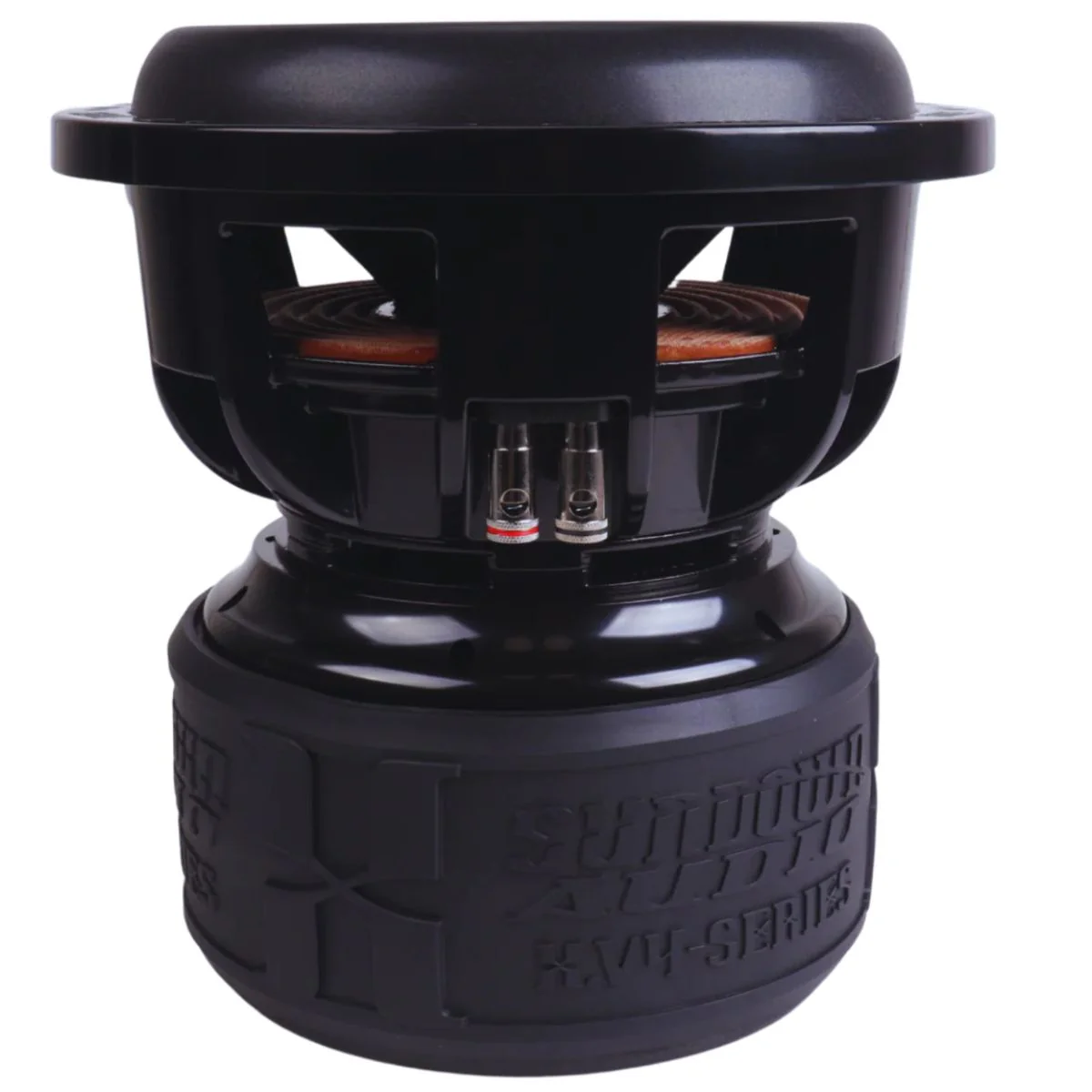

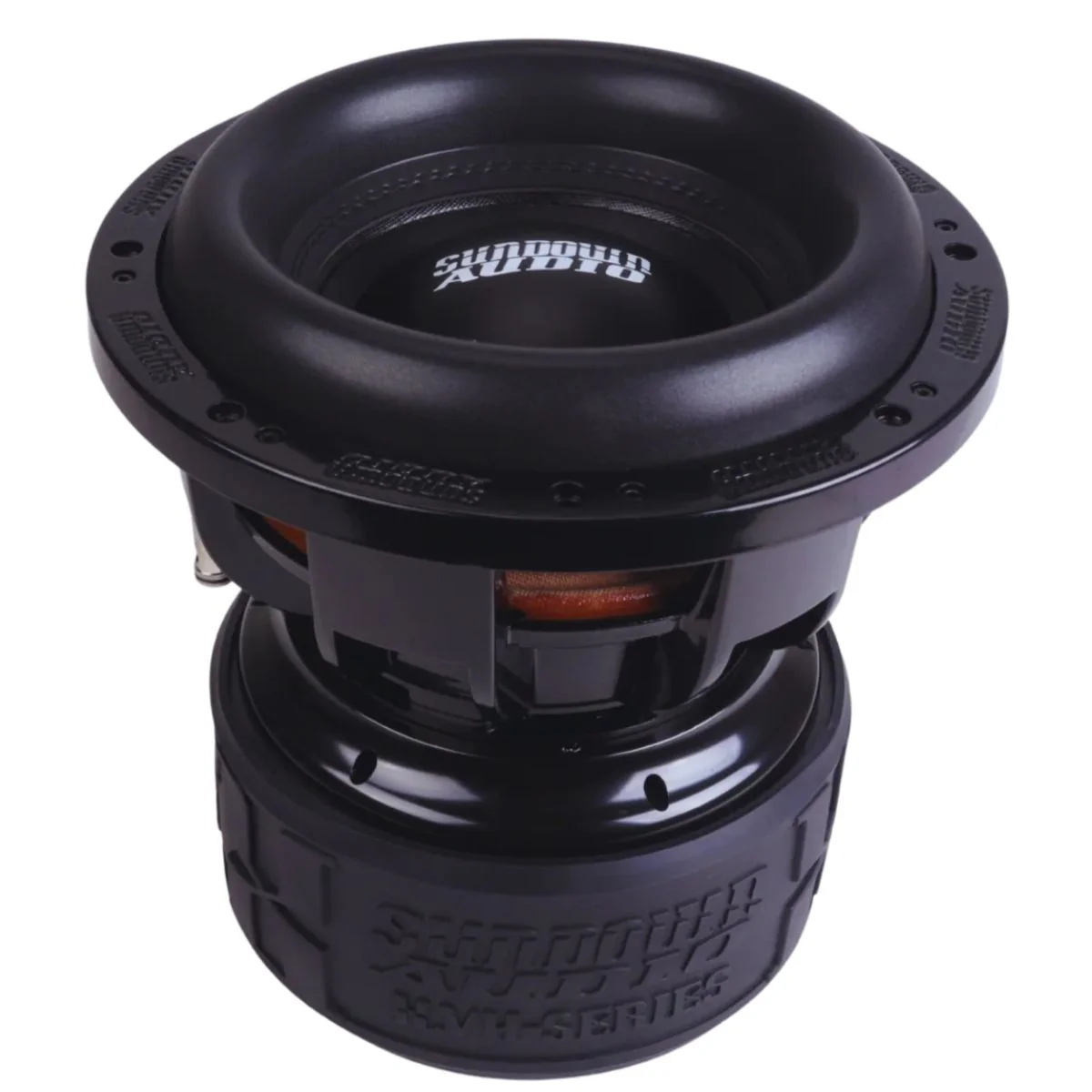

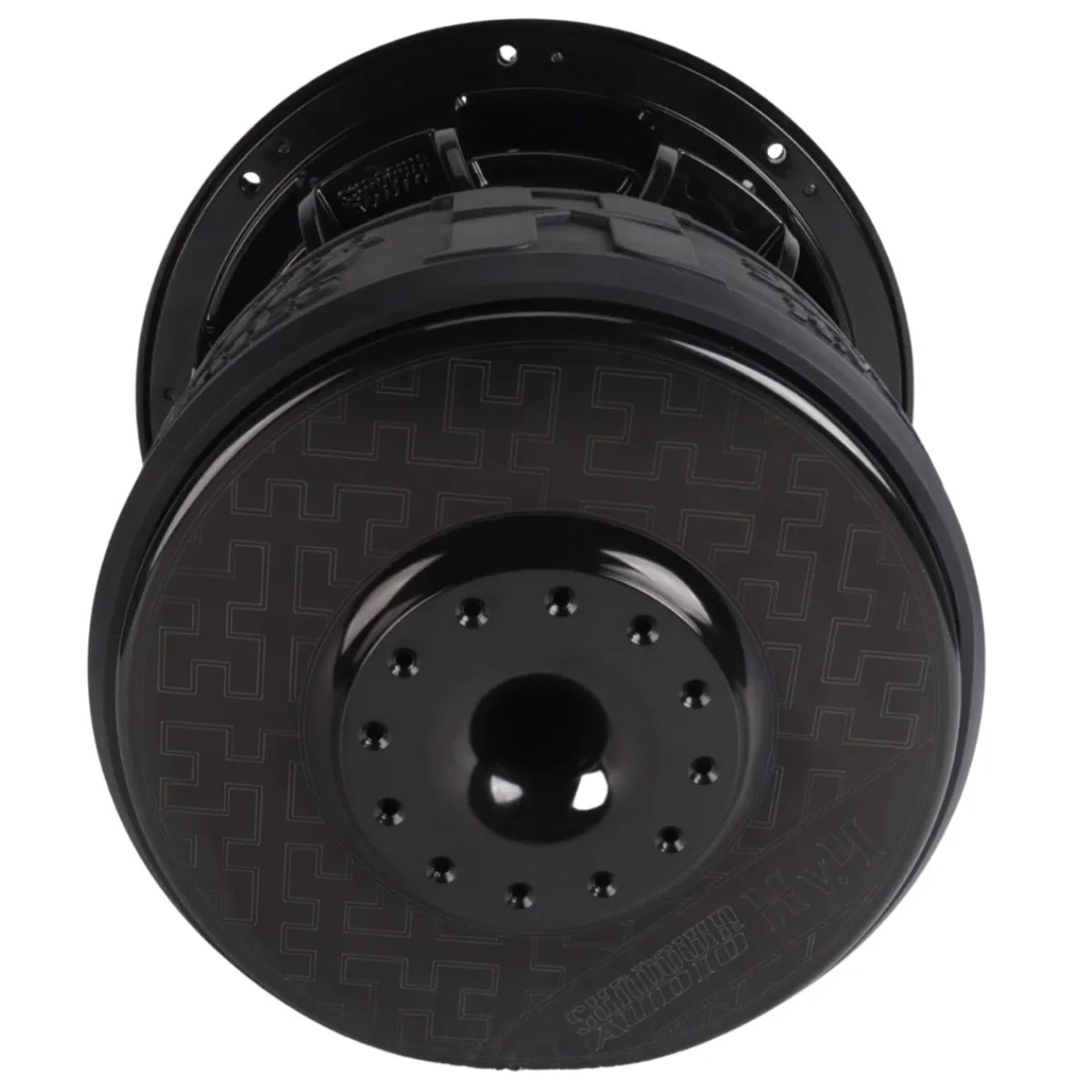

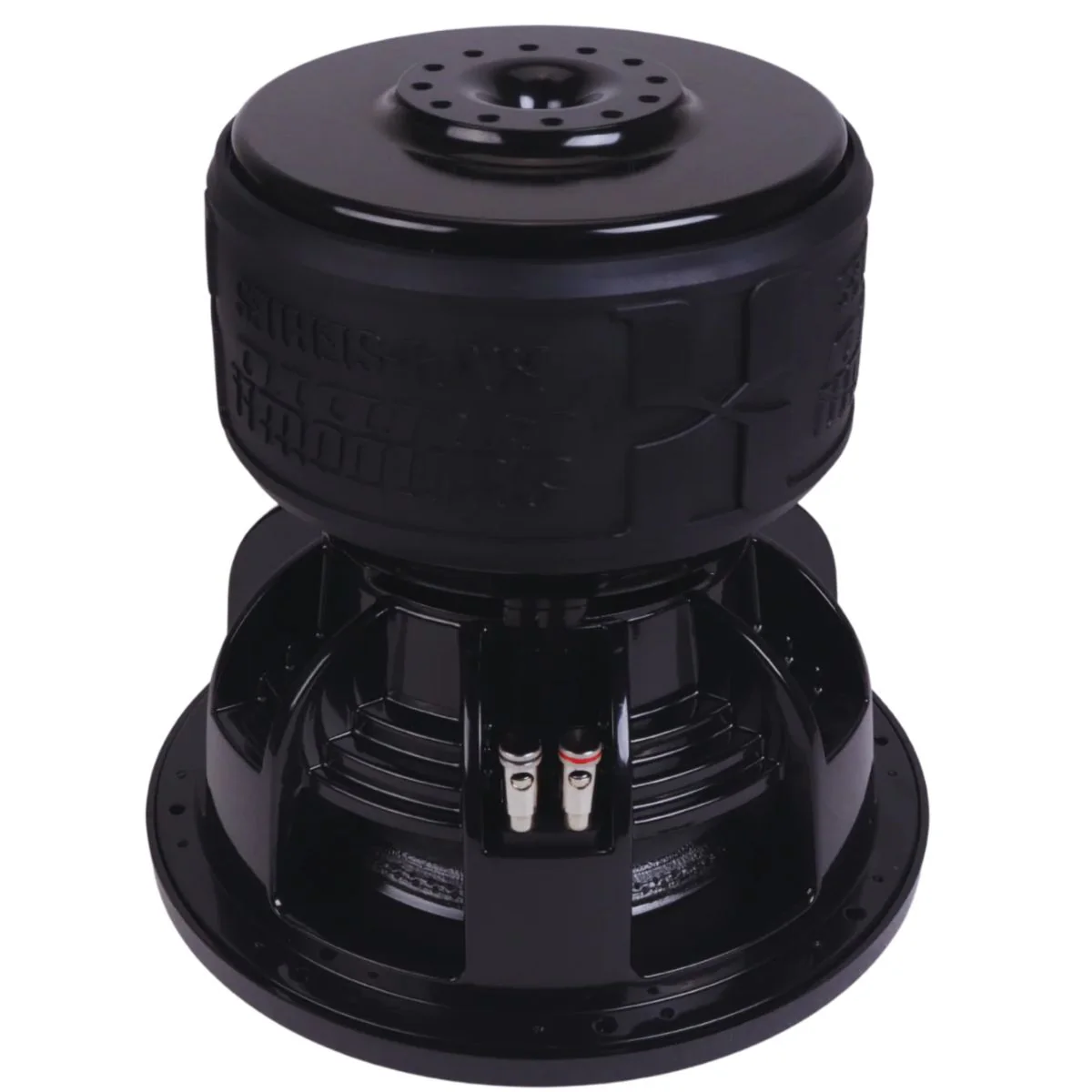

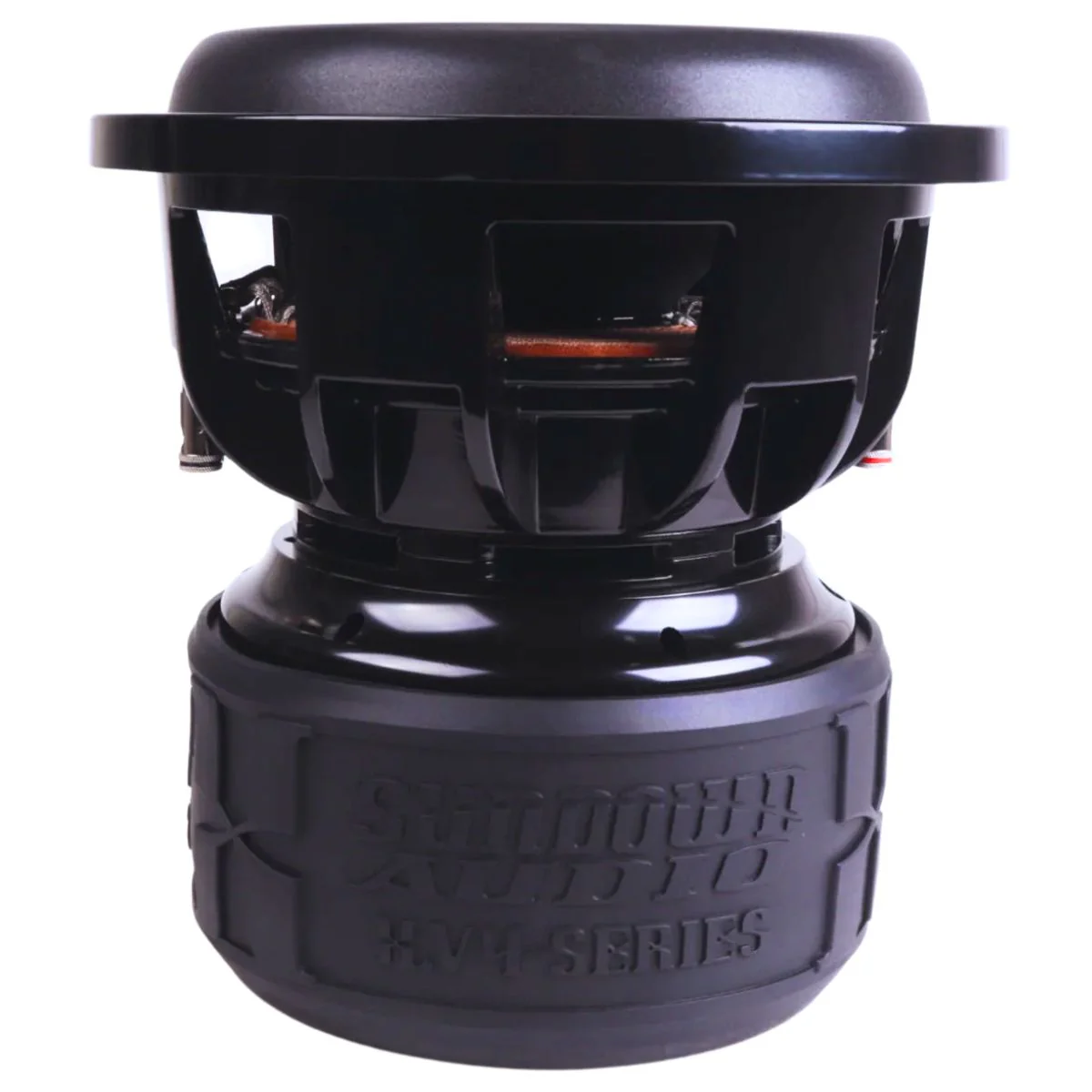

The Sundown Audio X-Series XV4 10" subwoofer is engineered for bass enthusiasts who want extreme output with control and durability. Rated at 3,000 watts RMS, this sub is built around advanced X v4 coil technology and a massive motor structure to deliver deep, aggressive low frequency performance without losing composure at high power levels.

With a full 30mm of linear Xmax, the XV4 is capable of serious excursion while maintaining clarity and mechanical stability. The optimized cone structure and heavy duty motor design provide excellent thermal management, allowing the subwoofer to perform consistently under extended high output use. Designed primarily for ported enclosures, the XV4 strikes an ideal balance between sound quality and sheer output, making it a strong choice for daily driven systems as well as competition focused builds.

Specifications:

• Subwoofer Size: 10 inch


• Series: X-Series XV4


• Voice Coil Configuration: Dual 1 Ohm


• RMS Power Handling: 3000 Watts


• Peak Power Handling: 6000 Watts


• Xmax: 30 mm


• Sensitivity: 81.76 dB


• Motor Diameter: 9.25 inches


• Displacement: 0.22 cu ft

T/S Parameters (D1 Only):

• Re: 3.2 Ohms


• Fs: 41.37 Hz


• Vas: 8.24 L


• Qes: 0.58


• Qms: 5.07


• Qts: 0.52


• Le: 2.68 mH


• BL: 22.19 NA


• Mms: 341.7 g


• Cms: 43.29 uM/N


• Sd: 35.63

Enclosure Recommendations:

• Sealed Enclosure: Not Recommended


• Ported Enclosure Volume: 1.5 cu ft


• Recommended Port Tuning: 32 Hz


• Recommended Port Area: 24 sq in

4th Order Enclosure Specs:

• Sealed Side Volume: 0.75 cu ft


• Ported Side Volume: 2.25 cu ft


• Port Area: 45 sq in


• Port Length: 8 inches

Dimensions:

• Overall Depth: 11 inches


• Outside Diameter: 11.81 inches


• Cutout Diameter: 10.01 inches


• Motor Diameter: 9.25 inches
