• All-in-One Bass Solution: Built-in Class D monoblock amp with a 10" shallow sub delivers 350W RMS and 700W peak power.
• Truck-Friendly Design: Slim sealed enclosure fits easily under or behind pickup seats without sacrificing sound quality.
• Smart Connectivity: High- and low-level inputs, RCA pass-through, and auto turn-on function eliminate the need for a REM wire.
• Tuned Performance: Precision frequency response from 30–250Hz and a -3dB point at 45Hz for deep, accurate bass.
• Protected & Easy to Install: Quick-connect terminals, 30A fuse, and built-in protection against heat, overload, and short circuits.

10" 350 W RMS Shallow Subwoofer Powered Enclosure w Remote DS18 PU110A

This Listing Includes

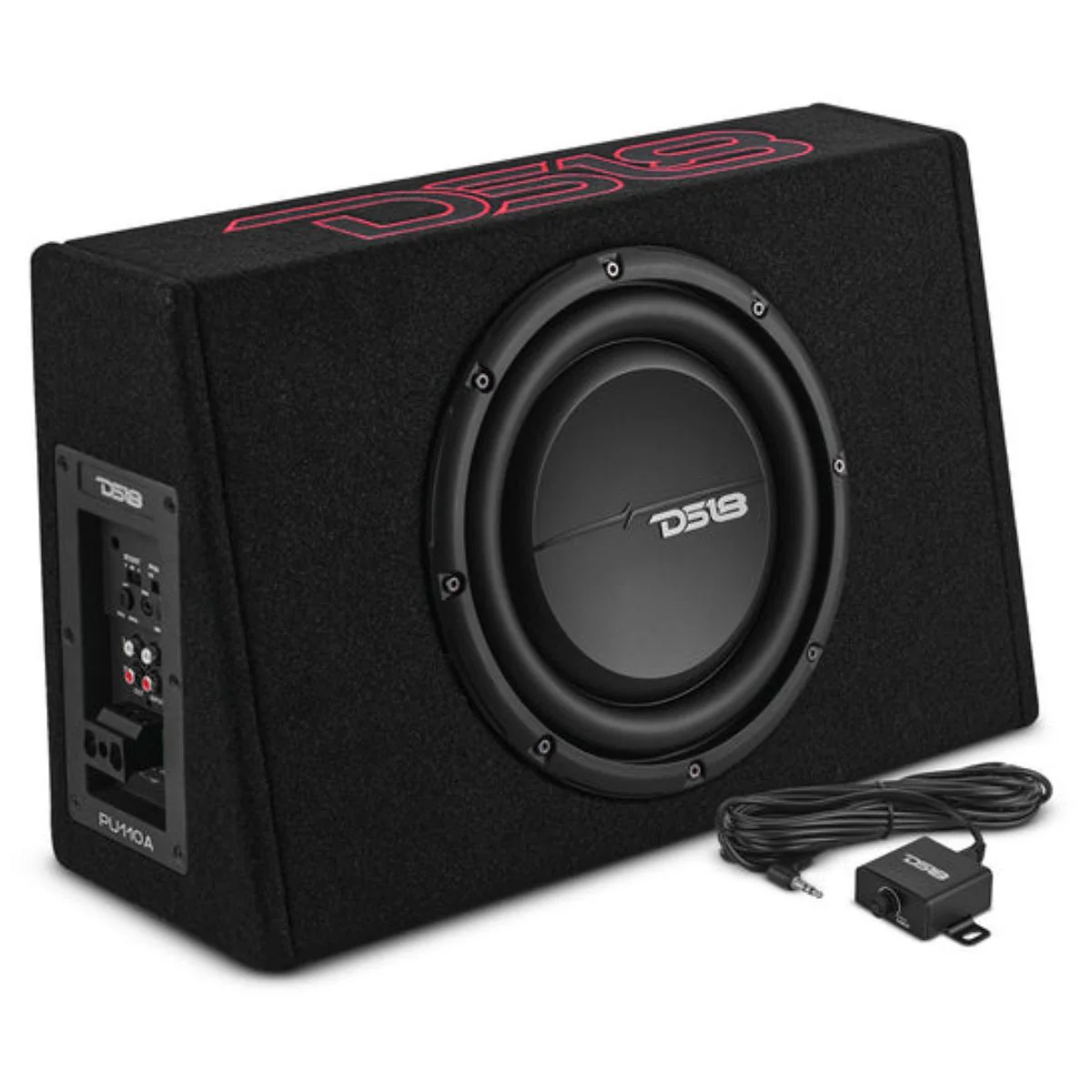

• (1) PU110A 10" Amplified Shallow Subwoofer Enclosure


• (1) Wired Remote Bass Control


• (1) Power and Signal Harness with Quick Connector


• (1) User Manual

Bass Made Easy!

The PU110A is a complete under-seat powered subwoofer solution designed for pickup trucks and tight spaces. This all-in-one system combines a 10" shallow-mount subwoofer with a built-in digital Class D monoblock amplifier, delivering 350 watts RMS and 700 watts peak power for rich, dynamic bass.

Built for convenience, the PU110A includes both high- and low-level inputs, RCA pass-through, auto turn-on with high-level input (no REM wire needed), and a wired bass knob for remote control. Its sealed 0.48 cu.ft enclosure is precision-tuned to 45Hz (-3dB) for smooth, deep, and responsive low frequencies from 30Hz to 250Hz.

Specifications:

• Speaker Type / Size: 10" / 261 mm


• RMS Power Handling: 350W


• MAX Power Handling: 700W


• Sensitivity (1W/1M): 85 dB


• Frequency Response: 30 Hz - 250 Hz


• Nominal Impedance: 2 Ohms


• Voice Coil Diameter: 1.5" / 38.6 mm


• Voice Coil Former Material: Aluminum


• Winding Material: Copper


• Cone Material: IPP


• Surround Material: Rubber


• Basket Material: Steel


• Magnet Material: Ferrite (40 Oz)

Amplifier:

• Class: Digital Class D


• Configuration: Monoblock Subwoofer


• Minimum Impedance: 2 Ohms


• Signal to Noise Ratio: 75 dB


• Efficiency @ 4 Ohm: 75%


• THD: 0.30%


• Low Level Input Range: 0.1 - 0.6V


• High Level Input: Yes (Auto Turn-On)


• Selectable X-Over: LPF Fixed (50 - 200 Hz)


• Bass Boost: 0 - 6 dB @ 50 Hz


• Phase Selector: 0 - 180


• Remote Level Control: Included


• Fuse Size: 30A


• Power Input Terminal: 8GA Quick Connector


• Protection Features: Thermal (75C / 167F), Overload, DC Output, Short Circuit, Voltage (<9V/>16V)


• RCA Pass-Through: Yes

Enclosure Specifications:

• Type: Sealed Box


• Internal Volume: 13 L / 0.48 ft


• Load Configuration: Single 2-Ohm


• Box Material: 5/8" (15 mm) MDF


• Finish: Black Carpet


• -3dB Point: 45 Hz

Dimensions:

• Height: 12 in


• Width: 20 in


• Top Depth: 4.25 in


• Bottom Depth: 7 in
