• Powerful Performance: The DS18 PU210A delivers exceptional midbass response, perfect for building a powerful audio system
• Durable Design: Constructed with a high-strength steel basket, ensuring longevity and reliability in any setup
• Efficient Cooling: Equipped with a high-temperature voice coil for enhanced heat dissipation, ensuring maximum output without distortion
• High Sensitivity: Designed with a high sensitivity rating to achieve louder output with less power, providing an efficient sound solution
• Sleek Aesthetic: The eye-catching design with a black dust cap and carbon fiber style enhances the look of any car audio system

10" 350 Watts RMS 2 Ohm Midbass Shallow Subwoofer Enclosure with Bass Knob

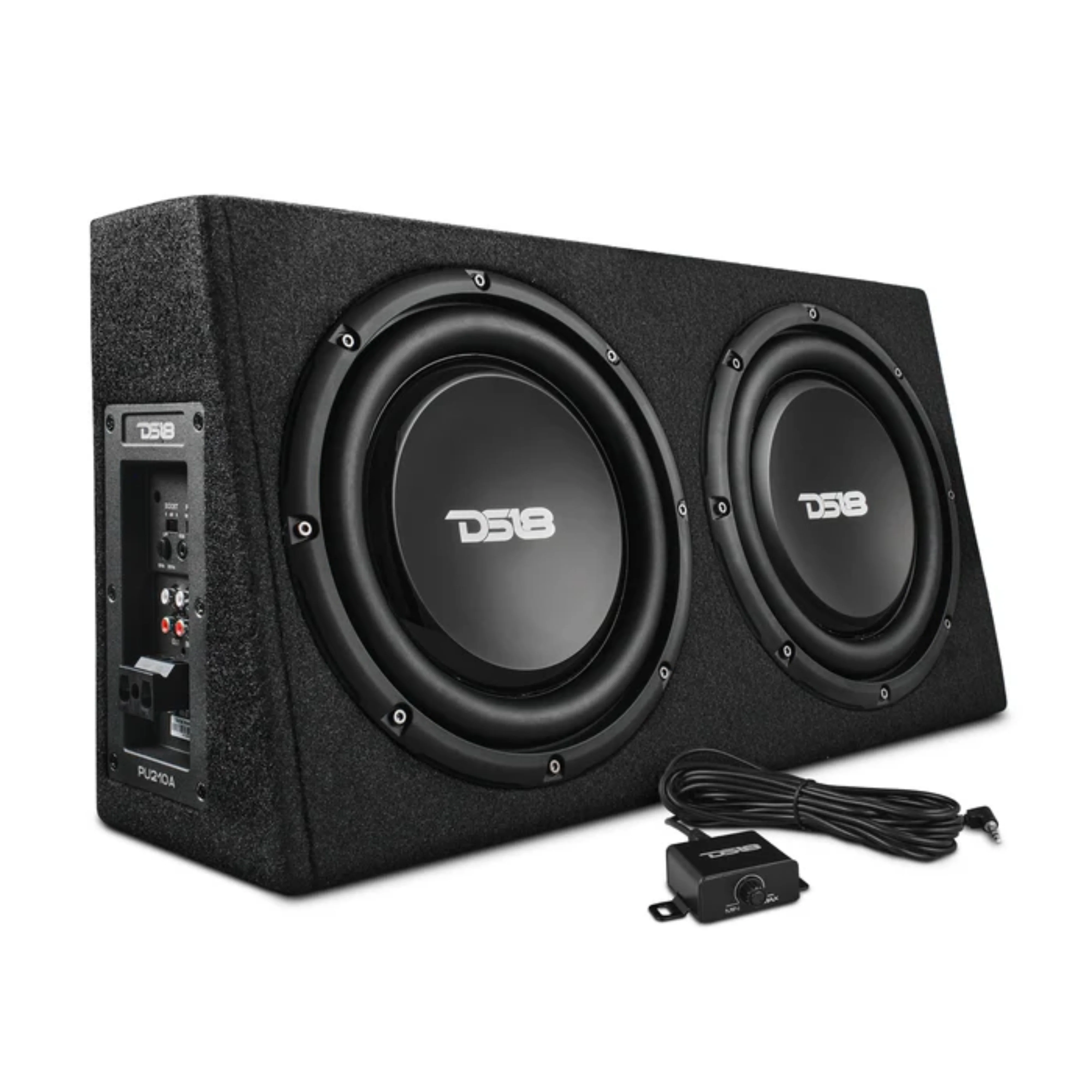

This Listing Includes

• (1) DS18 PU210A 10" High-Performance Midbass Subwoofer


• (1) Class D - Bass Knob

Transform your car audio system with the DS18 PU210A 10" High-Performance Midbass Subwoofer. Designed for those who demand powerful sound and deep bass, this subwoofer offers impressive performance with a sleek, durable design. Whether you're upgrading your factory system or fine-tuning your custom setup, the PU210A delivers exceptional sound quality and efficiency. Its compact size and high-power handling make it a perfect fit for shallow enclosures, ensuring clear, punchy bass without sacrificing space.

Features

• Powerful Performance: The DS18 PU210A delivers exceptional midbass response, perfect for building a powerful audio system


• Durable Design: Constructed with a high-strength steel basket, ensuring longevity and reliability in any setup


• Efficient Cooling: Equipped with a high-temperature voice coil for enhanced heat dissipation, ensuring maximum output without distortion


• High Sensitivity: Designed with a high sensitivity rating to achieve louder output with less power, providing an efficient sound solution


• Sleek Aesthetic: The eye-catching design with a black dust cap and carbon fiber style enhances the look of any car audio system


• Easy Integration: Perfect for use with a variety of amplifiers and car audio systems for a seamless installation

Specifications

• Speaker Type / Size: 10" Active + 10" Passive (261+261mm)


• RMS Power Handling (14.4V): 350W


• MAX Power Handling (14.4V): 700W


• Sensitivity (1w/1m): 87dB


• Frequency Response: 30-250Hz

Speaker Specifications

• Voice Coil Diameter: 1.5" / 38.6mm


• Voice Coil Former Material: Aluminum


• Winding Material: EISV


• Cone Material: IPP


• Surround Material: Rubber


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 40 Oz

Amplifier Specifications

• Amplifier Class: Digital


• Amplifier Type: Monoblock Subwoofer


• Number of Channels: 1CH


• Minimum Impedance: 2-ohms


• Signal to Noise Ratio: 75 dB


• Efficiency @ 4ohm: 75%


• Low Level Input Range: 0.1-0.6V


• Selectable X-Over: LPF Fixed


• X-Over Filter Range: 50-200Hz


• Bass Boost Range: 0-6 dB


• Bass Boost Frequency: 50Hz


• LED Indicator: Power / Protection


• Power Input Terminal Size: 8Ga (Quick Connector)


• Fuse Size: 30A


• Remote Level Control: Yes


• Thermal Protection: Yes (75C / 167F)


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (<9v, >16v)


• Signal Output (Pass-Through RCA): Yes

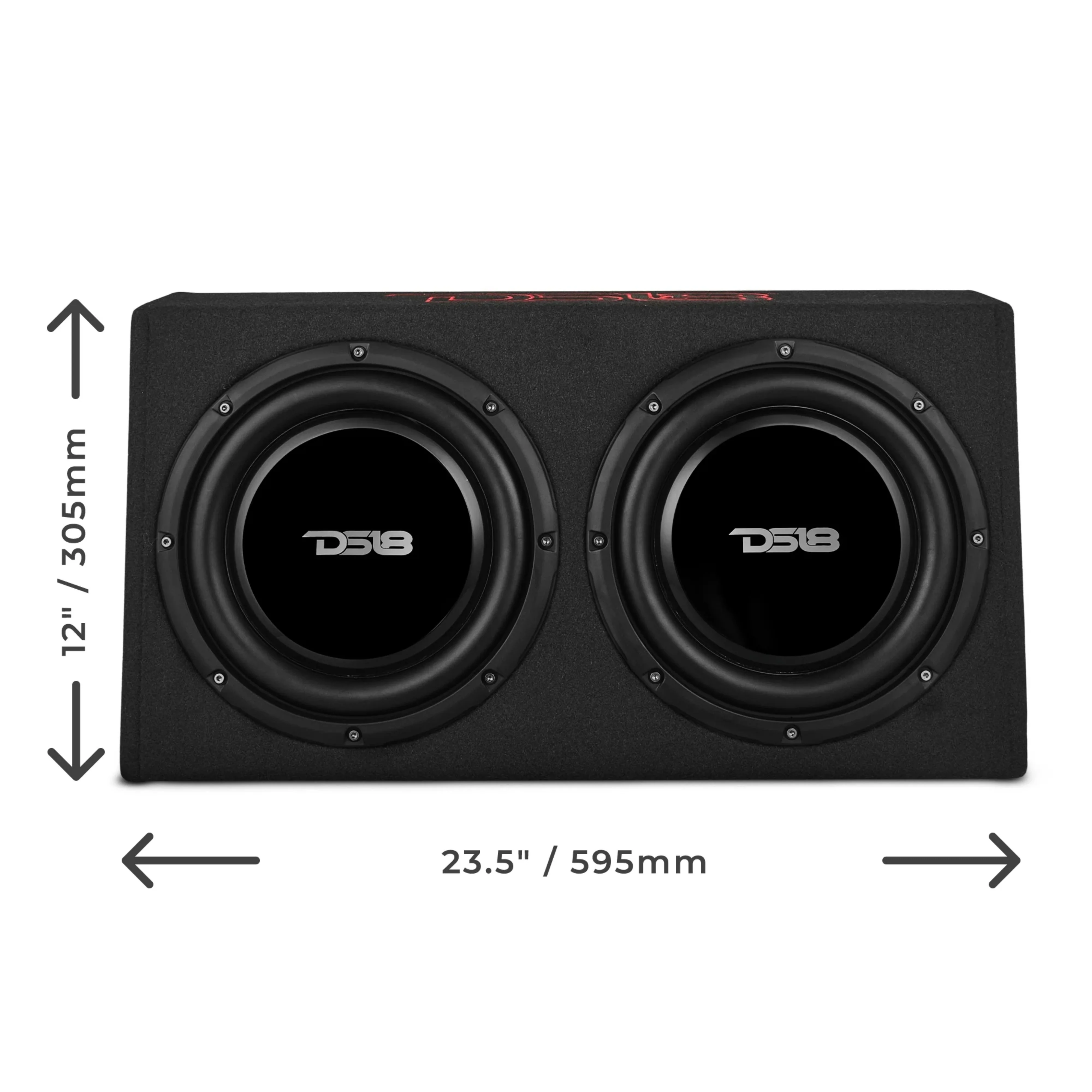

Dimensions

• Height: 12"


• Width: 23.5"


• Depth 1 (Top): 4.25"


• Depth 2 (Bottom): 7"
