• High Power Handling 500 watts RMS power handling for loud, distortion-free audio
• Neodymium Magnet Offers a lightweight and efficient magnet design for powerful sound without sacrificing weight
• 8-Ohm Impedance Compatible with most car audio systems for optimized sound performance
• Mid-Range Frequency Response Enhances clarity and balance in your audio setup, specifically tuned for midrange frequencies
• Durable Construction Built to endure high-power audio environments with quality materials for long-lasting performance
• Versatile Applications Perfect for subwoofer enclosures, custom car audio builds, and premium car audio setups

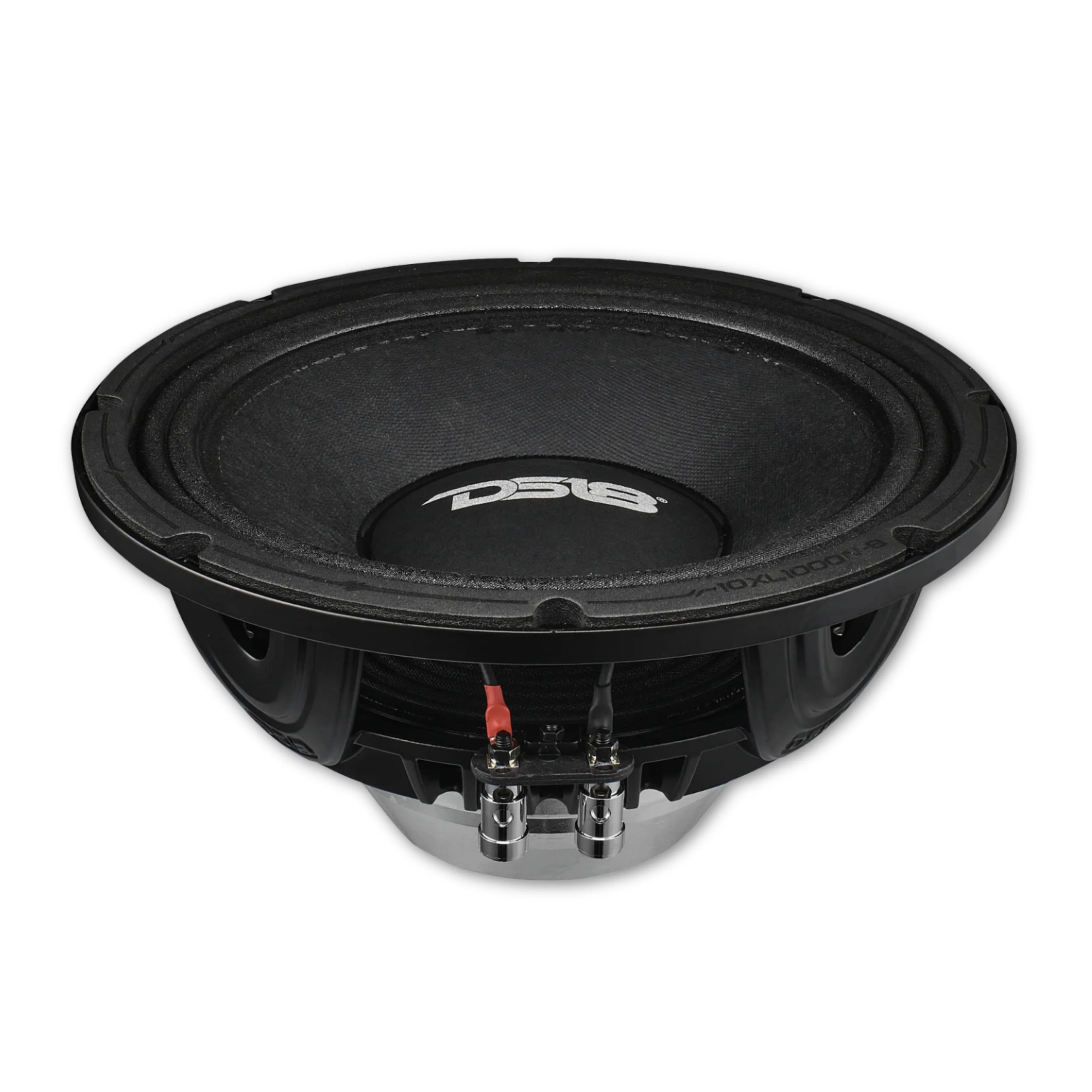

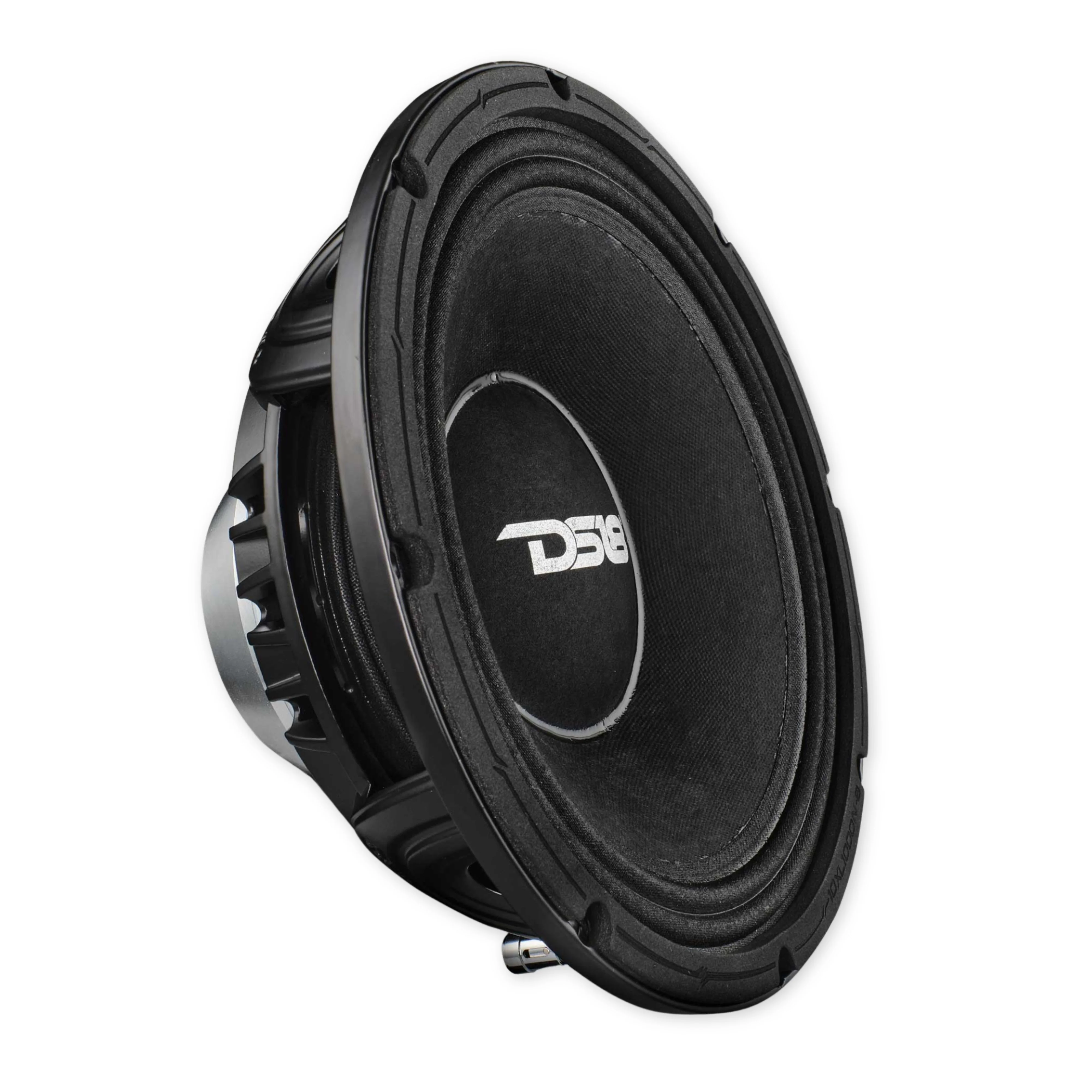

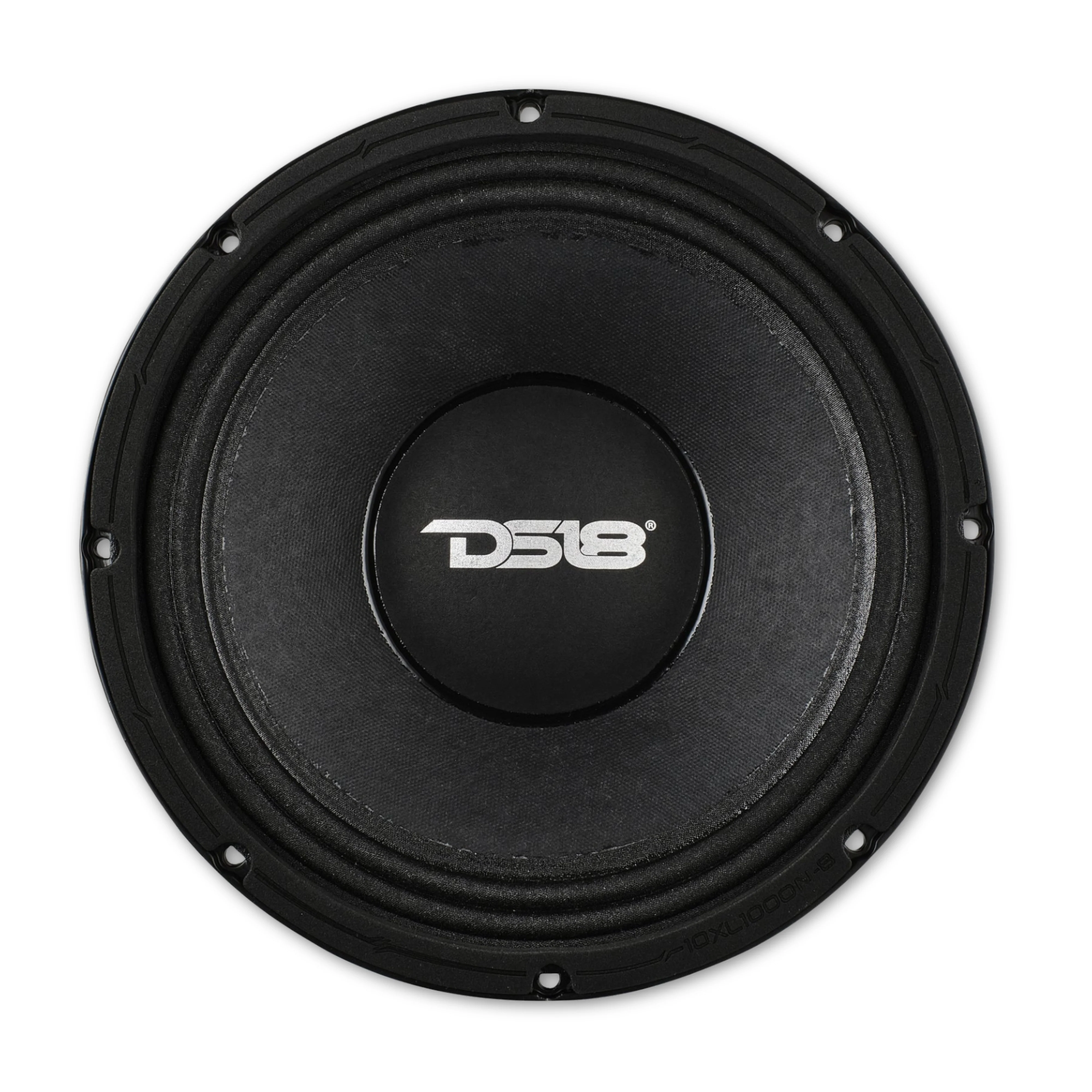

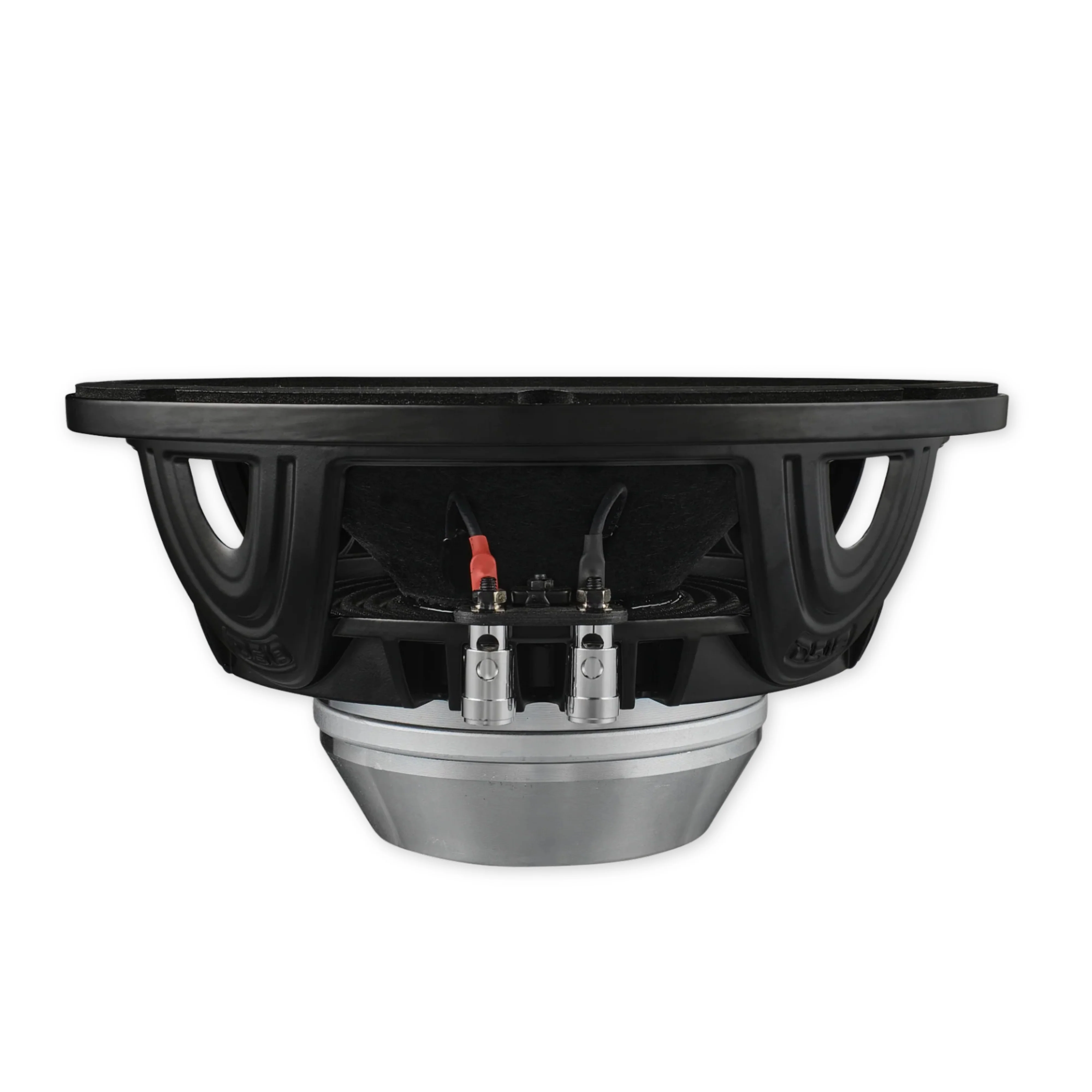

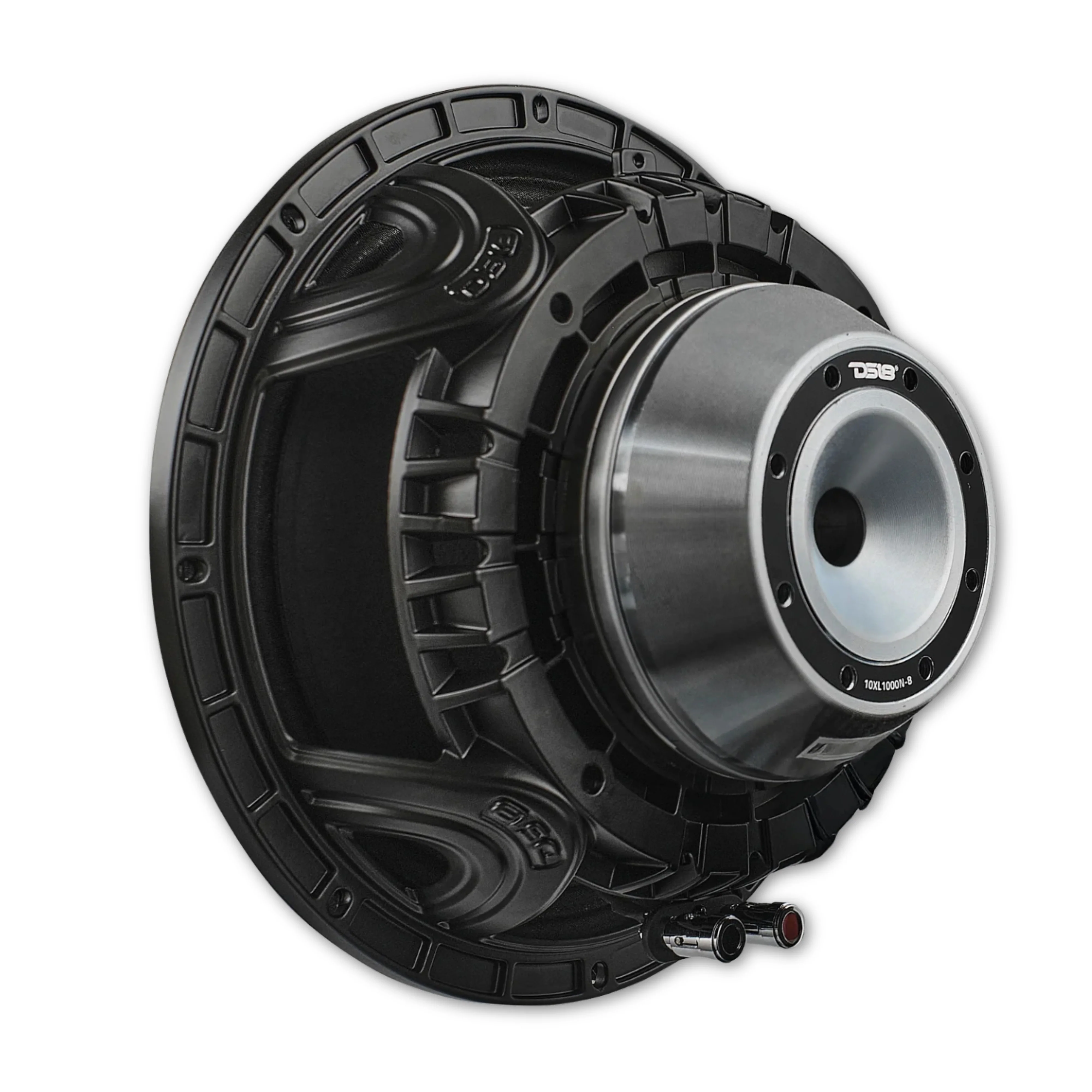

10" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

This Listing Includes

• (1)10" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

This 10" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet delivers exceptional clarity and performance for high-powered audio setups. Designed with a focus on midrange frequencies, it's perfect for custom car audio installations, subwoofer enclosures, and premium car audio builds. Featuring a lightweight yet powerful neodymium magnet, this speaker provides an efficient, durable solution for serious audio enthusiasts.

Features

• High Power Handling 500 watts RMS power handling for clear, loud audio


• Neodymium Magnet Light and efficient magnet for superior sound output


• 8-Ohm Impedance Compatible with various car audio systems for optimal performance


• Mid-Range Frequency Response Perfect for enhancing midrange audio and achieving well-balanced sound


• Durable Design Built to withstand high-power audio applications


• Versatile Ideal for subwoofer enclosures, high-performance audio systems, and custom car audio installations

Specifications

• RMS Power Handling 500 watts


• MAX Power Handling 1000 watts


• Sensitivity (1w/1m) 101dB


• Frequency Response 80Hz-5KHz


• Recommended High-Pass Crossover 120Hz


• Sold in Pair or Single Single


• Interleaved Sandwich Voice Coil (ISV) No


• Demodulating Rings Yes


• Improved Heat Dissipation Yes


• Cone Shape Curvilinear


• Speaker Terminals Push 12ga


• Voice Coil Diameter 3" / 76.2mm


• Voice Coil Former Material Kapton


• Winding Material CCAW


• Cone Material Non-pressed Paper


• Dust Cap Material Paper


• Bullet Material N/A


• Bullet Color/Finish N/A


• Surround Material Cloth


• Spider Diameter 5" / 127mm


• Leads Type Direct to Cone


• Basket Material Aluminum


• Basket Color/Finish Satin Black


• Magnet Material Neodymium


• Magnet Weight 11 Oz


• Displacement Volume 0.04L / 0.0014ft3


• Equivalent Volume Vas 35.45L / 1.25ft3


• Excursion (one way) Xmax 6mm


• Free Air Resonance Fs 70Hz


• Mechanical Factor Qms 5.87


• Electrical Factor Qes 0.23


• Total Factor Qts 0.23


• Mechanical Mass Mms 34g


• Mechanical Compliance Cms 0.21mm/N


• BL Factor BL 18


• Voice Coil Inductance Le 0.25mH


• Cone Area Sd 346.36cm2


• DC Resistance Re 5.6 ohm


• Mechanical Mass w/o air Mmd 30g

Dimensions

• Overall Diameter 10.3" / 261.5mm


• Overall Depth 5.1" / 129mm


• Front Mount Baffle Cutout 9.2" / 233mm


• Mounting Depth 4.57" / 116mm


• Motor Diameter 5.16" / 131mm
