• Pre-loaded DS18 IXS10.4D 10” shallow subwoofer rated 600W RMS / 1200W MAX
• Vehicle-specific fit for 4-door Can-Am Maverick X3 2017-2026 rear driver side
• Sealed enclosure delivers tight, hard-hitting bass in compact under-seat space
• Off-road ready build is water-resistant and vibration-resistant for rough terrain
• Expandable bass system, pair with front and rear enclosures for full-cabin coverage

10" 600W RMS Under-Seat Sub Enclosure Can-Am Maverick X3 4-Door Rear Driver Side

This Listing Includes:

• (1) Rear driver-side under-seat sealed subwoofer enclosure


• (1) Pre-installed DS18 IXS10.4D 10 inch shallow-mount subwoofer

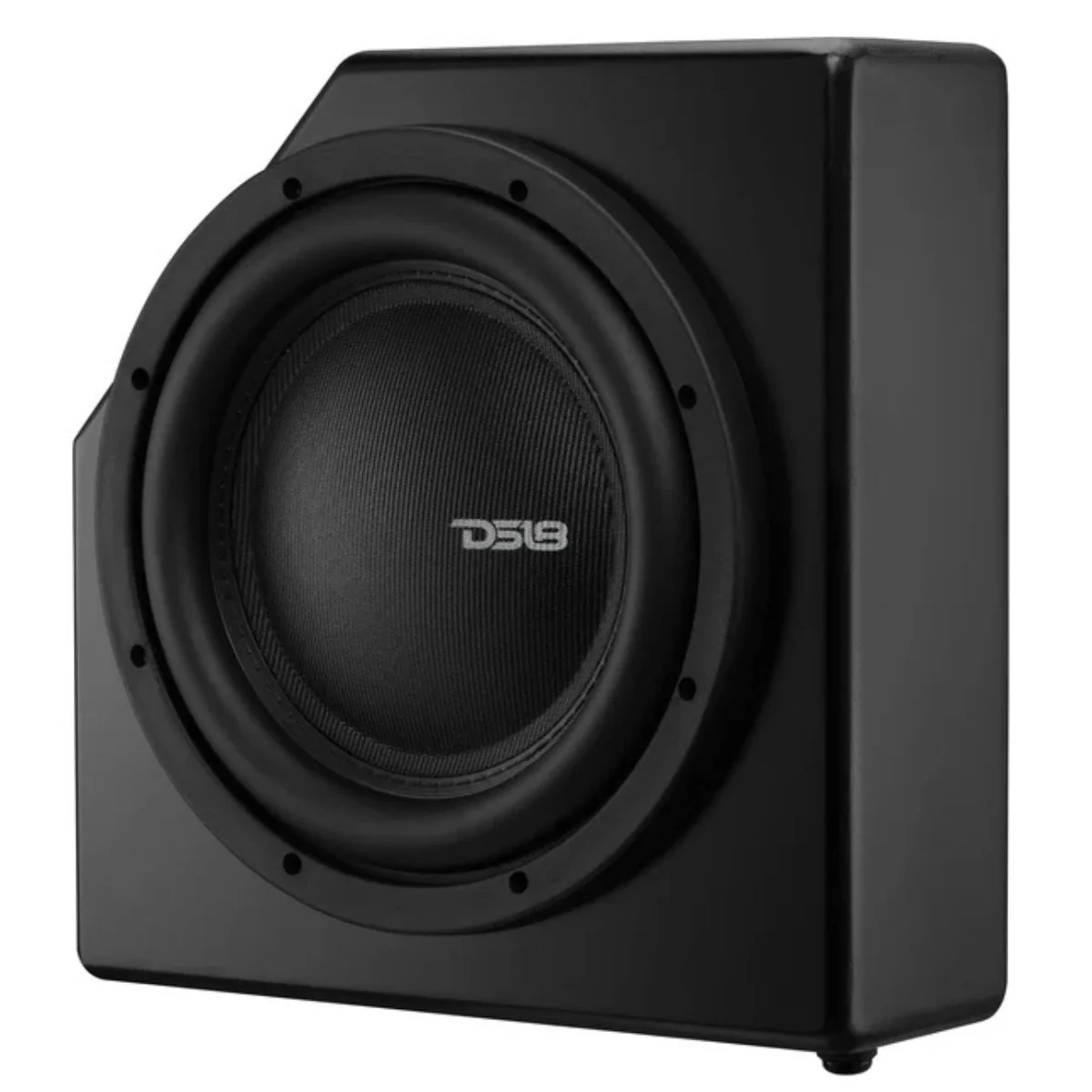

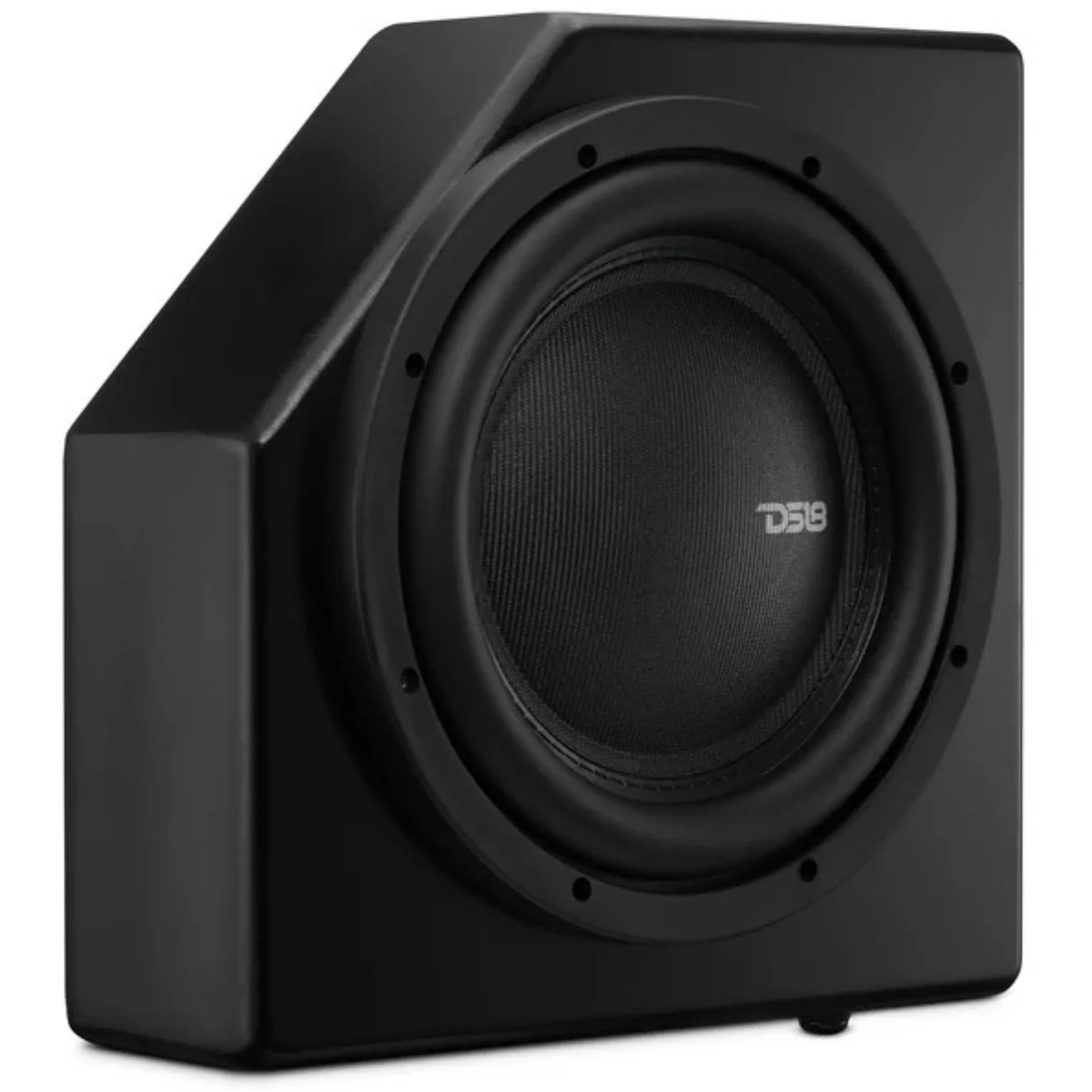

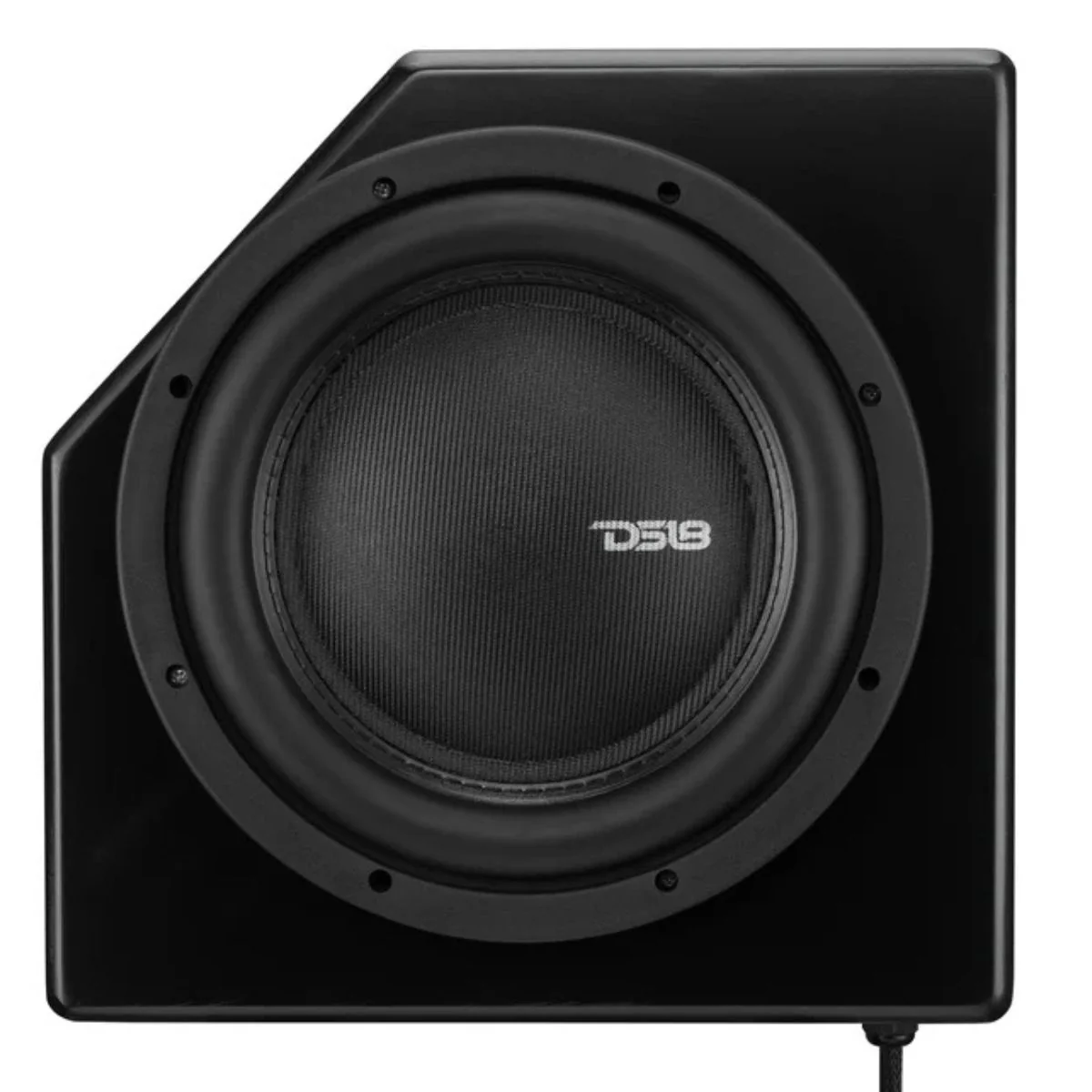

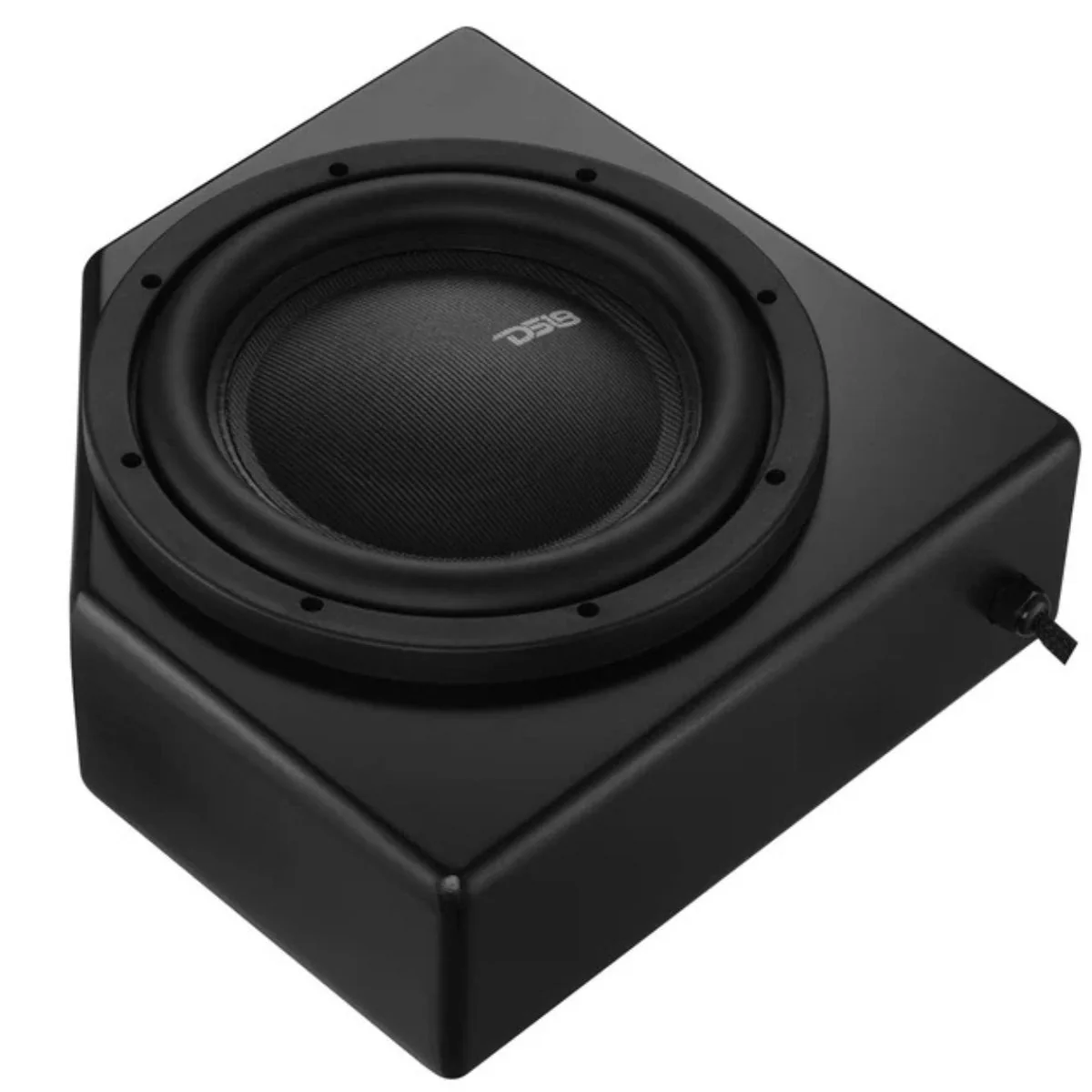

Bring powerful, balanced bass to the rear of your Can-Am Maverick X3 with the DS18 CA-X3BASS10LD/DB. Designed specifically for the rear driver-side under-seat location on 4-door Maverick X3 models from 2017 to 2026, this enclosure delivers hard-hitting low-end performance for rear passengers without sacrificing cabin space.

This enclosure comes pre-loaded with the DS18 IXS10.4D 10 inch shallow-mount subwoofer, rated at 600 watts RMS and 1200 watts max. Tuned for sealed applications and tight spaces, it produces deep, punchy bass that fills the cabin and keeps the back seats just as loud as the front.

Built for real off-road use, the enclosure features a sealed, water-resistant, and vibration-resistant design. It stays secure and protected through dust, mud, bumps, and aggressive riding conditions, ensuring consistent bass performance wherever the trail takes you.

The CA-X3BASS10LD/DB is part of DS18’s full-cabin bass solution for the Maverick X3. Pair it with the rear passenger-side enclosure and add the front driver and passenger enclosures to create a complete four-enclosure system that surrounds every rider with powerful low-end.

Specifications:

• Vehicle Fitment: 4-Door Can-Am Maverick X3 (2017-2026)


• Mounting Location: Rear driver-side under seat


• Enclosure Type: Sealed under-seat subwoofer enclosure


• Subwoofer Included: DS18 IXS10.4D 10 inch shallow-mount


• RMS Power Handling: 600 Watts


• Max Power Handling: 1200 Watts


• Construction: Water-resistant, vibration-resistant off-road design


• Material: Rotomolded polyethylene enclosure with steel mounting hardware

Subwoofer Specifications (Pre-Installed DS18 IXS10.4D):

• The enclosure comes factory-loaded with the DS18 IXS10.4D 10 inch shallow-mount subwoofer, engineered for high output in compact spaces and ideal for under-seat applications.


• Subwoofer Model: DS18 IXS10.4D


• Nominal Diameter: 10 inch (254 mm)


• Voice Coil Configuration: Dual 4 Ohm (4 + 4 Ohm)


• RMS Power Handling: 600 Watts


• Maximum Power Handling: 1200 Watts


• Sensitivity: 84 dB (1W/1m)


• Frequency Response: 20 to 800 Hz


• Recommended Low Pass Crossover: 90 Hz

Motor and Build Details:

• Voice Coil Diameter: 2.5 inch


• Voice Coil Former: Aluminum


• Winding Material: Copper


• Cone Material: Paper


• Dust Cap Material: Fiberglass


• Surround Material: Stitched Rubber


• Basket Material: Aluminum


• Basket Finish: Corrugated Black


• Magnet Type: Ferrite


• Magnet Weight: 62 oz


• Displacement Volume: 0.9 L / 0.032 ft

Thiele and Small Parameters:

• Fs: 38 Hz


• Qts: 0.816


• Vas: 18.67 L / 0.66 ft


• EBP: 37.9

Recommended Enclosure Performance:

• Minimum Sealed Volume: 14.2 L / 0.5 ft


• Sealed Enclosure F3: 44 Hz

Subwoofer Dimensions and Weight:

• Overall Diameter: 10.63 inch


• Overall Depth: 4.48 inch


• Mounting Depth: 3.66 inch


• Cutout Diameter: 9.25 inch


• Motor Diameter: 6 inch


• Single Unit Weight: 15 lb

Dimensions:

Designed for OEM under-seat fitment on rear driver side of 4-door Maverick X3 models
