• High Power Handling: 400W RMS and 1600W peak power for deep, impactful bass.
• Flexible Wiring: Dual 2-ohm voice coils for versatile wiring configurations.
• Durable and Clear Sound: UV-coated paper/fiber cone ensures rigidity and sound clarity; NBR rubber surround offers excellent durability and cone movement.
• Enhanced Structural Integrity: Heavy-gauge stamped steel basket to reduce vibration and improve strength.

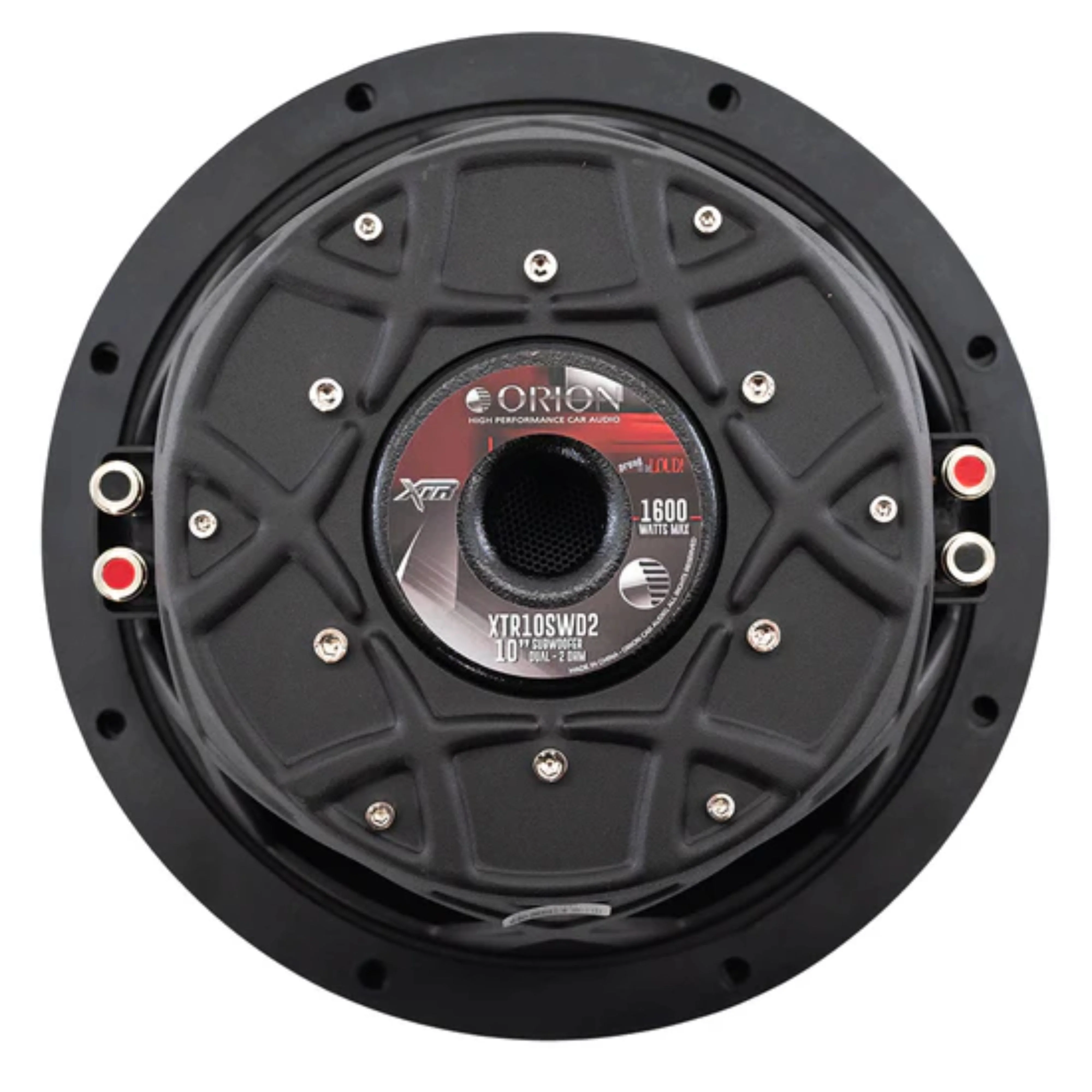

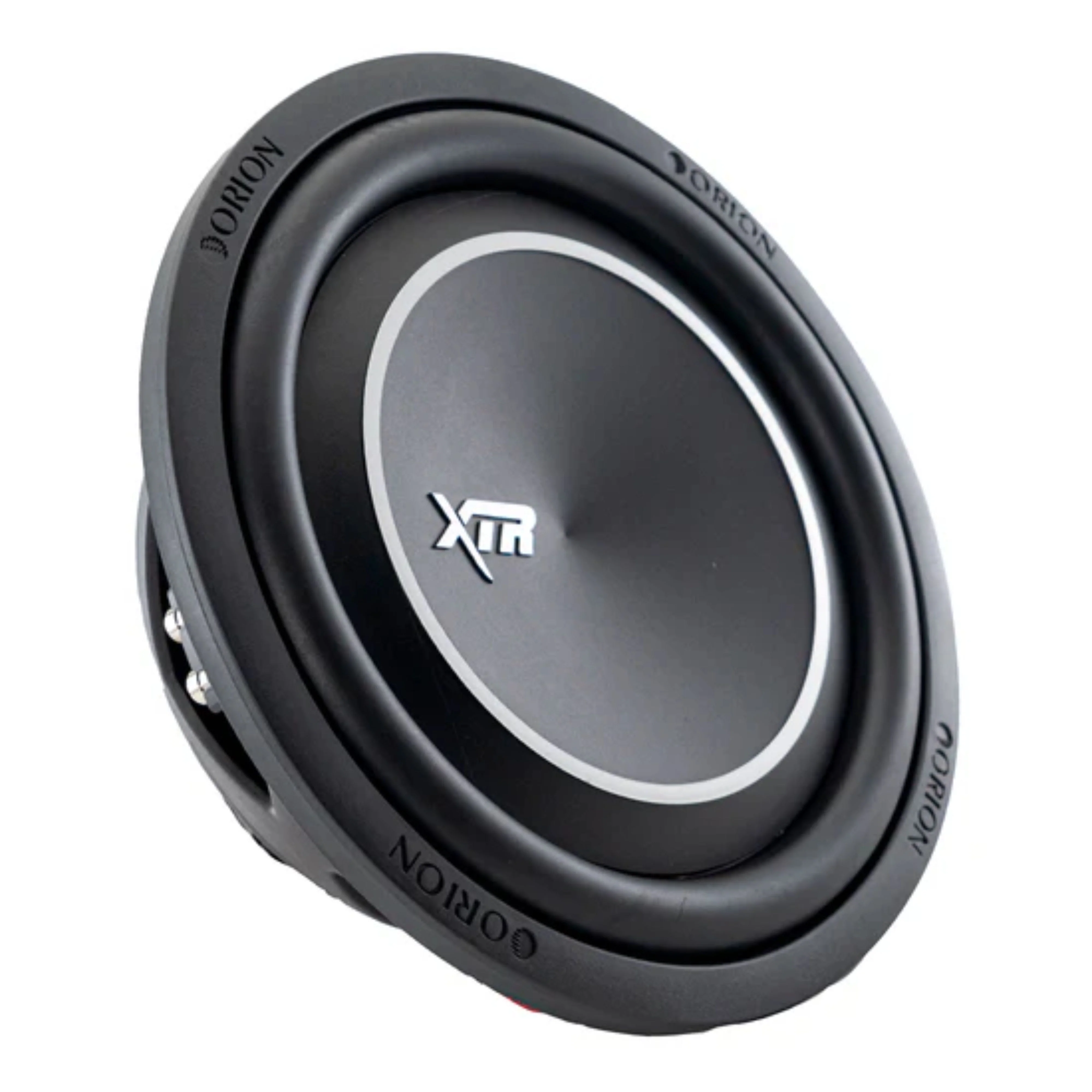

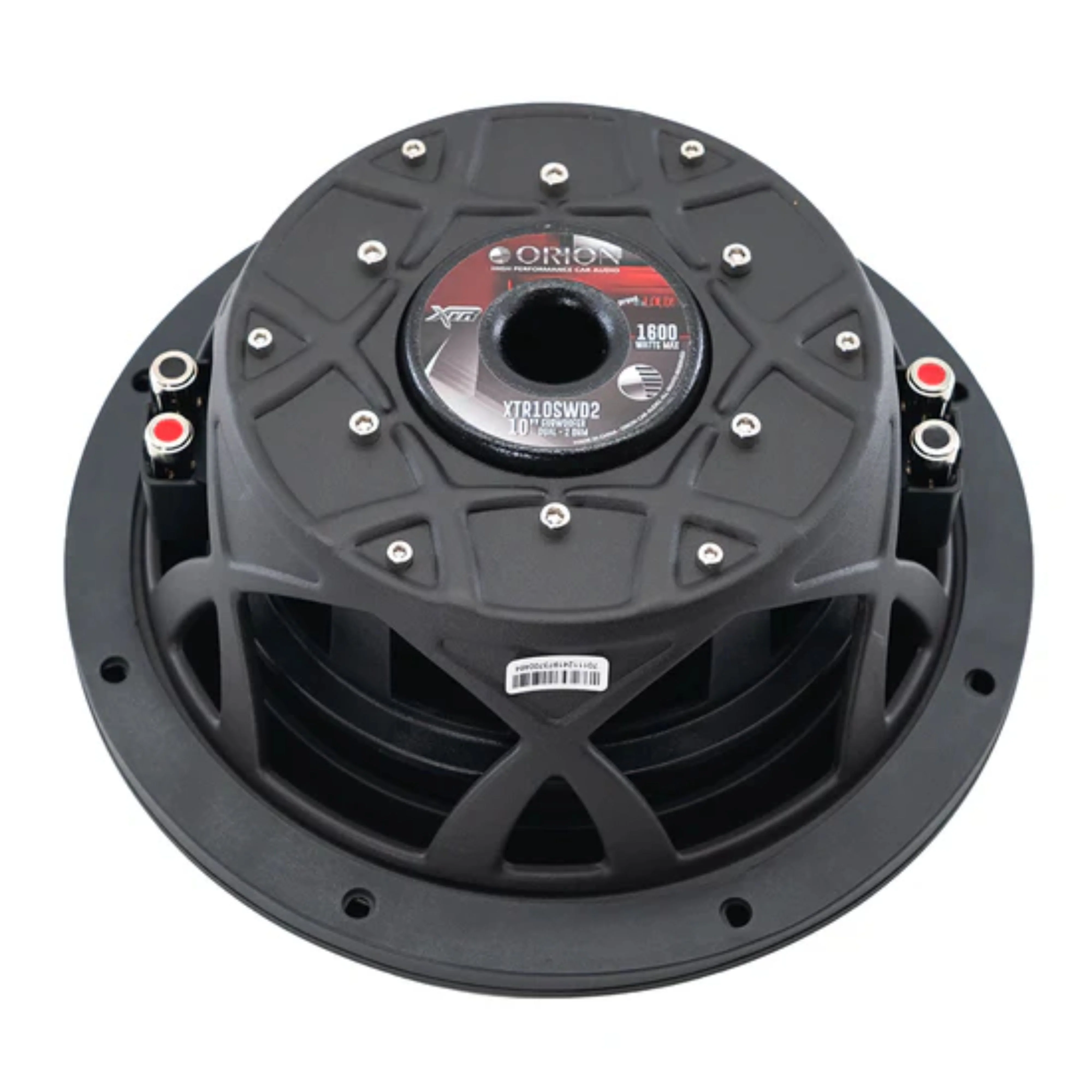

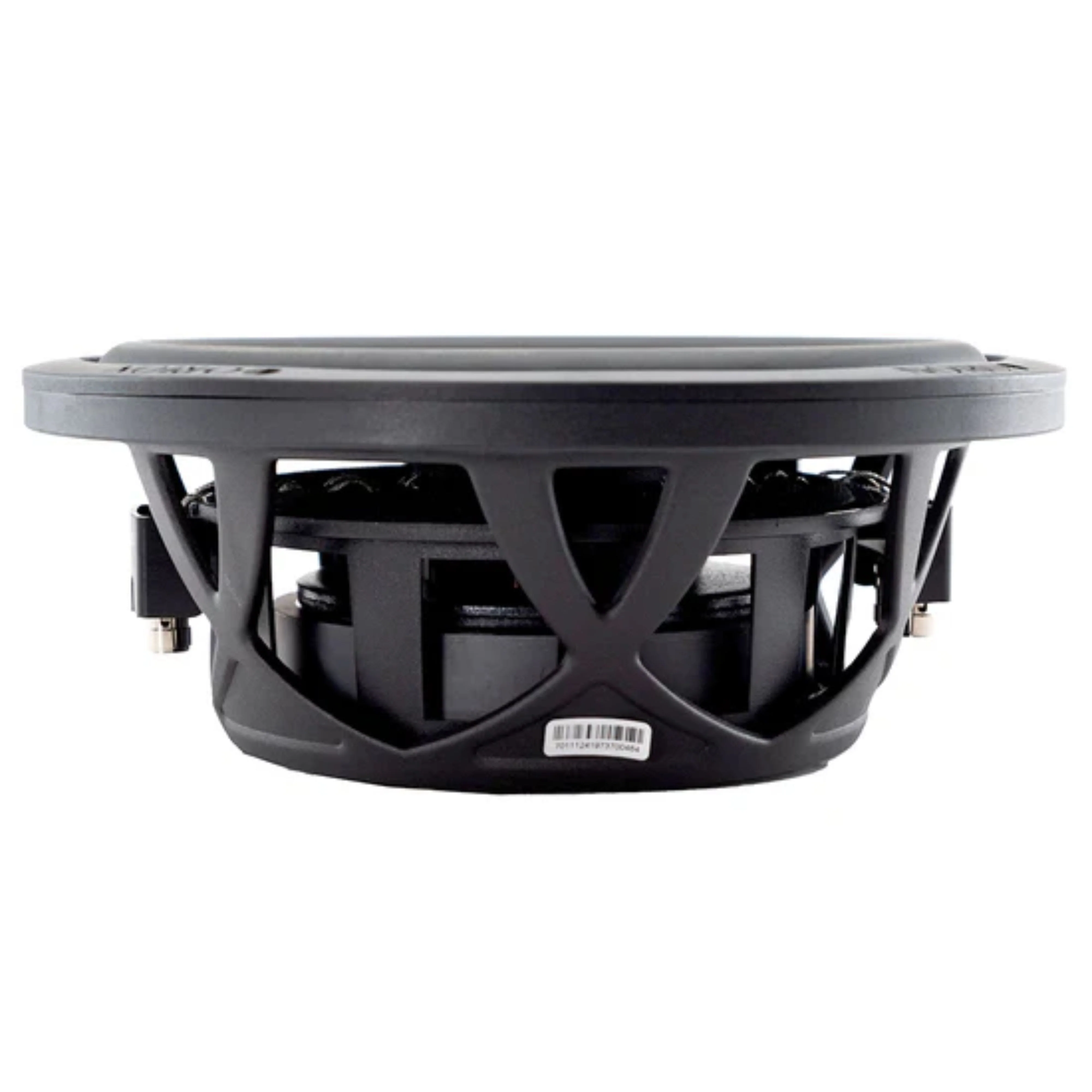

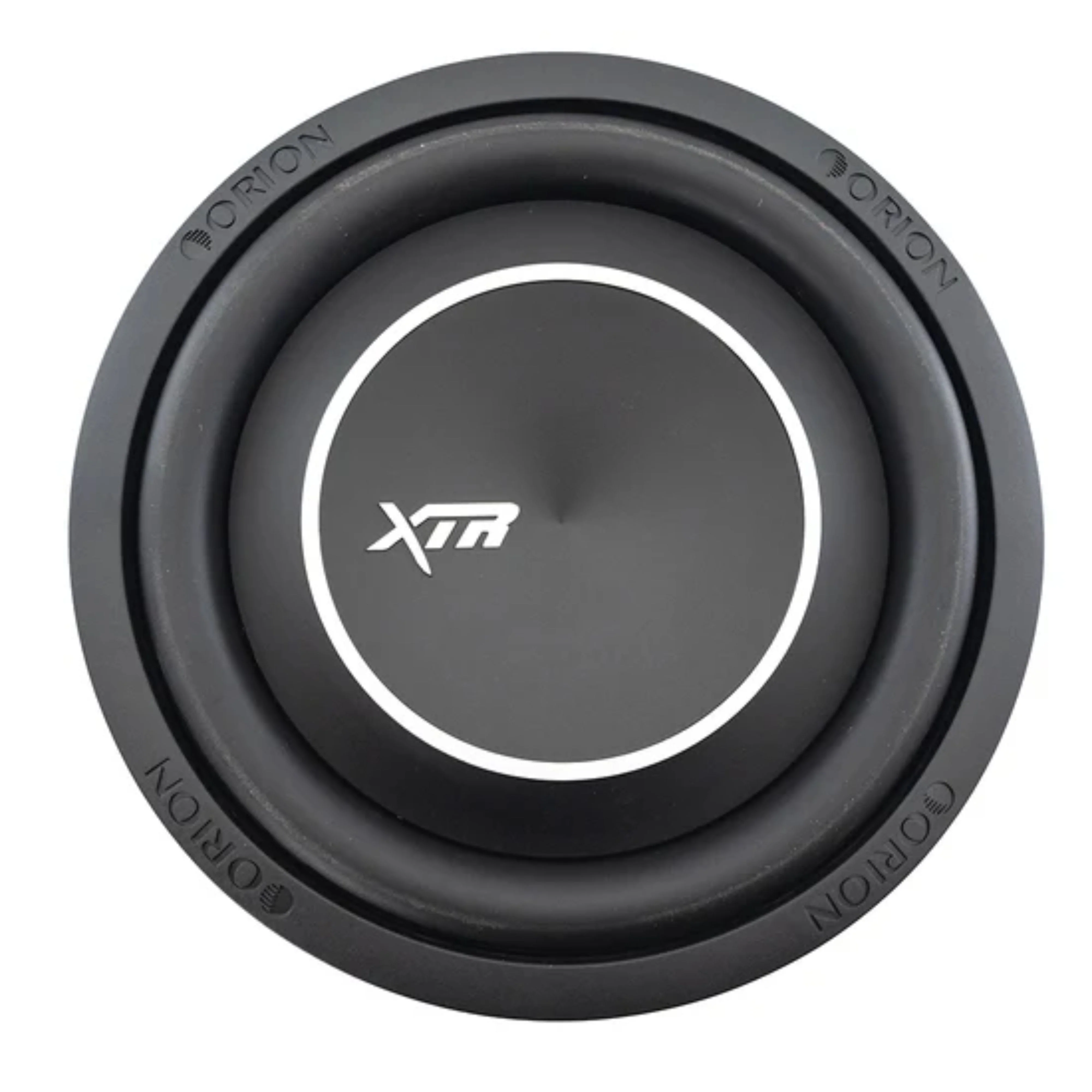

10" DUAL 2 Ohm 400W RMS UV Coated Shallow Subwoofer XTR Series

This Listing Includes:

• (1) 10" DUAL 2 Ohm 400W RMS UV Coated Shallow Subwoofer

The XTR Series XTR10SWD2 is a powerful 10-inch shallow subwoofer from Orion, engineered to deliver high-impact bass in a compact design. It boasts an impressive 400W RMS power and a maximum capacity of 1600W, making it an ideal choice for enthusiasts seeking both volume and depth in their car audio system. The dual 2 ohm voice coils allow for flexible wiring options, maximizing the efficiency of power use while accommodating different system configurations.

Key Features:

• Dual 2-ohm voice coils for flexible wiring


• UV-coated paper/fiber cone for rigidity and sound clarity


• NBR rubber surround for durability and cone movement


• Heavy-gauge stamped steel basket for increased structural integrity


• Nickel-plated push terminals for reliable and easy wiring


• Shallow mount design ideal for compact installations

Specifications:

• Subwoofer Size: 10 inches


• Voice Coil Configuration: Dual 2-ohm


• Power Handling (RMS): 400 Watts


• Power Handling (Peak): 1600 Watts


• Sensitivity: 83 dB


• Frequency Response: 35 Hz - 300 Hz


• Dust-Cap Material: Polypropylene


• Cone Material: UV Coated Paper / Fiber Blend


• Surround Material: NBR


• Magnet Information: Ceramic


• Mounting Depth: 87mm / 3.43 inches


• Cutout Diameter: 231mm / 9.09 inches


• Overall Diameter: 275mm / 10.83 inches
