• Nominal Impedance: 8 Ohms RMS Watts: 140W Peak Watts: 300W
• Tweeter: Nominal Impedance: 4 Ohm Power Rating RMS: 30 Watts Max Power: 120 Watts

Massive Car Audio 6.5" Speakers 1200W 8 Ohm W/ Bullet Tweeters & 4 Ch Amplifier

Massive Audio's proven Professional High-Grade Efficiency, High Power Mid-Range Speaker designs are a result of years of experience, research and dedication to high end professional audio products.

CT4 Series Neodymium High-End Super Bullet Titanium Tweeters are high powered compression drivers that deliver rich high-frequency playback and allow for easy in-car mounting.

The BLADE BP Series Amplifiers are designed with our "Live loud and, Play Hard" motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high-level speaker signal at up to 9 Volts directly in.

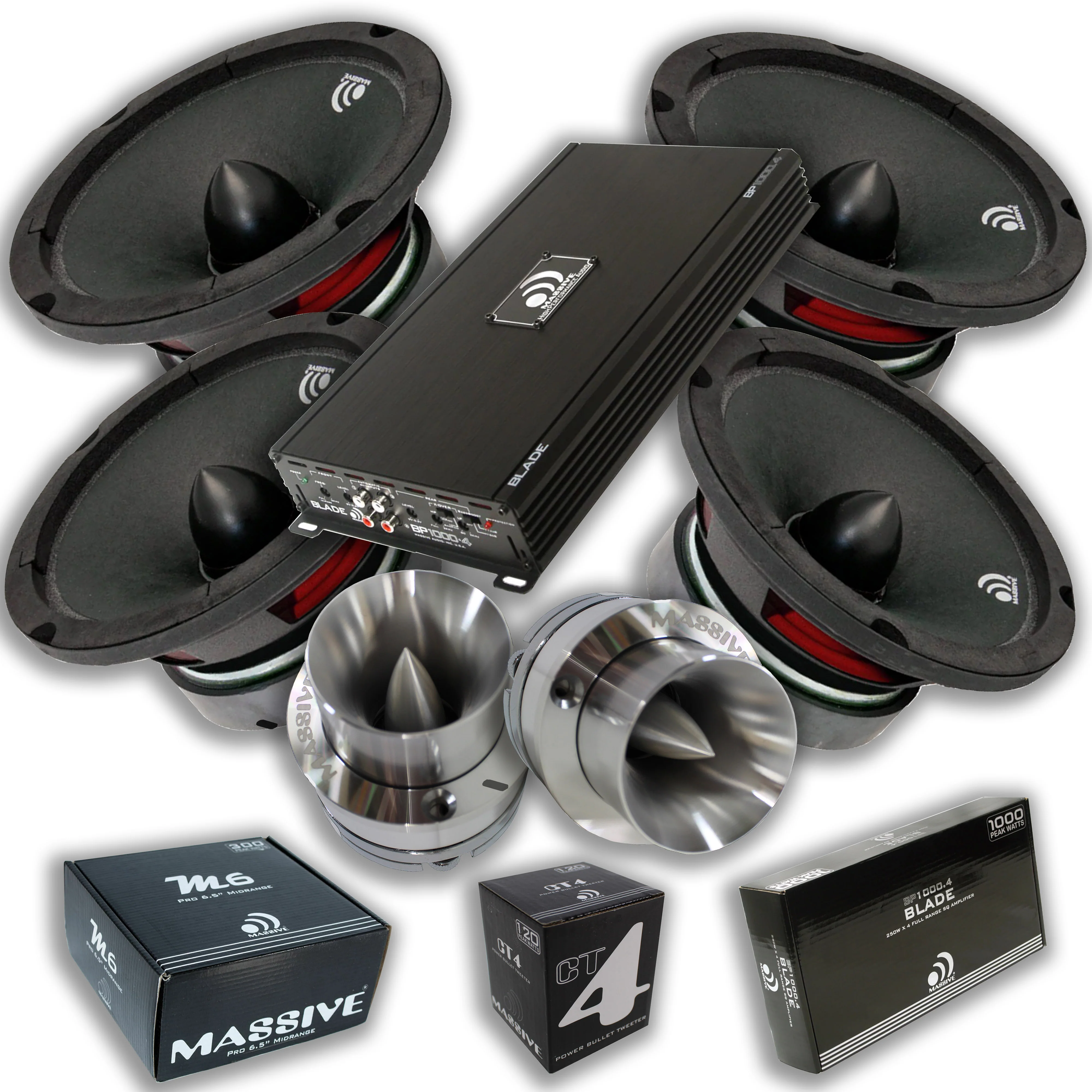

This Listing Includes:

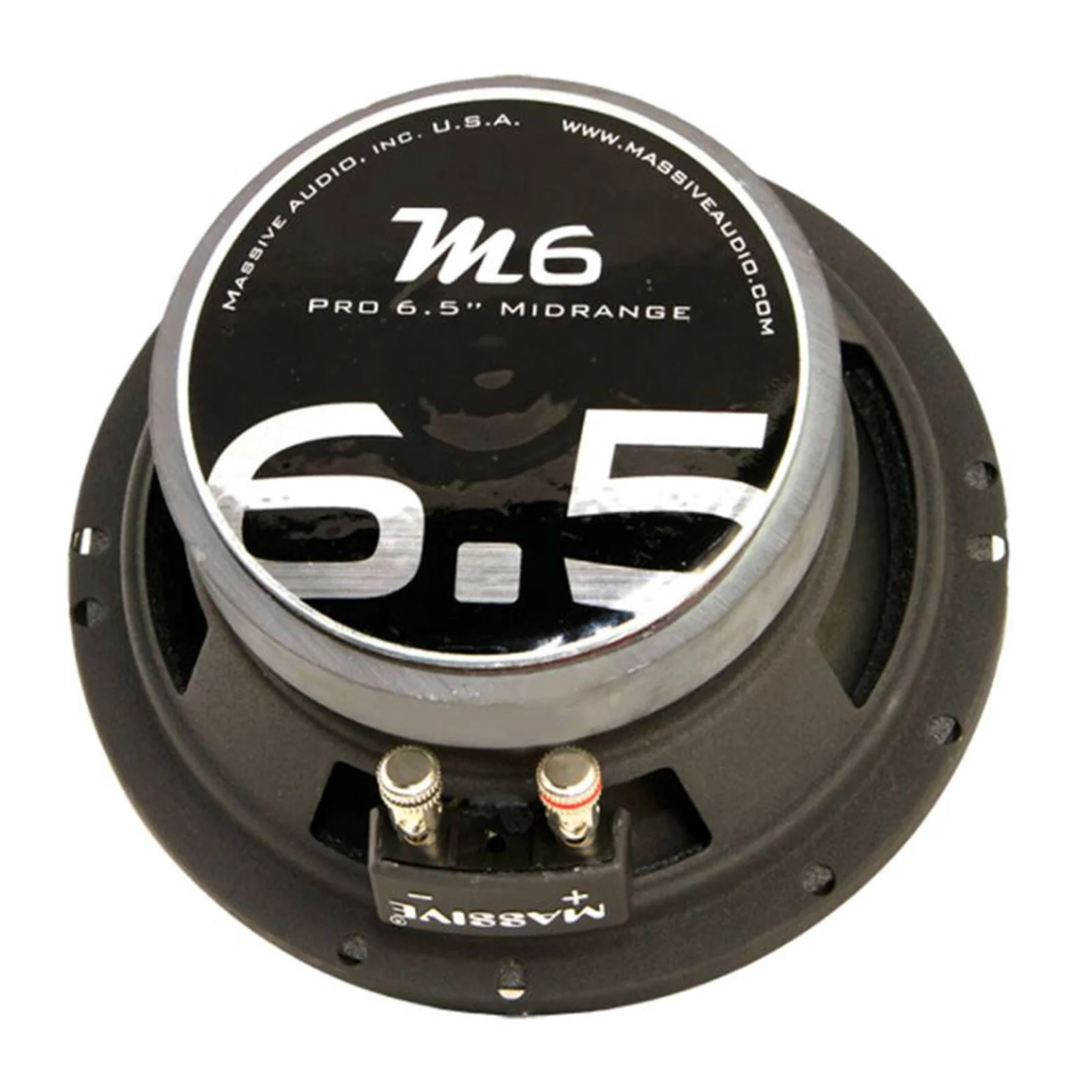

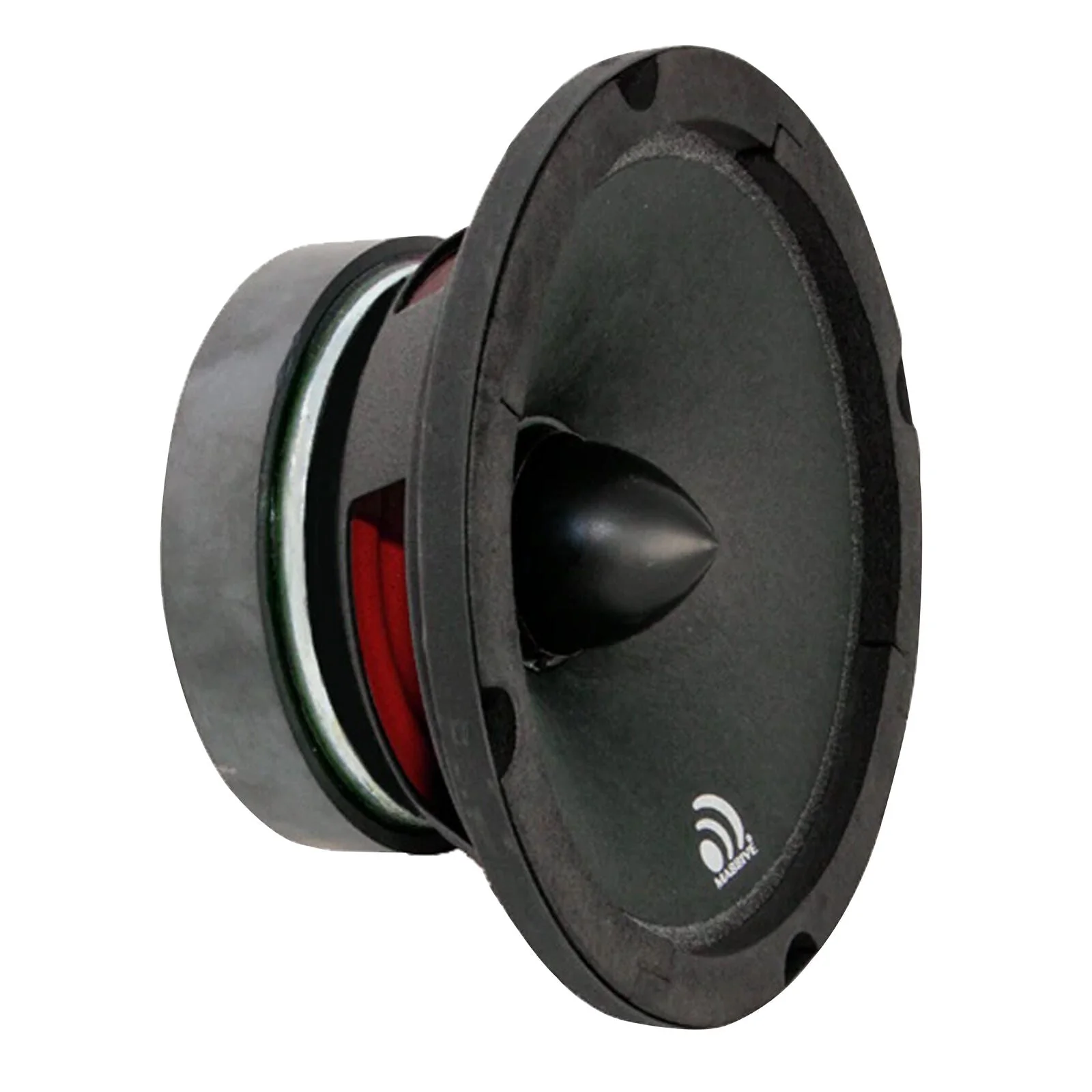

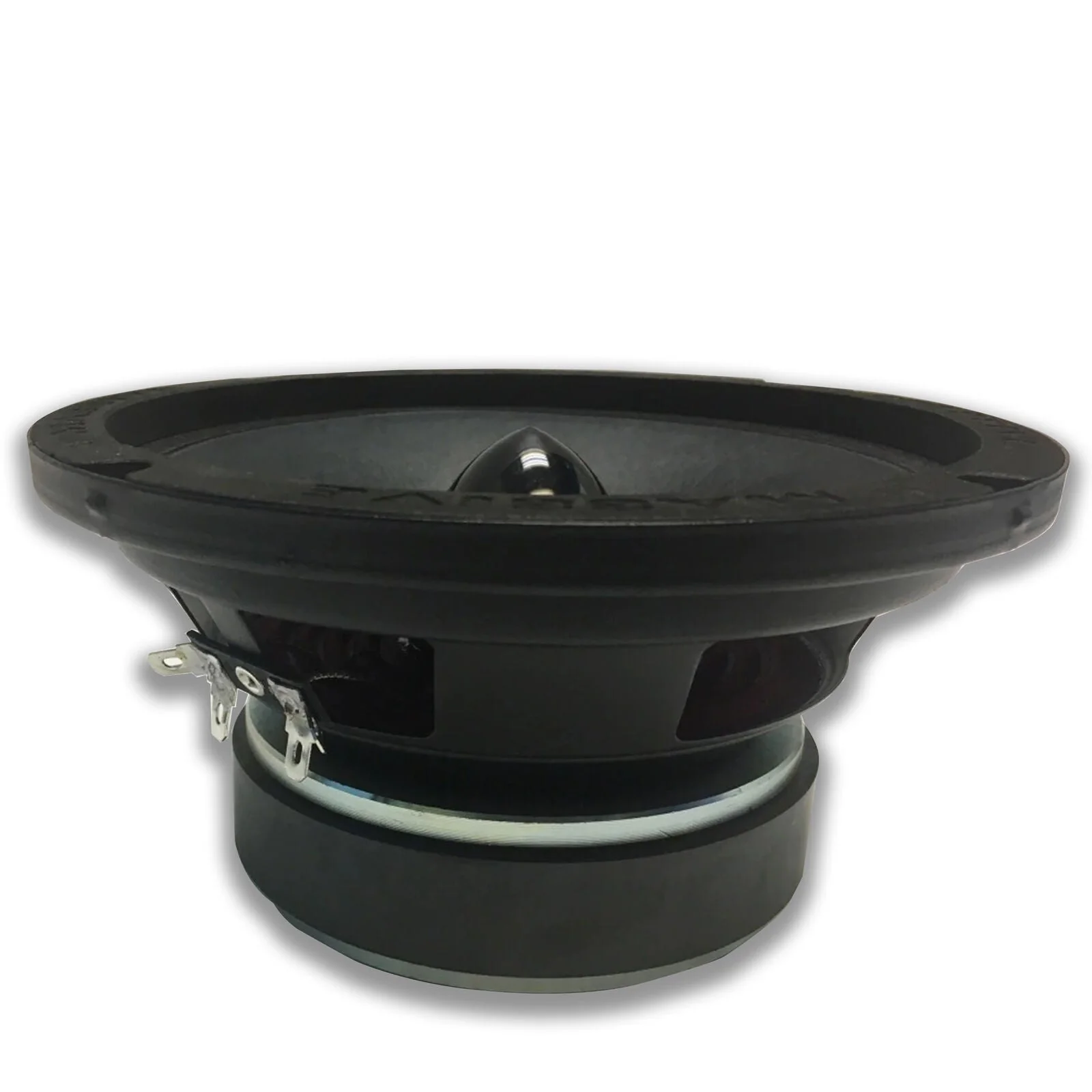

(4) Massive Audio 6.5" Loud Speakers MA-M6

(2) Massive Audio 1" Neodymium Bullet Tweeters MA-CT4

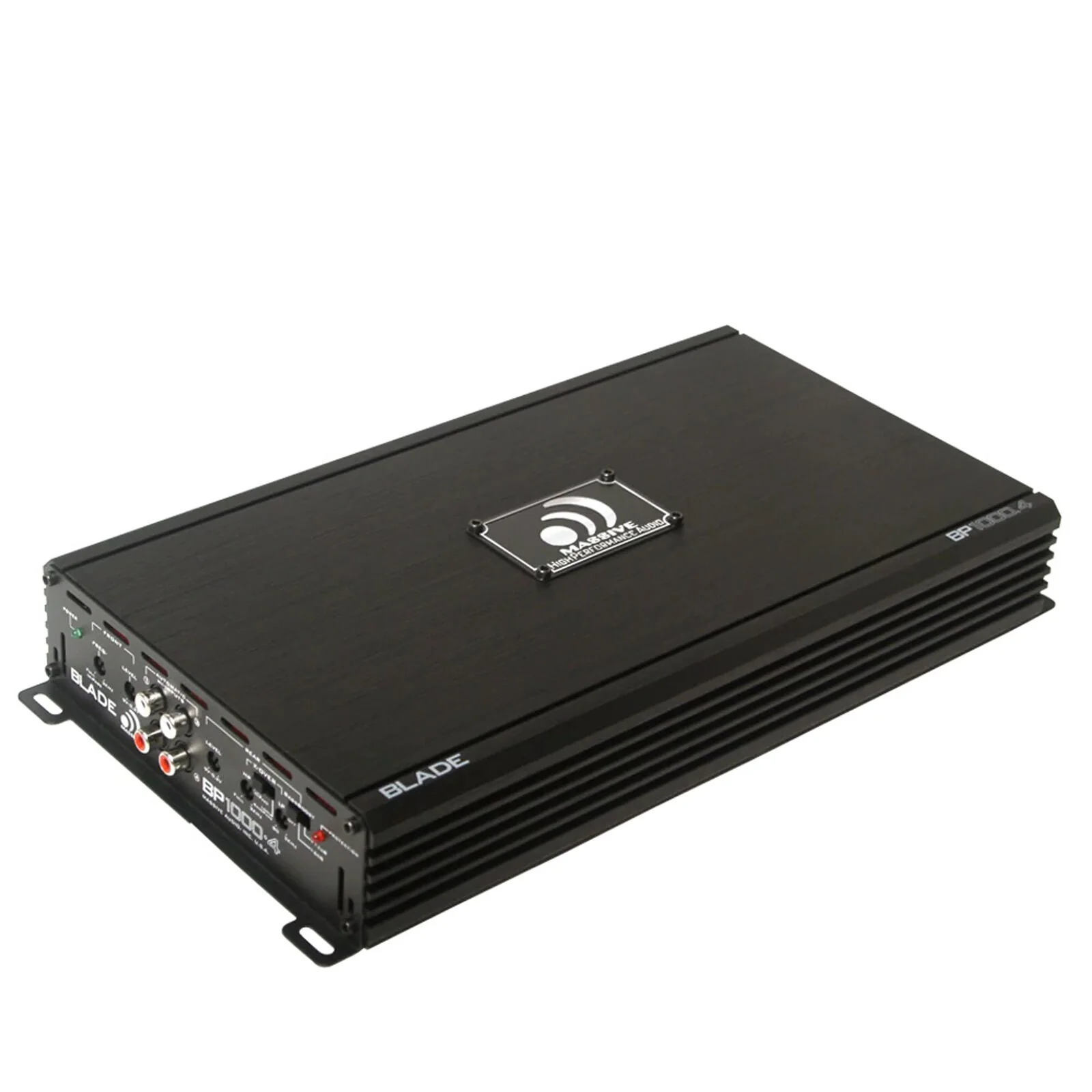

(1) Massive Audio 4 Channel Amplifier MA-BP1000.4

SPEAKER SPECIFICATIONS:

Nominal Basket Diameter: 6.5" (166mm)

Nominal Impedance: 8 Ohms

RMS Watts: 140W

Peak Watts: 300W

Sensitivity: 96dB

Recommended Hi Pass Crossover: 270 Hz

Frequency Response: 270-10KHz

Voice Coil Diameter: 1.5" (38.5mm)

Voice Coil Wire: CCAW

Former Material: Til

Frame Material: Stamped Steel

THIELE-SMALL PARAMETERS:

Equivalent Volume: Vas - 2.23L

Excursion: Xmax - 0.75mm

Free Air Resonance: Fs - 270 Hz

Mechanical Mass: Qms - 1.27

Total Factor: Qes - 0.814

Cone Area: Sd - 0.014 m2

Mechanical Mass: Mms - 0.0073 kg

BI Factor: BI - 7.7 Tm

DC Resistance: Re - 5.2 Ohms

Inductance: Le - 0.22 Mh at 1 KHz

Mechanical Compliance: Cms - 0.85 mm/N

MOUNTING DIMENSIONS:

Mounting Holes Diameter: 0.19" x 0.28" (5x7mm)

Mounting Holes: B.C.D. 6.06" (154mm)

Depth: 3.3" (84mm)

TWEETER SPECIFICATIONS:

Throat Size: 1", 25.5mm

Nominal Impedance: 4 Ohm

Power Rating RMS: 30 Watts

Max Power: 120 Watts

Usable Frequency Range: 3KHz - 25KHz

Sensitivity: 100 dB

Magnet Weight: 37 Oz

Filter: 6dB Hi-Pass "Filter Capacitor"

Voice Coil Diameter: 25.5mm

DC Resistance (Re): 3.7 Ohm

Diaphragm Material: Titanium

Magnet Composition: Neodymium

TWEETER DIMENSIONS:

Overall Diameter: 2.3", 58mm

Mounting Holes Diameter: 70mm

Depth: 2.8", 71.12mm

AMPLIFIER SPECIFICATIONS:

Channels: 4

Peak Output Power @ 14.4V: 250W x 4

RMS @ 4 Ohms: 80W x 4

RMS @ 2 Ohms: 160W x 4

RMS Bridged @ 4 Ohms: 320W x 2

Frequency Response: 10Hz - 35KHz

Input Sensitivity: 0.2 ~ 9.0V

Signal to Noise Ratio: Greater than 90dB

THD & Noise: Less than 0.05%

Low Pass Cross Frequency: 80Hz - 3KHz

High Pass Cross Frequency: Full - 3KHz

Bass EQ: 0-6 dB/12dB @ 45 Hz

Minimum Impedance: 2 Ohm Stereo

Fuse Size: 30A x 2

AMPLIFIER DIMENSIONS ( L x W x H ):

MM: 320 x 180 x 51

Inches: 12.6 x 7.1 x 2
