• Nominal Impedance: 8 Ohm
• Frequency Response: 100Hz-7KHz
• Signal to Noise Ratio: Greater than 90dB

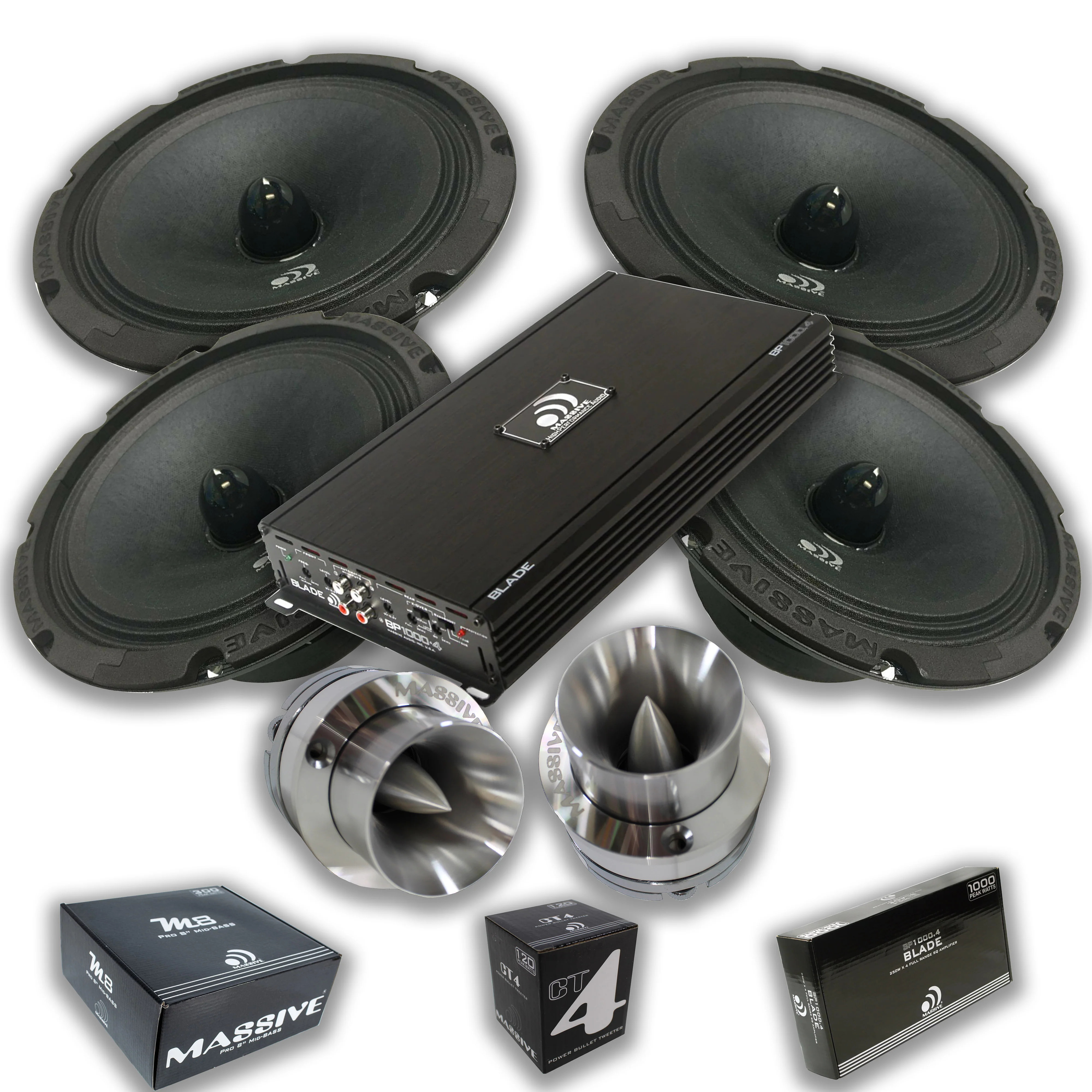

Massive Car Audio 8" Speakers 1200W 8 Ohm With Bullet Tweeters & 4 Ch Amplifier

This Listing Includes:

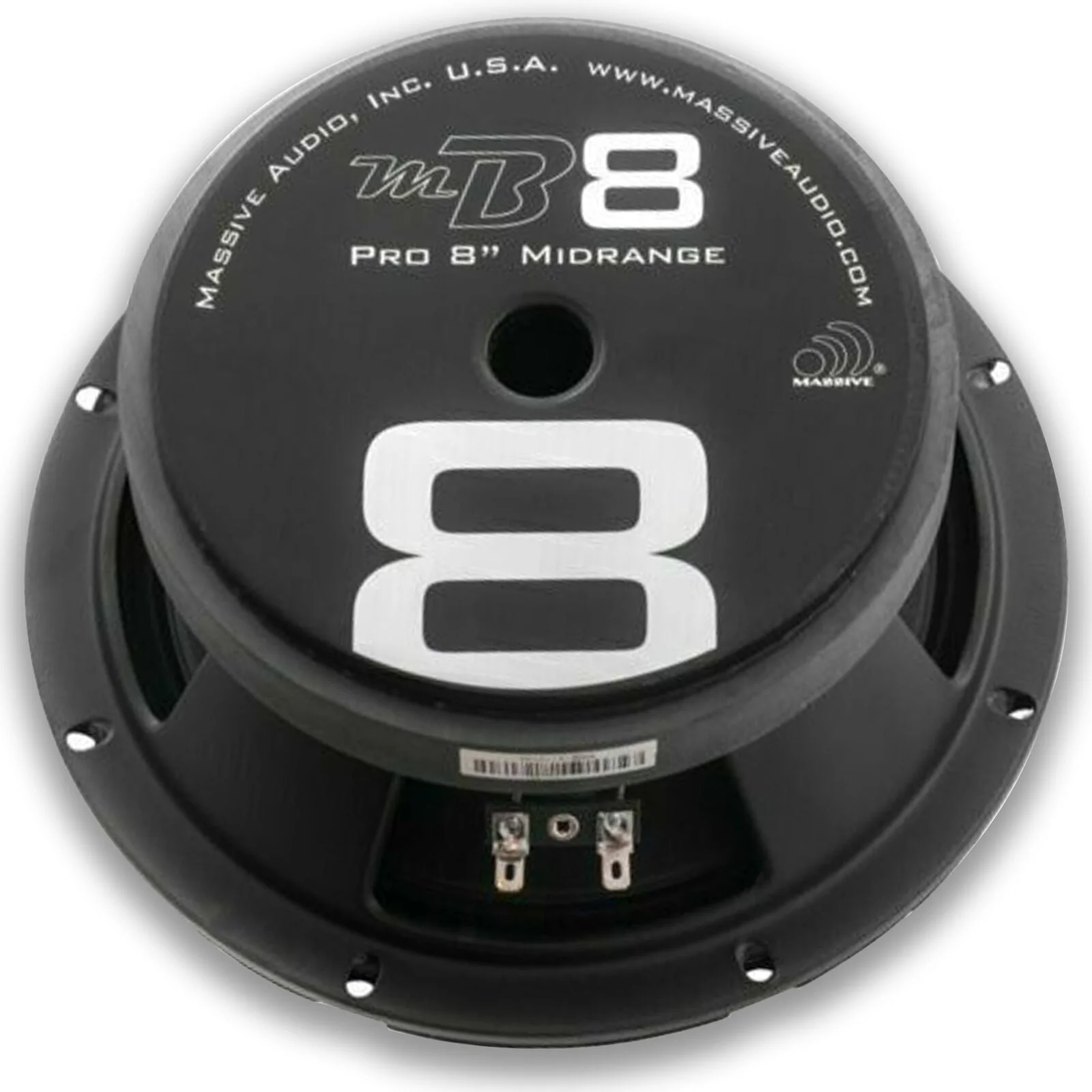

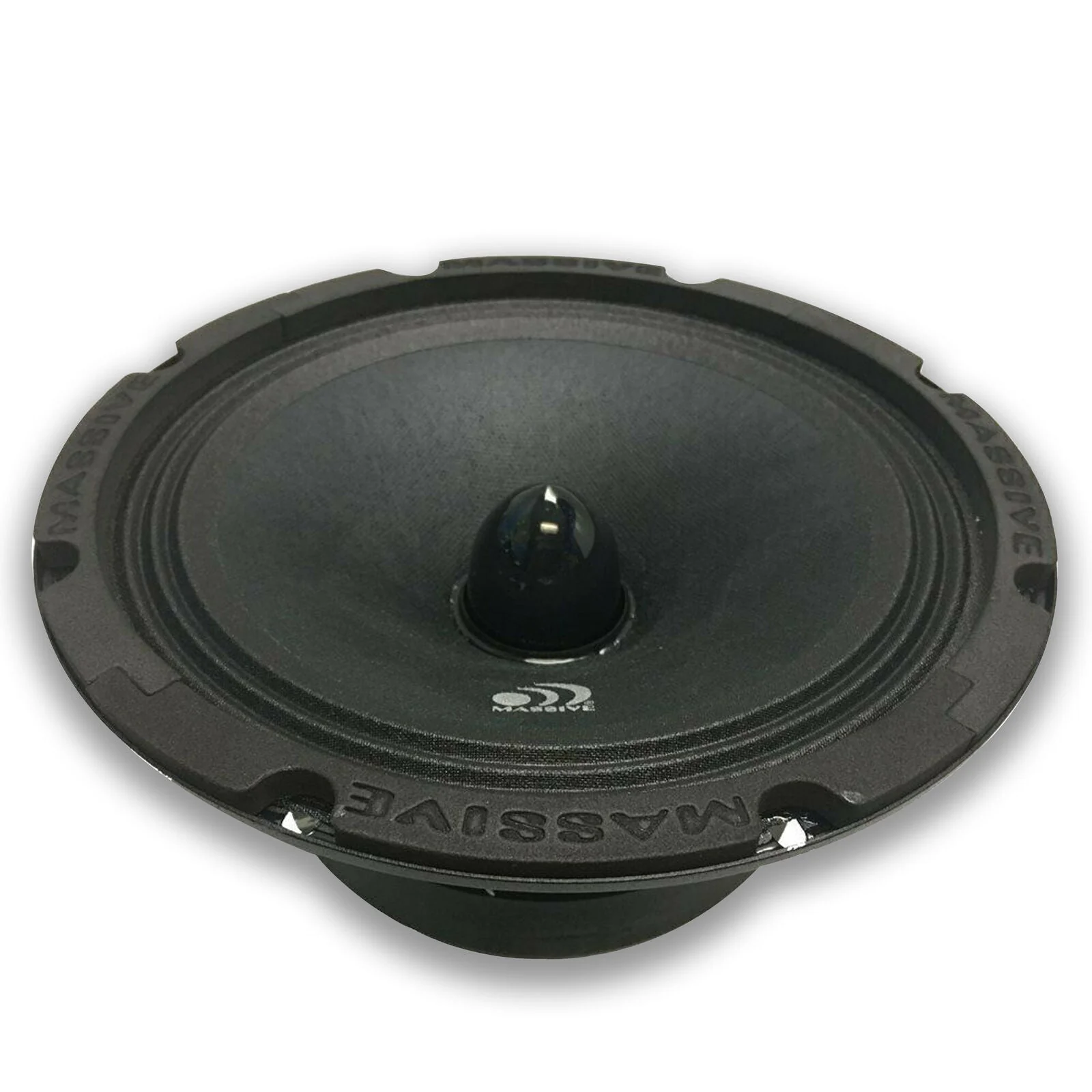

• (4) Massive Audio 8" Loud Speakers MA-M8

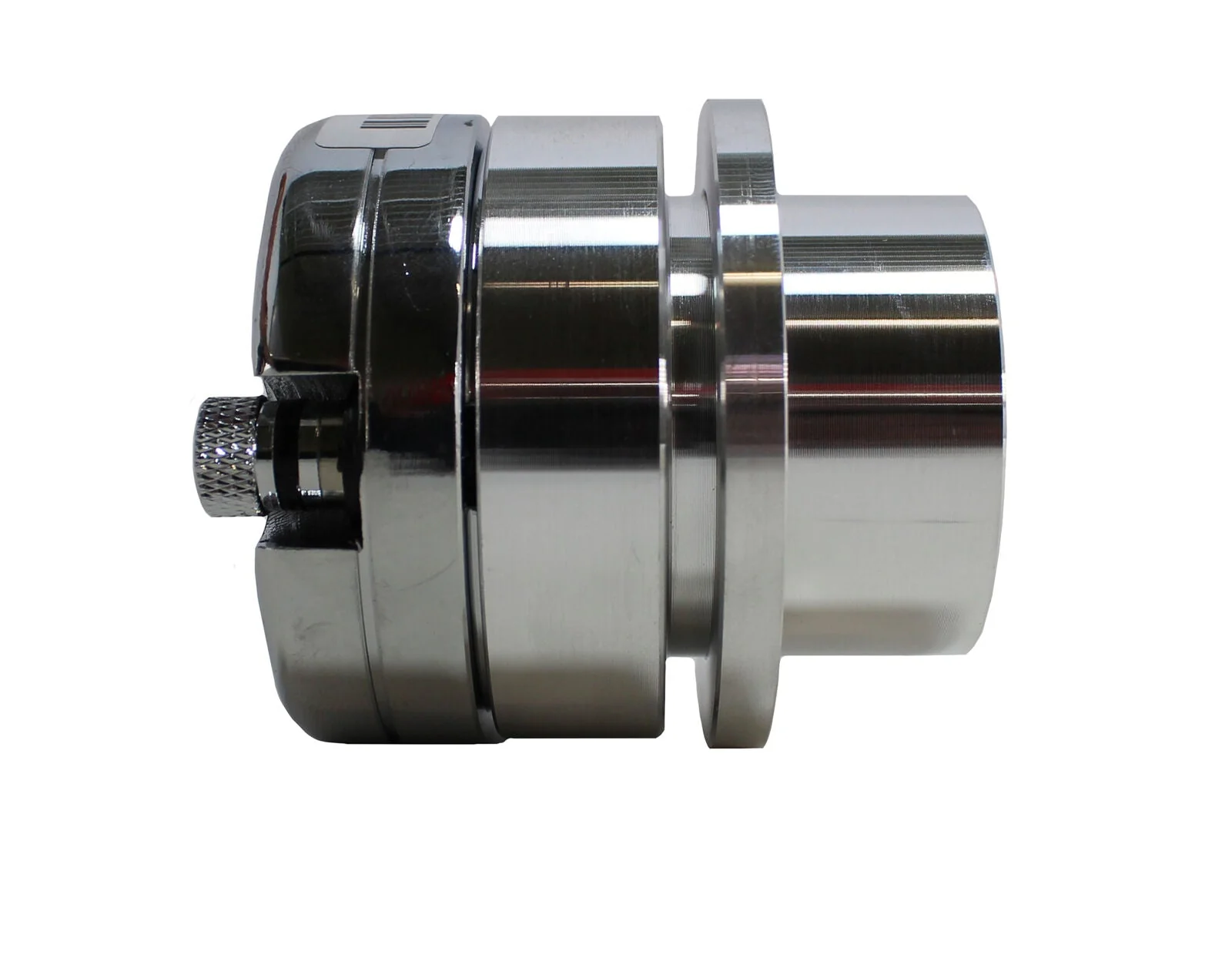

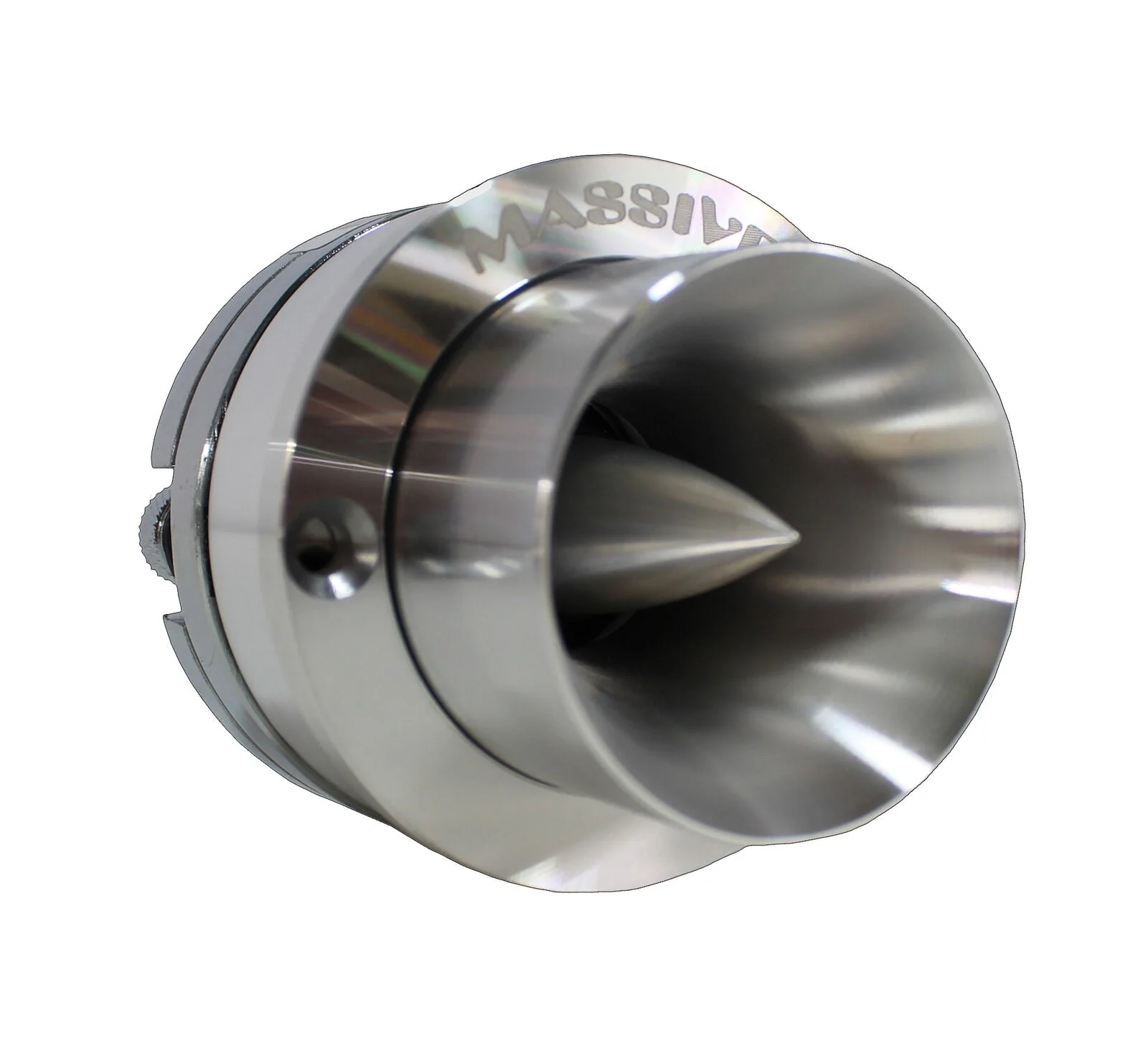

• (2) Massive Audio 1" Neodymium Bullet Tweeters MA-CT4


• (1) Massive Audio 4 Channel Amplifier MA-BP1000.4

Massive Audio's proven Professional High-Grade Efficiency, High Power Mid-Range Speaker designs are a result of years of experience, research and dedication to high end professional audio products.

CT4 Series Neodymium High-End Super Bullet Titanium Tweeters are high powered compression drivers that deliver rich high-frequency playback and allow for easy in-car mounting.

The BLADE BP Series Amplifiers are designed with our "Live, Loud and Play Hard" motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high-level speaker signal at up to 9 Volts directly in.

SPEAKER SPECIFICATIONS:

• Nominal Basket Diameter: 8" (210mm)


• Nominal Impedance: 8 Ohm


• RMS Watts: 150W


• Peak Watts: 300W


• Recommended Hi Pass Crossover: 100Hz


• Frequency Response: 100Hz-7KHz


• Sensitivity 2.00v at 1m: 96dB


• Voice Coil Diameter: 1.5" (38mm)


• Voice Coil Wire: CCAW


• Former Material: Til


• Frame Material: Stamped Steel

THIELE-SMALL PARAMETERS:

• Equivalent Volume: Vas - 11.2L


• Excursion: Xmax - 0.75mm


• Free Air Resonance: Fs - 100Hz


• Mechanical Mass: Qms - 1.48


• Total Factor: Qts - 0.441


• Cone Area: Sd - 0.02 m2


• Mechanical Mass: Mms - 0.0122 kg


• BI Factor: BI - 8.1 Tm


• DC Resistance: Re - 5.2 Ohms


• Inductance: Le - 0.18 Mh at 1 KHz


• Mechanical Compliance: Cms - 1.87 mm/N

SPEAKER DIMENSIONS:

• Overall Diameter: 8" (210mm)


• Baffle Hole Diameter: 7.24" (184mm)


• Mounting Holes Diameter: 0.20" x 0.33" (5.2 x 8.6mm)


• Mounting Holes: B.C.D. 7.8" (198mm)


• Depth: 3.62" (92mm)

TWEETER SPECIFICATIONS:

• Throat Size: 1", 25.5mm


• Nominal Impedance: 4 Ohm


• Power Rating RMS: 30 Watts


• Max Power: 120 Watts


• Usable Frequency Range: 3KHz - 25KHz


• Sensitivity: 100 dB


• Magnet Weight: 37 Oz


• Filter: 6dB Hi-Pass "Filter Capacitor"


• Voice Coil Diameter: 25.5mm


• DC Resistance (Re): 3.7 Ohm


• Diaphragm Material: Titanium


• Magnet Composition: Neodymium

TWEETER DIMENSIONS:

• Overall Diameter: 2.3", 58mm


• Mounting Holes Diameter: 70mm


• Depth: 2.8", 71.12mm

AMPLIFIER SPECIFICATIONS:

• Channels: 4


• Peak Output Power @ 14.4V: 250W x 4


• RMS @ 4 Ohms: 80W x 4


• RMS @ 2 Ohms: 160W x 4


• RMS Bridged @ 4 Ohms: 320W x 2


• Frequency Response: 10Hz - 35KHz


• Input Sensitivity: 0.2 ~ 9.0V


• Signal to Noise Ratio: Greater than 90dB


• THD & Noise: Less than 0.05%


• Low Pass Cross Frequency: 80Hz - 3KHz


• High Pass Cross Frequency: Full - 3KHz


• Bass EQ: 0-6 dB/12dB @ 45 Hz


• Minimum Impedance: 2 Ohm Stereo


• Fuse Size: 30A x 2

AMPLIFIER DIMENSIONS (LxWxH):

• MM: 320 x 180 x 51


• Inches: 12.6 x 7.1 x 2
