• High Power Output: 4000W MAX power handling and 2000W RMS for intense bass performance.
• Durable Construction: Non-pressed paper cone with epoxy coating for long-lasting sound quality.
• Enhanced Heat Dissipation: Black aluminum voice coil former and SV winding for reliable high-volume performance.
• Massive Magnet System: Triple-stacked 255 oz ferrite magnet for superior bass control and stable connections.
• Versatile Enclosure Compatibility: Works in both sealed and ported enclosures, allowing for a customizable audio setup.

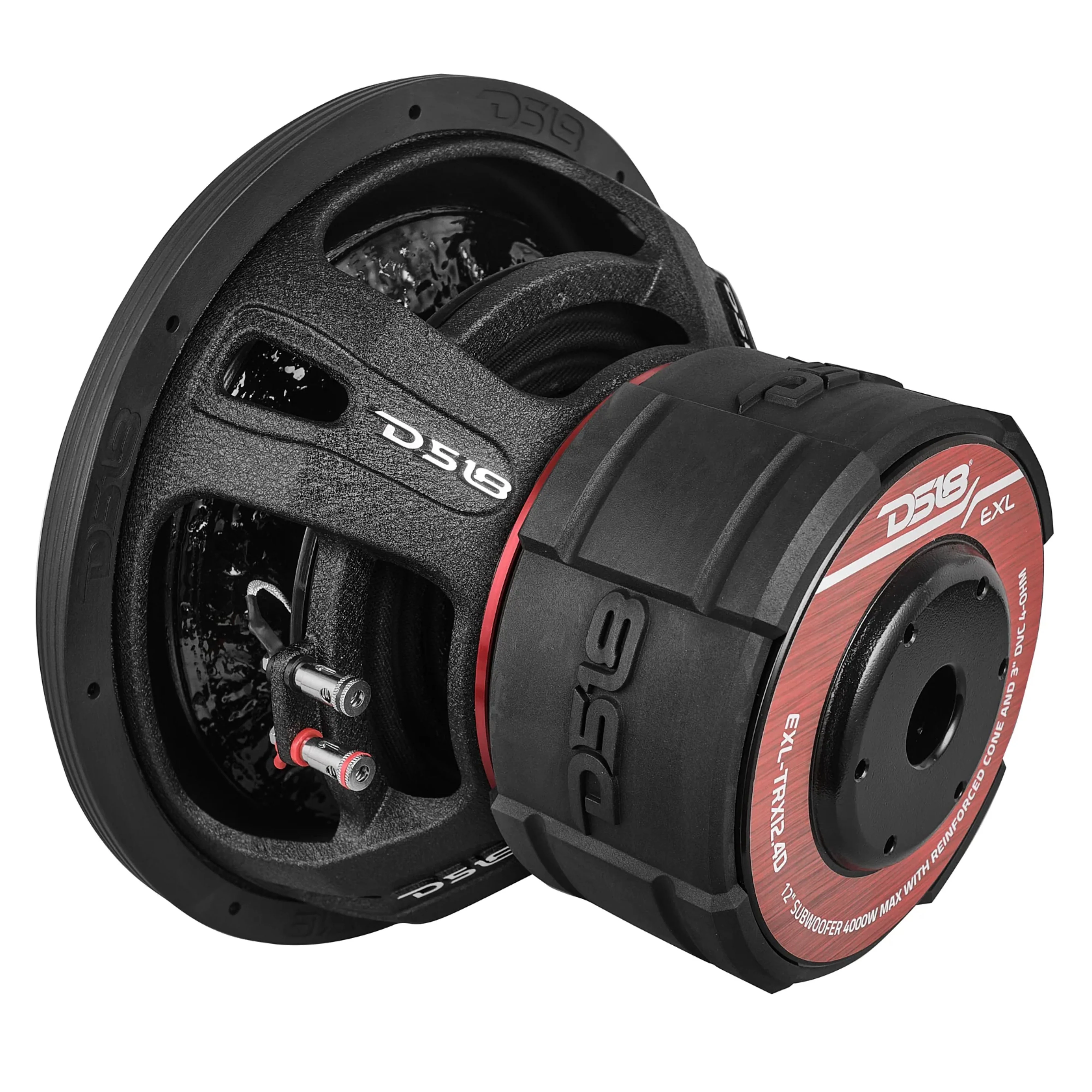

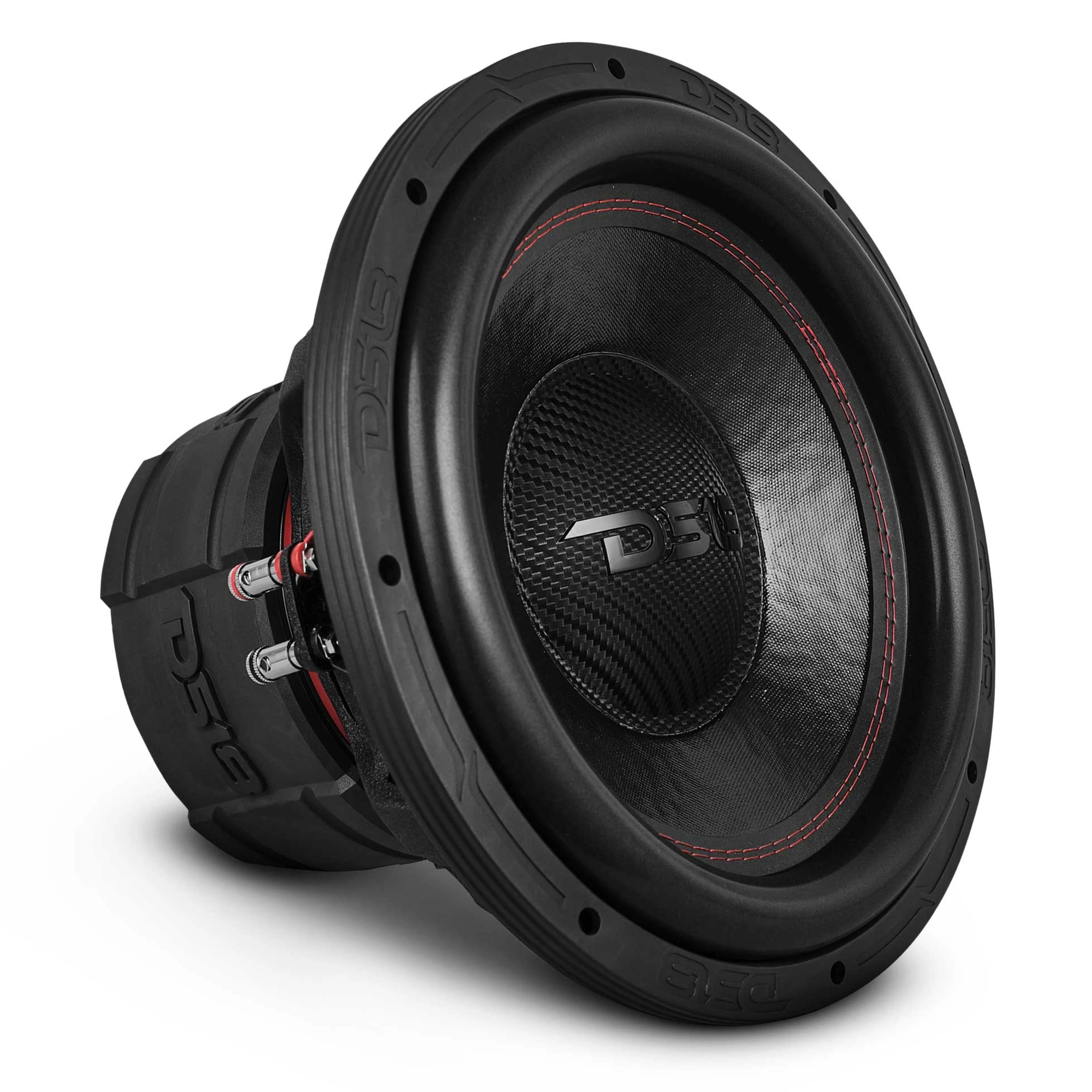

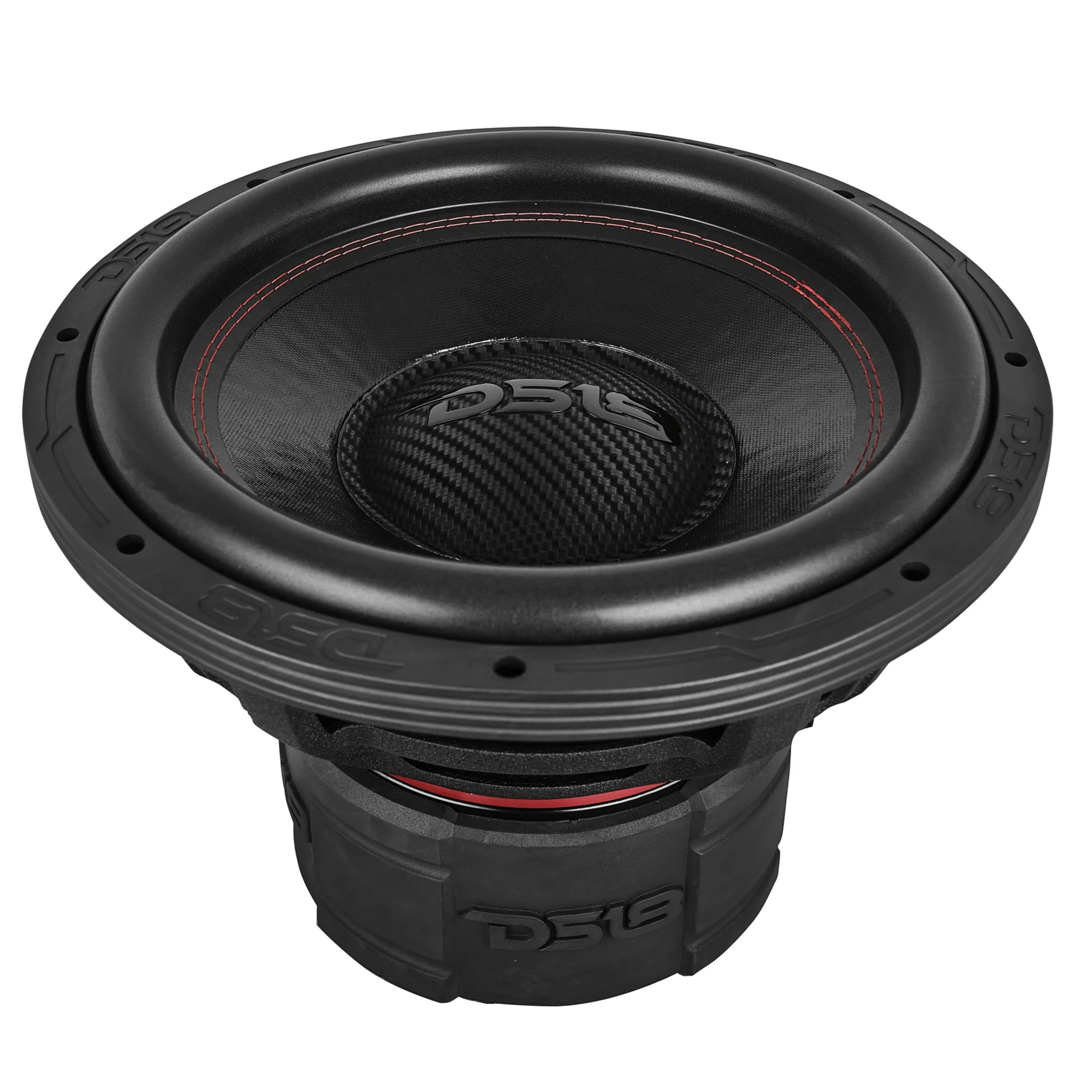

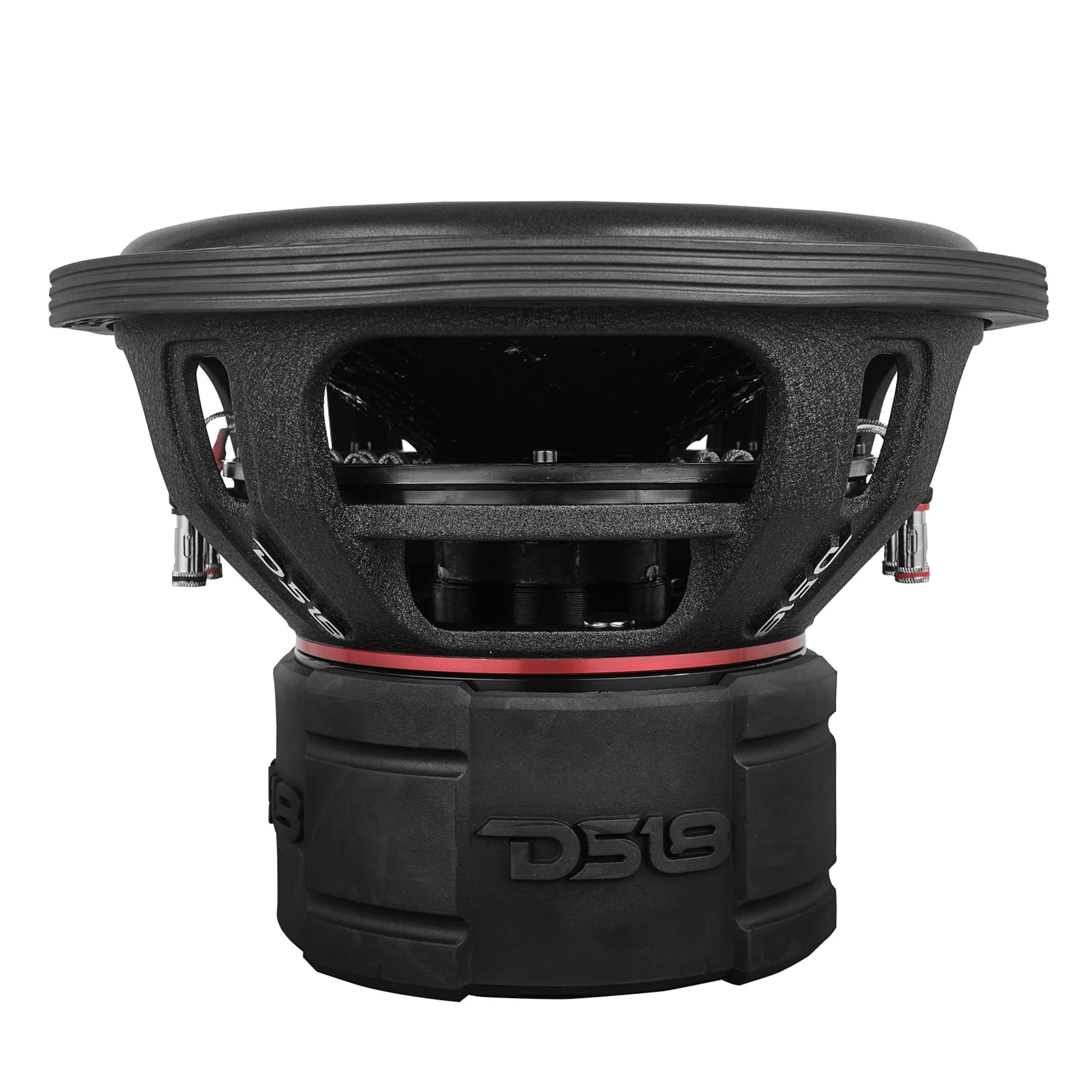

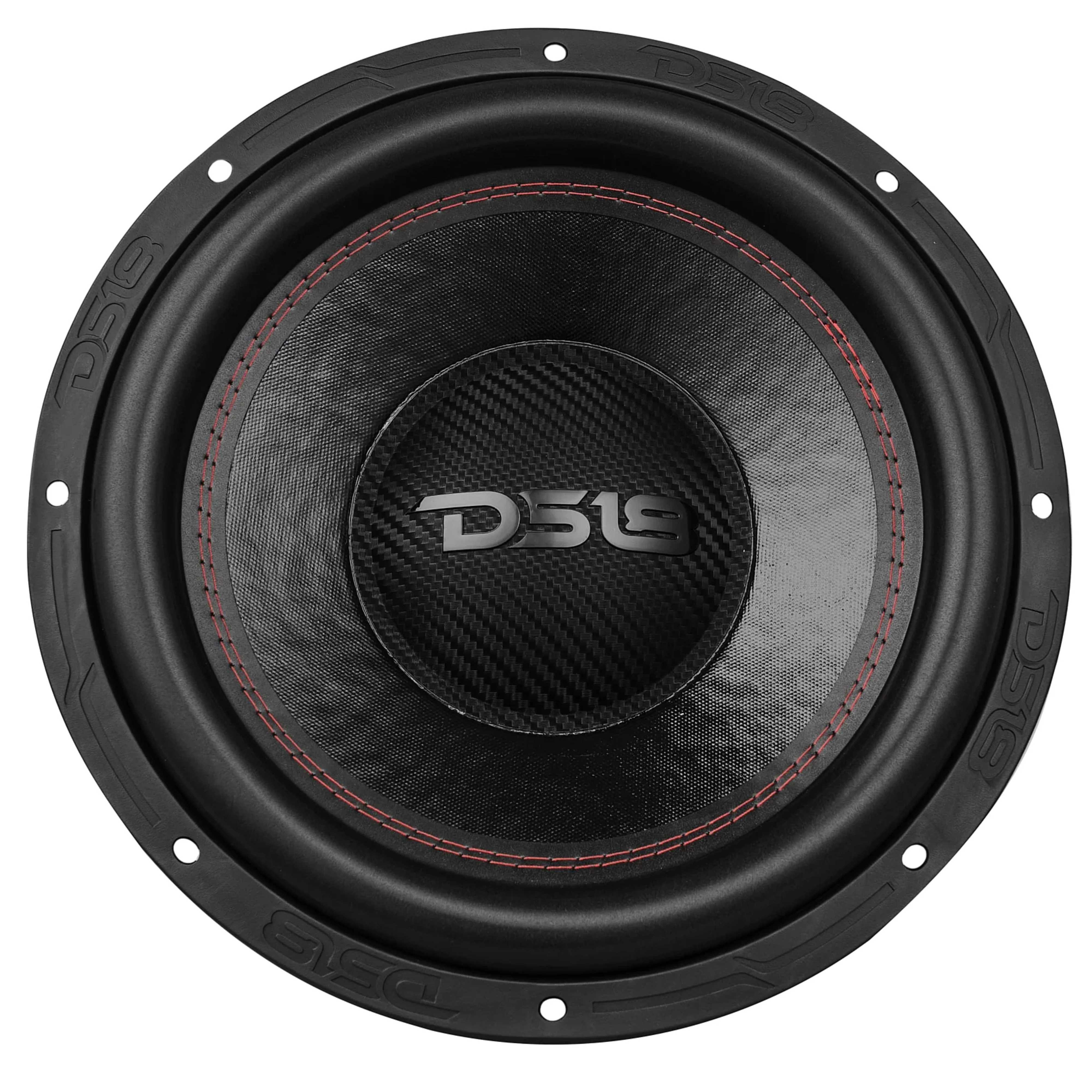

12" 2000 Watts RMS 4†DVC 4-Ohm Triple Stack Car Audio Subwoofer DS18 Series

This Listing Includes:

• (1) 12" 2000 Watts RMS 4†DVC 4-Ohm Triple Stack Car Audio Subwoofer DS18 Series

Description:

The EXL-TRX12.4D is a powerful 12" subwoofer designed for intense bass performance, with a MAX power handling of 4000W and RMS of 2000W. Its durable non-pressed paper cone with epoxy coating ensures long-lasting sound quality, while dual 4-ohm voice coils provide flexible wiring options. The subwoofer’s black aluminum voice coil former and SV winding enhance heat dissipation for high-volume use. Featuring a triple-stacked 255 oz ferrite magnet for superior bass control and stable connections, the EXL-TRX12.4D works well in both sealed and ported enclosures for a customizable audio setup.

Features

• Demodulating Rings: No


• Improved Heat Dissipation: Yes


• Cone Shape: Curvilinear


• Speaker Terminals: Push 6ga

Specifications:

• Nominal Diameter: 12" / 305mm


• Nominal Impedance: 4+4 ohms


• RMS Power Handling: 2000W


• MAX Power Handling: 4000W


• Sensitivity (1w/1m): 84dB


• Frequency Response: 10-500 Hz


• Recommended Lo Pass Crossover: 120 Hz

Motor

• Voice Coil Diameter: 3" / 76.5mm


• Voice Coil Former Material: Black Aluminum


• Winding Material: SV


• Cone Material: Non-Pressed Paper + Epoxy Coating


• Dust Cap Material: PPI


• Surround Material: Foam


• Spider Diameter: 8.5" / 215mm


• Leads Connection Type: Crossed Spider


• Basket Material: Aluminum


• Basket Color/Finish: Black


• Magnet Material: Ferrite


• Magnet Weight: 3 x 85 Oz (255 Oz)


• Displacement Volume: 3.5L / 0.123ft

Thiele & Small Parameters

• Equivalent Volume Vas: 12.55L / 0.443ft


• Excursion (one way) Xmax: 19mm


• Free Air Resonance Fs: 45 Hz


• Mechanical Factor Qms: 5.769


• Electrical Factor Qes: 1.179


• Total Factor Qts: 0.979


• Moving Mass Mms: 401.522g


• Compliance Cms: 31.362u m/N


• Bl Factor Bl: 26.653


• Voice Coil Inductance Le: 6.81mH


• Diaphragm Area Sd: 530.929 cm


• Dc Resistance Re: 3.7+3.7 ohms


• Efficiency Bandwidth Product EBP: 71

Recommended Enclosures

• Sealed Internal Volume: 17L / 0.6ft


• Sealed Box Output Response F3: 41Hz


• Ported Internal Volume: 42.5L / 1.5ft


• Port Size (Square WxHxLong): 1.52"x12.28"x31.82" / 38.5x312x808.2mm


• Port Tuning Frequency Fb: 30Hz


• Ported Box Output Response F3: 25Hz

Measurement

• Overall Diameter: 12.5" / 319mm


• Overall Depth: 9.68" / 246mm


• Front Mount Baffle Cutout: 11.1" / 282mm


• Mounting Depth: 8.17" / 208mm


• Motor Diameter: 7.5" / 191mm
