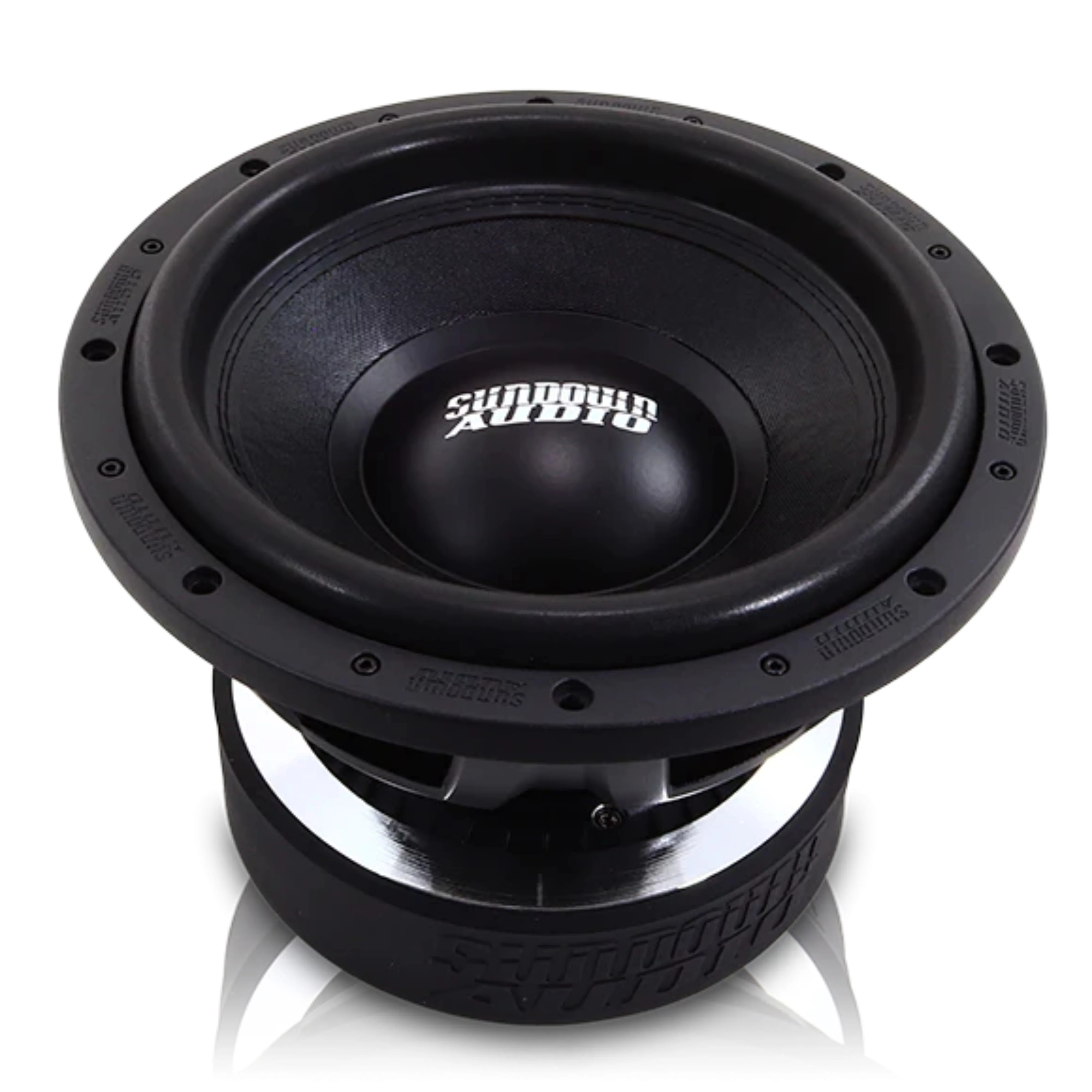

12" 4 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-12-D4-V2
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Innovative high-velocity cast aluminum vented frame spacer ring
- Black Aluminum 3" voice coil former for superior heat dissipation
- Double stitched surround
12" 4 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-12-D4-V2
This listing includes:
- (1) 12" 4 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-12-D4-V2
Description:
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier "standard suspension" woofer in the Sundown lineup. A double-stacked 9.4-inch-wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom, substantially thicker aluminum frame was designed specifically for the U Series, equipped with heat dissipation ribs. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is kept in check via a high-velocity solid pole / machined pole channels arrangement and a series of 16 direct air-gap vents in the back plate.
Features:
- Black Aluminum 3" voice coil former for superior heat dissipation
- High Temperature Round-Wire ALU voice coil with high-temp black adhesive
- Double stitched surround
- Heavy duty cast baskets - all new, custom-tooled
- Spring loaded terminals accept up to 8 gauge
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear drilled gap-venting
- Innovative high-velocity cast aluminum vented frame spacer ring
- Magnet ID shorting ring
- Top-Plate Cooling Channels
- Cast Aluminum surround bolt-on rings
- Optimized for small ported or bandpass enclosures
Specifications:
- RE (Ohms): 3.8407 / 6.0577
- FS (Hz): 41.3260 / 41.9087
- VAS (L): 14.7612 / 14.7535
- Qes: 0.4862 / 0.5870
- Qms: 4.7454 / 4.9022
- Qts: 0.4410 / 0.5242
- Le (mH): 3.1858 / 4.3694
- BL (NA): 27.2694 / 31.1265
- Mms (Grams): 358.6438 / 356.5462
- Cms (uM/N): 40.4709 / 40.4498
- Sens (dB @ 1w/1m): 85.1980 / 84.4191
