• 12" 750W RMS 8-Ohm Loudspeaker – APLMB Series for rich mid-range and powerful bass
• Voice Coil – 3.3" high-temperature TIL for durability and long-lasting performance
• Surround – Cloth edge for enhanced low-frequency response and clarity
• Magnet – 95 Oz for superior power handling and efficiency

12" 750W RMS 8-Ohm 3.3" VC Loudspeaker – APLMB Series

This Listing Includes:

• (1) 12" 750W RMS 8-Ohm 3.3" VC Loudspeaker

The APLMB-12 mid-bass loudspeaker delivers exceptional low-frequency performance, offering 1500 watts peak power and 750 watts continuous power for a dynamic listening experience. Equipped with a 3.3" high-temperature TIL voice coil, a 95 Oz magnet, and a Kevlar fiber-embedded paper cone, this loudspeaker provides powerful, clear, and precise sound reproduction. The die-cast aluminum basket ensures durability, while its design isolates internal air for optimized performance. Ideal for applications where rich mid-range and powerful bass tones are essential.

Features

• Power Handling: 750W RMS | 1500W Peak


• Impedance: 8 Ohms


• Voice Coil: 3.3" high-temperature TIL for enhanced performance and longevity


• Surround: Cloth edge for improved low-frequency response and clarity


• Basket: Die-cast aluminum for superior durability and protection


• Cone: Kevlar fiber-embedded paper for robust mid-bass performance


• Magnet: 95 Oz for high power handling and superior efficiency

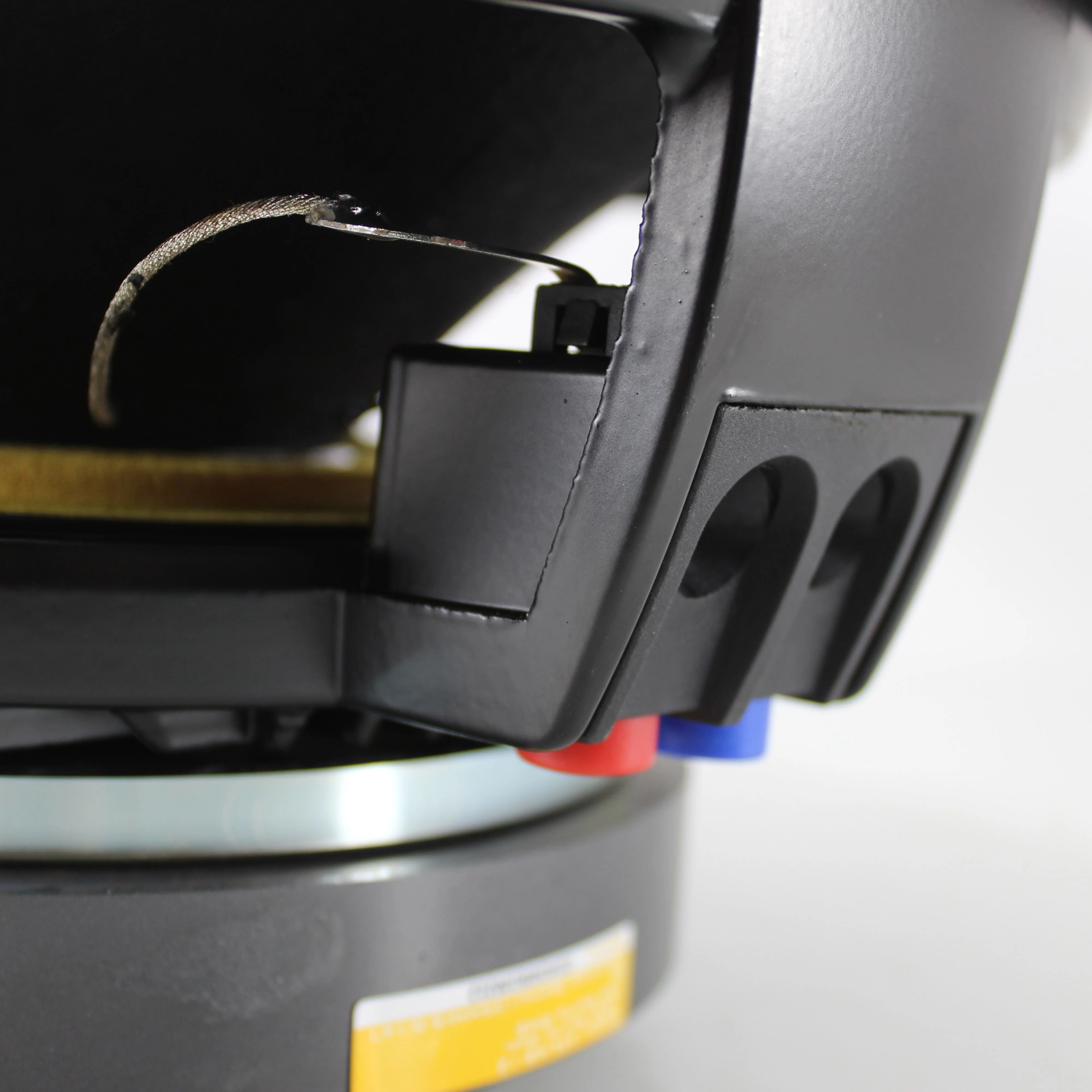

• Installation: Color-coded terminals for easy wiring and setup

Specifications

• Nominal Diameter: 12" - 305mm


• Nominal Impredance: 4 ohms


• RMS Power Handling:  750 watts


• Max Power Handling: 1500 watts


• Sensitivity (1w/1m) 94 db


• Frequency Response: 55Hz - 6,000Hz


• Voice Coil Diameter: 3.3" - 85mm


• Voice Coil Former Material: TIL


• Winding Material: CCAW


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Aluminum


• Magnet Material: Ferrite

Measurements:

• Front Mount Baffle Cutout: 11 inches


• Mounting Depth: 5.3 inches


• Overall Diameter: 12.7 inches


• Overall Depth: 5.9 inches


• Motor Diameter: 7.5 inches


• Magnet Weight: 95 Oz
