• Massive Power Handling – Delivers 1000W RMS and peak power near 2000W for deep, thunderous bass
• Dual 4 Ohm Voice Coils – Flexible wiring configurations for optimized amp matching
• Reinforced SoloKon™ Cone – One-piece thick polypropylene cone with vented back bracing for strength and clarity
• Extreme Cooling Design – UniPlate™ extended pole piece, cast aluminum basket, and perimeter venting keep heat under control

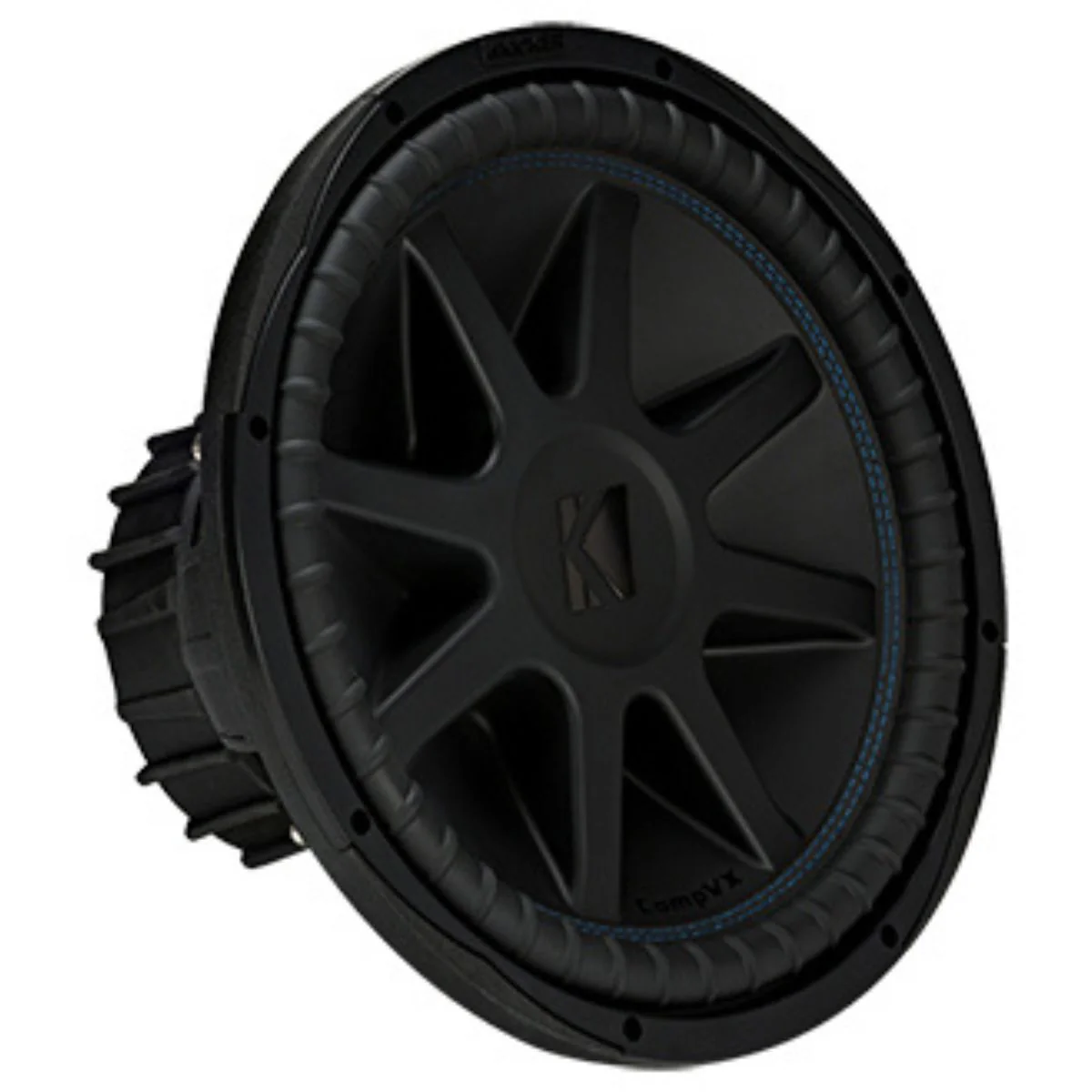

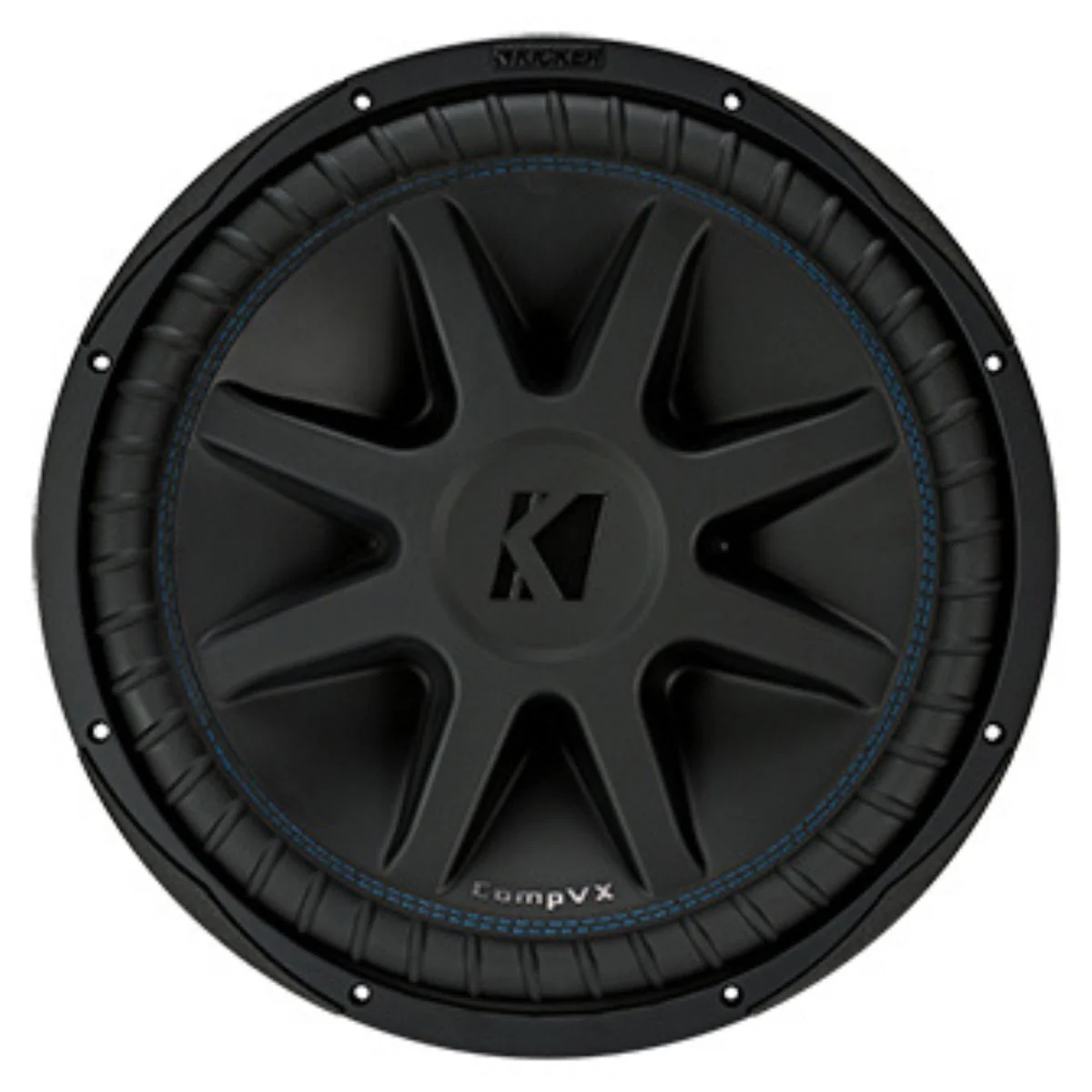

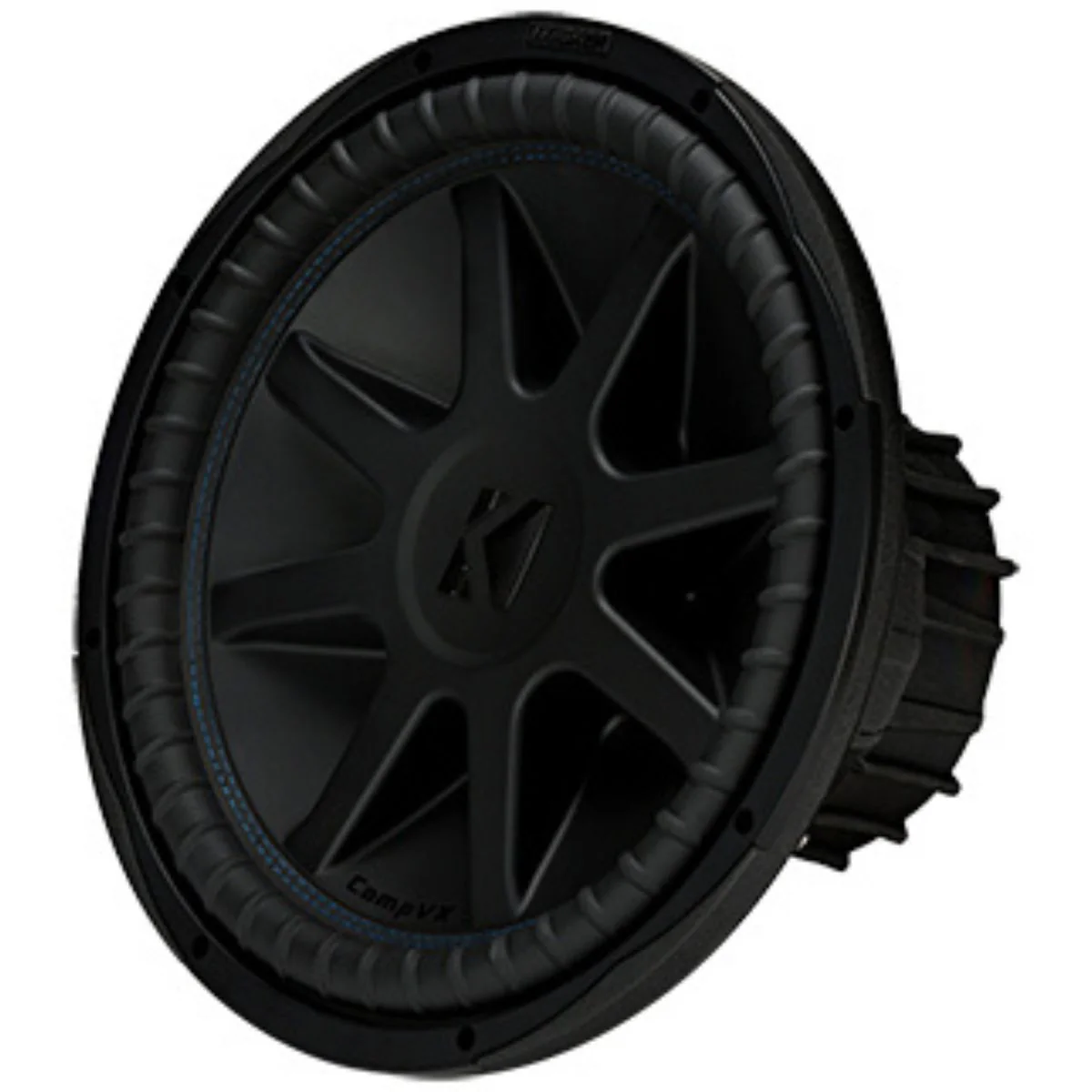

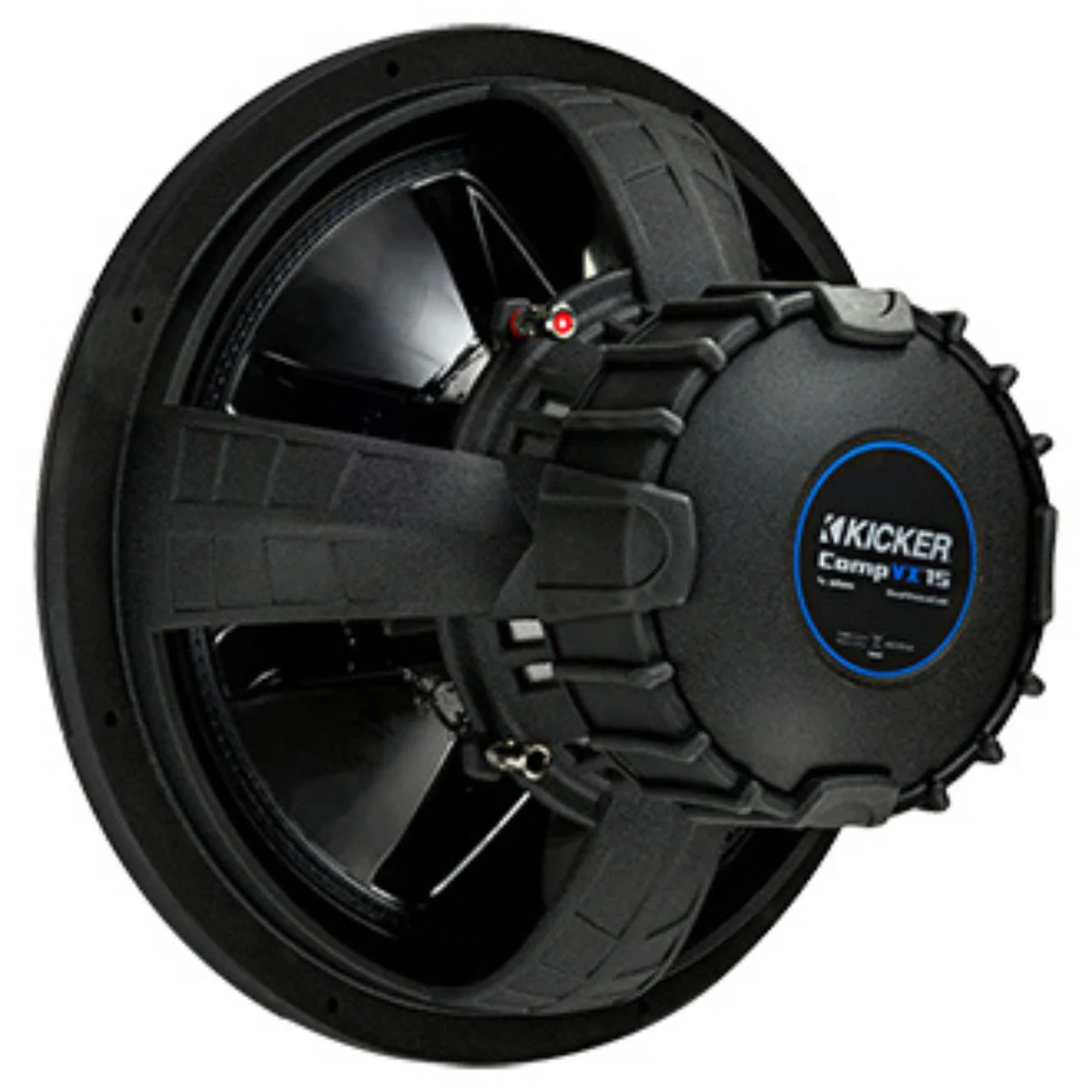

15" 1000W Dual 4 Ohm Car Subwoofer KICKER CompVX CVX154 DVC Bass Speaker

This Listing Includes:

• (1) KICKER 50CVX154 15" CompVX Subwoofer

The KICKER CompVX 15" 4 Ohm Dual Voice Coil Subwoofer takes round subwoofers to a whole new level, borrowing high-performance features from KICKER’s Solo-Baric L7S line. With its reinforced SoloKon℠cone and oversized suspension system, the CVX154 is built to hit hard and stay cool.

Specifications:

• Size: 15" (38 cm)


• Voice Coil Configuration: Dual 4 Ohm


• RMS Power Handling: 1000 Watts


• Peak Power Handling: ~2000 Watts


• Sensitivity: 90.1 dB (nominal)


• Frequency Response: ~25 Hz - 500 Hz (estimated based on fs and use case)


• Mounting Depth: ~8.5 - 9 in (not listed officially, estimated from basket type)


• Mounting Diameter (Cutout): ~13.75 in (34.9 cm)


• Recommended Enclosure Types: Sealed or Ported

Thiele/Small Parameters:

• fs: 26.6 Hz


• Qts: 0.3585


• Qes: 0.3675


• Qms: 14.483


• Vas: 118.4 L


• Cms: 0.117 mm/N


• Mms: 306.2 g


• Sd: 844.96 cm


• Bl: 32.51 Tm


• Re: 7.595 Ohm


• Xmax: 20.65 mm


• n0 (Reference Efficiency): 0.581%


• Lnom (Nominal SPL): 90.075 dB

Dimensions (Estimated):

• Outer Frame Diameter: ~15-7/16 in (39.2 cm)


• Mounting Depth: ~8.6 in (21.8 cm)


• Mounting Cutout: 13-3/4 in (34.9 cm)


• Shipping Box Estimate: 17.5 x 17.5 x 11 in


• Shipping Weight Estimate: 26 - 28 lbs

The massive ceramic magnet, cast aluminum basket, and satin nickel spring terminals round out a subwoofer built for power, durability, and next-level bass.
