• HIGH POWER 15 INCH DUAL 2 OHM SUBWOOFER: SA Classic Series 15 inch subwoofer rated at 1000 watts RMS and 2000 watts peak, built for serious low frequency output in high performance car audio systems.
• DUAL 2 OHM VOICE COILS FOR FLEXIBLE WIRING: Dual 2 Ohm configuration with RE of 4.29 Ohm and strong BL of 23.4 NA lets you wire for 1 Ohm or 4 Ohm loads so you can match a wide range of mono amplifiers.
• ENGINEERED FOR SMALL PORTED, SEALED, AND BAND PASS BOXES: Optimized to work in 3.5 cubic foot ported enclosures tuned to 35 Hz, 2.5 cubic foot sealed boxes, and even 4th order band pass designs for builders who want maximum output and control.
• LOW DISTORTION MOTOR WITH LARGE FARADAY RING: Features a large aluminum Faraday ring, low distortion motor construction, and 19 mm Xmax for strong, clean excursion and smoother acoustic response at high power levels.
• COMPETITION GRADE COMPONENTS AND COOLING: High strength cast aluminum frame, 2.5 inch custom voice coil, double layered Nomex spider, SPL competition grade paper cone, high temperature coil wire, stitched XL tinsel leads, and spring loaded terminals for reliable long term performance.

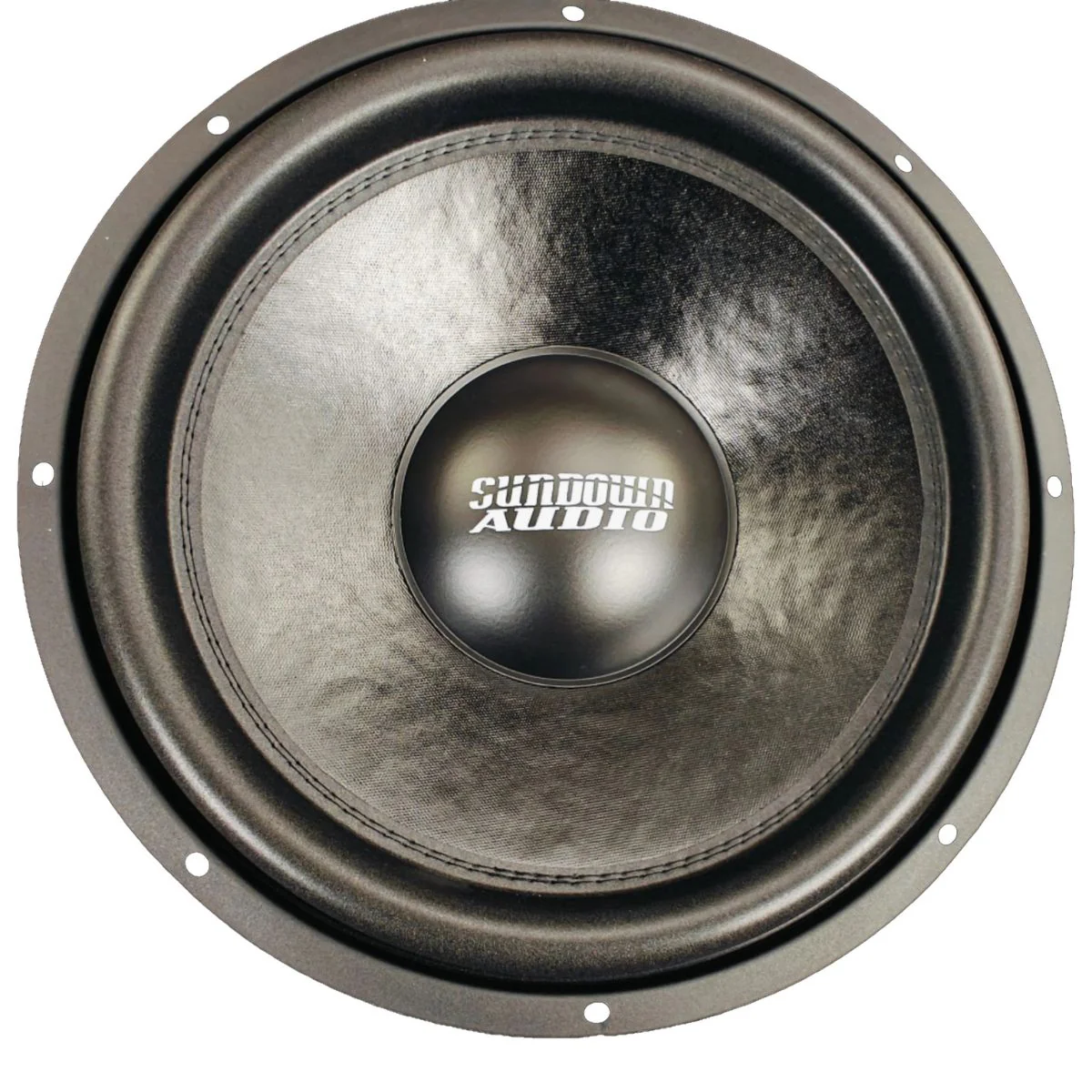

Sundown Audio SA Classic 15" 1000W RMS 2-Ohm 2.5" DVC Subwoofer CLASSIC-15-D2

This Listing Includes:

• (1) Sundown CLASSIC-15-D2 Subwoofer

The Sundown Audio SA Classic 15 D2 subwoofer is a heavy-hitting 15-inch driver designed for enthusiasts who want big power handling, deep excursion, and flexibility in box design. Rated at 1000 watts RMS and 2000 watts peak, the SA Classic 15 D2 delivers serious low-frequency output while keeping control and sound quality in mind.

At the heart of the SA Classic 15 is a custom 2.5-inch voice coil built into a low-distortion motor with a large aluminum Faraday ring. This helps smooth the acoustic response and reduce inductive distortion, especially at high power. A robust double-layered Nomex spider and SPL competition-grade paper cone are designed to survive aggressive daily listening and competition-style abuse.

The high-strength cast aluminum frame provides a rigid foundation for the motor and moving assembly, while integrated venting helps keep the coil cool. High-temperature voice coil wire, stitched-on XL tinsel lead wires, and spring-loaded terminals add up to a durable, installer-friendly subwoofer ready for real power.

The SA Classic 15 D2 is optimized to work in multiple enclosure types. Sundown recommends a 3.5 cubic foot ported enclosure with 35 square inches of port area tuned to 35 Hz for strong, musical bass. For a tighter response and a smaller footprint, a 2.5 cubic foot sealed enclosure works well. For advanced builders, detailed 4th-order band-pass specs are provided, including a 1.5 cubic foot sealed chamber and a 4.5 cubic foot ported chamber with 90 square inches of port area and a 6-inch port length, allowing you to squeeze maximum output and bandwidth from the driver.

Whether you are building a loud daily driver, a demo vehicle, or a budget-friendly competition system, the SA Classic 15 D2 combines value, power handling, and deep excursion in a flexible package that performs in many box designs.

Features:

• 1000 watt RMS / 2000 watt peak


• Dual 2 Ohm voice coils


• Large aluminum Faraday ring


• High-strength cast aluminum frame


• Low-distortion motor construction


• High-temperature voice coil wire


• Spring-loaded terminals


• Stitched on XL tinsel lead wires

Power Ratings (D2)

• RMS Power (D2): 1000 watts


• Peak Power (D2): 2000 watts

Thiele Small Parameters (D2)

• RE D2 (Ohms): 4.29


• FS D2 (Hz): 37.8


• VAS D2 (L): 67.3


• Qes D2: 0.55


• Qms D2: 2.86


• Qts D2: 0.46


• Le D2 (mH): 3.41


• BL D2 (NA): 23.4


• Mms D2 (grams): 319


• Cms D2 (uM per N): 55.3


• Sensitivity D2 (dB at 1W 1m): 89.2


• Xmax D2: 19 mm

Recommended Enclosures (D2 uses the same box specs as the series)

Ported Enclosure

• Ported Enclosure Size: 3.5 cubic feet


• Recommended Port Area: 35 square inches


• Recommended Port Tuning: 35 Hz

Sealed Enclosure

• Sealed Enclosure Size: 2.5 cubic feet

4th Order Band Pass (Advanced)

• 4th Order Sealed Side: 1.5 cubic feet


• 4th Order Ported Side: 4.5 cubic feet


• 4th Order Port Area: 90 square inches


• 4th Order Port Length: 6 inches

Dimensions:

• Total Diameter: 15.55"


• Driver Size: 15"


• Mounting lip diameter: 15.35"


• Cutout Diameter: 14"


• Motor Diameter: 7.79"


• Total depth: 8.90"


• Mounting Depth: 7.69"


• Displacement: 0.17 cubic feet
