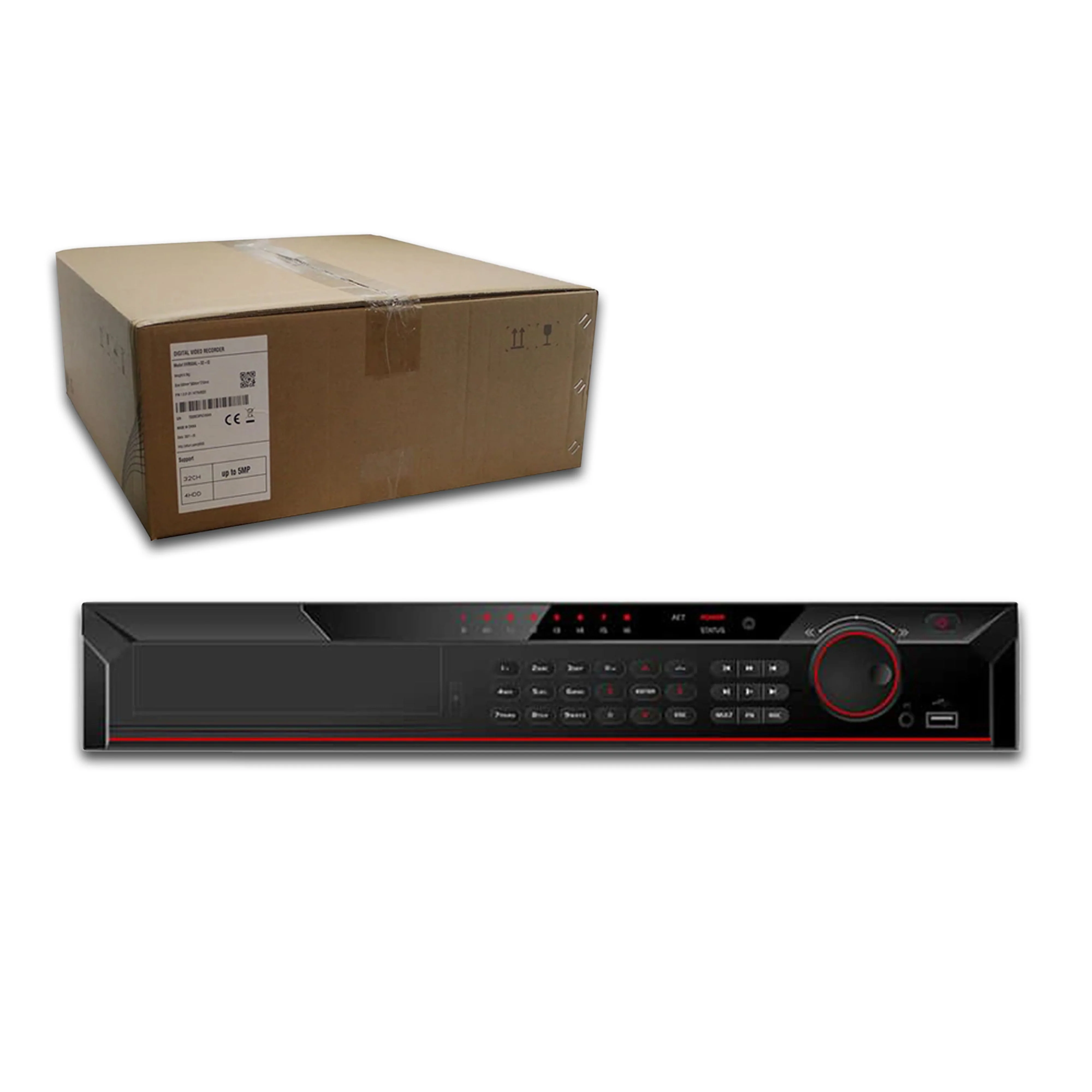

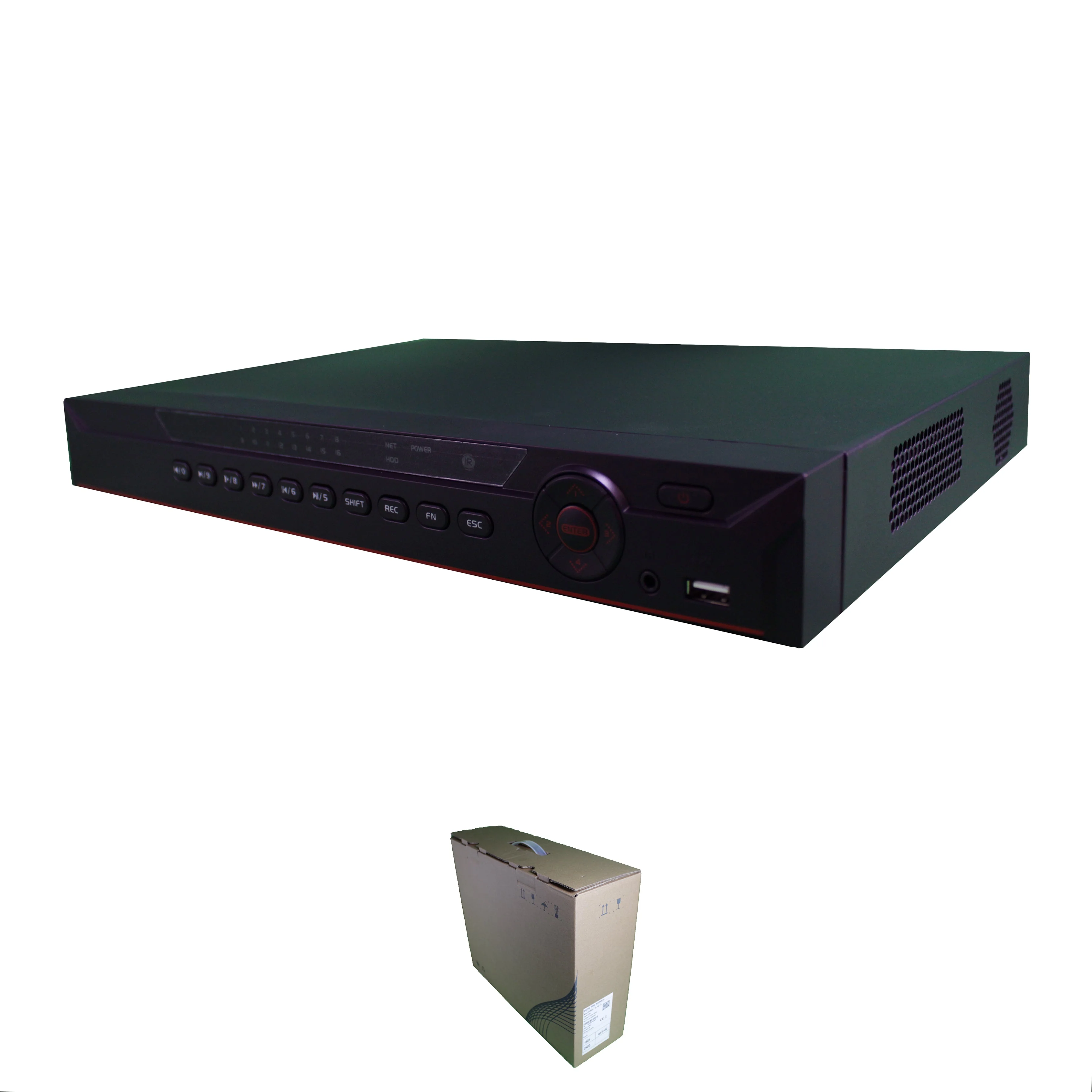

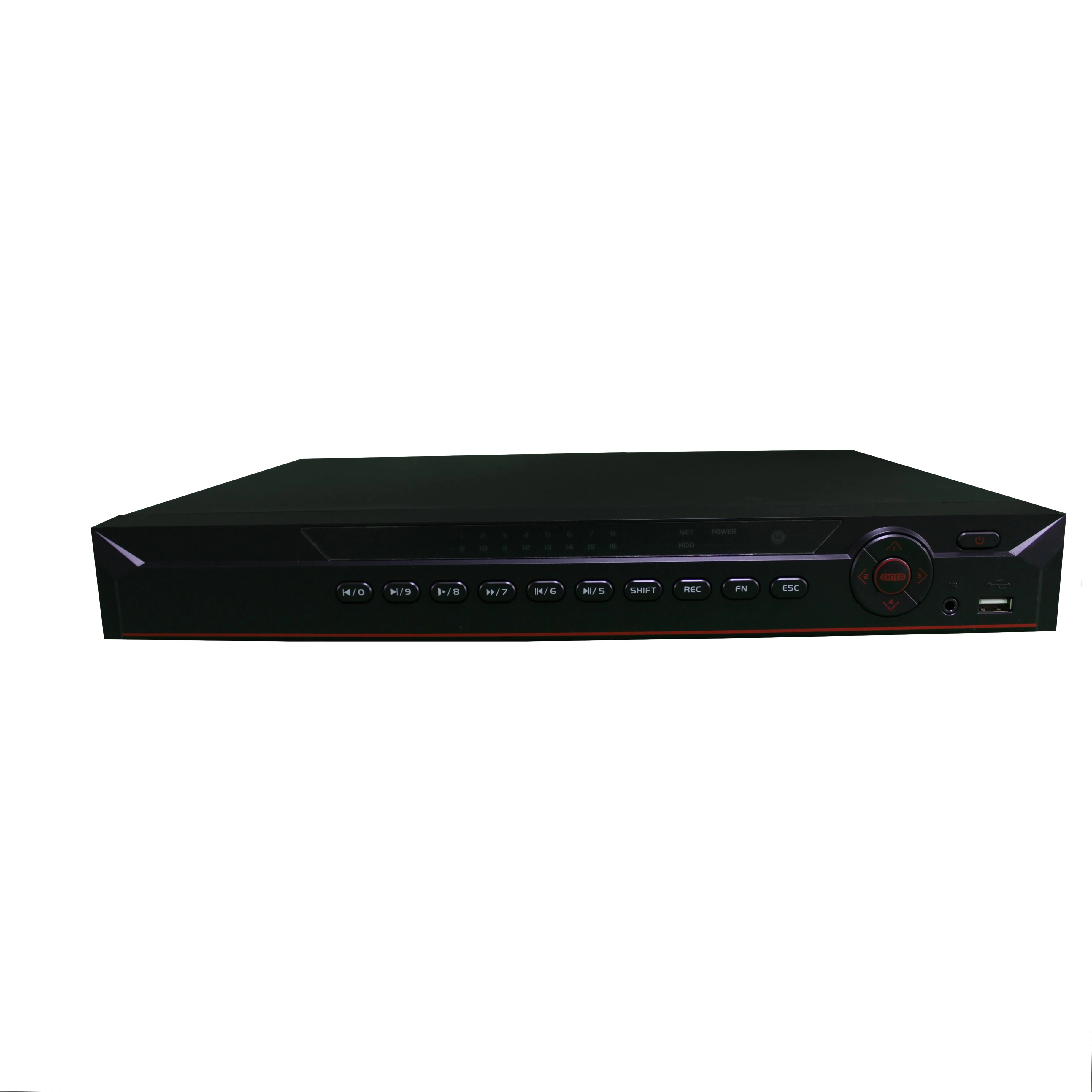

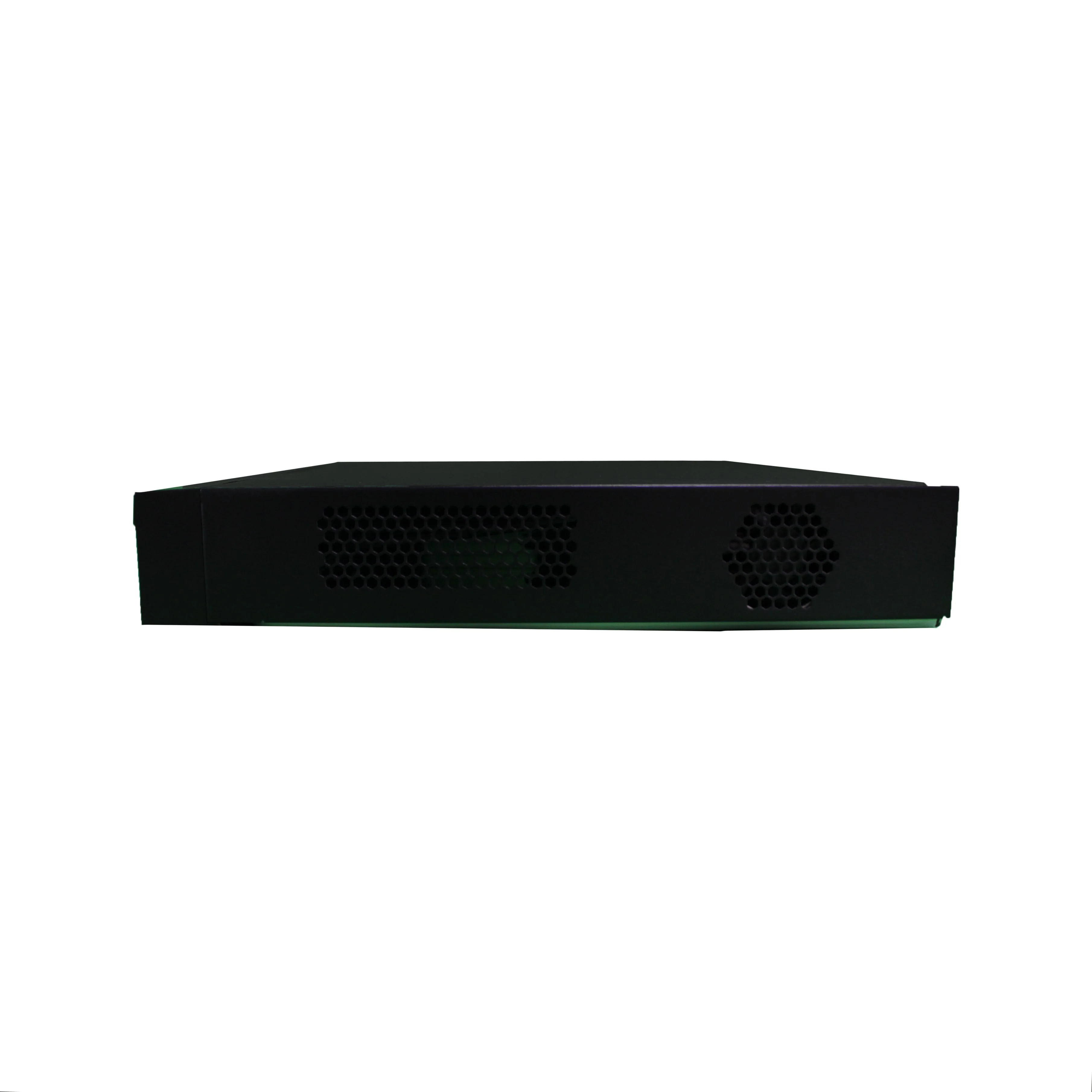

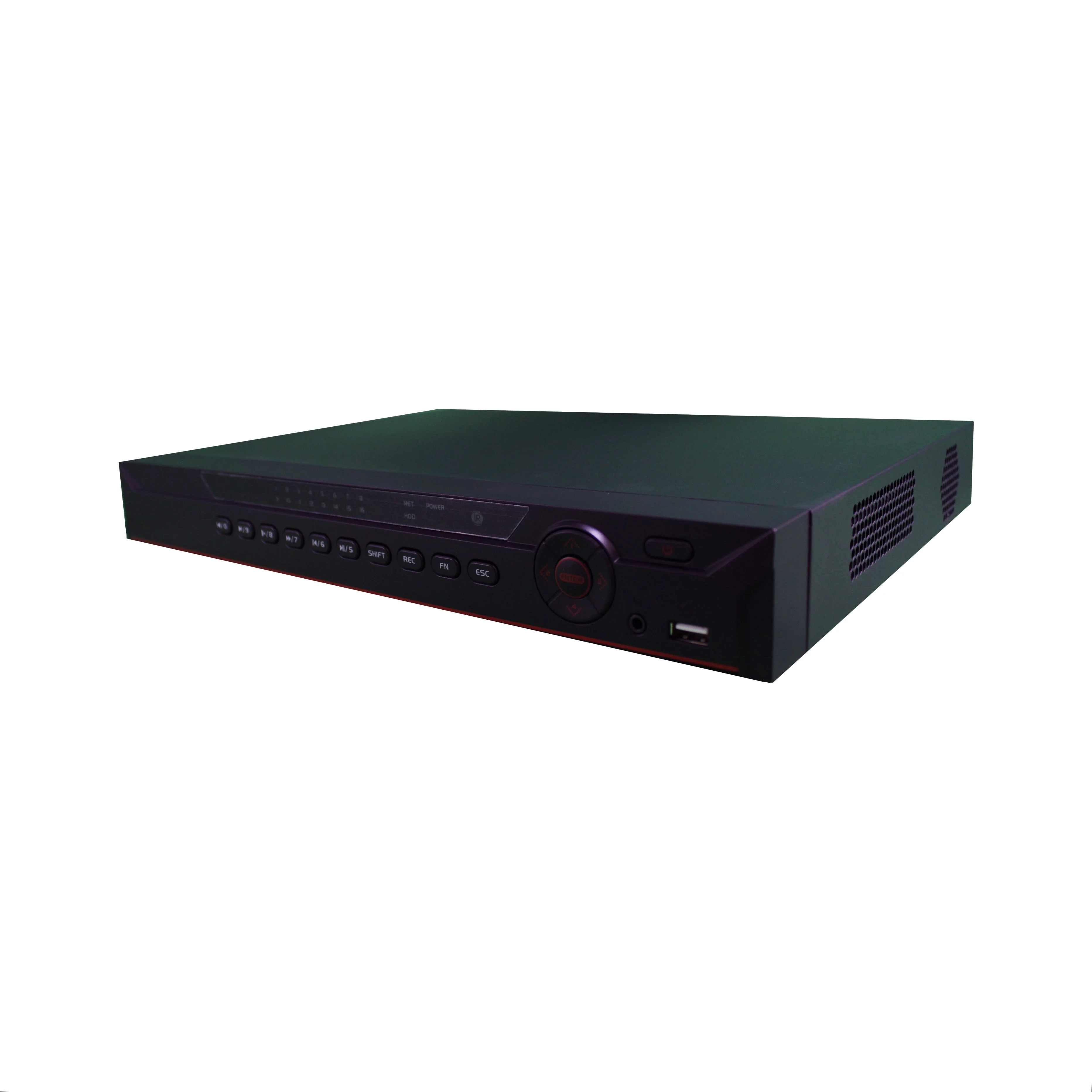

16 Channel 4K CCTV Penta-brid Security Motion Detection DVR OEM Dauha CVI/TVI

This new XVR series DVR is designed to have highly accurate human/vehicle alarms and will raise the security level of your home or business. This DVR has Perimeter Protection and SMD Plus, referred to as Smart Motion Detection Plus, which is an upgraded version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithms. It analyzes person and vehicle shapes based on motion detection and send alarms only when a person or vehicle intrudes. It automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Real time face recognition analyzes features including gender, age, expression, glasses, moustache and mask. This DVR supports HDCVI/AHD/TVI/CVBS/IP video inputs for a wide variety of applications.

This Listing Includes:
(1) Digital Video Recorder
(1) Power Pack
(1) Ethernet Cable
(1) Mouse
(1) Remote Control
(2) Pluggable Terminal Blocks
(4) HDD installation wires (HDD not included)
(8) Phillips Head Screws

FEATURES:
-Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-2 SATA ports, up to 10 TB capacity for each disk (HDD not included)
-Perimeter Protection and SMD Plus
-Face Recognition
-Stranger Mode
-Up to 2 channels video stream (analog channel ) human face recognition
-Max 32 channels IP camera inputs, each channel up to 8MP; Max
-128 Mbps incoming bandwidth
-H.265+/H.265 dual-stream video compression
-IoT & POS functionalities

SPECIFICATIONS:
System Compression :H.265+/H.265
Main Processor: Embedded Processor
Operating System: Embedded Linux
OSD: No
Recording Resolution: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Bit Rate: 32 Kbps-6144 Kbps Per Channel
Recording Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 - 60 min (default: 60 min), Pre-record: 1 s-30 s, Post- record: 10 s-300 s
Playback Channels: 1/4/9/16
Playback Search: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode :USB Device/Network
Audio In: 4/1, RCA
Audio Out: 4/1, RCA
2 Way Audio: Reuse audio in/out, RCA
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 18), Video Loss, Tampering and Diagnosis
Alarm In: 16
Alarm Relay Output: 3
Network Interface:1 RJ-45 Port (1000 MB)
Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports
Dahua IP camera, DVR, NVS, etc.)
Network Max. Users: 128 users
Mobile: iPhone, Android
RS485: 1 Port, for PTZ Control
USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232: N/A
Power Supply: DC 12V/5A
Power Consumption: less than 15W
e-SATA: N/A

Operating Conditions: -10C to +55C (+14F to +131F), 0-90% RH

Dimensions: L x W x H 14.76'' 11.30'' 2.09'' (375 mm 288 mm 53 mm)

Weight: (without HDD) 4.2 lb (1.9 kg)
Gross Weight: 7.0 lb. (3.2 kg)
