• High Power Handling: Delivers an impressive 200W RMS and 400W peak power, ensuring loud and clear midrange audio for an immersive listening experience.
• Superior Sound Quality: Features a high-strength composite cone that enhances sound clarity and durability, providing consistent, high-fidelity audio performance.
• Enhanced Durability: The robust construction with a durable red metal grille not only protects the speaker but also adds a stylish touch to your car's interior, making it both functional and visually appealing.
• Optimized Design: The 8-ohm impedance and efficient design allow for versatile installation options and seamless integration into various audio setups, catering to all your car audio needs.
• cProfessional Grade Components: Engineered with high-quality materials and a focus on delivering professional-grade audio performance, this speaker is perfect for true audio enthusiasts who demand the best.

DS18 Pro 6x9" 200W RMS 8-Ohm Midrange Loud Speaker with Grill / PRO-X698BM

This Listing Includes:

• (1) PRO-X698BM Speaker

Description:

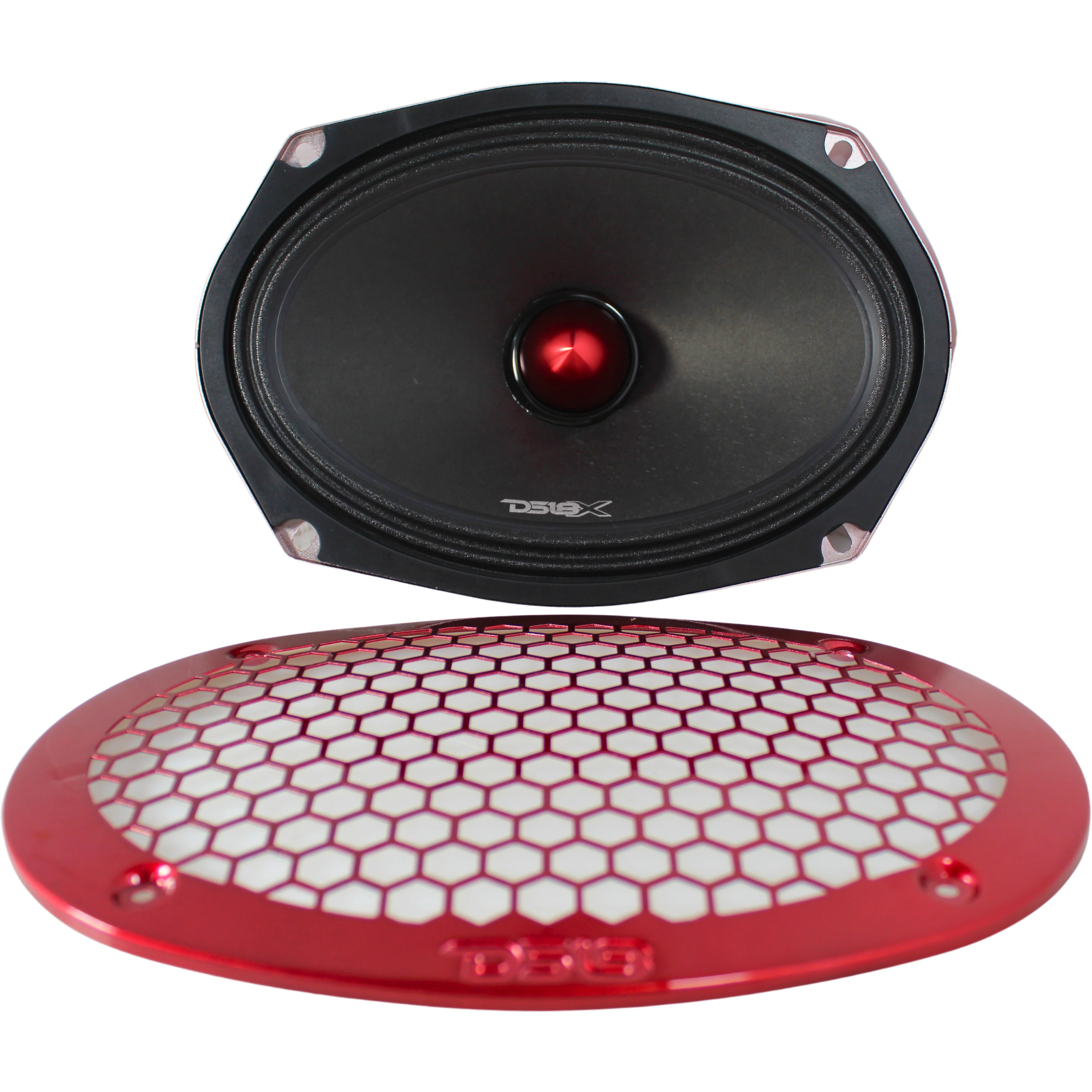

Elevate your car audio experience with the DS18 Pro 6x9" 200W RMS 8-Ohm Midrange Loud Speaker with Grill. This speaker is meticulously designed for those who crave crystal-clear midrange frequencies and robust performance. With a power handling capability of 200W RMS and 400W peak, it ensures that your audio is delivered with punch and precision. The high-strength composite cone and durable cloth surround work in harmony to produce exceptional sound clarity and reliability. The included red metal grill not only offers protection but also adds a sleek, stylish look to your car’s interior. Whether you're cruising down the highway or parked at a show, the DS18 Pro 6x9" speaker ensures your music stands out with vibrant, clear midrange notes that capture every detail of your favorite tracks. Experience the difference with a speaker that combines professional-grade components, superior sound quality, and an eye-catching design.

Specifications:

• Nominal Diameter: 6 x 9" / 152 x 228mm


• Nominal Impedance: 8 Ohm


• RMS Power Handling: 200W


• MAX Power Handling: 400W


• Sensitivity (1w/1m): 96dB


• Frequency Response: 100Hz-12.5KHz


• Recommended HI Pass Crossover: 120HZ


• Sold in Pair or Single: Single


• Grill Included: Yes

Motor:

• Voice Coil Diameter: 1.5" / 38.6mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-Pressed Paper


• Bullet Material: Aluminum


• Bullet Color/Finish: Glossy Red


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color/Finish: Glossy Red


• Magnet Material: Ferrite


• Magnet Weight: 27 Oz


• Displacement Volume: 0.32L / 0.011ft3

T/S Parameters:

• Equivalent Volume: 27.34L / 0.965ft3


• Excursion (one way): 7.7mm


• Free Air Resonance: 120Hz


• Mechanical Factor: 5.342


• Electrical Factor: 0.768


• Total Factor: 0.687


• Mechanical Mass: 8.21g


• Mechanical Compliance: 0.234mm/N


• BL Factor: 6.84


• Voice Coil Inductance: 4.11mH


• Cone Area: 207.34cm2


• DC Resistance: 5.2 ohms

Measurements:

• Overall Diameter: 9.25 x 6.5" / 235 x 165mm


• Overall Diameter With Grill: 10.2 x 7.08" / 260 x 180mm


• Overall Depth: 3.5" / 88.85mm


• Overall Depth With Grill: 3.9" / 100mm


• Front Mount Baffle Cutout: 8.7 x 6" / 222 x 152mm


• Mounting Depth: 3.27" / 83mm


• Motor Diameter: 4.3" / 110mm
