• Tansparent Polycarbonate Frame
• Program Power Handling: 280W
• Peak Power Handling: 560W

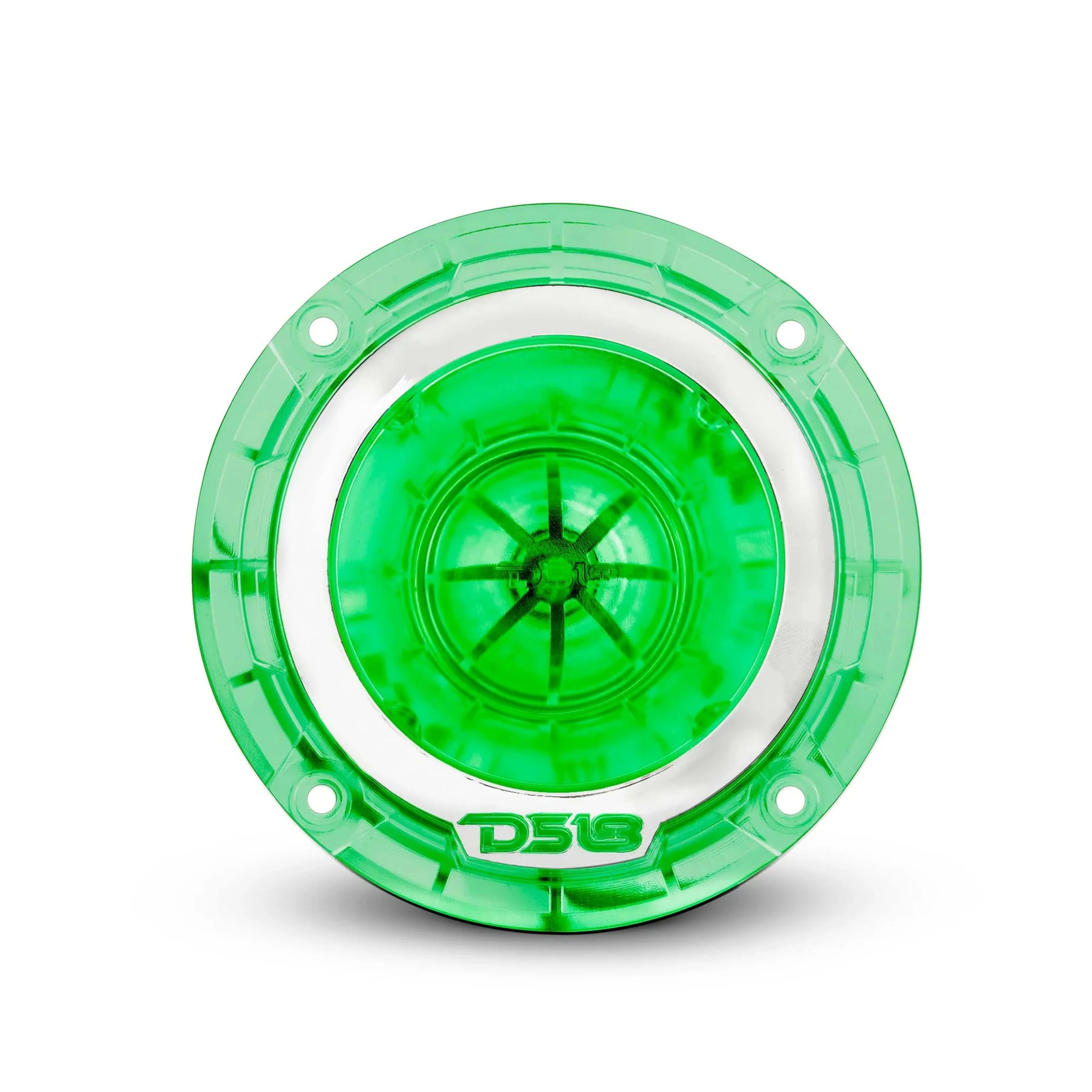

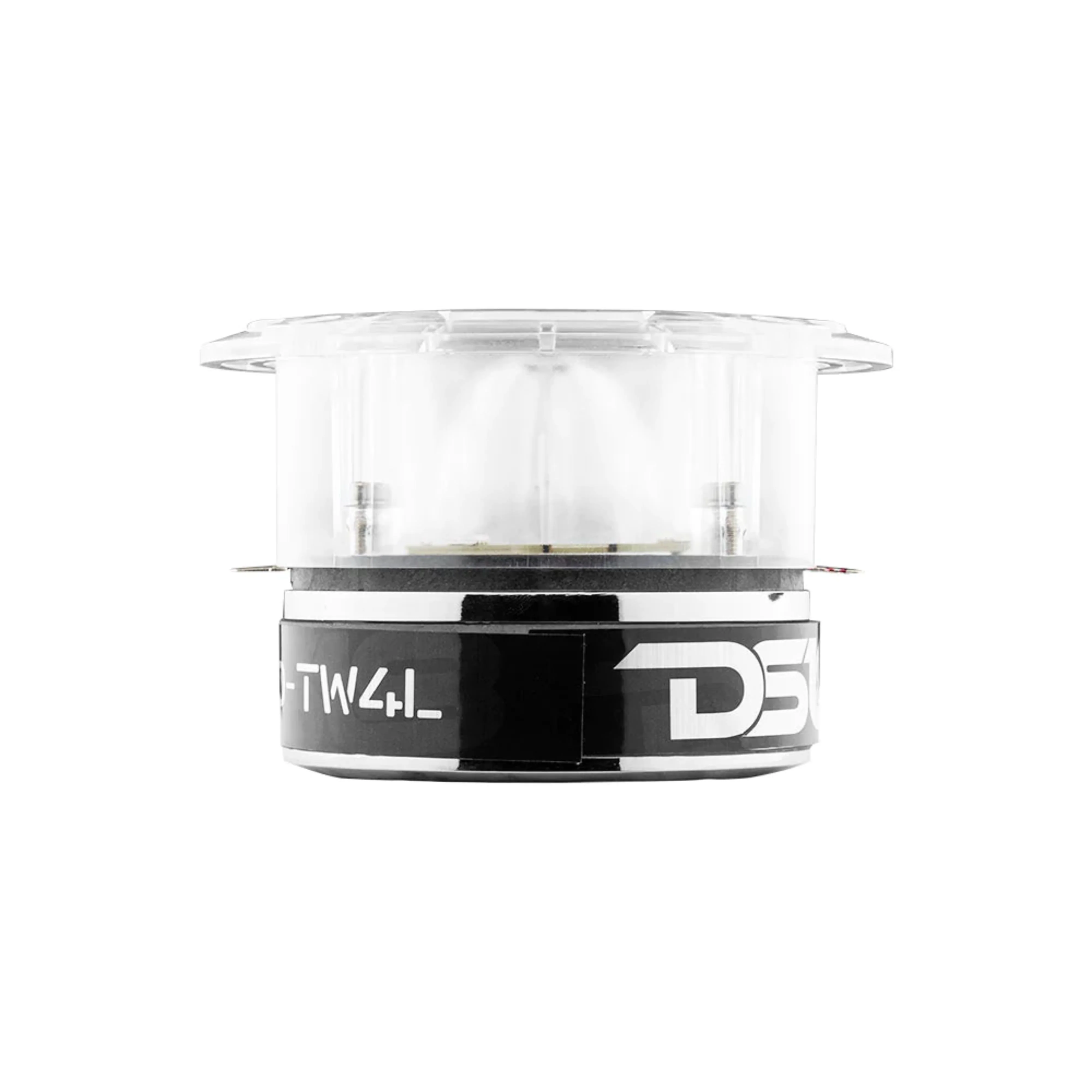

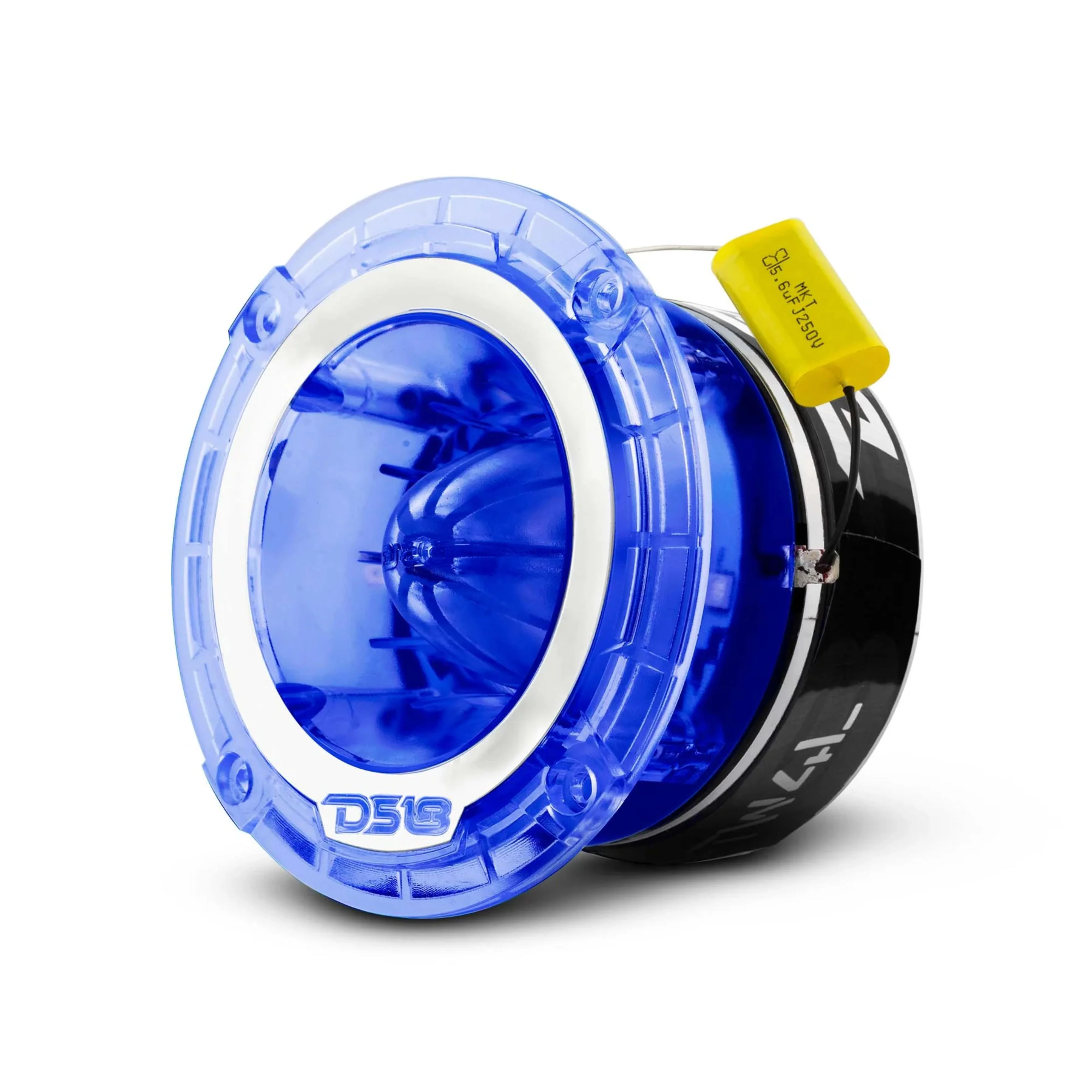

DS18 Super Bullet Tweeter 1.75" 4 Ohm 560W Peak RGB LED Titanium PRO TW4L

The DS18 Speakers have brought something new to the industry basically forcing others to drastically change their equipment to try to match ours. With higher power sizes, better looks, the DS18 series is streamlined, even more powerful and innovative than any other speaker in the industry. These are the speakers that any serious customers "goes to" when in need of ultimate power, slick looks and all features necessary to defeat the competition.

SPECIFICATIONS

Tansparent Polycarbonate Frame

Nominal Diameter: 4.5" (114.3 mm)

Nominal Impedance: 4 OHM

AES Power Handling: 140W

Program Power Handling: 280W

Peak Power Handling: 560W

Sensitivity (1w/1m): 108 dB

Frequency Response: 1.5K - 20KHz

Recommended HI Pass Crossover: 2KHz

Built in RGB LED

MOTOR

1.75" (44.4 mm) Voice Coil

Voice Coil Former Material: Kapton

Magnet Material: Ferrite Y30

Winding Material: CCA

Diaphragm Material: Titanium

Magnet Weight: 16oz

MEASUREMENTS

Overall Diameter 4.53" (115 mm)

Overall Depth 2.85" (72.5 mm)

Front Mount Baffle Cutout: 3.6" (92 mm)

Mounting Depth 2.66" (67.5 mm)

Motor Diameter 3.54" / 90mm
