• High-Performance Sound Quality: Features a ceramic diaphragm for superior clarity and a frequency response range of 250Hz to 20KHz, ensuring detailed high-frequency reproduction.
• Robust Power Handling: Capable of handling up to 100W peak power and 50W program power, providing reliable performance for various audio setups.
• Efficient Sensitivity: With a sensitivity rating of 88dB (1w/1m), this tweeter delivers loud, clear sound without requiring excessive power.
• Durable Construction: Built with a CNC aluminum body and a neodymium magnet, ensuring longevity and consistent performance in various environments.
• Versatile Installation Options: Designed with an external crossover (bass blocker) and compact dimensions, making it easy to integrate into both car and home audio systems.

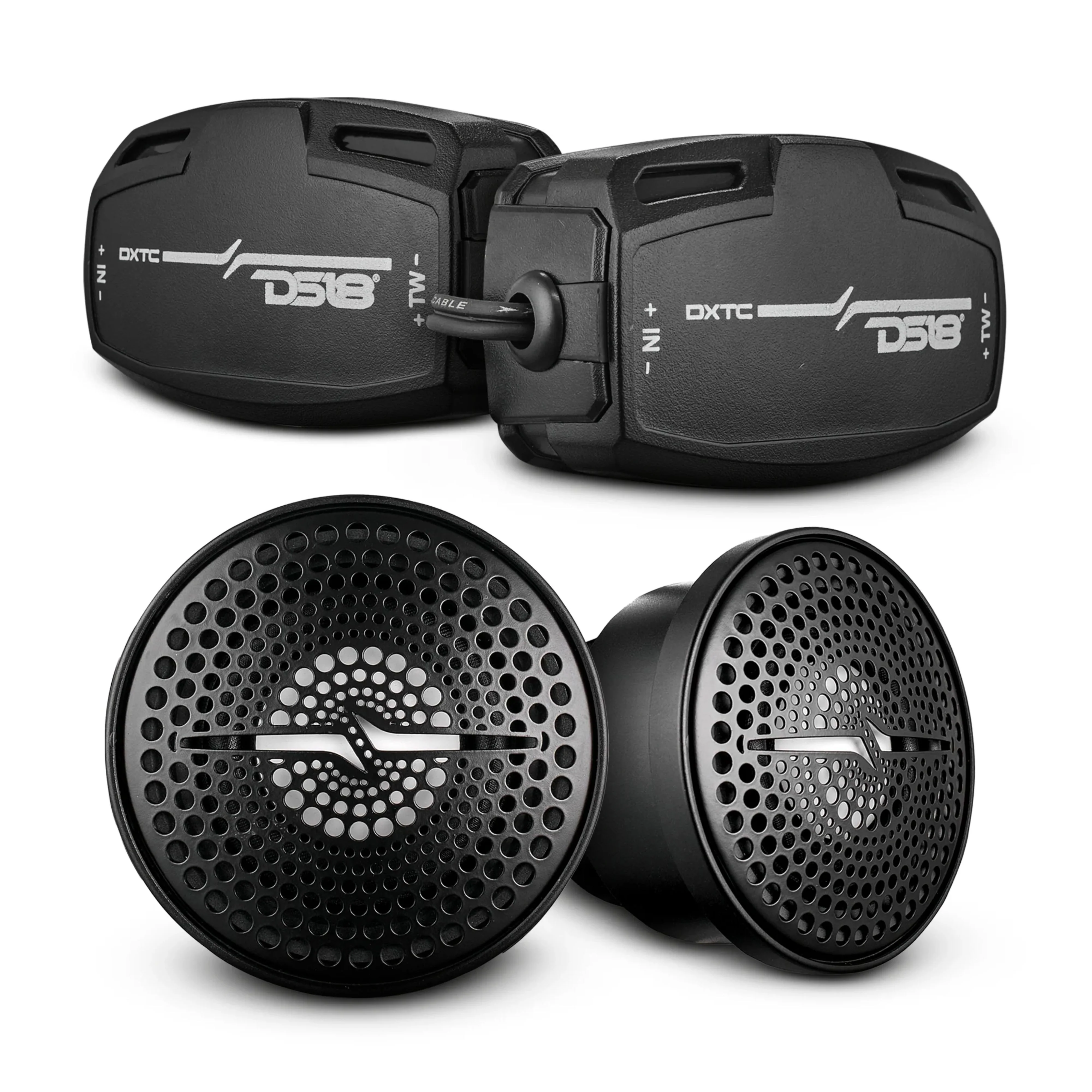

2" 25W RMS 4-Ohm Dome Tweeter W/ Ceramic Diaphragm & External Crossover DS18

This Listing Includes:

• (1) 2" 25W RMS 4-Ohm Dome Tweeter W/ Ceramic Diaphragm & External Crossover DS18

Description:

Elevate your audio experience with the DS18 DXTC 2" Encapsulated Dome Tweeter. Designed for exceptional clarity and performance, this tweeter features a durable ceramic diaphragm that ensures precise sound reproduction across a wide frequency range of 250Hz to 20KHz. Whether you’re upgrading your car audio system or enhancing your home setup, the DS18 DXTC delivers remarkable highs with a sensitivity rating of 88dB. Its external crossover (bass blocker) allows for a seamless integration into any sound system, ensuring optimal performance and sound clarity.

Specifications:

• Nominal Diameter: 2" / 51mm


• Nominal Impedance: 4 Ohms


• AES Power Handling: 25W


• Program Power Handling: 50W


• Peak Power Handling: 100W


• Sensitivity (1w/1m): 88dB


• Frequency Response: 250Hz-20KHz


• Recommended Hi Pass Crossover: 500Hz


• Sold In: Pair or Single (Pair)

Body Features:

• Crossover (Bass Blocker): External / 12dB/Oct


• Body Material: CNC Aluminum


• Body Color / Finish: Black


• Faceplate Color / Finish: Black

Motor:

• Voice Coil Diameter: 1" / 25.4mm


• Voice Coil Former Material: Polyimide


• Winding Material: Aluminum


• Diaphragm Material: Ceramic


• Magnet Material: Neodymium


• Magnet Size / Weight: 25mm / 0.65Oz

Measurement (Tweeter):

• Overall Diameter: 2.36" / 60mm


• Overall Depth: 2" / 52mm


• Front Mount Baffle Cutout: 2" / 52mm


• Mounting Depth: 1.4" / 36mm

Measurement (Crossover):

• Overall Length: 3.15" / 78mm


• Overall Width: 1.95" / 49.5mm


• Overall Height: 1.14" / 29mm
