• Phenolic Diaphragm – Provides durability and reliability, especially under high-power levels
• High Power Handling – 400W RMS, 800W peak for optimal performance in professional sound systems.
• Sensitivity – 111dB for loud and clear sound output
• Frequency Response – 630Hz to 8kHz, designed for mid-frequency range

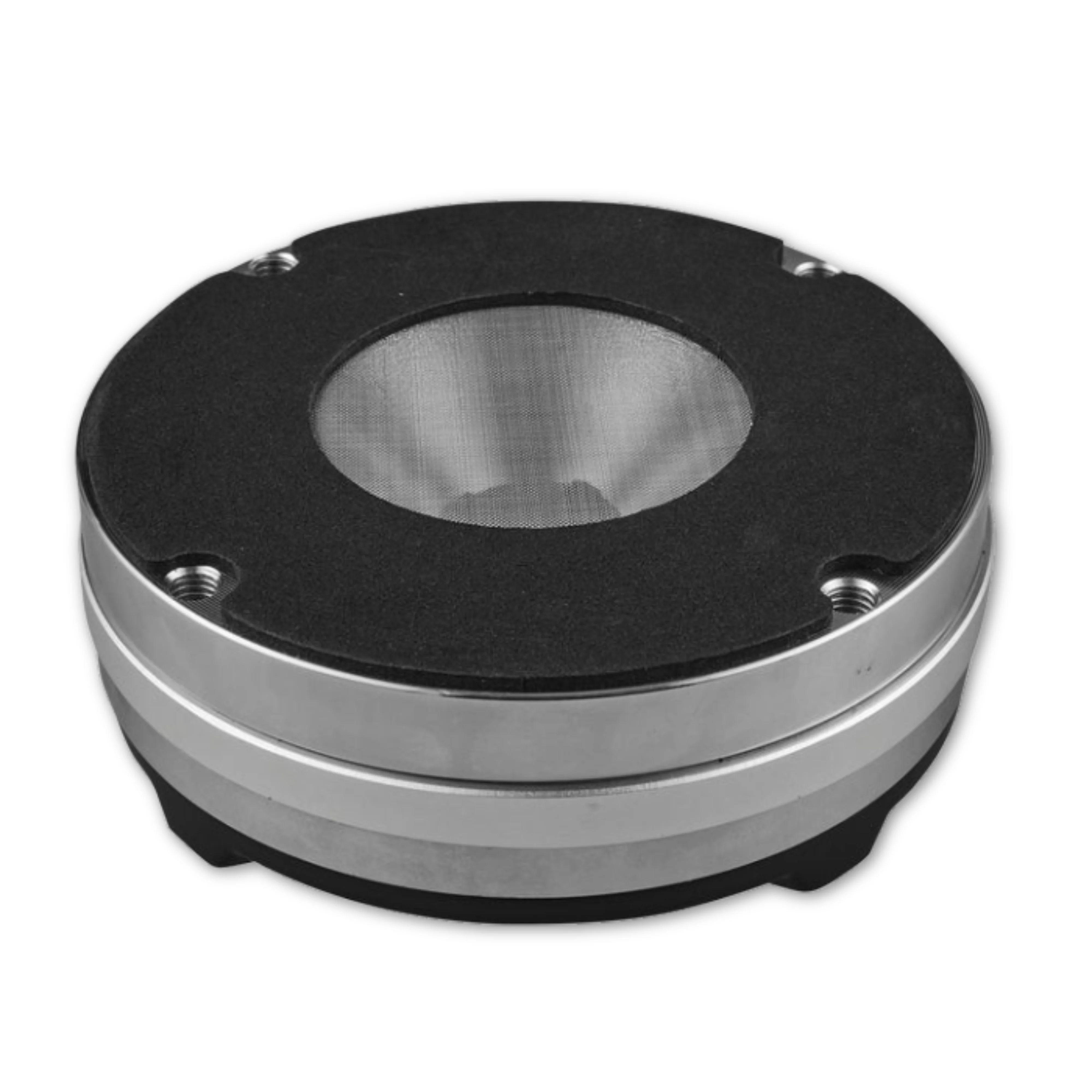

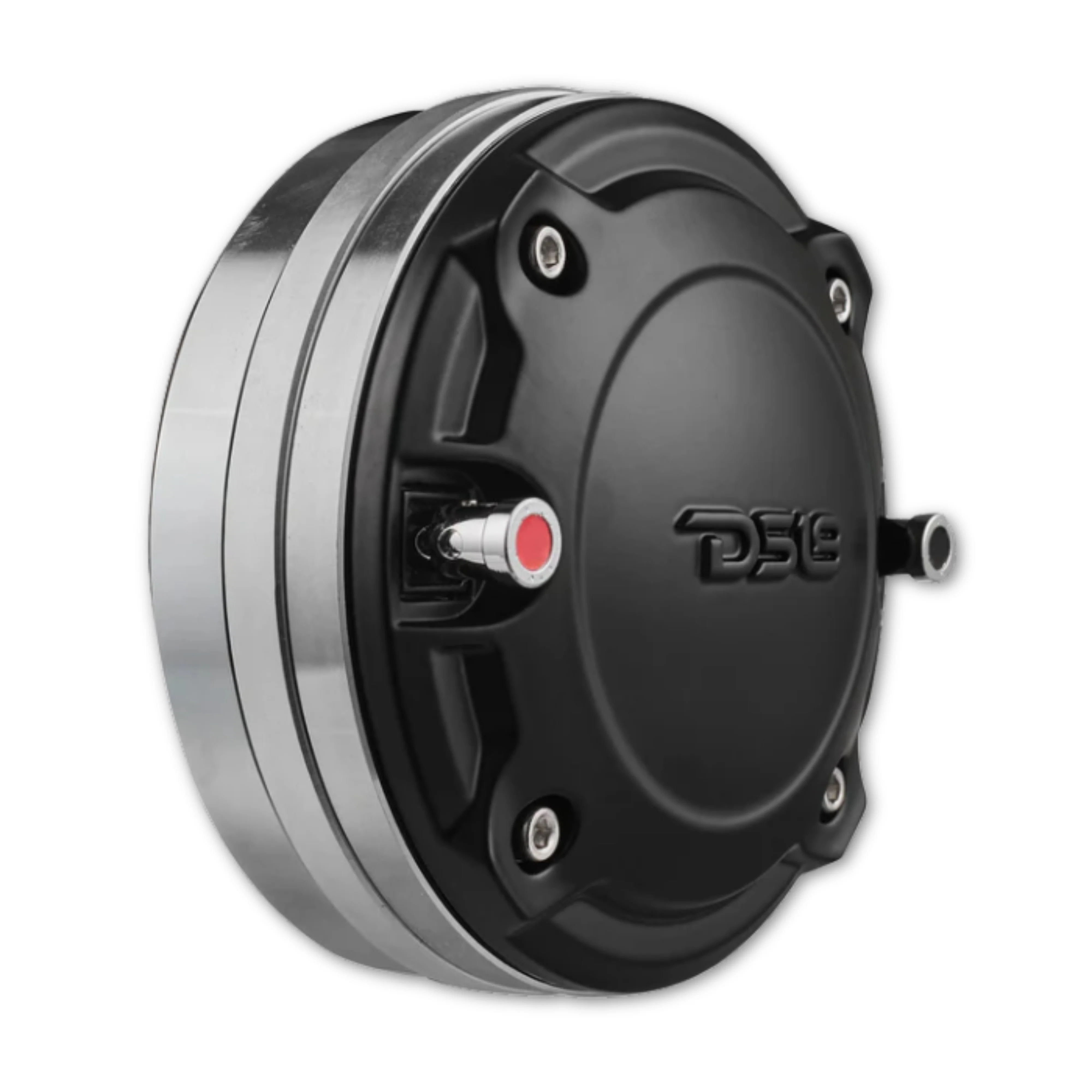

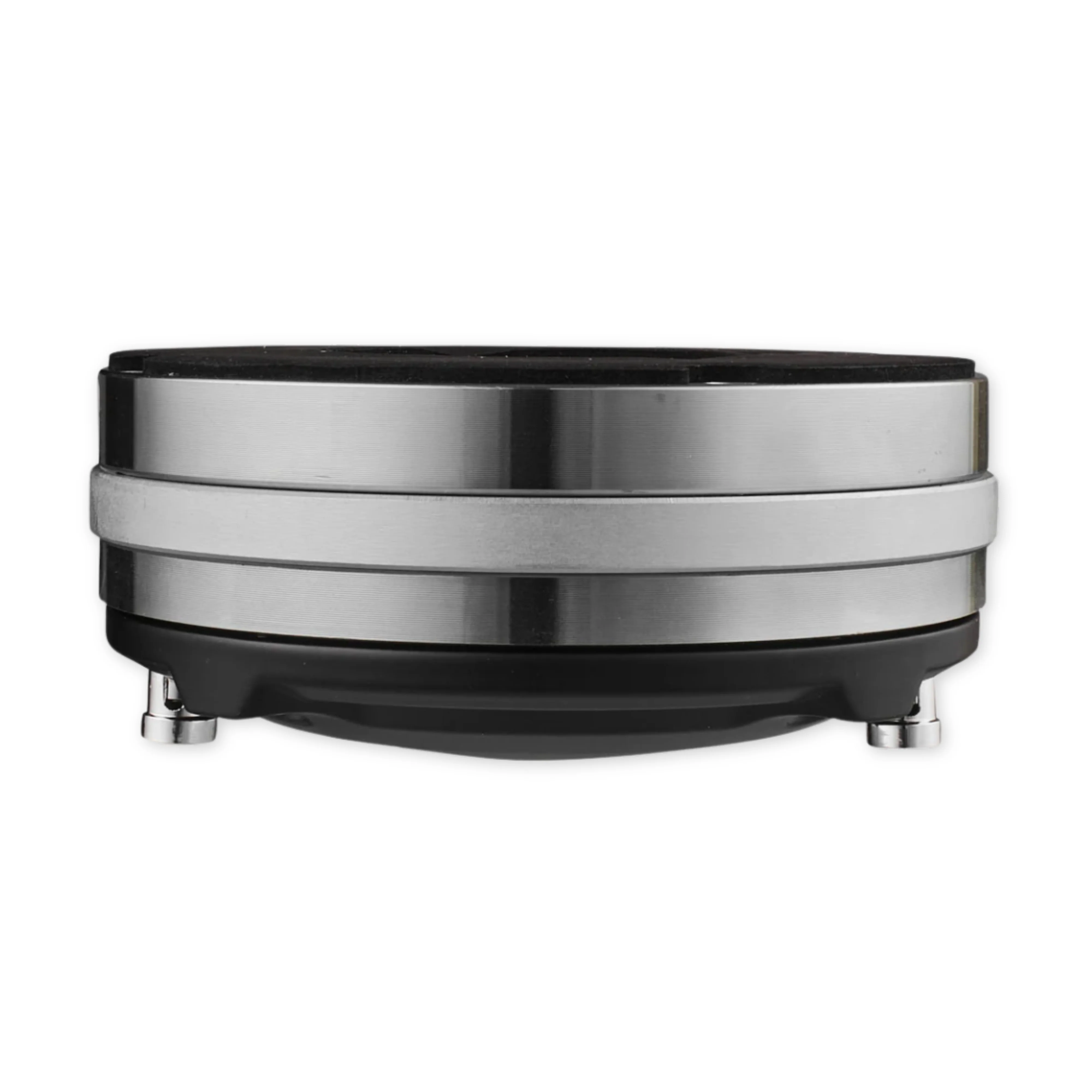

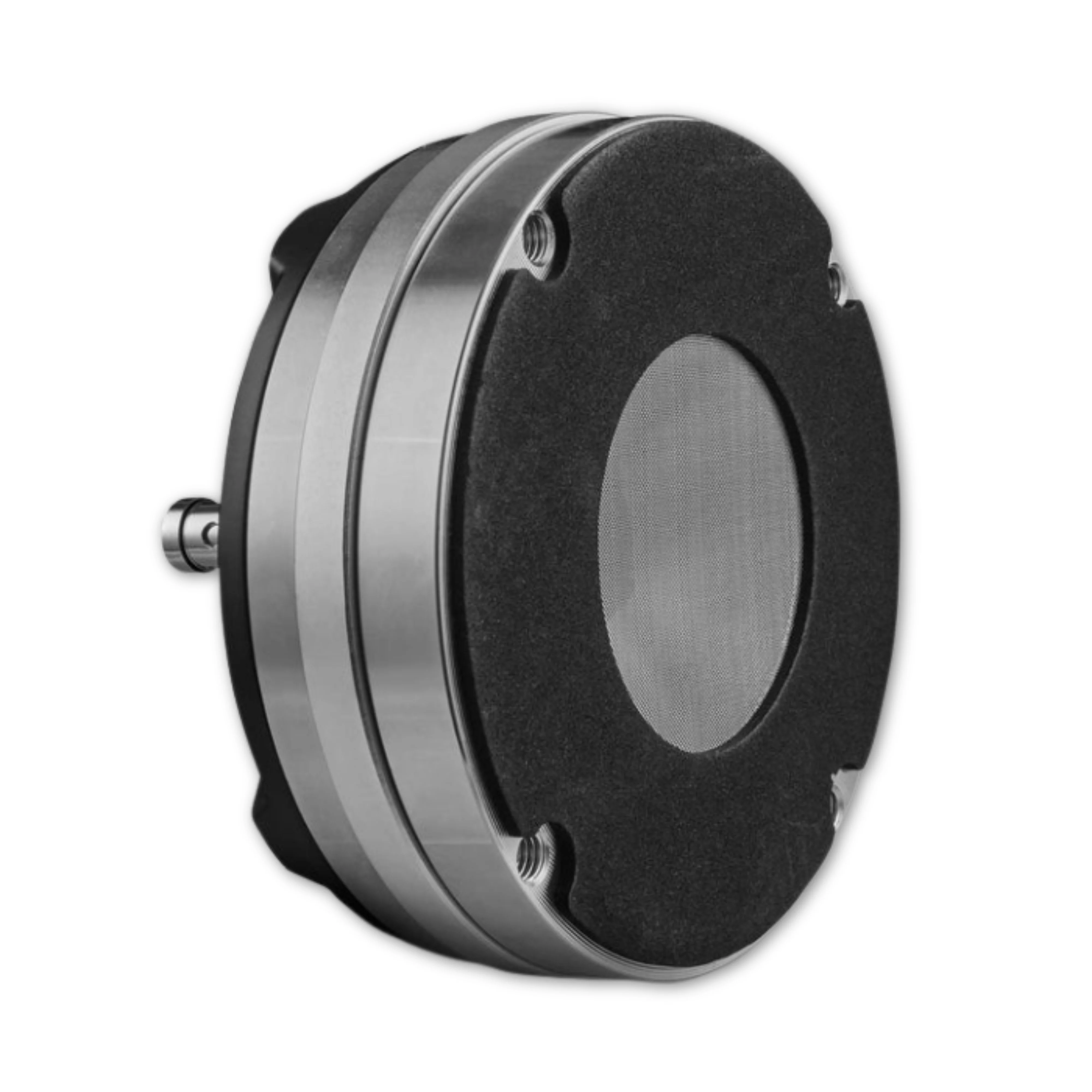

2" Bolt-On Compression Driver w/ 8-Ohm 2" Phenolic Voice Coil

This Listing Includes:

• (1)  Compression Driver w/ 8-Ohm 2" Phenolic Voice Coil

This 2" Compression Driver features a phenolic diaphragm and neodymium magnet, offering high power handling with a 400W RMS rating and an 800W peak power capacity. With a 111dB sensitivity and a frequency response of 630Hz-8kHz, it ensures clear and efficient sound reproduction. The phenolic diaphragm provides durability and reliability under high power levels, while the neodymium magnet ensures strong performance.

Specifications:

• Throat Diameter: 2" (50.8mm)


• Nominal Impedance: 8 Ohms


• AES Power Handling: 200W


• Program Power Handling: 400W


• Peak Power Handling: 800W


• Sensitivity (1w/1m): 111dB


• Frequency Response: 630Hz - 8kHz


• Recommended Hi Pass Crossover: 800Hz


• Voice Coil Diameter: 2" (50.8mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Magnet Material: Neodymium


• Diaphragm Material: Phenolic


• Magnet Weight: 9.9 Oz

Dimensions:

• Overall Diameter: 4.4" (112mm)


• Overall Depth: 2.2" (56mm)


• Bolt Pattern/Type: 4xM6 - 4" (102mm)
