• Polyimide Voice Coil & Diaphragm – Offers high-temperature reliability and clear sound reproduction
• High Power Handling – 400W RMS, 800W peak for professional-grade audio performance
• Neodymium Magnet – Ensures efficiency and excellent clarity
• Frequency Response – 630Hz to 12.5kHz, ideal for mid and high frequencies

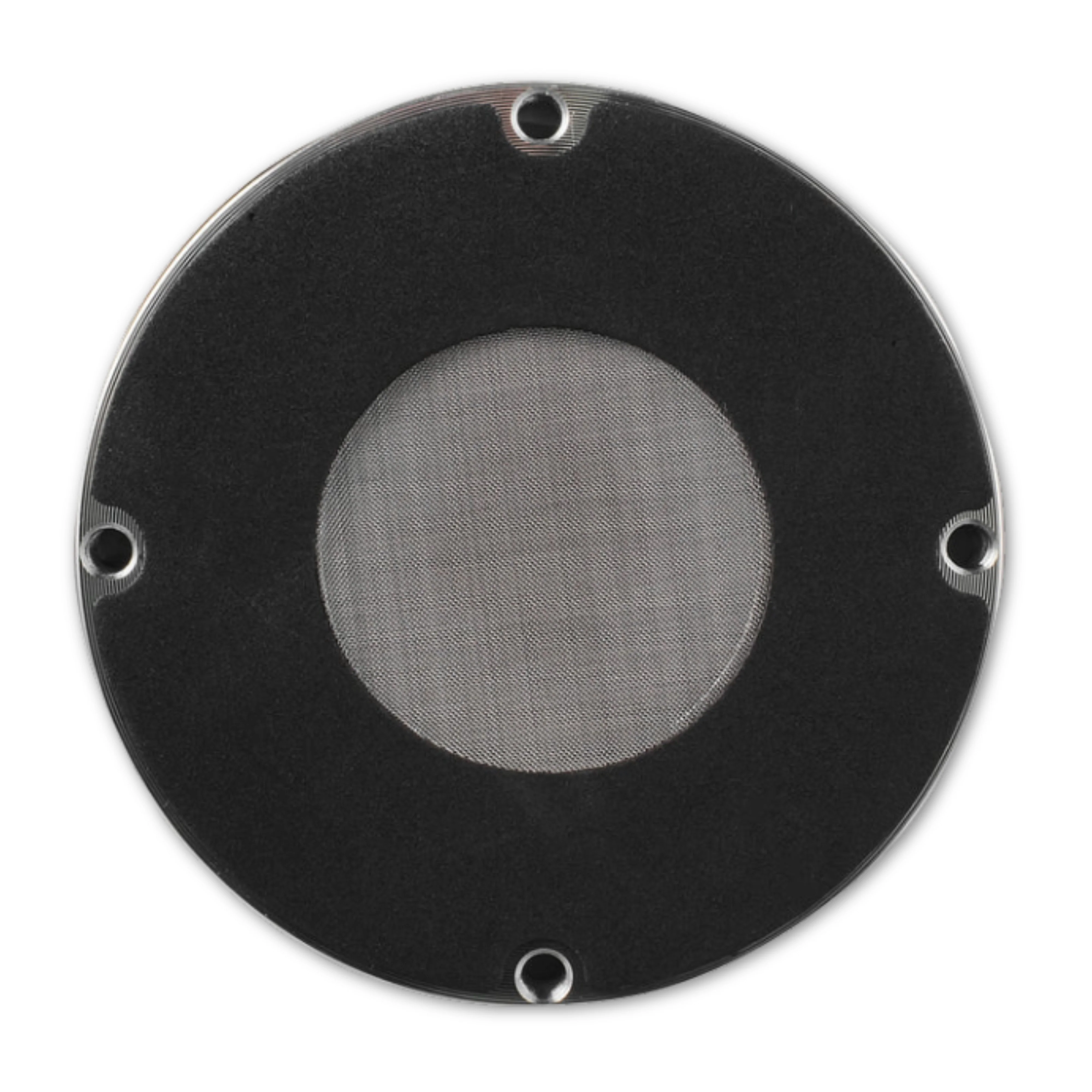

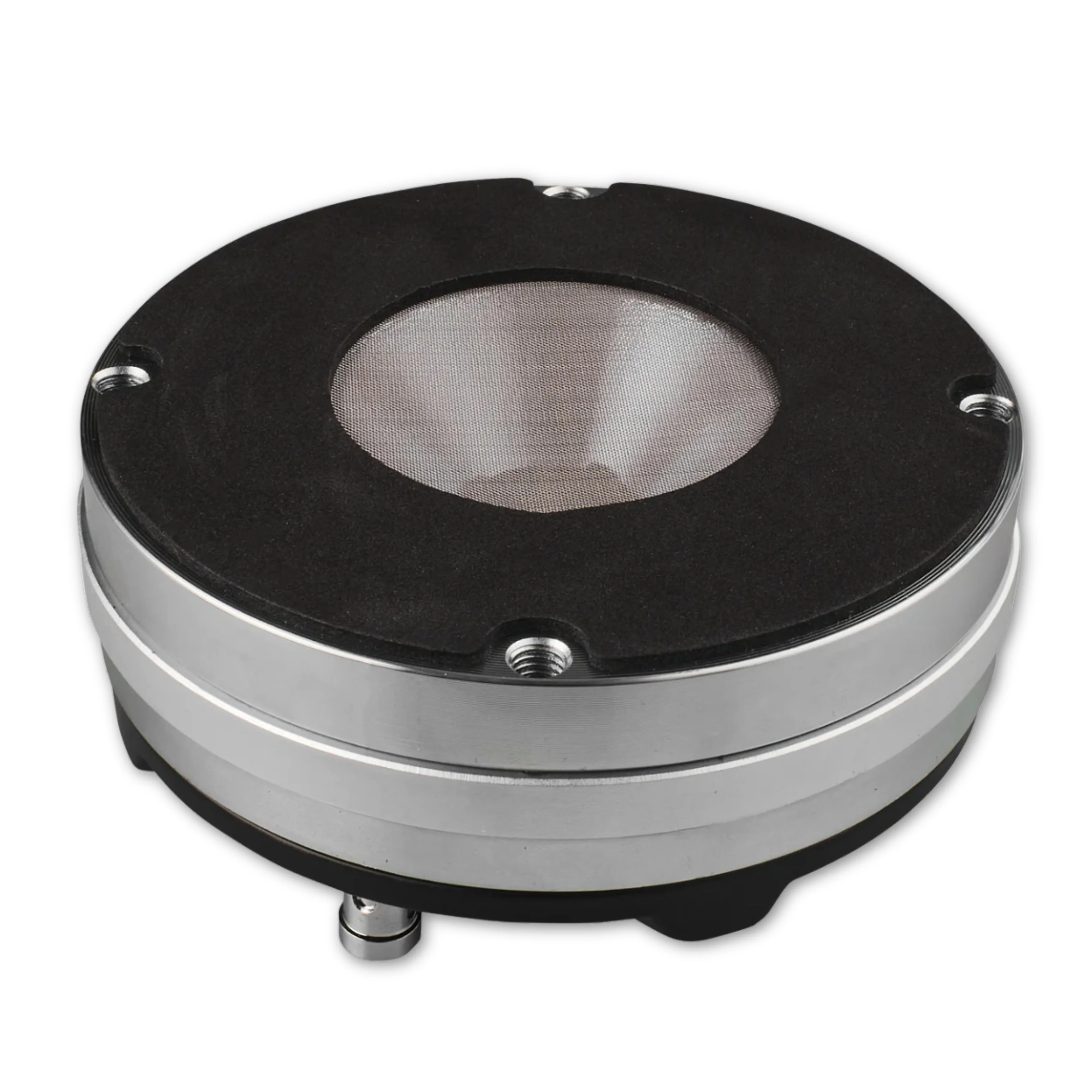

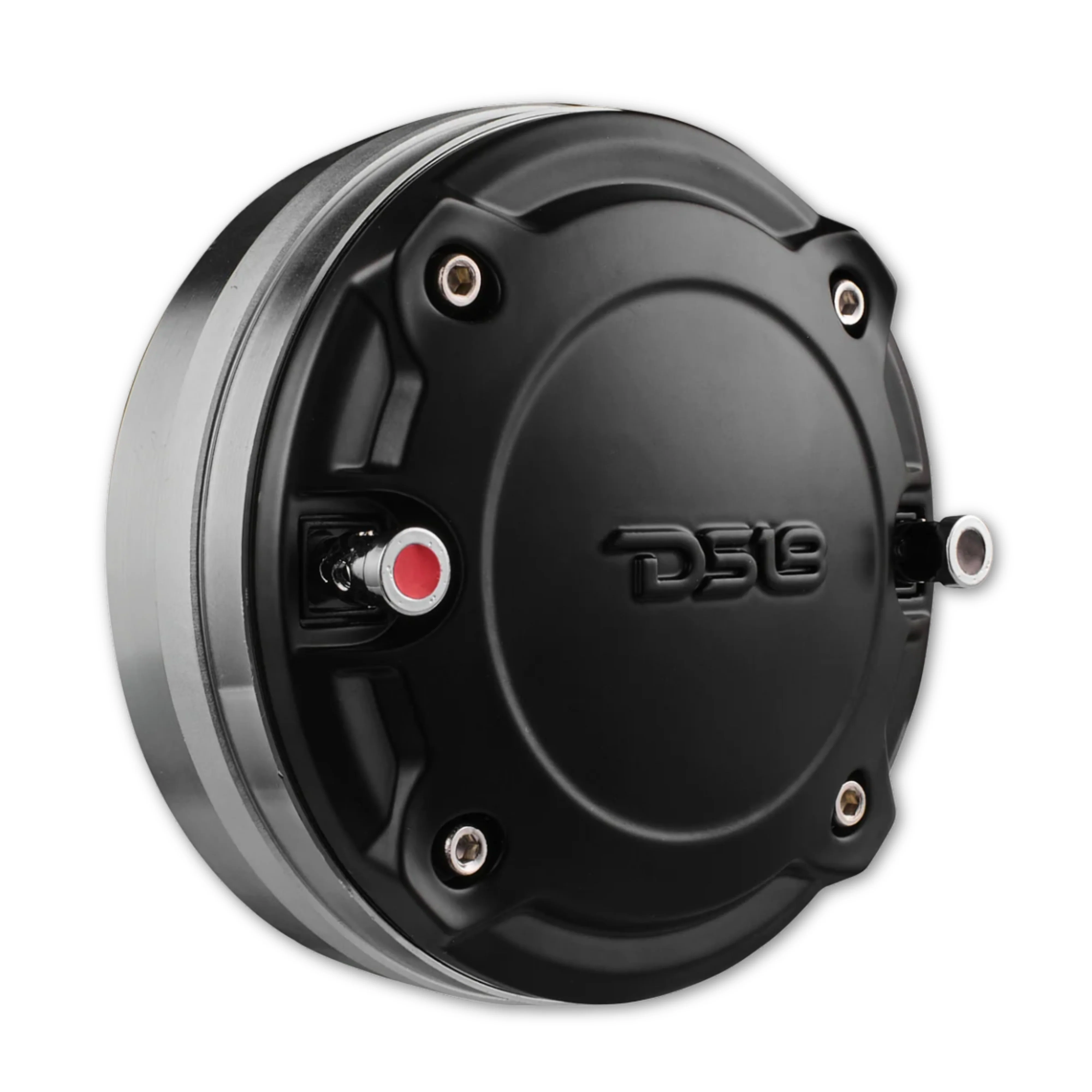

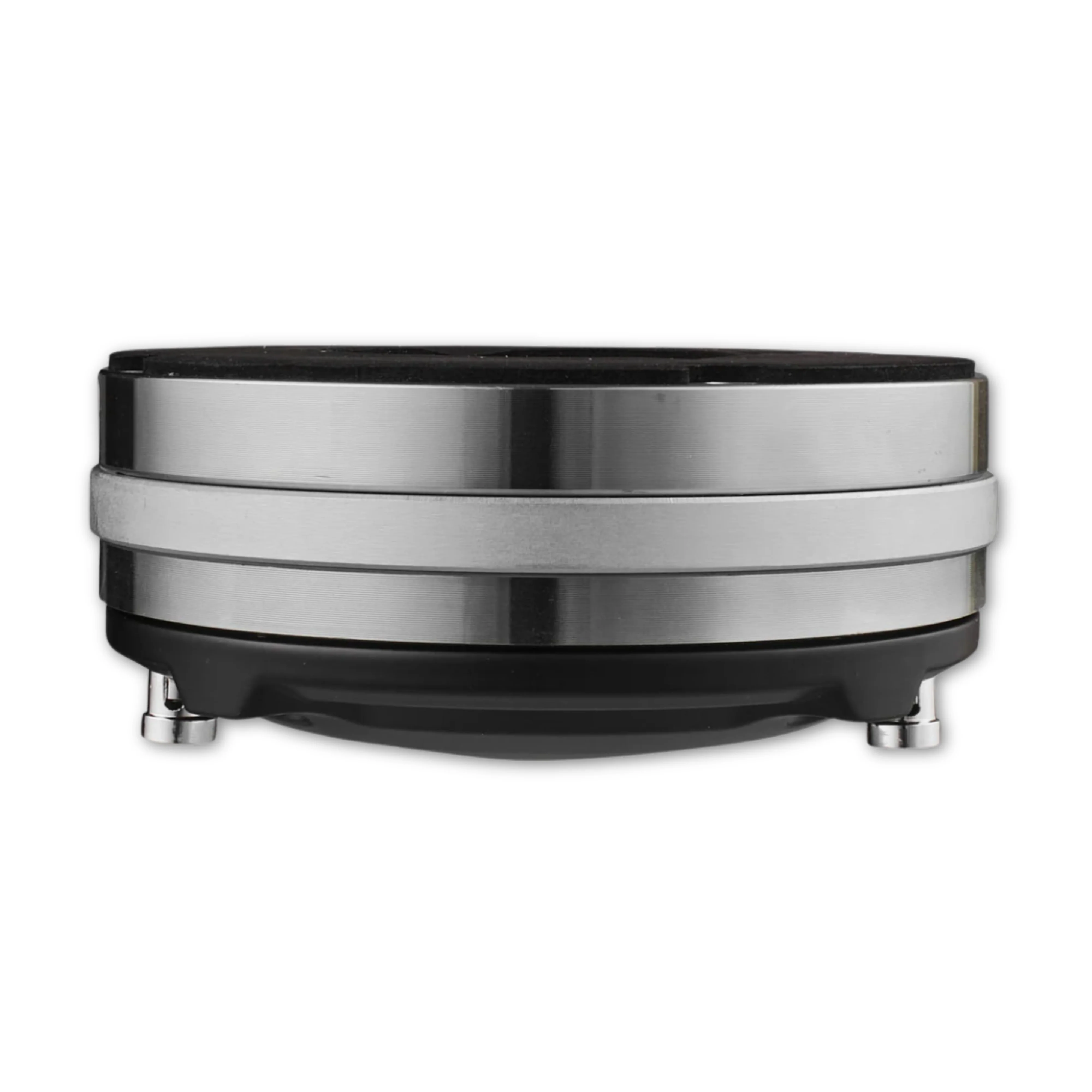

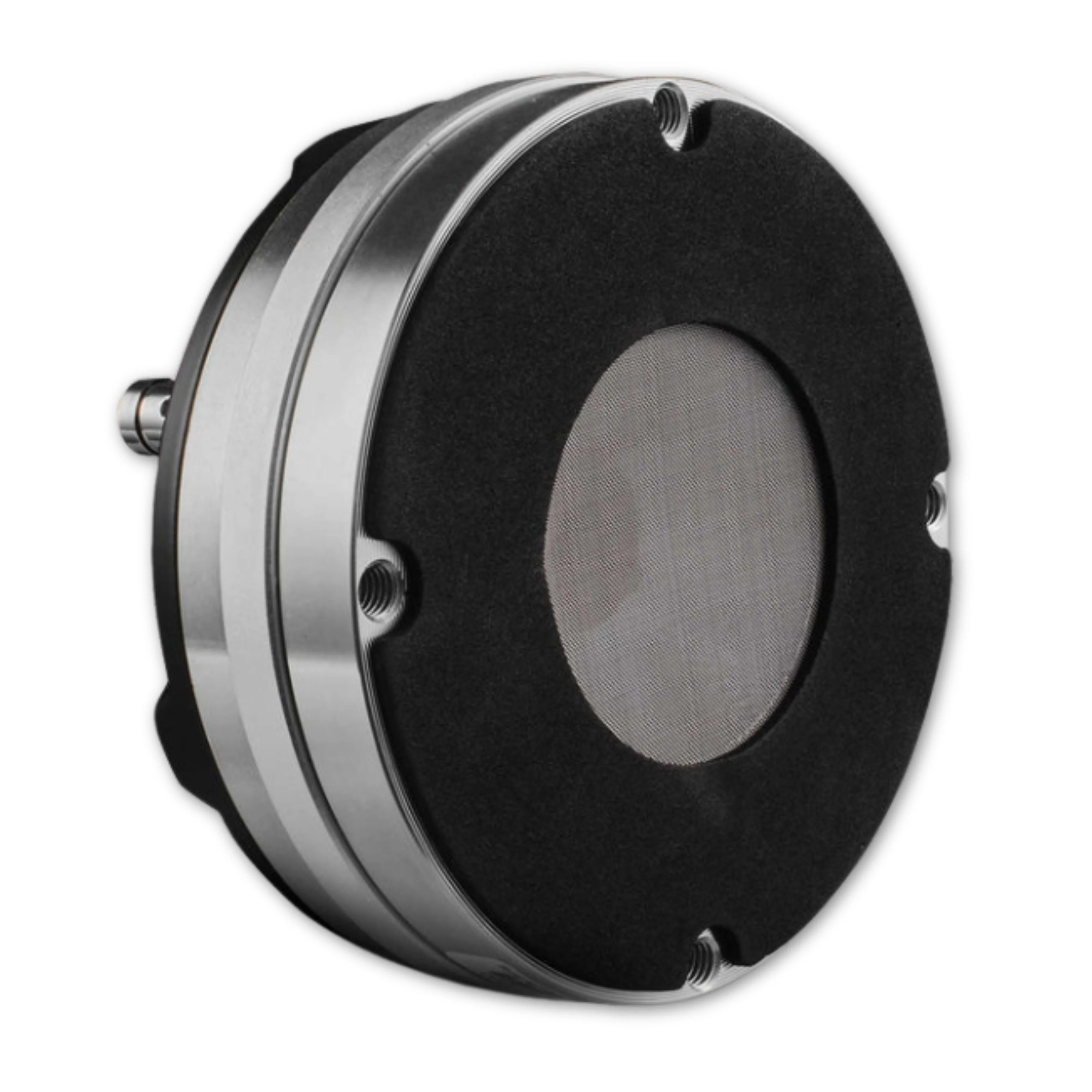

2" Bolt-On Compression Driver w/ 8-Ohm 2" Polyimide Voice Coil

This Listing Includes:

• (1)  Compression Driver w/ 8-Ohm 2" Polyimide Voice Coil

This 2" Compression Driver features a polyimide diaphragm and neodymium magnet, offering high power handling and clarity. Capable of delivering 400W RMS and 800W peak power, it is designed for professional sound applications with a 109dB sensitivity. The 2" polyimide voice coil ensures reliability under high temperatures while providing excellent performance in the mid to high-frequency range.

Specifications:

• Throat Diameter: 2" (50.8mm)


• Nominal Impedance: 8 Ohms


• AES Power Handling: 200W


• Program Power Handling: 400W


• Peak Power Handling: 800W


• Sensitivity (1w/1m): 109dB


• Frequency Response: 630Hz - 12.5kHz


• Recommended Hi Pass Crossover: 800Hz


• Voice Coil Diameter: 2" (50.8mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Magnet Material: Neodymium


• Diaphragm Material: Polyimide


• Magnet Weight: 9.9 Oz

Dimensions:

• Overall Diameter: 4.4" (112mm)


• Overall Depth: 2.2" (56mm)


• Bolt Pattern/Type: 4xM6 - 4" (102mm)
