• HIGH OUTPUT TWEETERS 50W AES power handling with 105 dB sensitivity for loud, crisp high frequencies.
• SHALLOW MOUNT DESIGN Compact depth makes installation easy in doors, pillars, motorcycles, and tight spaces.
• ALUMINUM BULLET CONSTRUCTION Aluminum diaphragm and body provide durability and improved sound clarity.
• LOUD AND EFFICIENT High sensitivity delivers strong output with minimal amplifier power.
• INCLUDES CROSSOVER CAPACITORS Protects tweeters from low frequencies for safe and reliable operation.

3.8" 50W RMS 4 Ohm Super Bullet Tweeter Shallow Mount Pair DS18 PRO-TWZ1S

This Listing Includes:

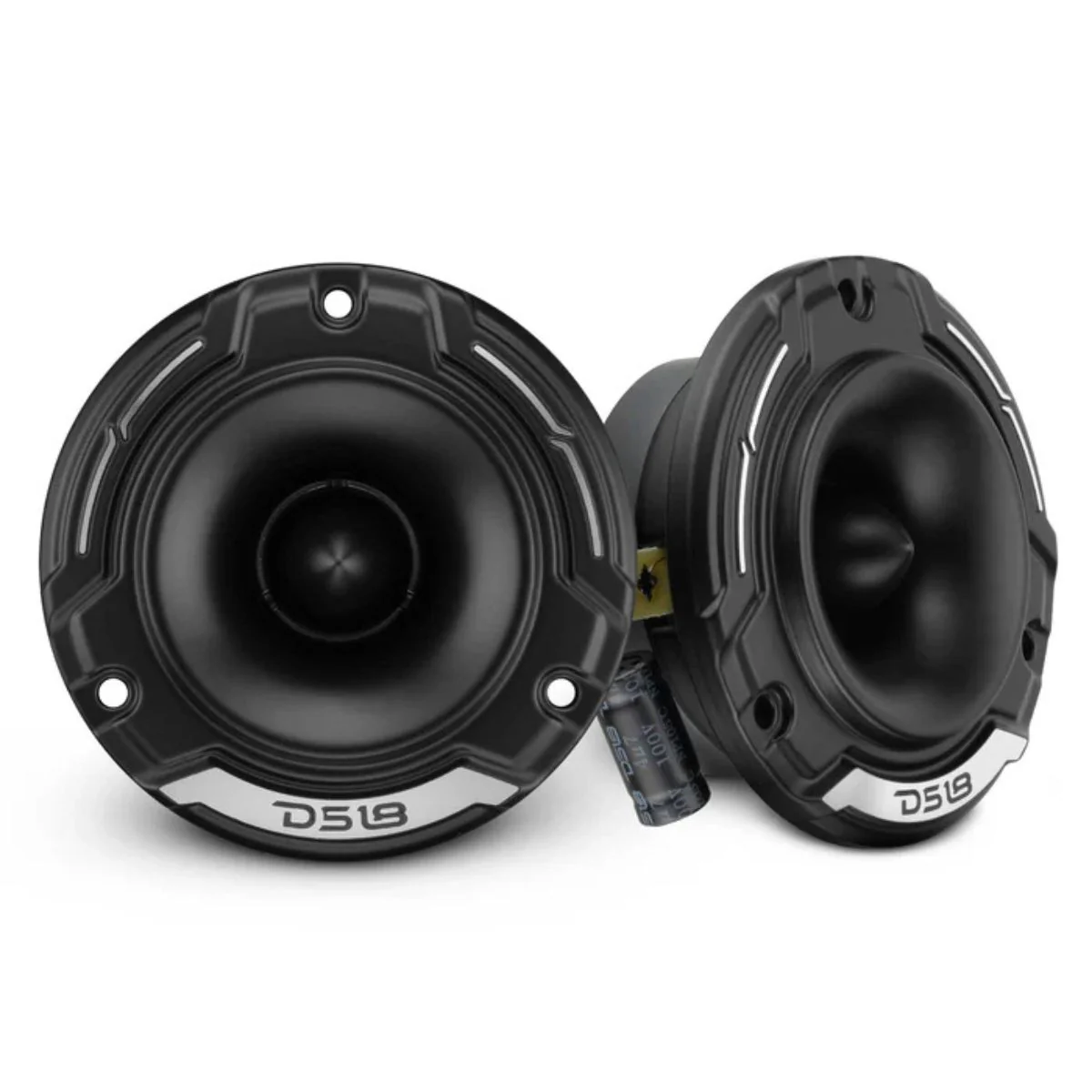

• (2) DS18 PRO-TWZ1S Super Bullet Tweeters, 4 Ohm

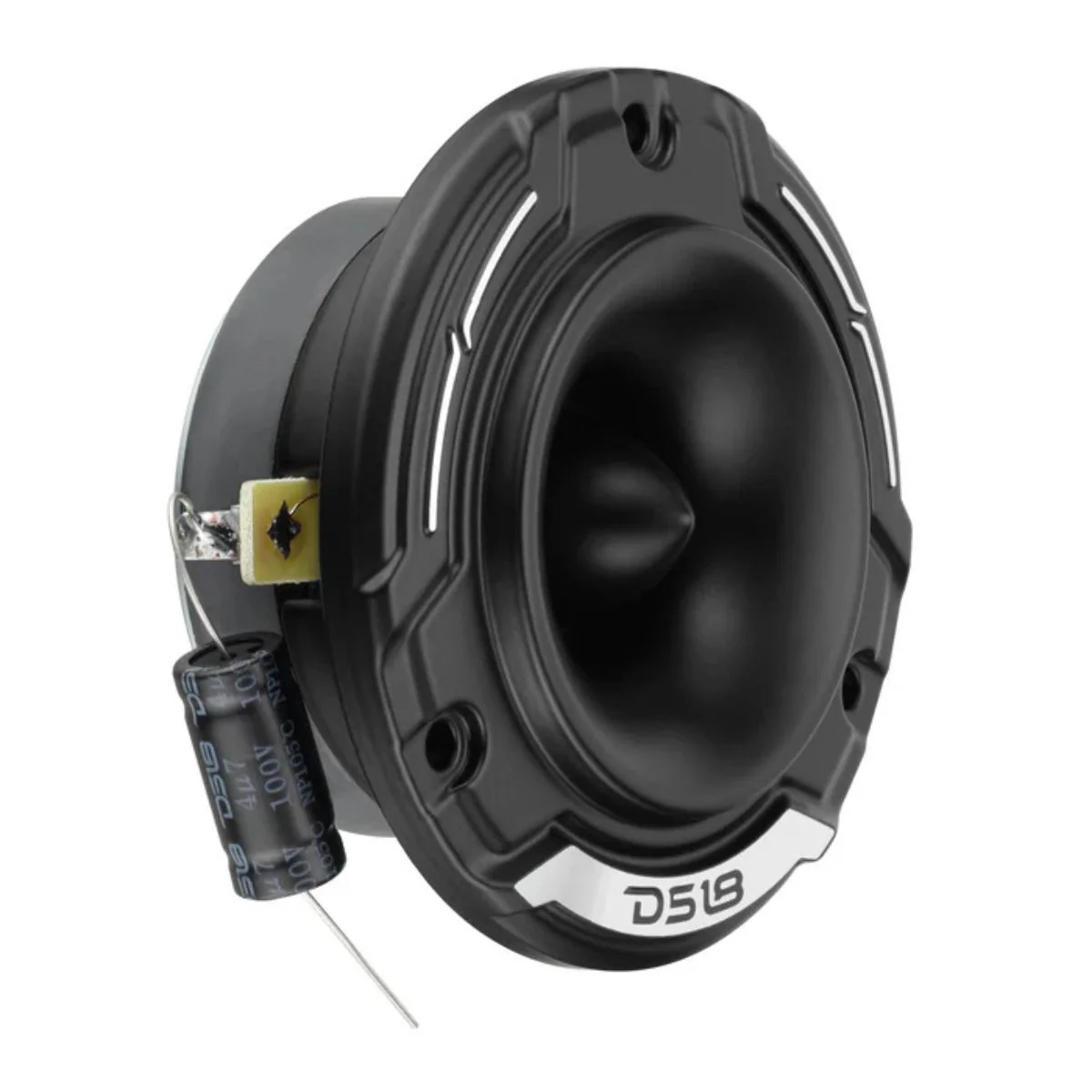

• (2) Capacitors

The DS18 PRO-TWZ1S shallow mount super bullet tweeters are designed to deliver crisp, powerful high frequencies in tight installation spaces. Built with an aluminum diaphragm and aluminum body, these tweeters provide excellent durability, efficiency, and sound clarity for car audio systems that demand strong high frequency output without sacrificing mounting depth.

With 105 dB sensitivity, the PRO-TWZ1S produces loud, detailed highs with minimal power, making it perfect for door builds, pillar installations, motorcycles, and custom audio setups where space is limited. The shallow mount design allows easy installation while maintaining the aggressive output DS18 PRO series tweeters are known for.

A 1 inch Kapton voice coil and ferrite magnet motor structure ensure reliable performance, while the included crossover capacitors help protect the tweeters from damaging low frequencies.

Specifications:

• Nominal Diameter: 3.8" (96 mm)


• Nominal Impedance: 4 Ohm


• AES Power Handling: 50 Watts


• Program Power Handling: 100 Watts


• Peak Power Handling: 200 Watts


• Sensitivity: 105 dB (1w/1m)


• Frequency Response: 3.15 kHz – 20 kHz


• Sold As: Pair

Body / Features:

• Bullet Material: Aluminum


• Body Material: Aluminum


• Body Color: Black


• Faceplate Color: Black / Machined

Motor:

• Voice Coil Diameter: 1" (25.4 mm)Voice Coil Former: Kapton


• Winding Material: CCAW


• Diaphragm Material: Aluminum


• Magnet Material: Ferrite


• Magnet Weight: 6.5 oz

Dimensions (Estimated):

• Mounting Depth: Approx. 1.8" (46 mm)


• Overall Diameter: Approx. 3.8" (96 mm)


• Cutout Diameter: Approx. 3.3" (84 mm)
