• High Power Handling 80 watts RMS power handling for clean, distortion-free audio
• Neodymium Magnet Lightweight and efficient magnet design for clear sound
• 4-Ohm Impedance Compatible with most car audio systems for optimized performance
• Mid-Range Frequency Response Designed for clarity and balance in the midrange frequencies
• Durable Construction Built for long-lasting performance in high-power audio setups
• OEM Dash Application Perfect for upgrading OEM dash speakers in your vehicle

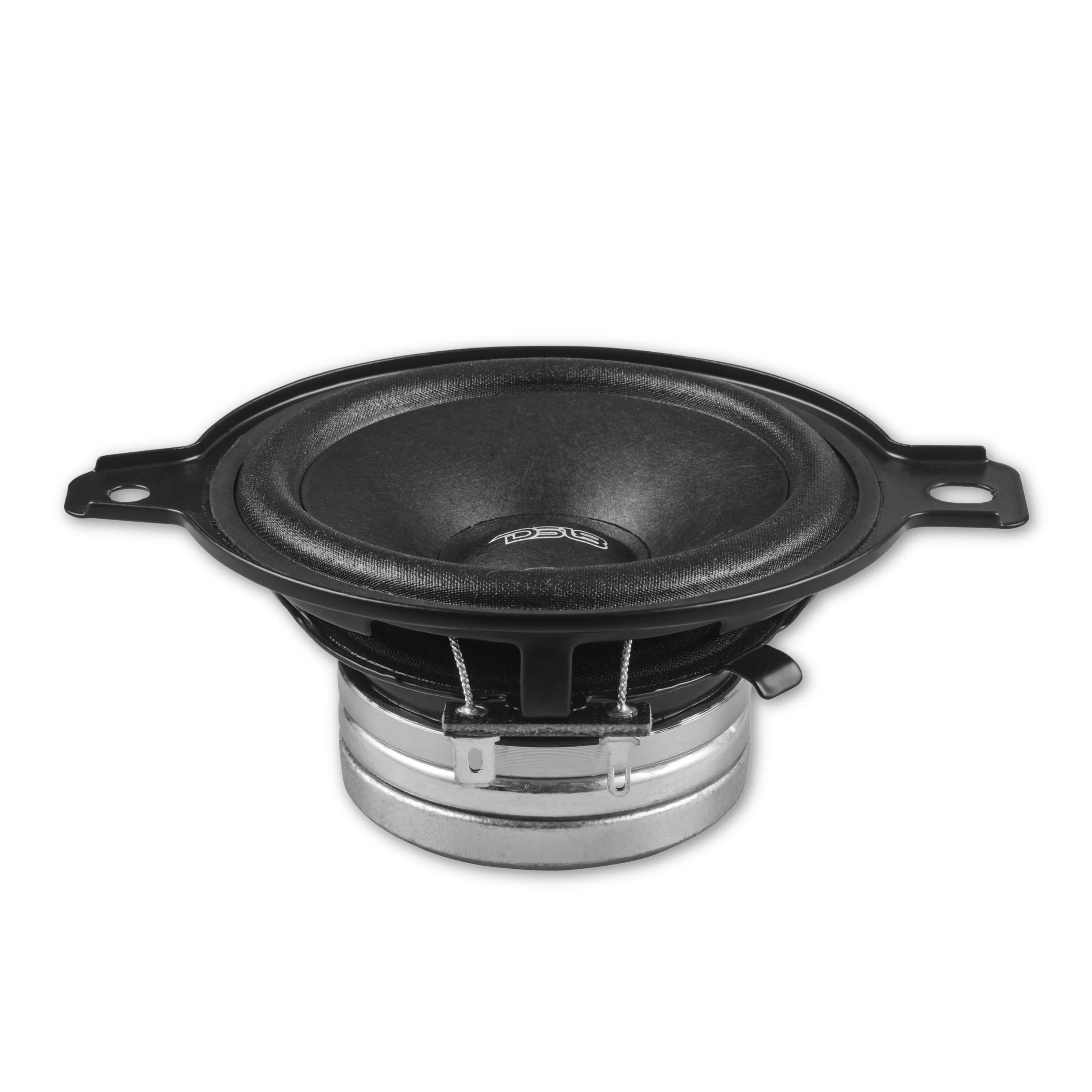

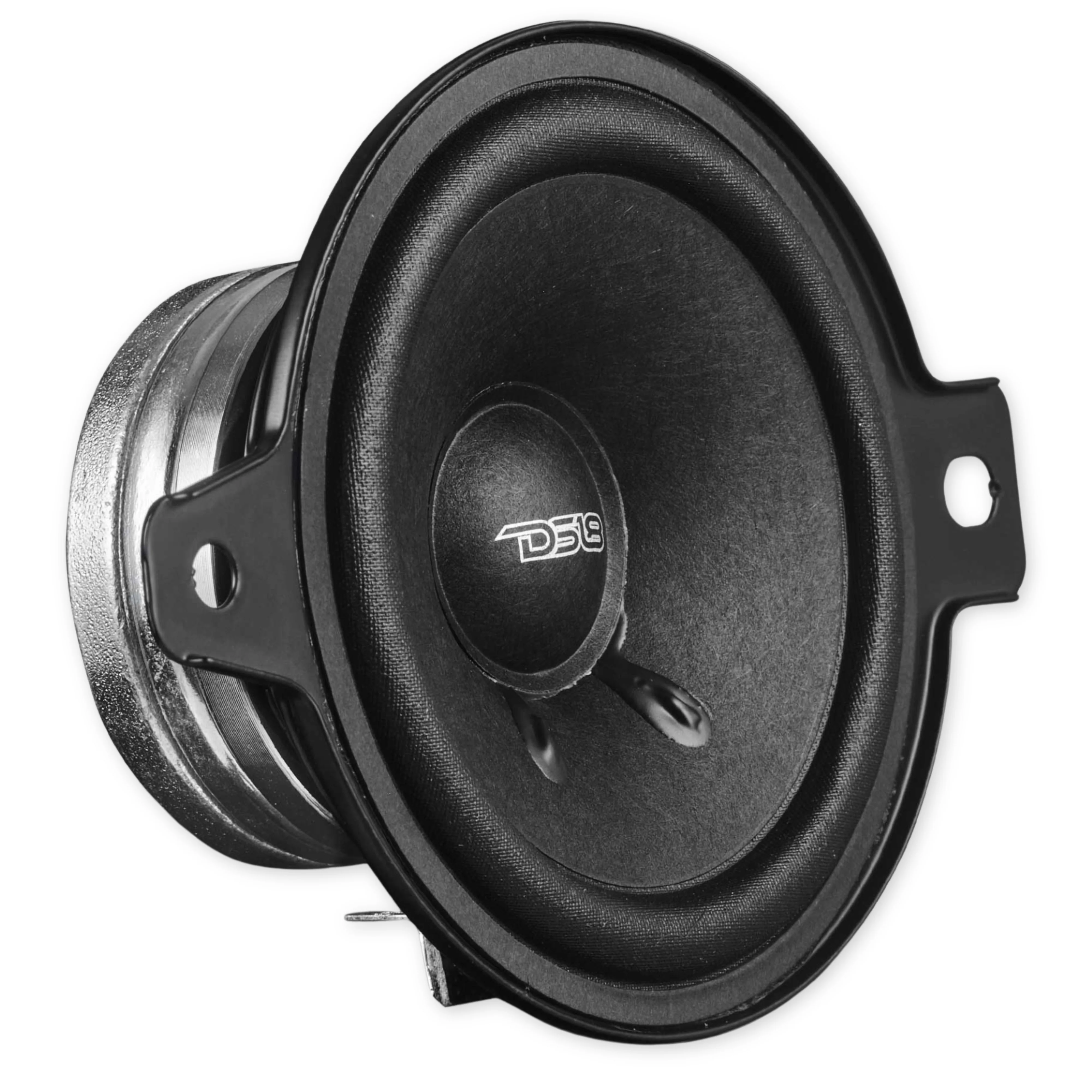

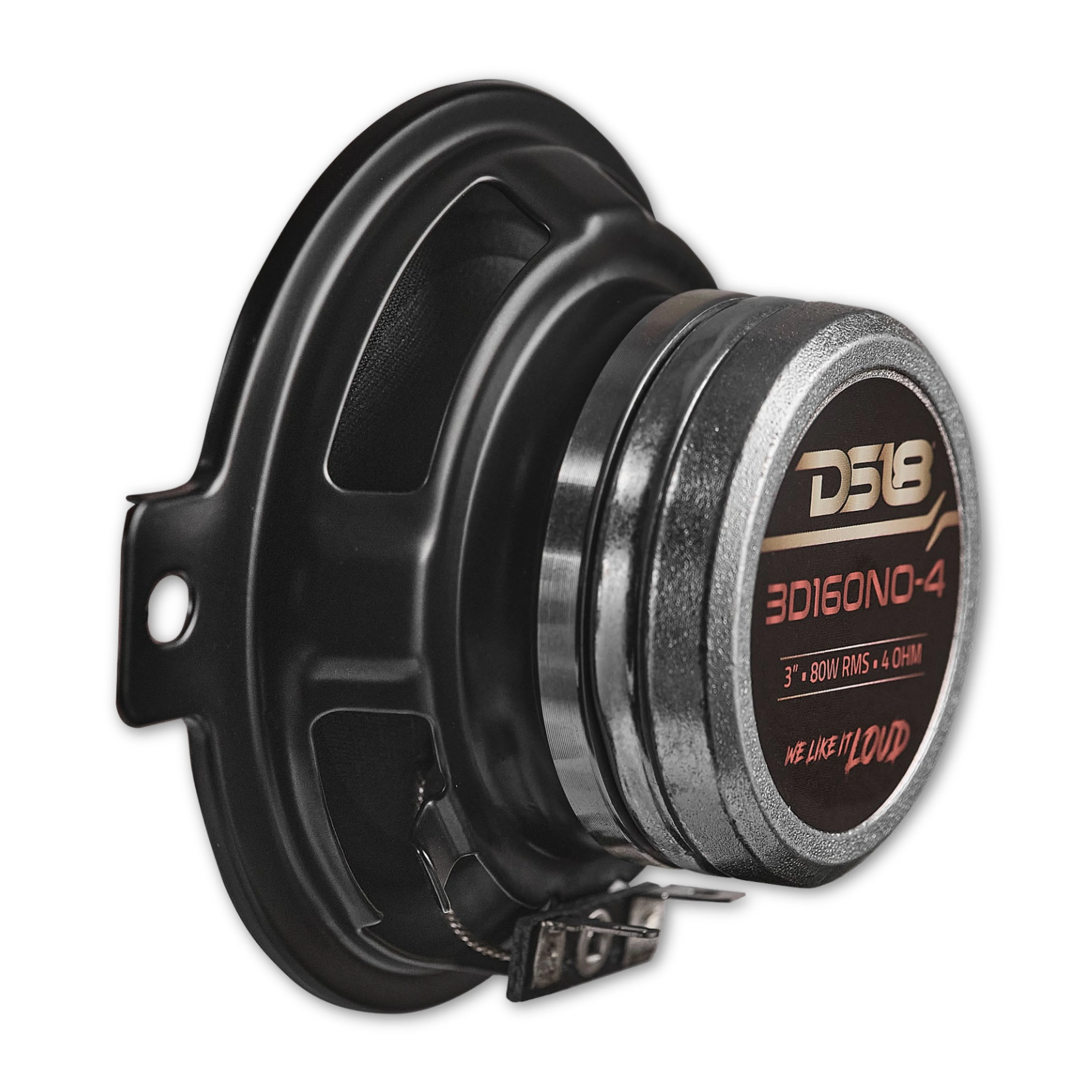

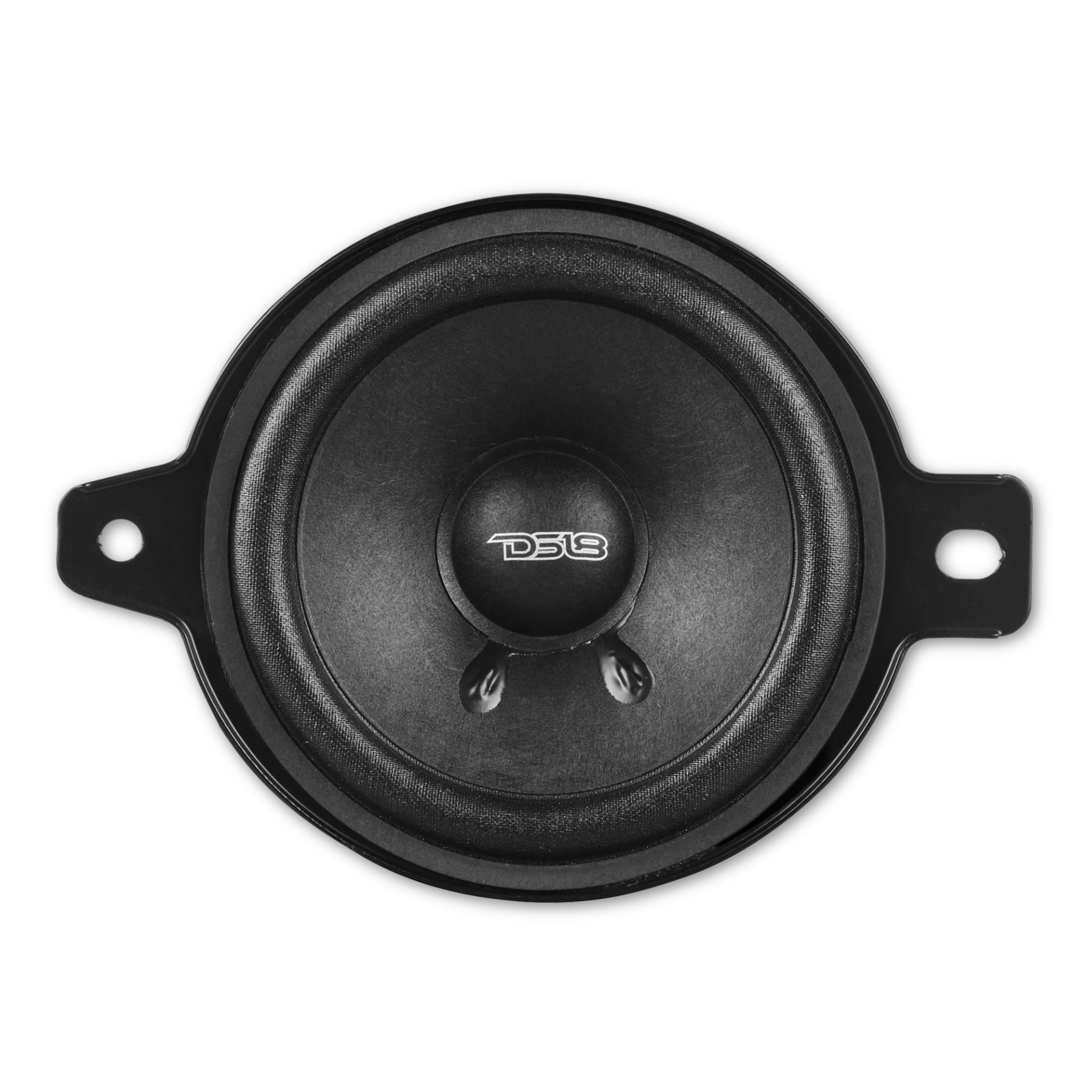

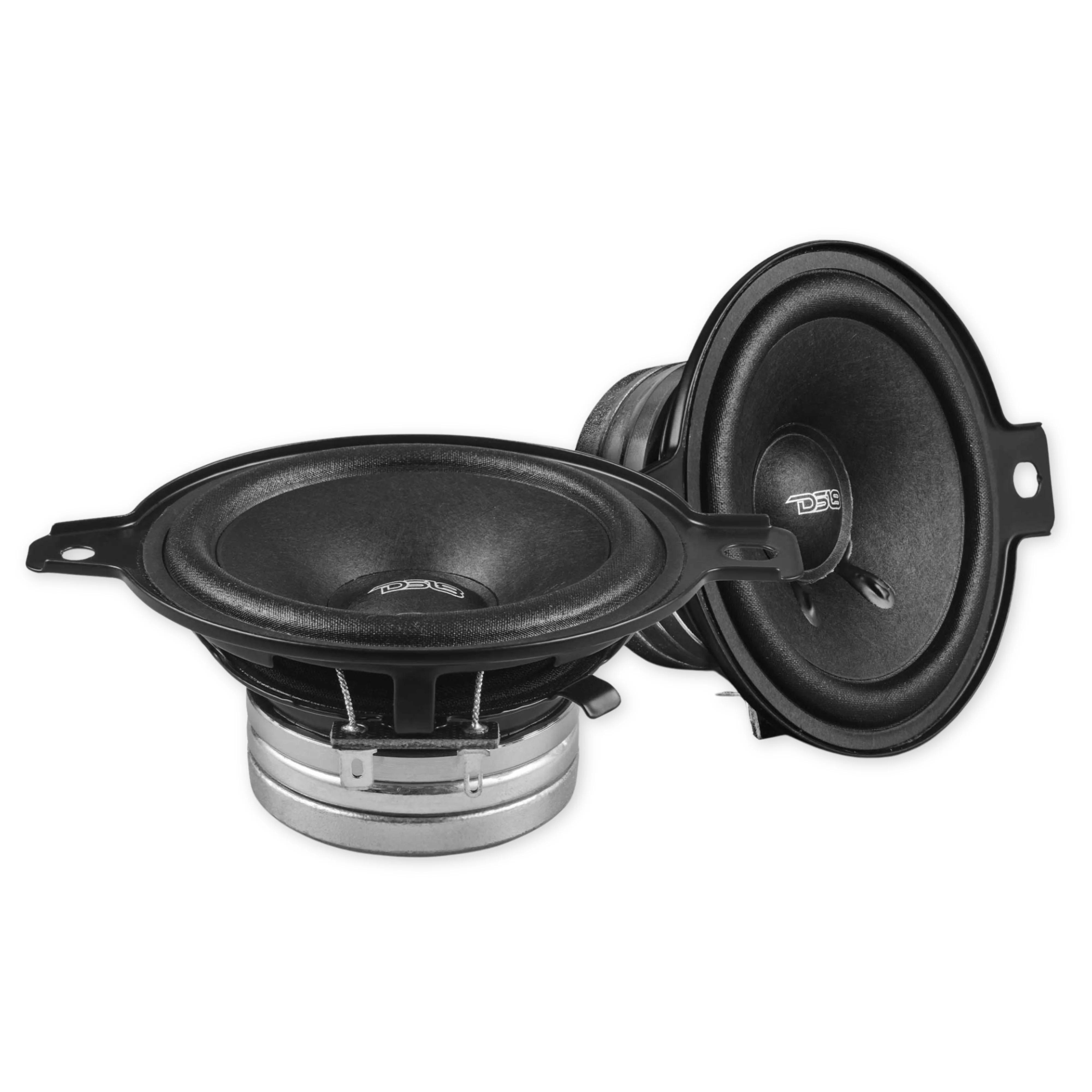

3" 80 Watt RMS 4-ohm OEM Dash Loudspeaker Pair with Neodymium Magnet

This Listing Includes

• (2) 3" 80 Watt RMS 4-Ohm OEM Dash Loudspeakers with Neodymium Magnet

This 3" 80 Watt RMS 4-Ohm OEM Dash Loudspeaker Pair with Neodymium Magnet is designed for high-performance audio systems, offering excellent sound reproduction with a focus on clear, crisp midrange frequencies. Ideal for OEM dash installations, it is built with a neodymium magnet for a lightweight yet powerful sound experience. This loudspeaker is perfect for anyone looking to enhance their vehicle's audio setup with a compact, efficient solution.

Features

• High Power Handling 80 watts RMS power handling for clean, distortion-free audio


• Neodymium Magnet Lightweight and efficient magnet design for clear sound


• 4-Ohm Impedance Compatible with most car audio systems for optimized performance


• Mid-Range Frequency Response Designed for clarity and balance in the midrange frequencies


• Durable Construction Built for long-lasting performance in high-power audio setups


• OEM Dash Application Perfect for upgrading OEM dash speakers in your vehicle

Specifications

• Nominal Diameter 3" / 76.2mm


• Nominal Impedance 4 Ohms


• RMS Power Handling 80W


• MAX Power Handling 160W


• Sensitivity (1w/1m) 93dB


• Frequency Response 150Hz-20KHz


• Recommended HI Pass Crossover 200Hz


• Voice Coil Diameter 0.8" / 20.4mm


• Voice Coil Former Material KSV


• Winding Material CCAW


• Cone Material Paper


• Dust Cap Material Paper


• Surround Material Cloth


• Spider Diameter 2.16" / 55mm


• Basket Material Steel


• Magnet Material Neodymium

Thiele & Small Parameters

• Equivalent Volume Vas 0.95L / 0.033ft3


• Free Air Resonance Fs 164Hz


• Mechanical Factor Qms 4.8


• Electrical Factor Qes 0.61


• Total Factor Qts 0.54


• Mechanical Mass Mms 1.97g


• Mechanical Compliance Cms 0.48mm/N


• BL Factor BL 3.46


• Voice Coil Inductance Le 0.02mH


• Cone Area Sd 37.39Cm2


• DC Resistance Re 3.6 Ohms


• Mechanical Mass w/o air Mmd 1.8g

Measurement

• Overall Diameter 3.46" / 88mm


• Overall Depth 1.75" / 44.5mm


• Front Mount Baffle Cutout 3" / 77mm


• Mounting Depth 1.6" / 40.7mm


• Motor Diameter 2" / 53mm
