• The PRO-GM8.4 speaker has a sensitivity of 94 dB
• 4 Channel EXL-P800X4 has Remote Bass Knob and Latest SMC and MOSFET Technology
• The PRO-GM8.4 speaker with the 1.5 4-ohms voice coil is able to handle high heat temperatures
• The DS18 1 Super Bullet Tweeter has an Aluminum Diaphragm

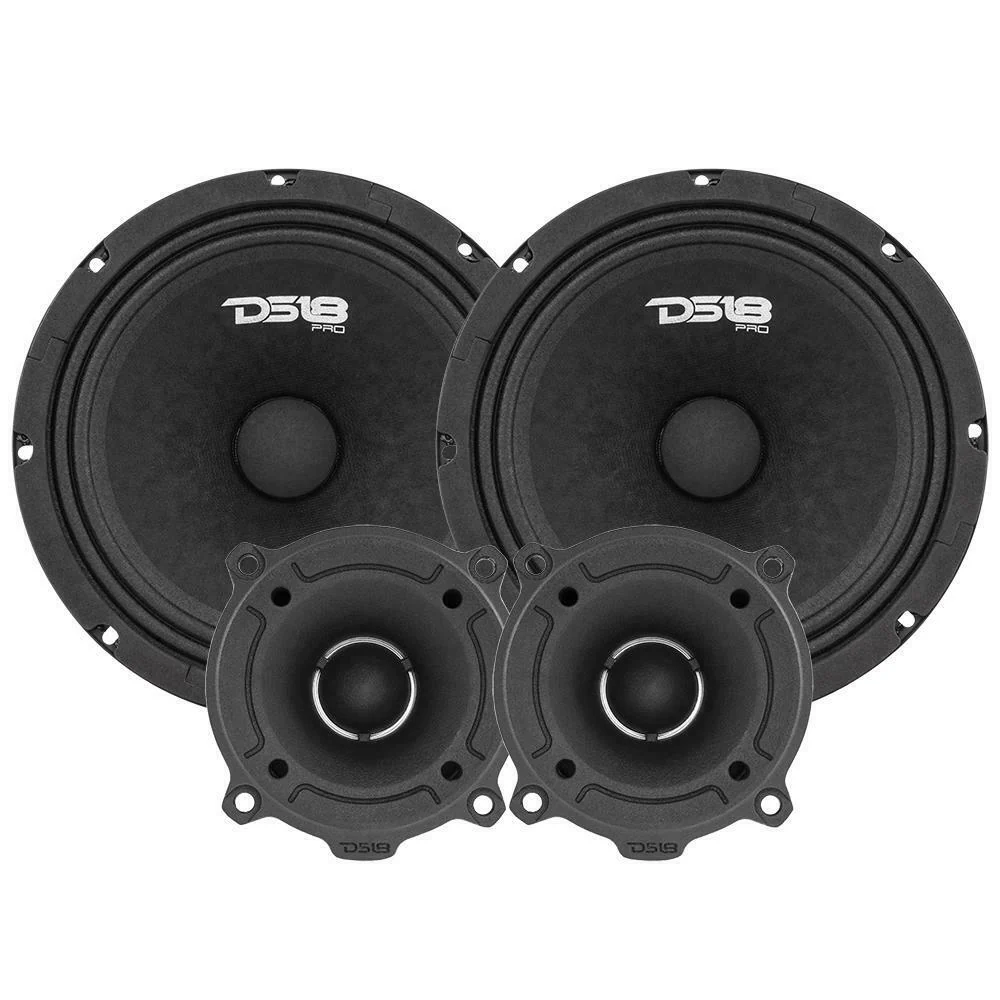

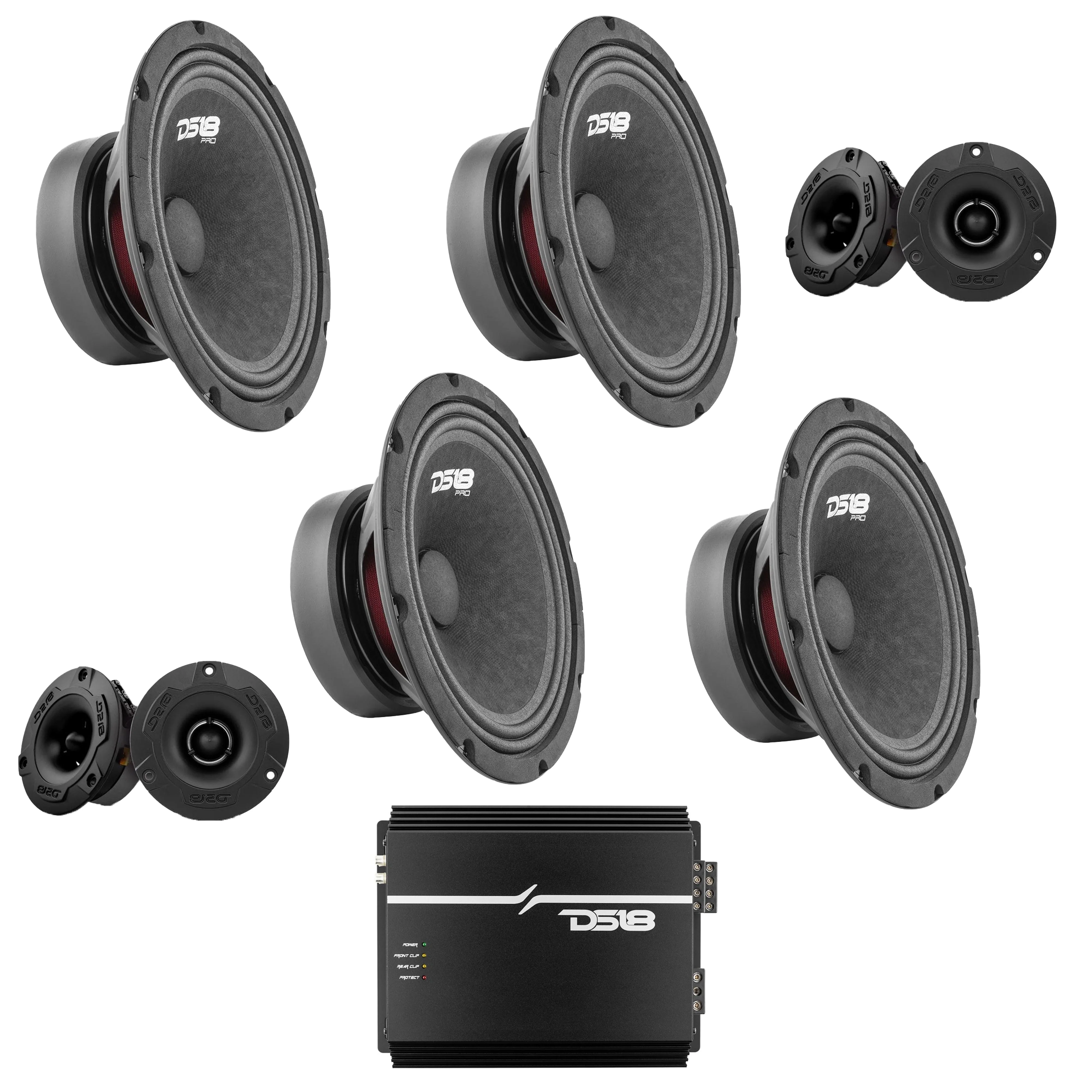

4x DS18 8" 2320W Speakers + 4x Super Bullet Tweeters + 4 Channel Korean Amp

This listing includes:

• (4) DS18 PRO-GM8.4 Mid-Range Speakers


• (1) DS18 EXL-P800X4 4 Channel Full Range Korean Amplifier


• (2) Pair of DS18 TWX1 Super Tweeters

With a combination like this, you will have loudspeakers that deliver a concert-like audio experience without any distortion; Gen-X series AMP that is durable and provides maximum wattage for your budget; and ; tweeters that are engineered and designed in the US, that are top of the line in the Pro Audio market.

Specifications per item in this combo:

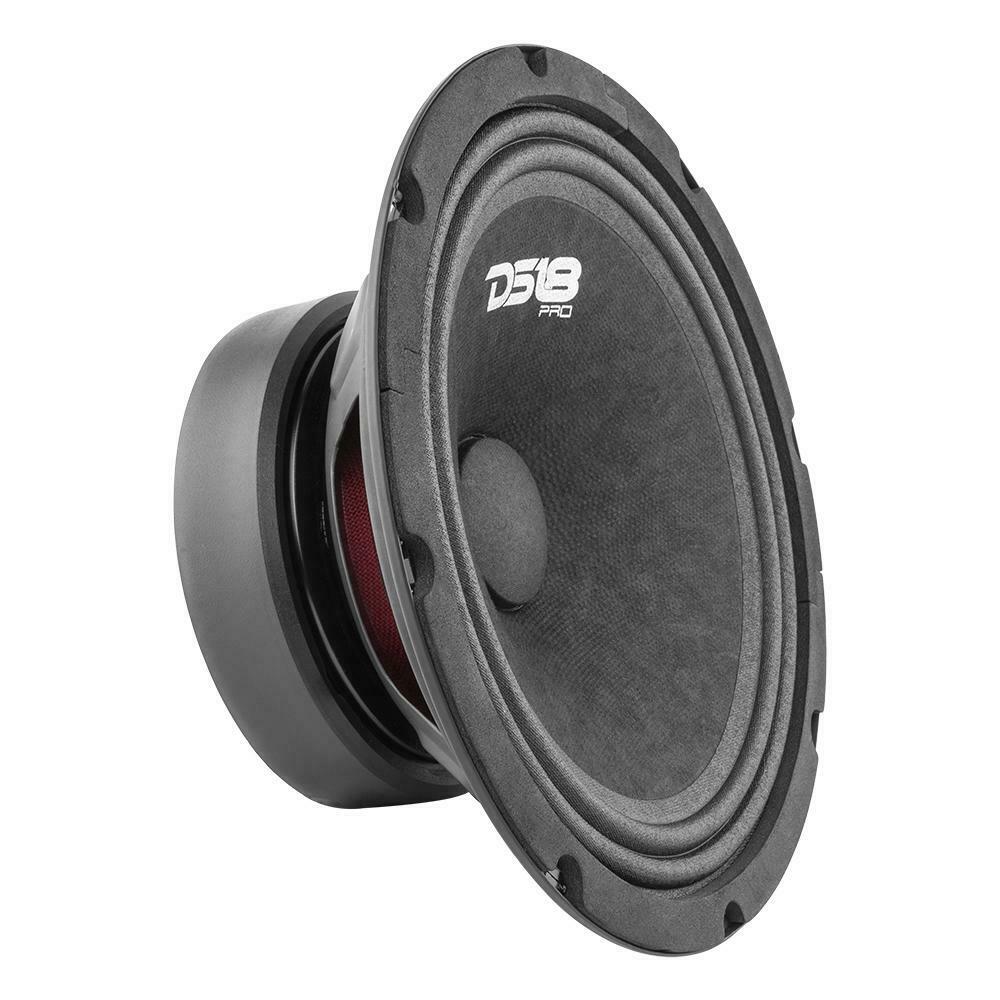

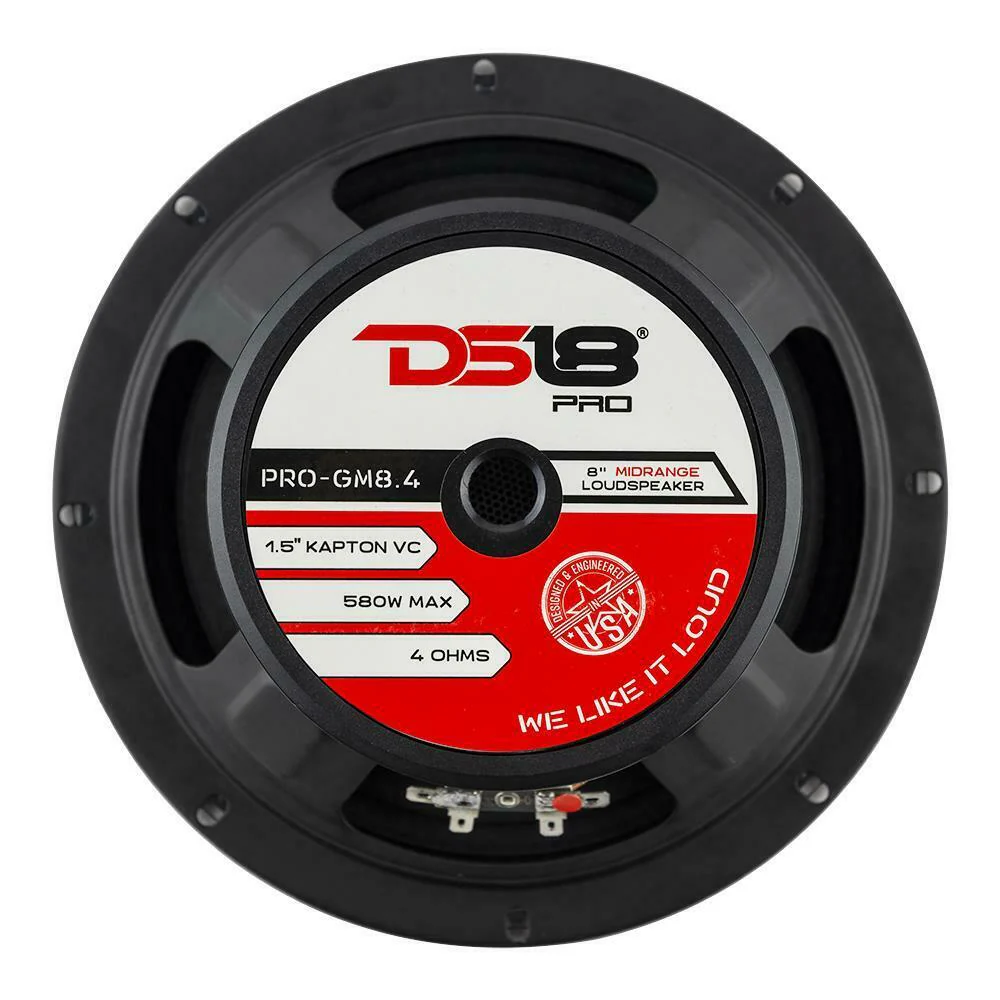

DS18 8" Midrange Loudspeaker PRO-GM8.4:

• Nominal Diameter: 8"


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 190 Watts


• Max Power Handling: 580 Watts


• Sensitivity (1w/1m): 94 dB


• Frequency Response: 80Hz ~ 10kHz


• Recommended Hi Pass Crossover: 120Hz


• Voice Coil Diameter: 1.5"


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Dust-cap Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color: Matte Black


• Magnet Material: Ferrite


• Equivalent Volume: Vas - 22.53L / 0.79ft


• Free Air Resonance: Fs - 86 Hz


• Mechanical Factor: Qms - 10.462


• Electrical Factor: Qes - 0.795


• Total Factor: Qts - 0.739


• Mechanical Mass: Mms - 9.685g


• Mechanical Compliance: Cms - 0.351mm/N


• BL Factor: BL - 4.71


• Voice Coil Inductance: Le - 0.431mH


• Cone Area: Sd - 213.82cm


• DC Resistance: Re - 3.3 Ohms

DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:

• RMS Power @ 4 Ohm: 150W x 4CH


• RMS Power @ 2 Ohm: 200W x 4CH


• RMS Power @ 4 Ohm Bridge : 400W x 2CH


• Frequency Response: 20Hz-20KHz


• Signal/Noise Ratio: Greater than 98dB


• Efficiency @4 Ohm: Greater than 63%


• Damping Factor: 140


• THD%: Greater than 0.10%


• Low Level Input Range: 200MV-6V


• Selectable X-Over: Yes, HPF/FULL/LPF


• X-Over Filter Range: 50Hz-2KHz


• Bass Boost Range: 0-+9dB


• Bass Boost Frequency: 30Hz-60Hz


• Infrasonic Filter: No


• Phase Selector: 0-180


• Class: AB (Analog)


• Amplifier Type: Stereo Full - Range


• Channels: 4 CH


• Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)


• Led Indicator: PWR / CLIP / PROTECT


• Power Input Size: 4 AWG


• Fuse Rating: 120A


• Remote Level Control: Yes - Dash Mount


• Cooling Fan: Yes


• Thermal Protection: Yes > 97C / 206F


• Over-Load Protection: Yes


• Dc Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes, greater than 15.5V


• Clipping Protection: Yes


• Body Color/Finish: Black Aluminum

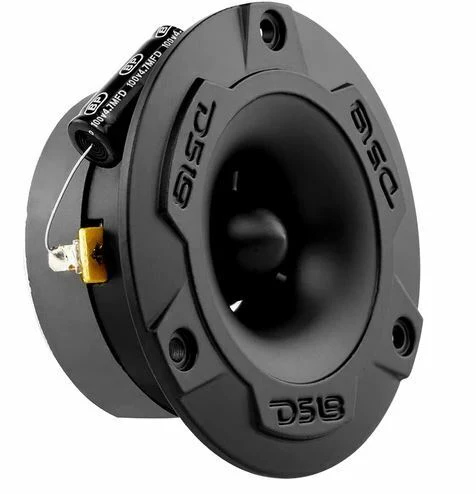

TWX1 Super Bullet Tweeter per speaker:

• Nominal Impedance: 4 Ohms


• 60W RMS


• 120W MAX


• Sensitivity (1W/1W): 103 dB


• Frequency Response: 3.5K-20kHz


• Voice Coil Diameter: 1"


• Diaphragm Material: Aluminum


• Magnet Material: Ferrite


• Body Material: Aluminum

Recommendation(s) per item in this combo:

DS18 8 Midrange Loudspeaker PRO-GM8.4 per speaker:

• Recommended Hi Pass Crossover: 120 Hz

TWX1 Super Bullet Tweeter per speaker:

• Recommended Hi Pass Crossover: 2kHz

Item Dimensions per item in this combo:

DS18 8" Midrange Loudspeaker PRO-GM8.4:

• Overall Diameter: 8.26 inches


• Overall Depth: 3.46 inches


• Front Mount Baffle Cutout: 7.2 inches


• Mounting Depth: 3.22 inches


• Motor Diameter: 4.64 inches


• Magnet Weight: 30 Oz


• Weight: 5 lb

DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:

• Length: 11.5 inches


• Width: 8.77 inches


• Height: 2.67 inches


• Heatsink Length: 9.84 inches

TWX1 Super Bullet Tweeter per speaker:

• Overall Diameter: 3.78 inches


• Overall Depth: 1.78 inches


• Front Mount Baffle Cutout: 2.76 inches


• Mounting Depth: 1.57 inches


• Weight: 3 lb
