• 5.25" Low Mid-Frequency Speaker: Ideal for enhancing mid-range sound clarity.
• 60W RMS & 120W MAX Power Handling: Provides powerful, distortion-free performance.
• Neodymium Magnet: Lightweight and powerful for superior sound reproduction.
• High Sensitivity (91 dB): Delivers clear sound even at low power levels.
• Durable Materials: Features a KSV voice coil, EISV winding, and paper cone for reliable performance.

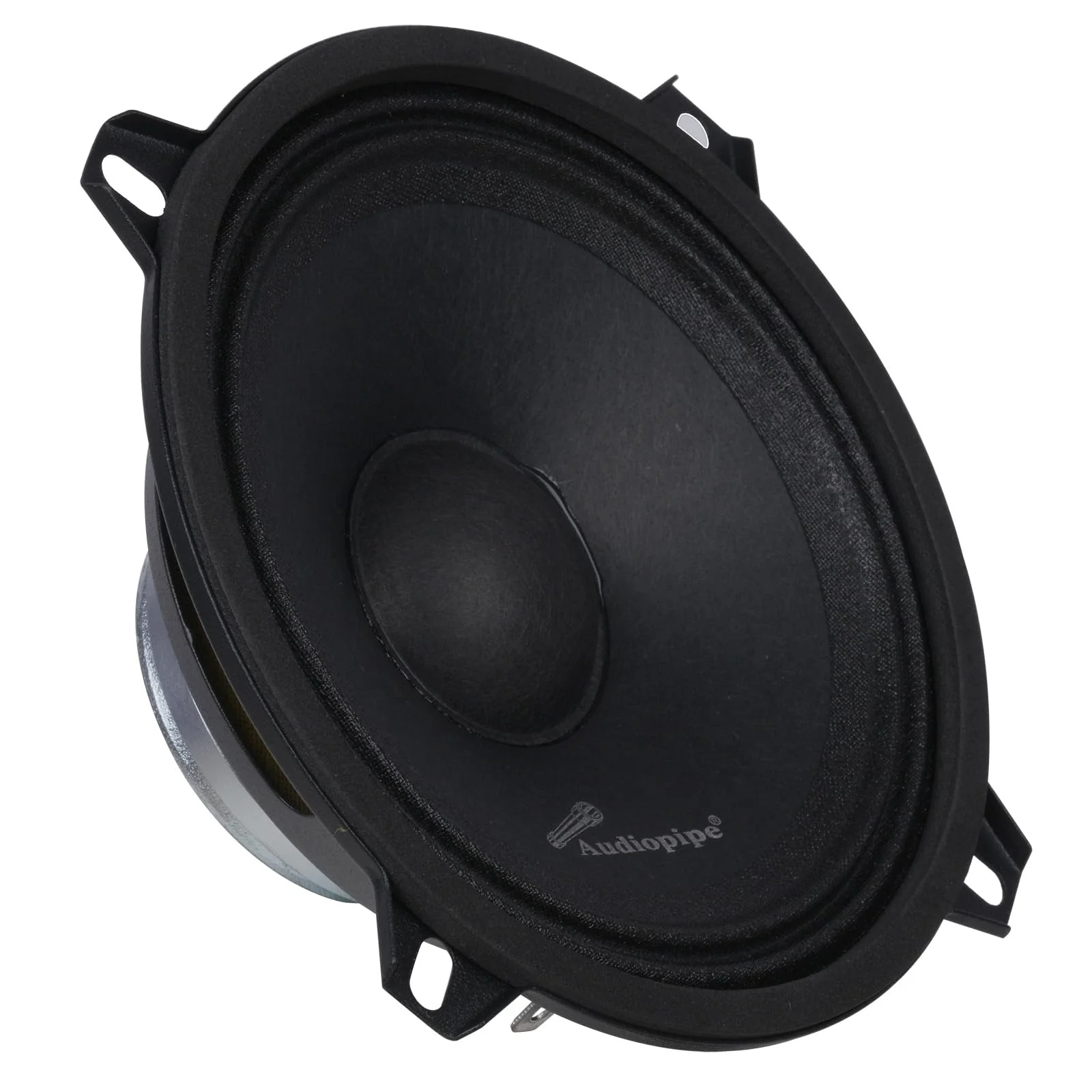

5.25" 60W RMS Neo 8-Ohm Midrange Frequency Loudspeaker Audiopipe APMB-5251ND

This Listing Includes:

• (1) 5.25" 60W RMS Audiopipe APMB-5251ND Loudspeaker

The Audiopipe APMB-5251ND is a high-performance 5.25" low mid-frequency loudspeaker designed for clear, dynamic sound. With a robust neodymium magnet, paper cone, and steel basket construction, this speaker delivers 60 watts RMS and 120 watts MAX power handling, making it perfect for enhancing mid-range frequencies in your audio system. Its 8-ohm impedance allows it to efficiently integrate into a variety of audio systems.

Specifications:

• Nominal Diameter: 5.25"


• Nominal Impedance: 8 ohms


• RMS Power Handling: 60 Watts


• MAX Power Handling: 120 Watts


• Sensitivity (1w/1m): 91 dB


• Frequency Response: 95Hz - 14KHz


• Voice Coil Diameter: 1"


• Voice Coil Former Material: KSV


• Winding Material: EISV


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color: Black


• Magnet Material: Neodymium

Thiele and Small Parameters

• Equivalent Volume: 1.5L


• Excursion (one way): 0.5mm


• Free Air Resonance: 140Hz


• Mechanical Factor: 3.3


• Electrical Factor: 0.96


• Total Factor: 0.75


• Mechanical Mass: 9.2g


• Mechanical Compliance: 134 um/N


• BL Factor: 6.9


• Cone Area: 87.6 Cm2


• DC Resistance: 5.6 ohms


• Mechanical Mass w/o Air: 8.7g

Speaker Measurements

• Overall Diameter: 5.1"


• Overall Depth: 2.2"


• Front Mount Baffle Cutout: 4.1"


• Mounting Depth: 2"


• Motor Diameter: 2.4"
