• LUXURY 6.5” MARINE COAXIAL SPEAKER PAIR: High-output 2-way marine-grade speakers rated at 150W RMS / 300W MAX with 95dB sensitivity and 60Hz-20kHz frequency response for clear full-range sound.
• FLOATING BULLET TWEETER CLARITY: Features a 1” floating bullet tweeter with neodymium magnet (N35H) for crisp highs that cut through wind and engine noise in open-air marine and powersports environments.
• DIGITAL LED RING LIGHTING: Digital LED lighting integrated behind the cone with 1815S LED chips, compatible with DS18 LC-DRM (sold separately) for full lighting control and custom color effects.
• IP65 WATER + UV RESISTANT BUILD: IP65 marine-grade water resistance with UV-protected injection molded composite basket and rubber surround designed to withstand sun, splash, and harsh outdoor use.
• FLUSH MAGNETIC GRILLE, CLEAN INSTALL: Premium flush-mount magnetic grille (PC + stainless steel) for a tight factory-style finish, fast installs, and easy removal for service, available in Matte Black or Matte White.

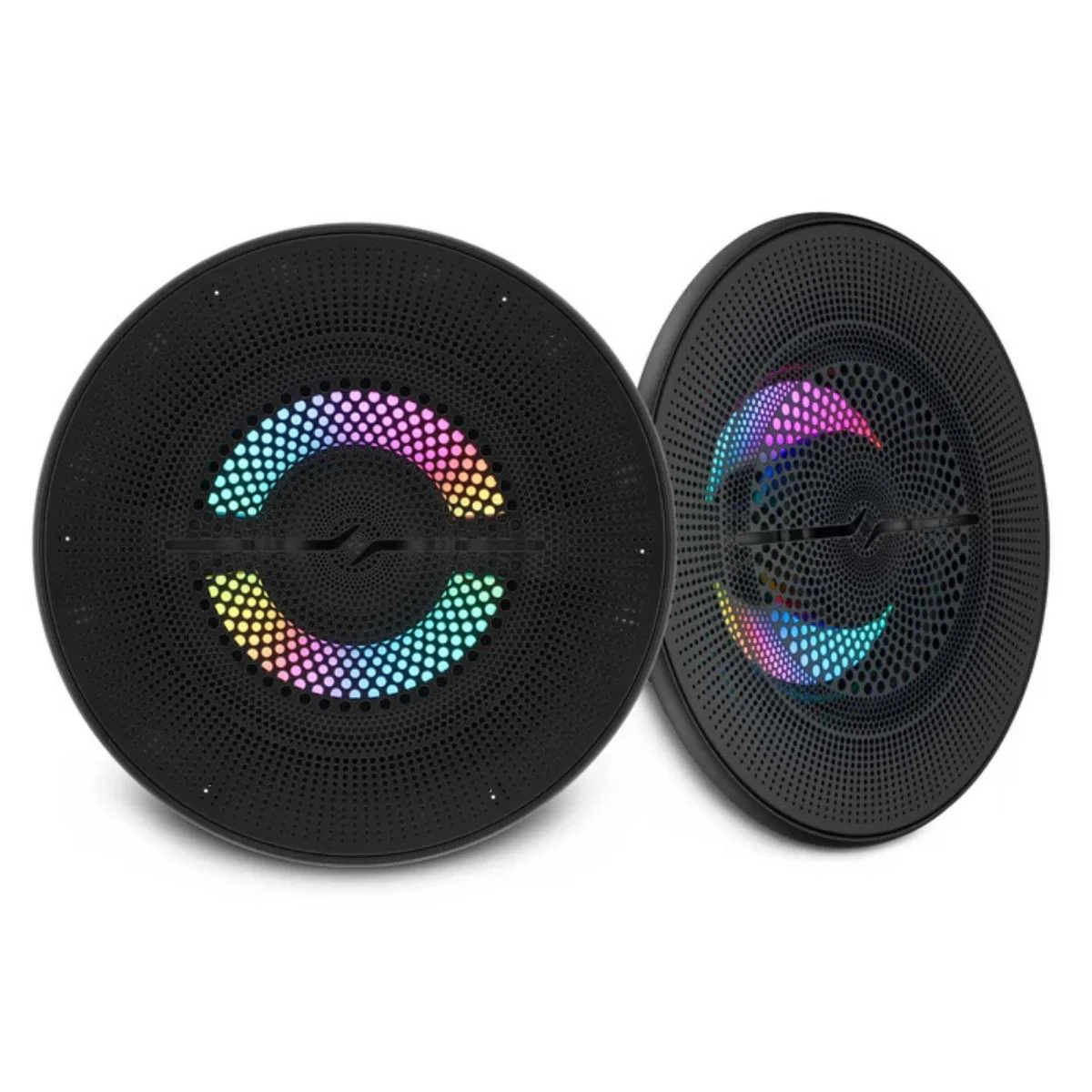

6.5" 150 W RMS 4-Ohm Marine Coaxial Speakers w/ Digital LED Ring NXL-LXY6 (Pair)

This Listing Includes:

• (1) Pair of 6.5" 2-Way Marine Coaxial Speakers

The DS18 NXL-LXY6 is a luxury 6.5 inch 2-way marine coaxial speaker set built for powerful full-range sound, marine-grade durability, and a clean factory-style finish. Rated at 150W RMS / 300W MAX with 95dB sensitivity and a 60Hz to 20kHz frequency response, these speakers deliver clear output designed for boats and powersports environments.

Each speaker features a 6.5 inch woofer paired with a 1 inch floating bullet tweeter powered by a neodymium magnet for strong high-frequency projection. The woofer uses a 1.5 inch voice coil, rubber surround, and a Ferrite + Neodymium motor system for dependable performance.

For a premium install, the flush-mount magnetic grille locks in clean and tight while allowing quick removal for service. A digital LED ring sits behind the cone for a bright backlit glow, compatible with DS18’s LC-DRM (sold separately) for full lighting control.

Built to handle real conditions, the NXL-LXY6 is IP65 rated for water resistance and engineered for UV exposure, making it ready for marine or outdoor adventure setups. Available in Matte Black or Matte White to match your build.

Specifications:

Nominal Diameter: 6.5" (165mm)

Nominal Impedance: 4 Ohms

RMS Power Handling: 150W

Max Power Handling: 300W

Sensitivity (1W/1M): 95dB

Frequency Response: 60Hz to 20kHz

Recommended HI Pass Crossover: 70Hz

Sold As: Pair

Body / Features:

Grill Type: PC + Stainless Steel

Marine Grade Type: IP65

RGB LED: Yes, Digital LED integrated (behind cone)

Digital LED Chip Type: 1815S

Basket Material: Injection Molded Composite ASA with UV Protection Coating

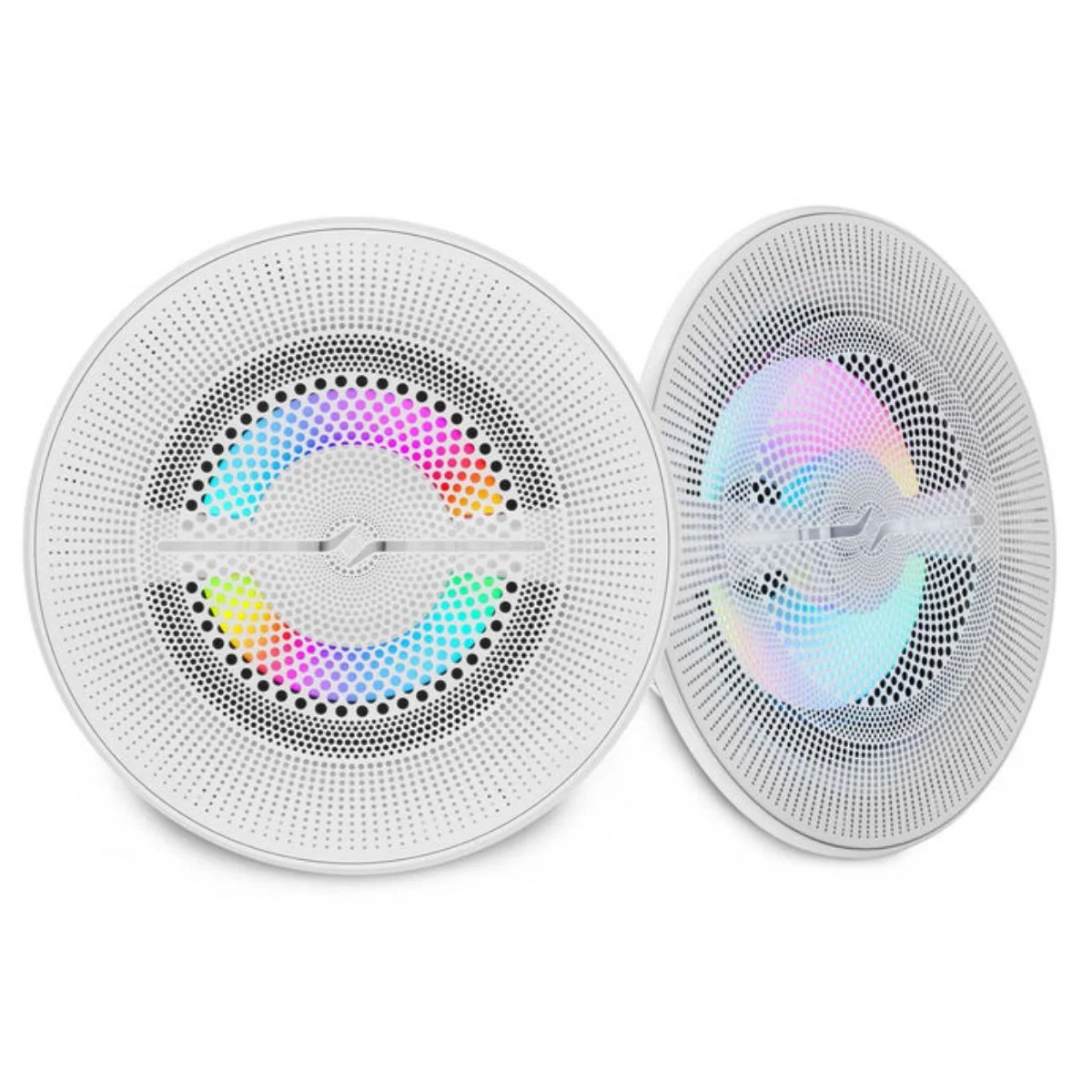

Color / Finish: Matte Black or Matte White

Woofer Specifications:

• Voice Coil Diameter: 1.5" (38.6mm)


• Voice Coil Former Material: Glass Fiber


• Winding Material: CCAW


• Cone Material: PPI


• Surround Material: Rubber


• Basket Material: PC


• Magnet Material: Ferrite + Neodymium


• Magnet Weight: 13 oz + 1.1 oz

Tweeter Specifications:

• Voice Coil Diameter: 1" (25.5mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Aluminium


• Magnet Material: Neodymium (N35H)


• Magnet Weight: 0.4 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 3.15L (0.11ft)


• Excursion (one way): 3mm


• Free Air Resonance (Fs): 88Hz


• Mechanical Factor (Qms): 7.497


• Electrical Factor (Qes): 1.205


• Total Factor (Qts): 1.038


• Moving Mass (Mms): 16.603g


• Compliance (Cms): 0.1679mm/N


• BL Factor (BL): 5.138


• Voice Coil Inductance (Le): 1.4mH


• Diaphragm Area (Sd): 114.99cm


• DC Resistance (Re): 3.2 Ohms


• Efficiency Bandwidth Product (EBP): 78.8

Speaker Dimensions:

• Overall Diameter: 8.35" / 212mm


• Overall Depth: 3.8" / 96.5mm


• Front Mount Baffle Cutout: 6.77" / 172mm


• Mounting Depth: 3.41" / 86.5mm


• Motor Diameter: 3.54" / 90mm

Clean install, marine tough, and a digital LED glow that makes your setup look as good as it sounds.
