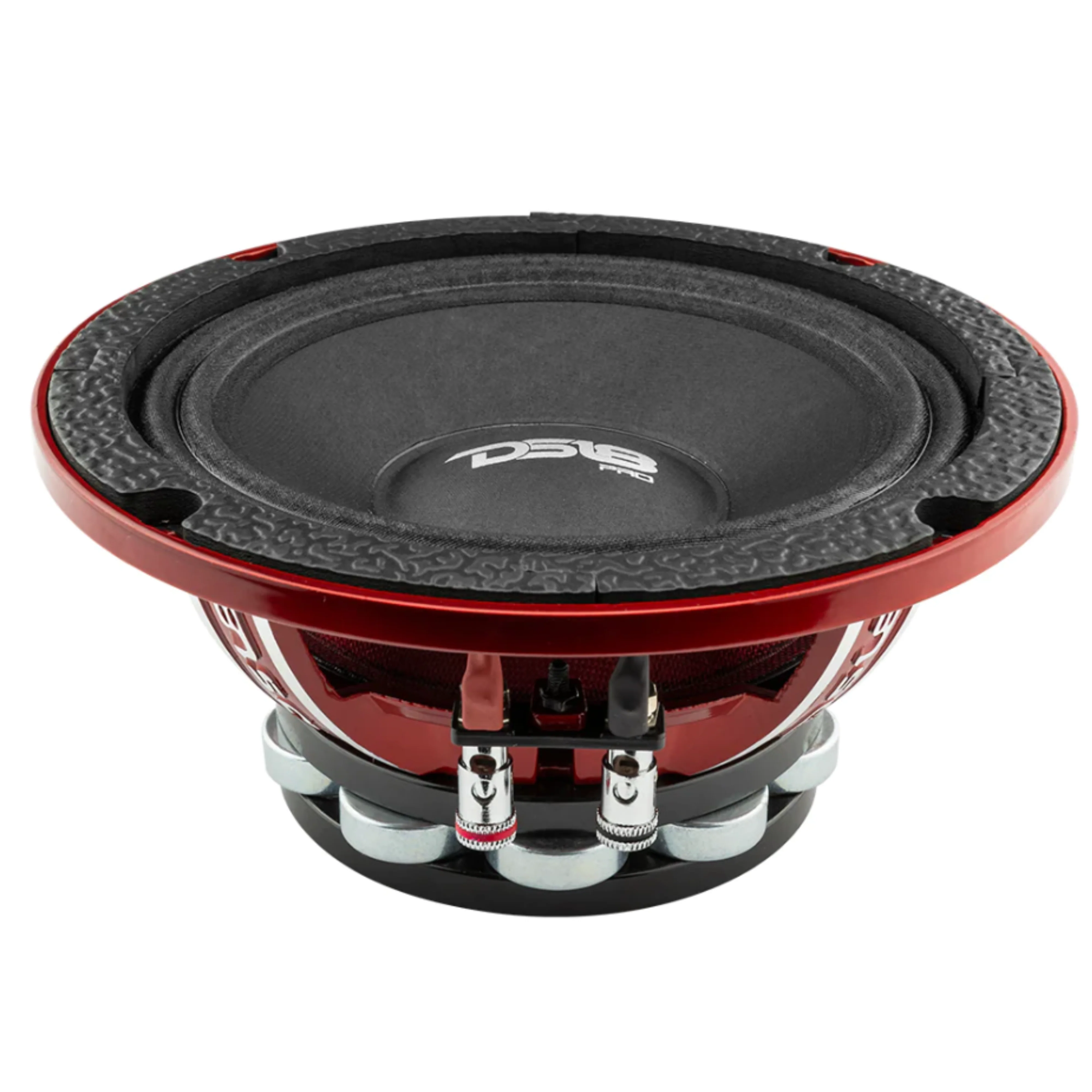

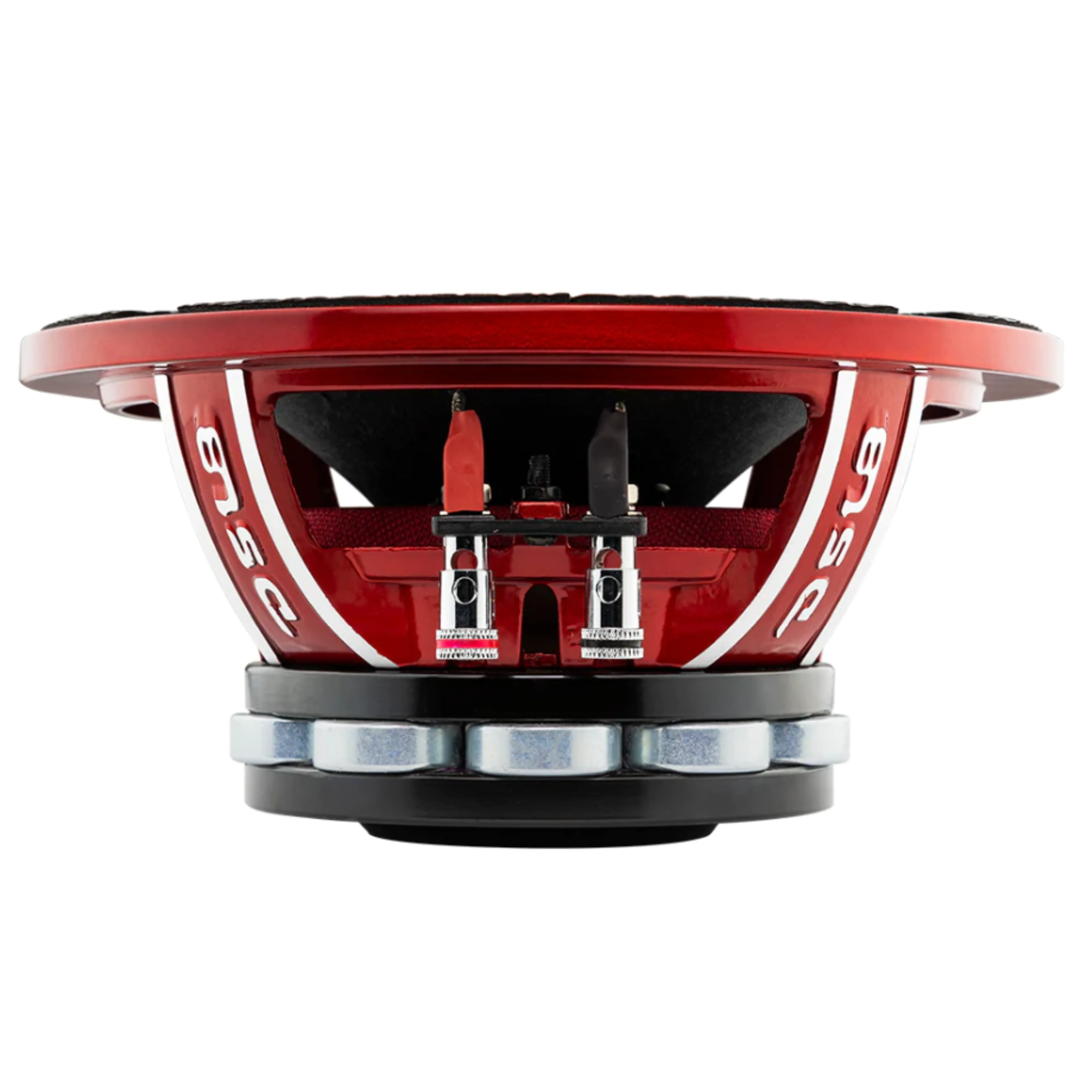

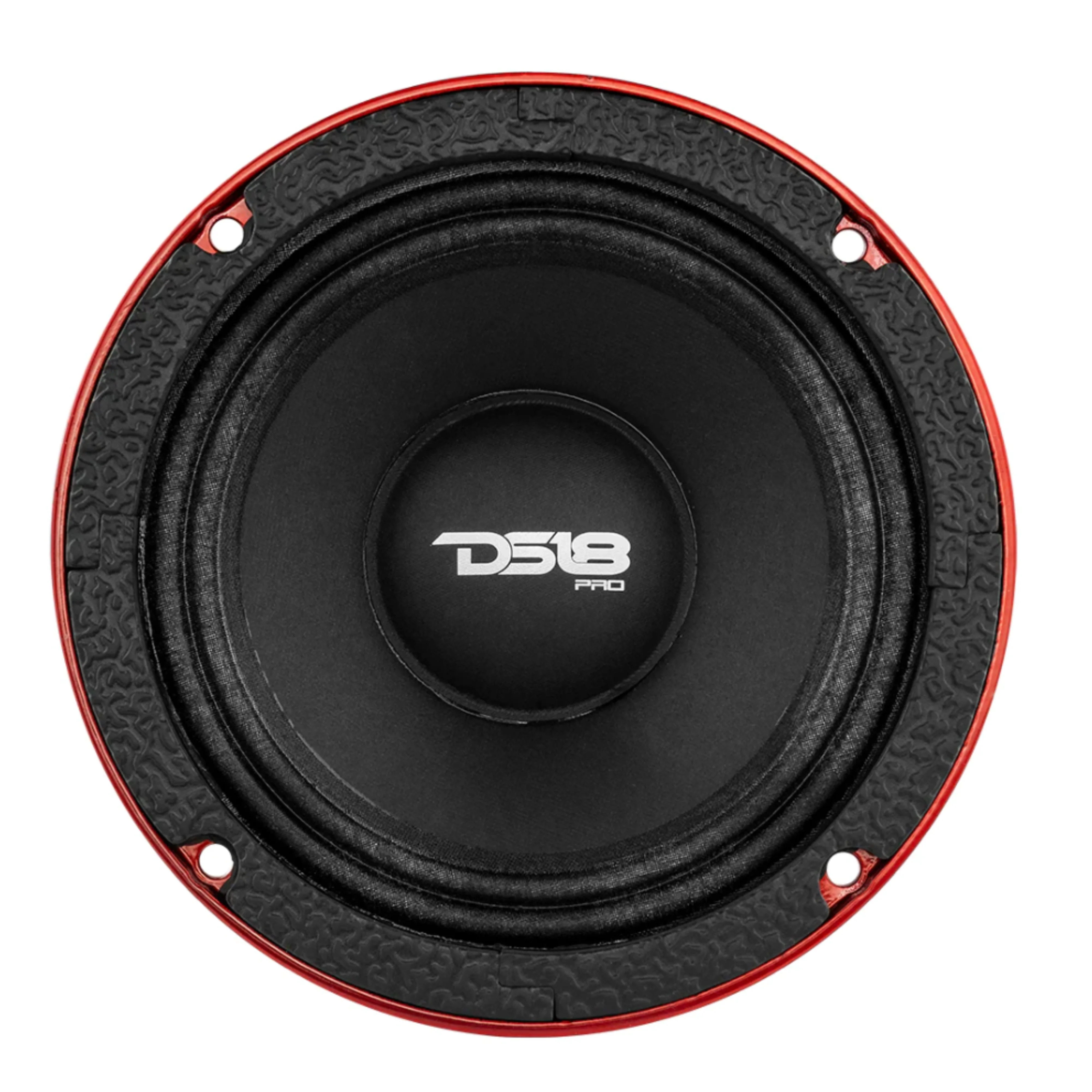

DS18 Car Audio 6.5" Midrange Speaker 600 Watt 4 Ohm Neodymium PRO-NEO6R

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

Highlights:

- High powered aluminum voice coil backed by an intense neodymium rings magnet for more volume at the highest efficiency on the market.

- Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.

- Solid cone design that slays the midrange but is best accompanied by a pro audio super tweeter.

This listing includes:

(1) DS18 6.5" Midrange Speaker PRO-NEO6R

SPECIFICATIONS:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 600 Watts

RMS Power Handling: 300 Watts

Sensitivity (1w/1m): 96 dB

Frequency Response: 90 Hz ~ 12.5 KHz

Recommended HI Pass Crossover: 160 Hz

MOTOR:

Voice Coil Diameter: 2" (50.8mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Aluminum

Basket Color: Red

Magnet Material: Neodymium Rings

Magnet Weight: 11.4 Oz

Displacement Volume: 0.045L

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 5.088L

Excursion: X-max - 3.6mm

Free Air Resonance: Fs - 99.5Hz

Mechanical Factor: Qms - 9.8

Electrical Factor: Qes - 0.237

Total Factor: Qts - 0.231

Dc Resistance: Re - 3.2 Ohm

Moving Mass: Mms - 11.449g

Compliance: Cms - 223.287 u/m/N

Force Factor: BI - 9.832

Cone Area: Sd - 145 cm

Mechanical Mass w/o Air: Mmd - 10.629g

DIMENSIONS:

Overall Diameter: 6.88" (174.8mm)

Front Mount Baffle Cutout: 5.91" (150.3mm)

Mounting Depth: 2.95" (75mm)

Overall Depth: 3.29" (83.7mm)

Motor Diameter: 4.13" (105mm)
