• HIGH OUTPUT MARINE SPEAKERS: 7.7” 2-way coaxial design rated at 175W RMS / 350W MAX with 96dB sensitivity and 40Hz-20KHz frequency response for loud, clear open-air sound.
• FLOATING BULLET TWEETER: Built-in 1” floating bullet tweeter for crisp highs and strong projection, paired with a 1.5” voice coil woofer for full-range marine audio performance.
• DIGITAL LED + WHITE DECK LED: Fully integrated digital LED lighting behind the cone plus white deck LED on the front cover, with 12V and digital input terminal and 1815S LED chips.
• IP65 MARINE GRADE + UV PROTECTED: IP65 water resistant marine-grade build with 100% stable UV protection, rubber surround, and injection molded composite materials designed for harsh outdoor environments.
• SOLD AS A PAIR WITH SILICONE COVERS: Includes (1) pair of DS18 NXL-IQ7.7 speakers plus (1) pair of silicone speaker covers, finished in matte black with UV-protected composite grill.

7.7" IP65 175W RMS Bullet Tweeter Marine Speaker Pair Digital LED DS18 NXL-IQ7.7

This Listing Includes:

• (1) Pair of 7.7" 2-Way Coaxial Marine Speakers


• (1) Pair of Silicone Speaker Covers

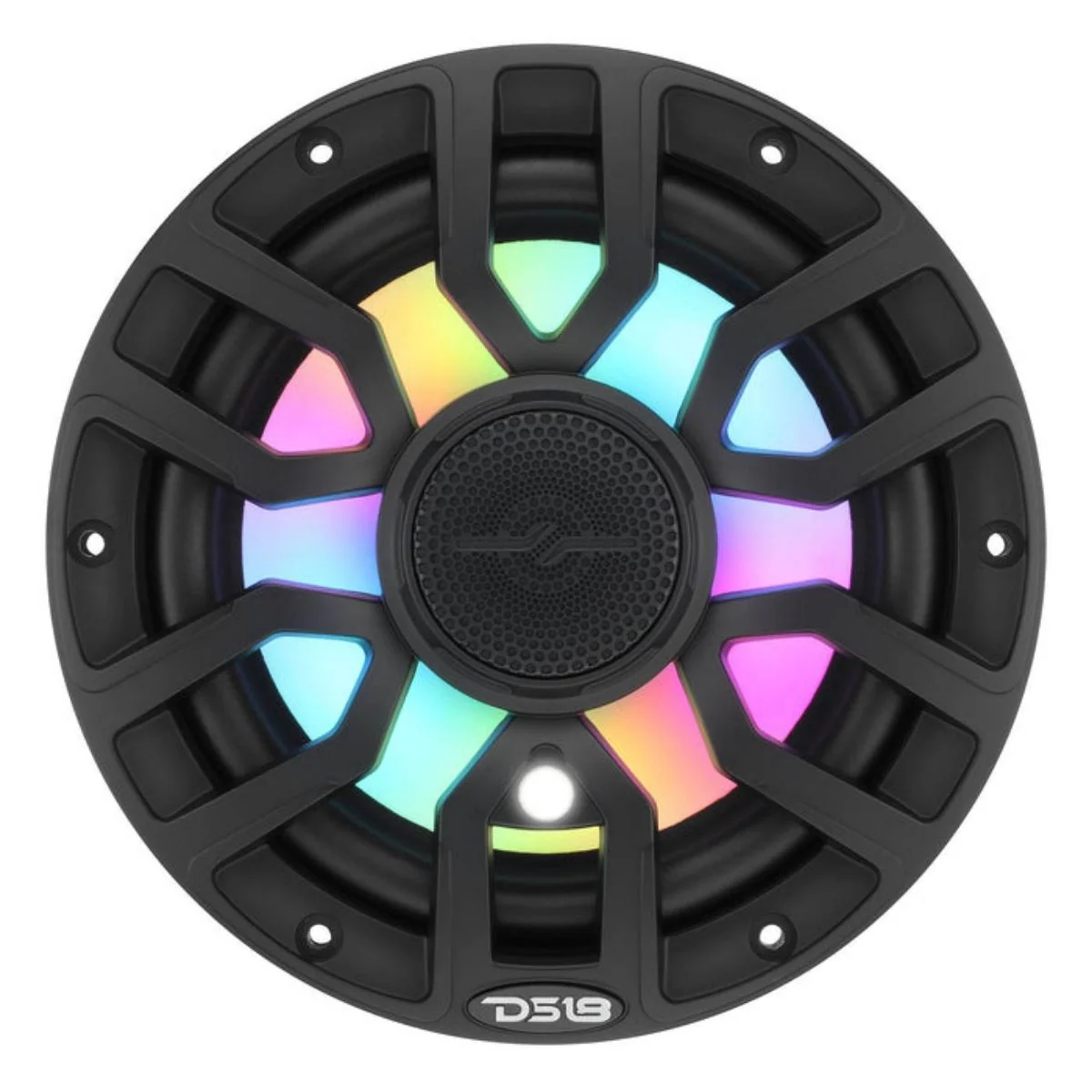

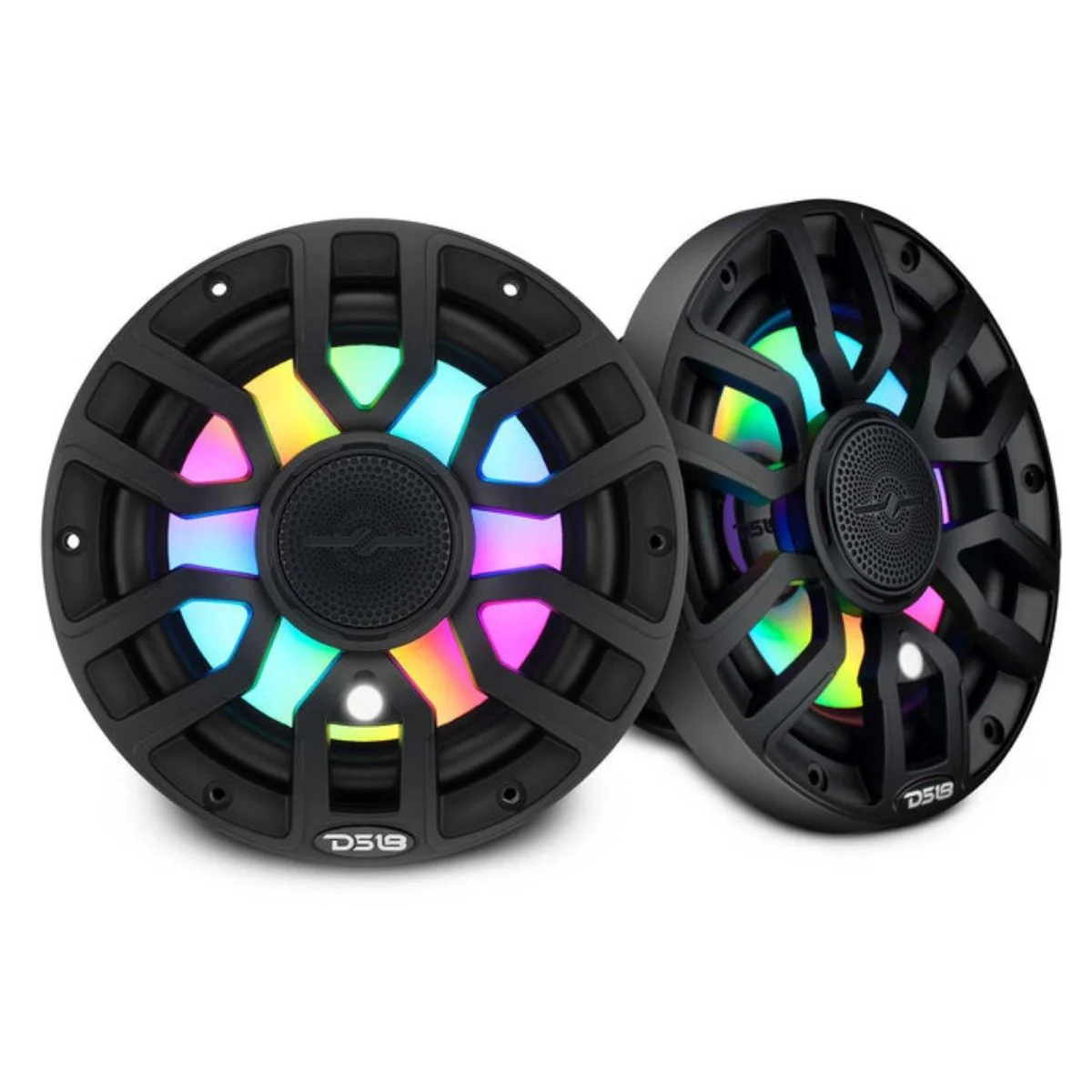

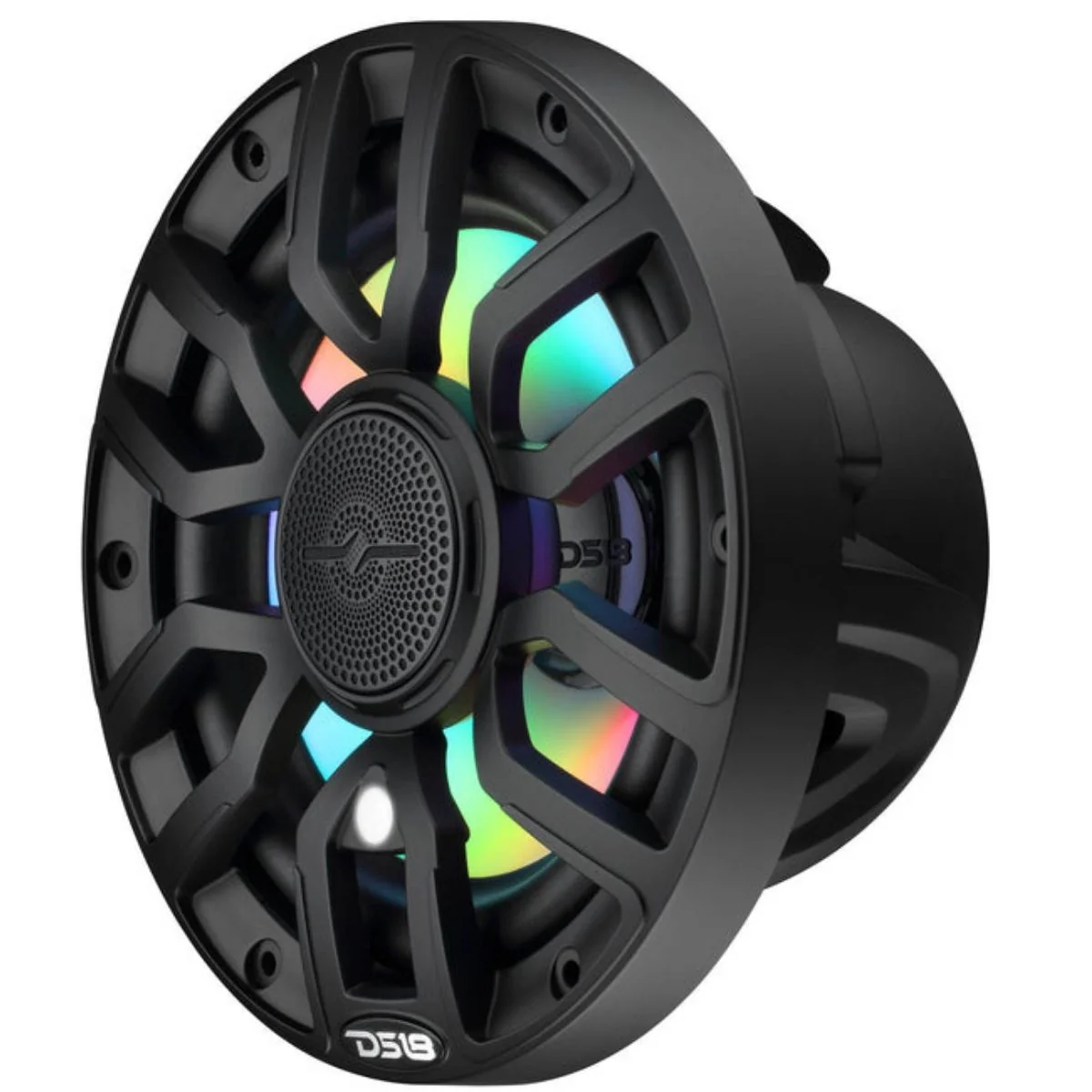

The DS18 NXL-IQ7.7 is a 7.7 inch marine-grade 2-way coaxial speaker set built for loud, clear open-air sound with integrated lighting. Rated at 175 watts RMS per pair and 350 watts max, with 96dB sensitivity and a 40Hz to 20KHz frequency response, it delivers strong output with clarity and control.

This coaxial design combines a 7.7 inch woofer with a 1 inch floating bullet tweeter for defined highs and detailed full-range performance. The woofer uses a 1.5 inch glass fiber voice coil former with CCAW winding, PPI cone and dust cap, and a rubber surround, driven by a hybrid Ferrite plus Neodymium motor system.

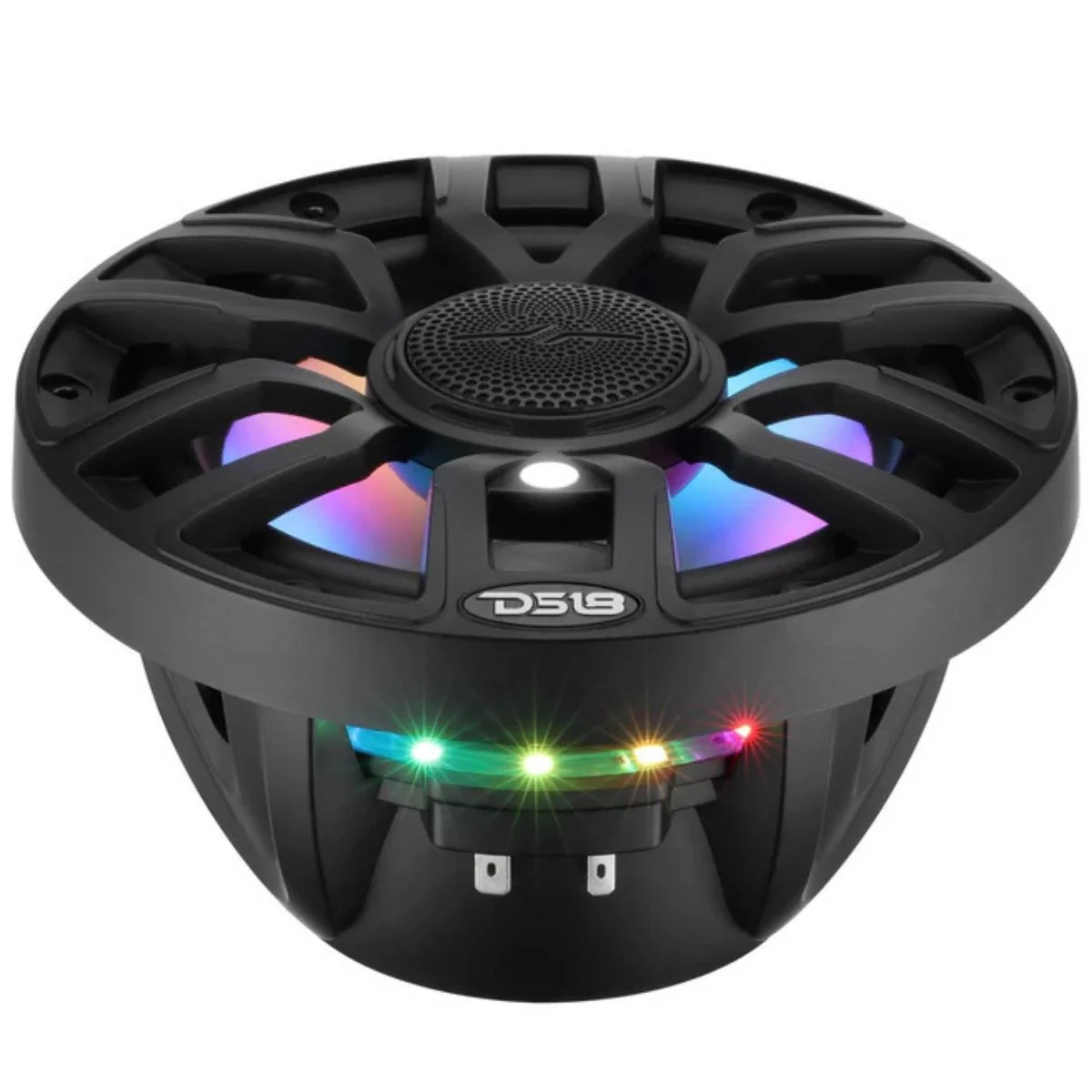

Lighting is fully integrated, featuring digital LED backlighting behind the cone plus a white deck LED on the front cover. LEDs connect through a 12V and digital input terminal, using 1815S chips.

Made for marine use, the NXL-IQ7.7 is IP65 rated with UV protection, and uses injection molded composite materials with UV protection coating. The included injection molded composite ASA grill has a UV protection coating, finished in matte black. Recommended high-pass crossover is 50Hz.

Specifications:

• Nominal Diameter: 7.7" (196mm)


• Number of Ways: 2-Way


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 175W


• Max Power Handling: 350W


• Sensitivity (1W/1M): 96dB


• Frequency Response: 40Hz to 20KHz


• Recommended High-Pass Crossover: 50Hz


• Marine Grade Type: IP65


• UV Protection: Yes, 100% Stable


• Grill Type: Injection Molded Composite ASA with UV Protection coating


• Color / Finish: Matte Black


• LED Lights: Yes, Digital LED integrated (behind cone) and White Deck LED (Front Cover)


• LED Connection Type: 12V and Digital input terminal


• Digital LED Chip Type: 1815S


• Woofer Voice Coil Diameter: 1.5" (38.6mm)


• Woofer Voice Coil Former Material: Glass Fiber


• Woofer Winding Material: CCAW


• Cone Material: PPI


• Dust Cap Material: PPI


• Surround Material: Rubber


• Basket Material: Injection Molded Composite PC with UV Protection coating


• Magnet Material: Ferrite plus Neodymium


• Magnet Weight: 18 oz plus 1.1 oz


• Tweeter Type: Floating Bullet Tweeter


• Tweeter Voice Coil Diameter: 1" (25.4mm)


• Tweeter Voice Coil Former Material: Kapton


• Tweeter Winding Material: CCAW


• Tweeter Diaphragm Material: Aluminium


• Bullet Material: Injection Molded Composite PC with UV Protection coating


• Tweeter Magnet Material: Neodymium (N35H)


• Tweeter Magnet Weight: 0.4 oz

Thiele and Small Parameters:

• Equivalent Volume (Vas): 8L (0.283ft)


• Excursion (one way): 3mm


• Free Air Resonance (Fs): 69Hz


• Mechanical Factor (Qms): 8.975


• Electrical Factor (Qes): 1.228


• Total Factor (Qts): 1.080


• Moving Mass (Mms): 25.661g


• Compliance (Cms): 0.208 mm/N


• BL Factor (BL): 5.592


• Voice Coil Inductance (Le): 0.044 mH


• Diaphragm Area (Sd): 165.13cm


• DC Resistance (Re): 3.2 Ohms


• Efficiency Bandwidth Product (EBP): 56

Built for marine sound and style, the DS18 NXL-IQ7.7 delivers loud performance with fully integrated digital LED lighting.
