• 8 inch slim midrange rated at 200W RMS and 4 ohms for maximum amplifier output
• Carbon fiber cone and dust cap with IP65 water resistance for harsh weather installs
• Lightweight neodymium magnet delivers strong output with a compact profile
• High 95dB sensitivity cuts through wind and engine noise on motorcycles and UTVs
• Shallow 2.5 inch mounting depth fits tight fairings, pods, and custom powersports builds

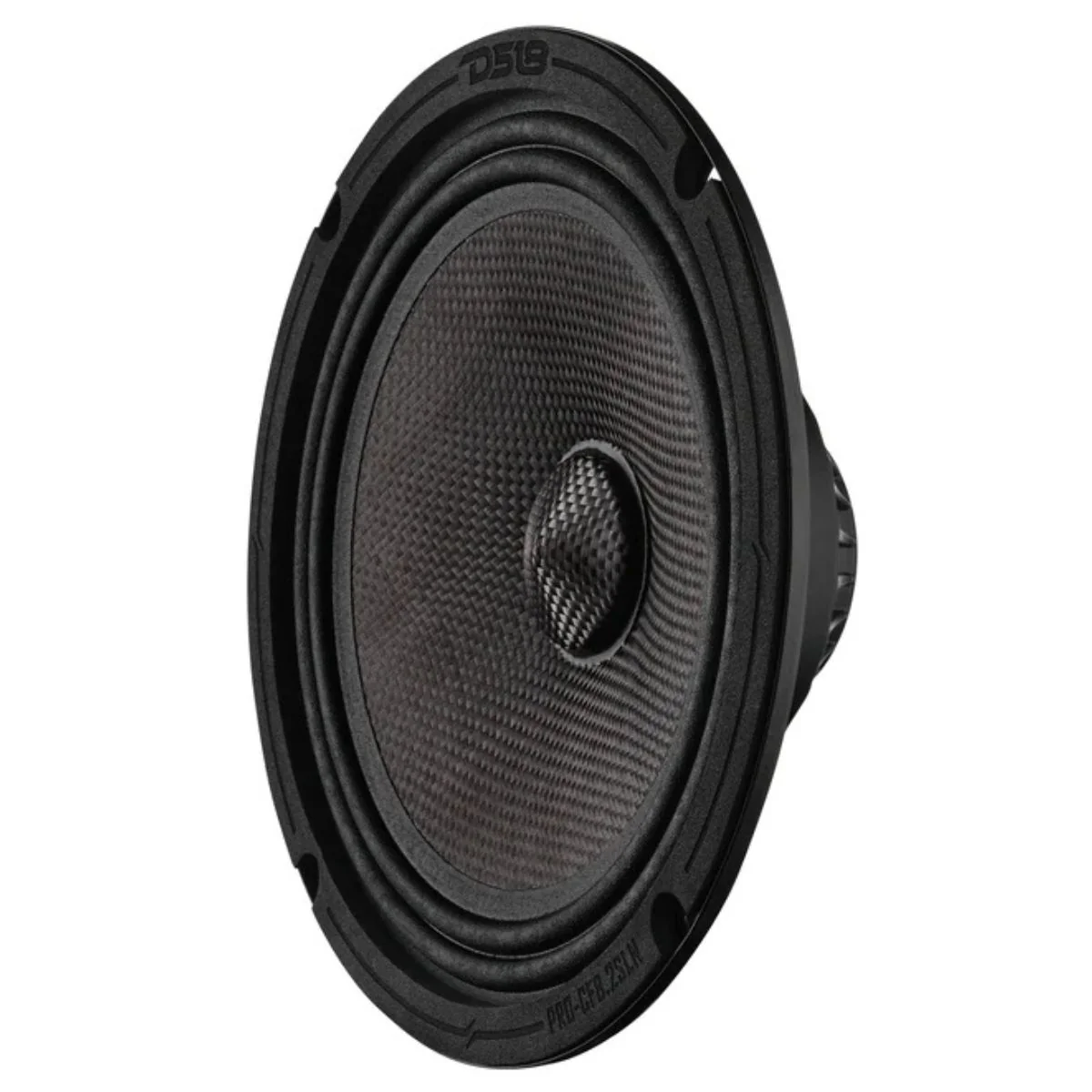

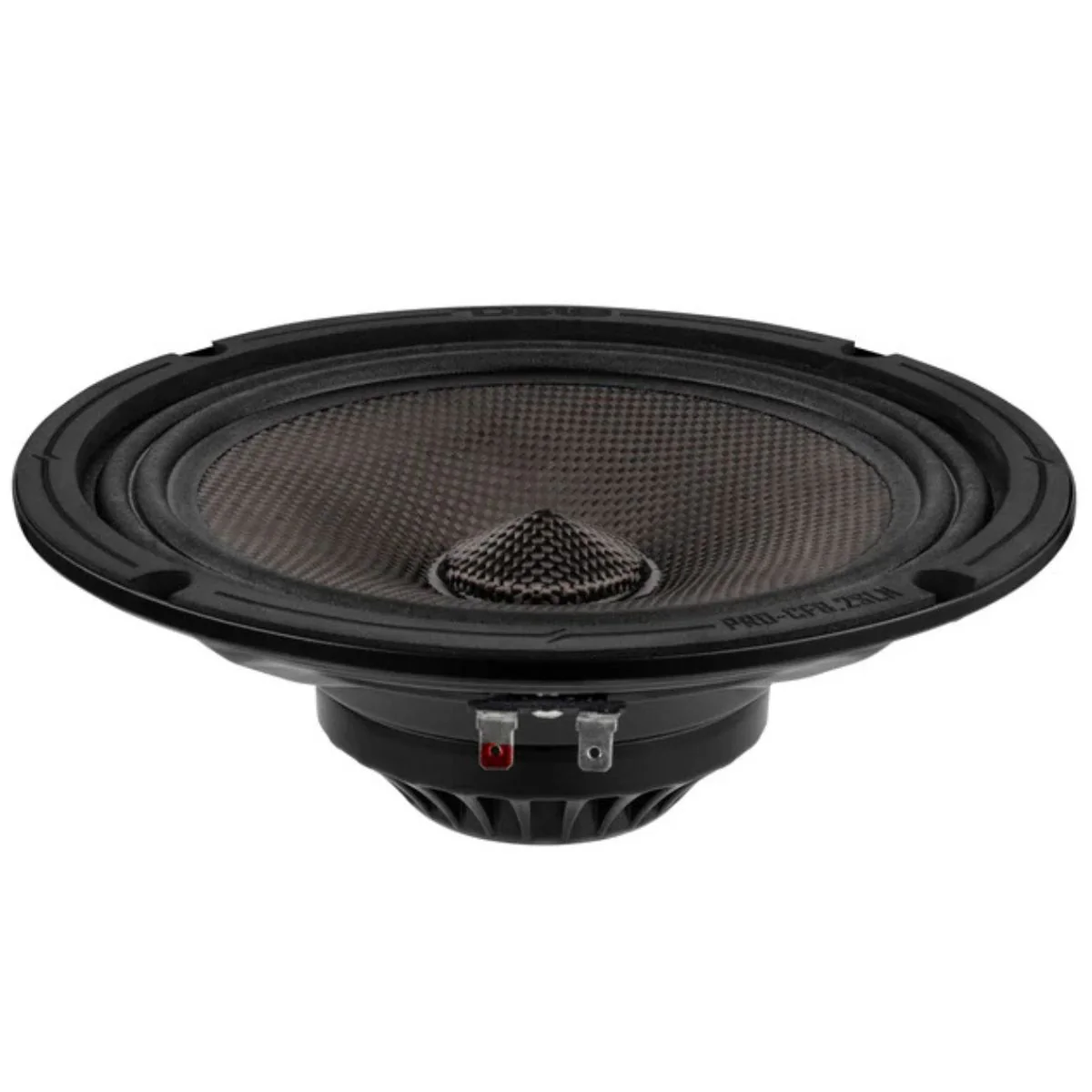

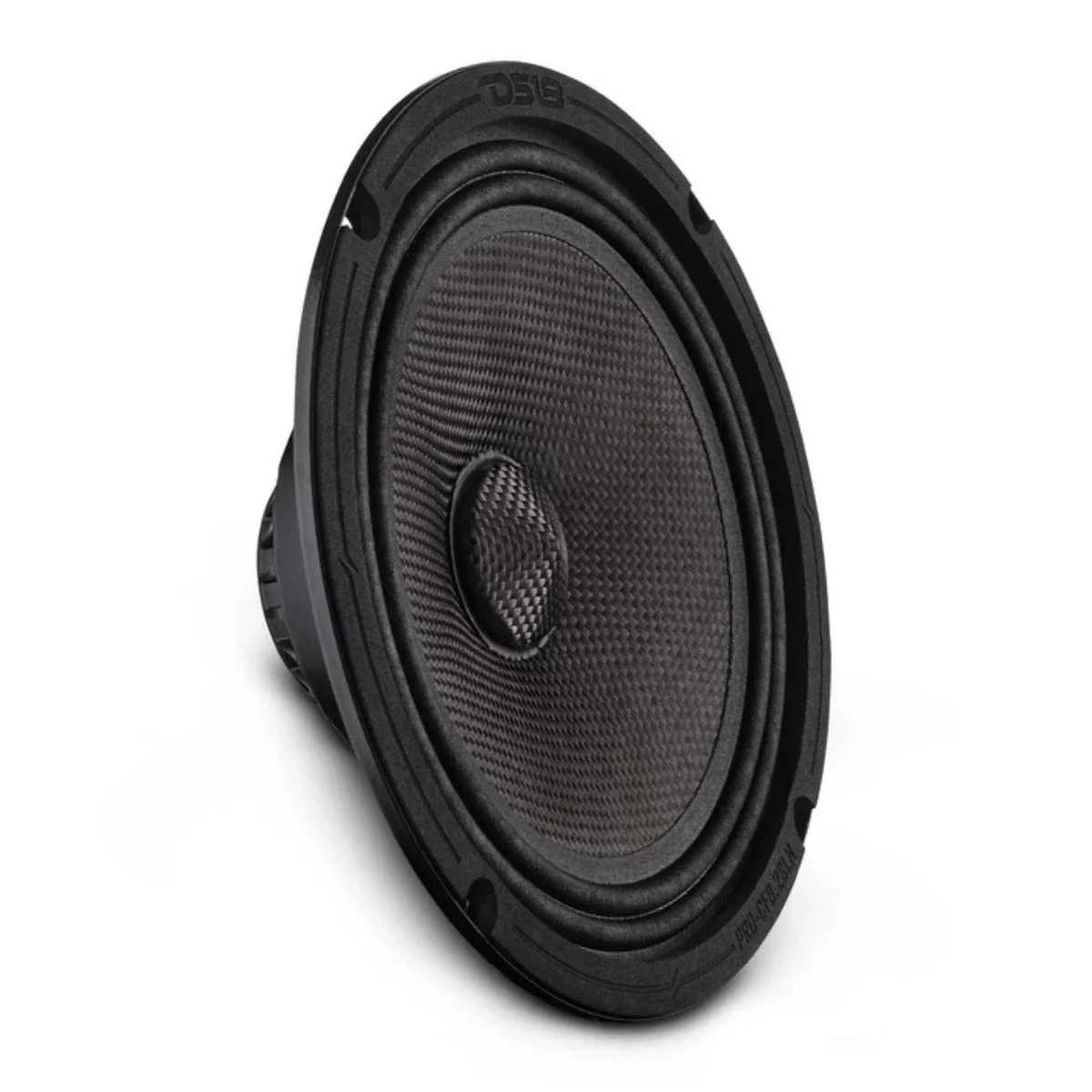

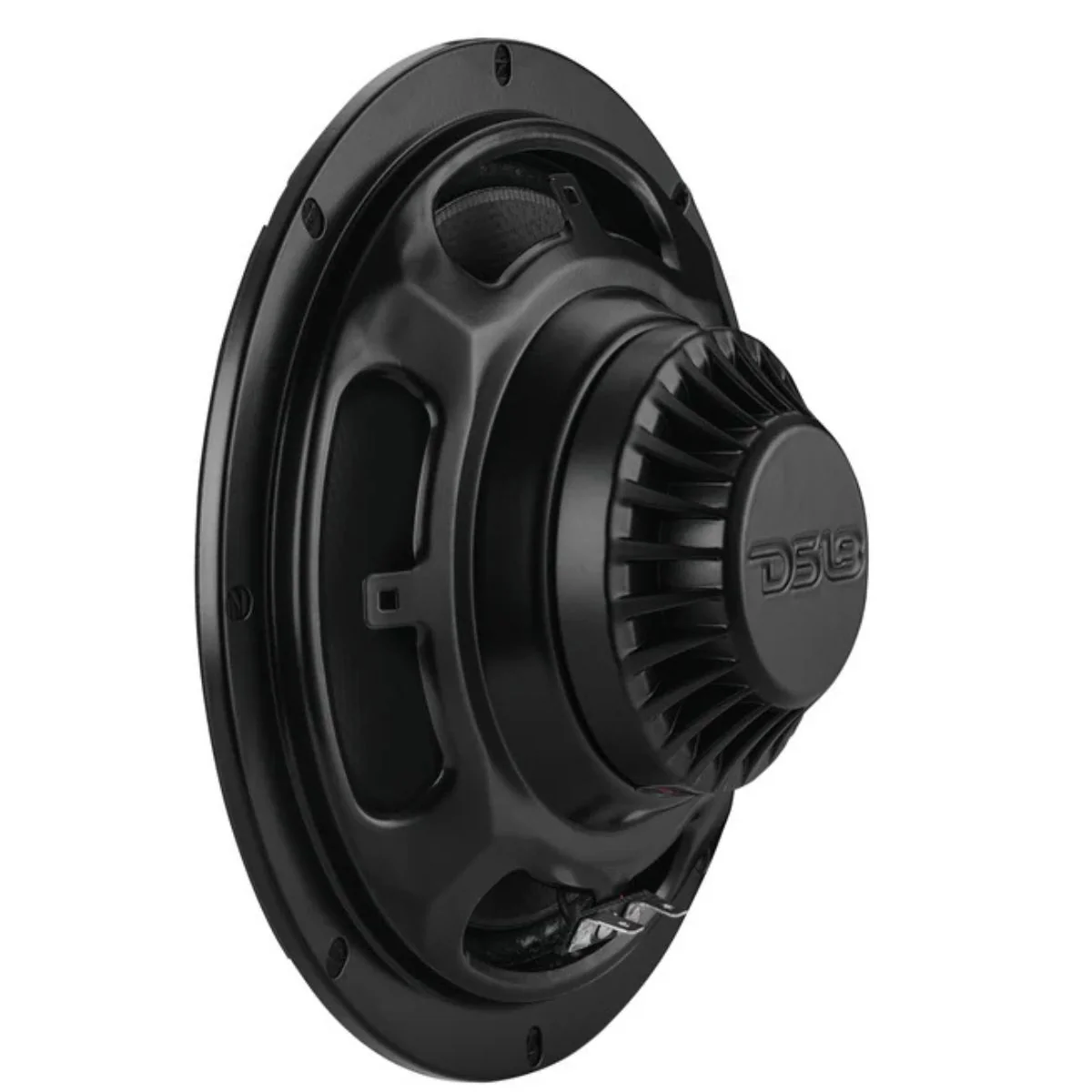

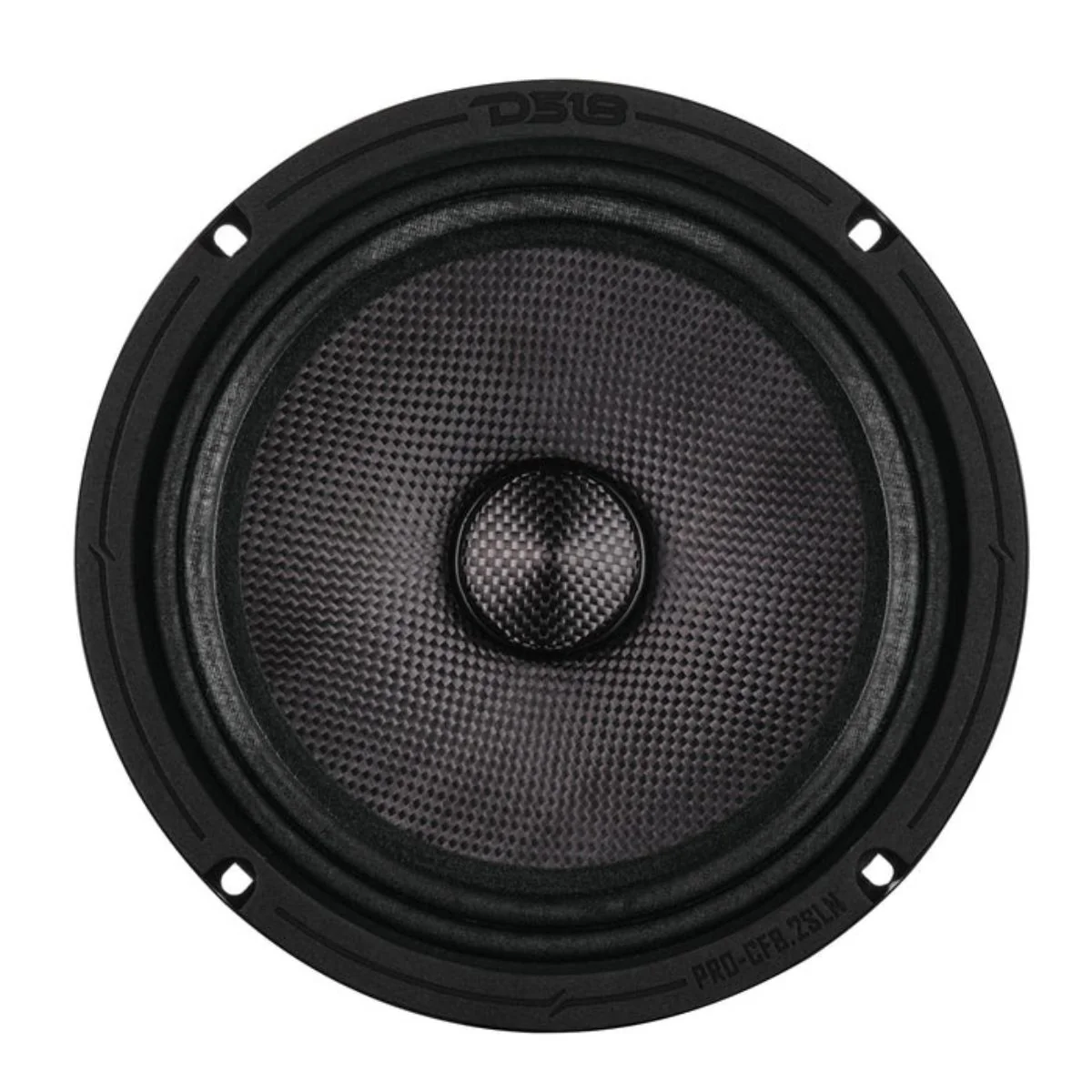

8" 200W RMS 4 Ohm Slim Water Resistant Neo Carbon Fiber Midrange Speaker DS18

This Listing Includes:

• (1) 8" 200W RMS 4 Ohm Slim Water Resistant Neo Carbon Fiber Midrange Speaker DS18

The PRO-CF8.2SLN is built for riders who want clear midrange punch in places where a normal speaker just won’t fit. This slim 8 inch midrange handles 200W RMS at 4 ohms, pulling full power from your amplifier while keeping the output loud and clean. The carbon fiber cone and dust cap are fully water resistant, and the lightweight neodymium motor keeps weight down without sacrificing strength. With a shallow 2.5 inch mounting depth, it drops easily into tight motorcycle or powersports installs. If you want strong midrange clarity that survives weather and wind, this speaker delivers every time.

Specifications:

• Nominal Diameter: 8 in / 203 mm


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 200W


• Max Power: 400W


• Sensitivity: 95 dB


• Frequency Response: 80Hz to 5KHz


• Recommended Hi Pass Crossover: 100Hz


• Sold In: Single


• Grill Included: No

Features:

• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes


• Cone Shape: Curvilinear


• Terminals: Spade


• Cone Material: Water Resistant Carbon Fiber


• Dust Cap: Carbon Fiber


• Surround: Treated Cloth


• Basket: Steel, Gloss Black Finish


• Magnet: Neodymium, 3.8 oz


• Lead Connection: Crossed Spider

Motor:

• Voice Coil Diameter: 1.5 in / 38 mm


• Former: Kapton


• Winding: CCAW

Thiele & Small Parameters:

• Vas: 6.84L / 0.241 ft


• Xmax: 2.5 mm


• Fs: 106 Hz


• Qms: 3.32


• Qes: 0.51


• Qts: 0.46


• Mms: 17.549 g


• Cms: 0.12 mm/N


• BL: 6.87


• Le: 0.18 mH


• Sd: 190 cm


• Re: 1.6 Ohm


• Mmd: 15.99 g

Measurements:

• Overall Diameter: 8.2 in / 209 mm


• Overall Depth: 2.87 in / 73 mm


• Cutout Diameter: 7 in / 180 mm


• Mounting Depth: 2.5 in / 65 mm


• Motor Diameter: 3.6 in / 92 mm

Dimensions:

• Length: 9 in


• Width: 9 in


• Height: 4 in
