• High Power Handling: 400 watts RMS power handling for loud, distortion-free audio
• Neodymium Magnet: Offers a lightweight and efficient magnet design for powerful sound without sacrificing weight
• 8-Ohm Impedance: Compatible with most car audio systems for optimized sound performance
• Mid-Range Frequency Response: Enhances clarity and balance in your audio setup, specifically tuned for midrange frequencies
• Durable Construction: Built to endure high-power audio environments with quality materials for long-lasting performance
• Versatile Applications: Perfect for subwoofer enclosures, custom car audio builds, and premium car audio setups

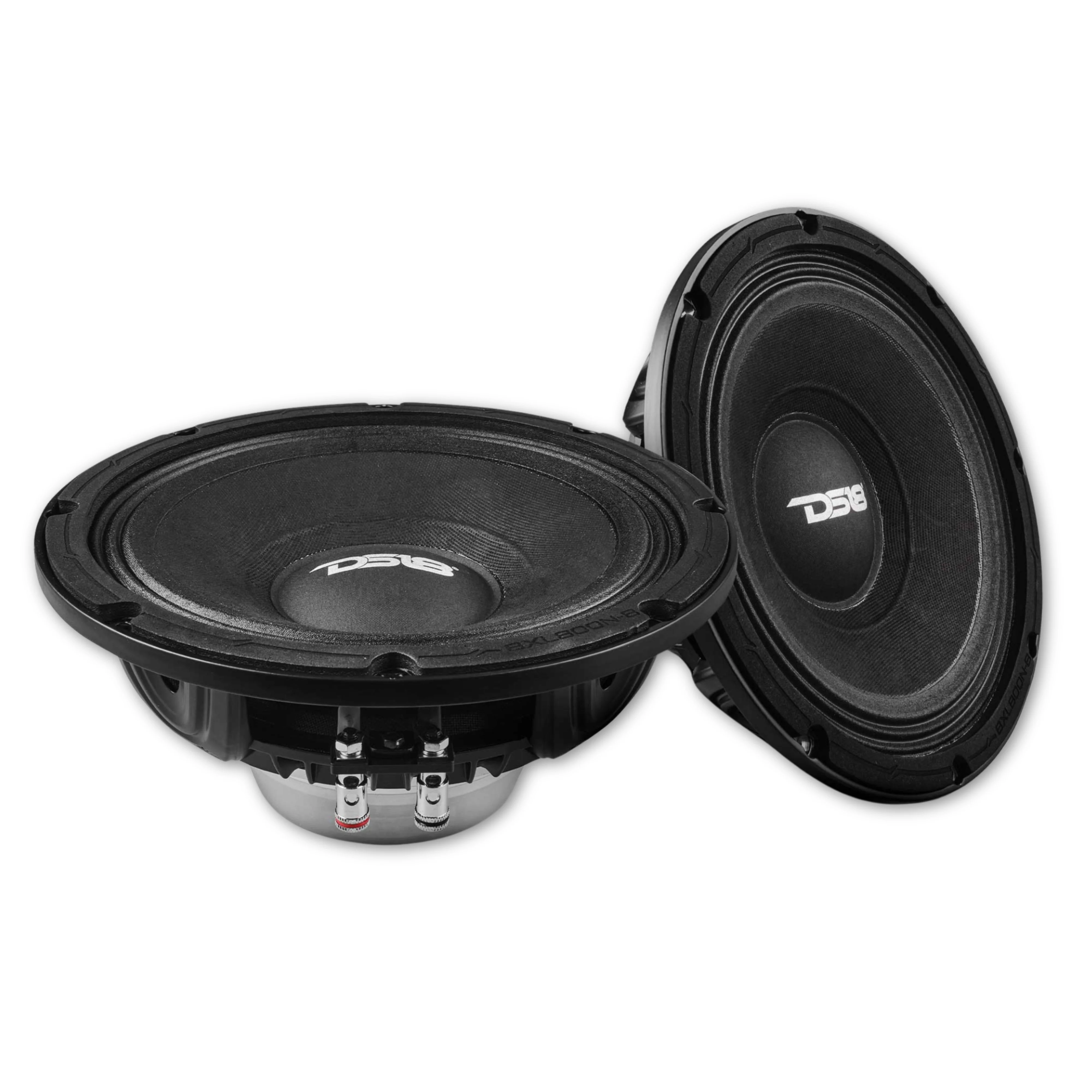

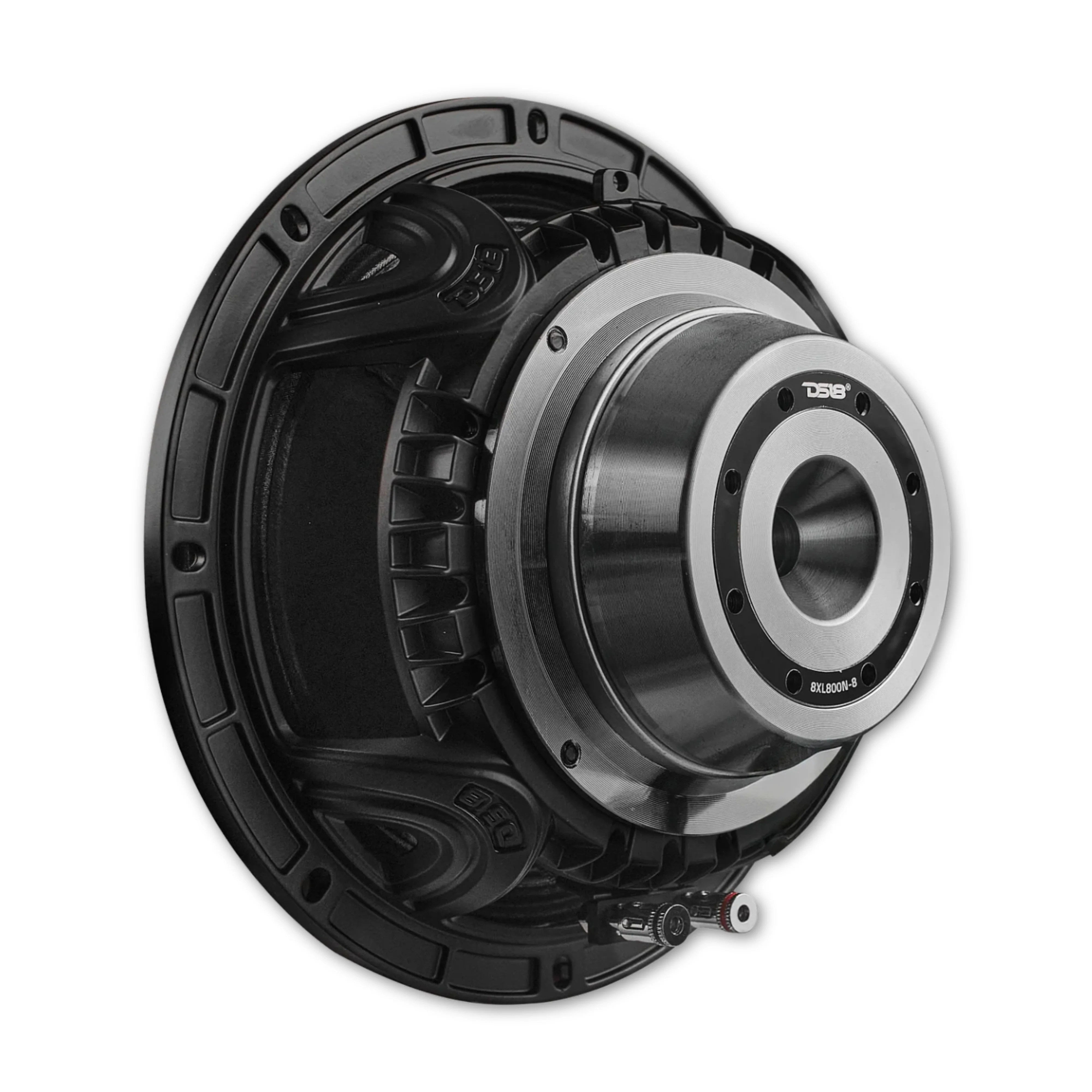

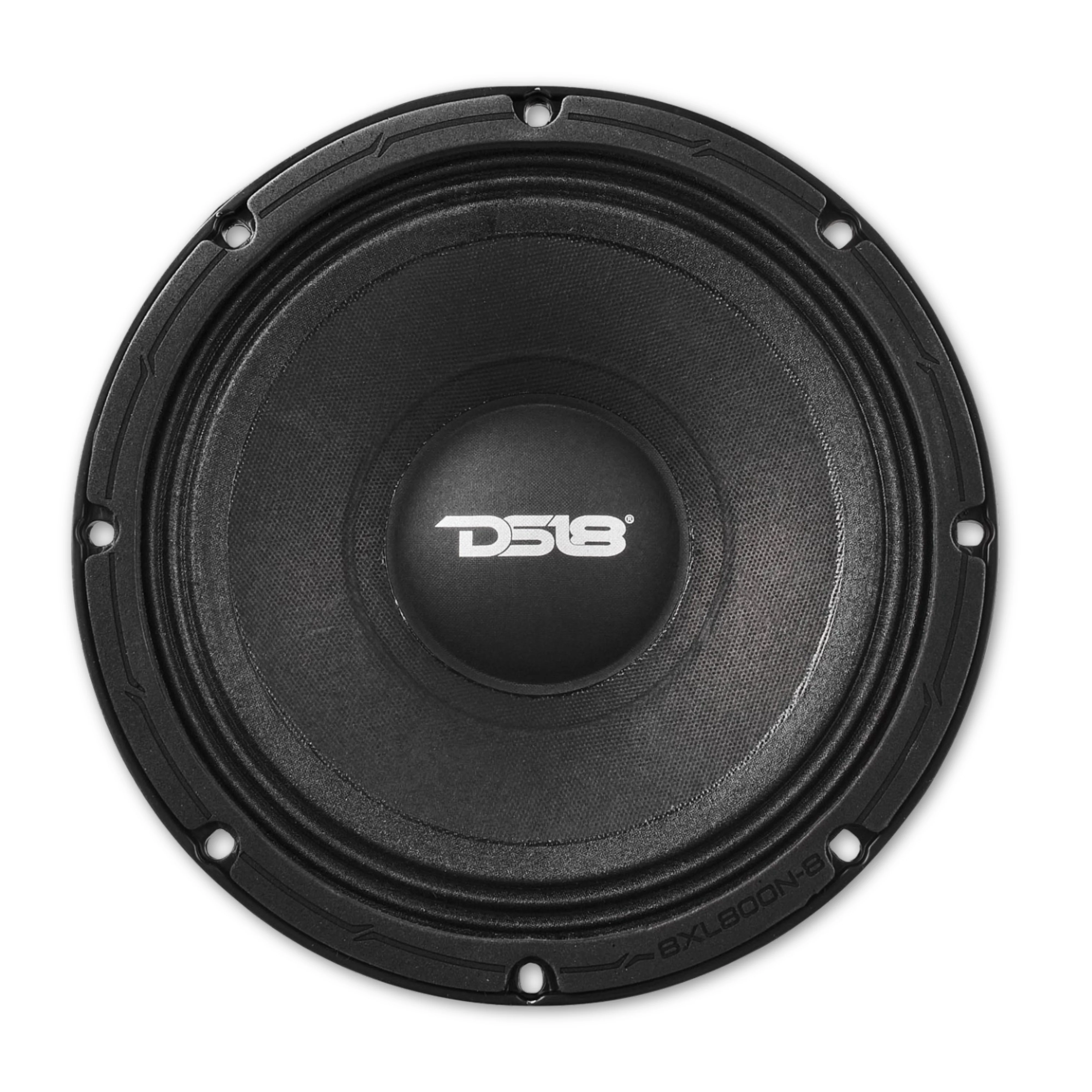

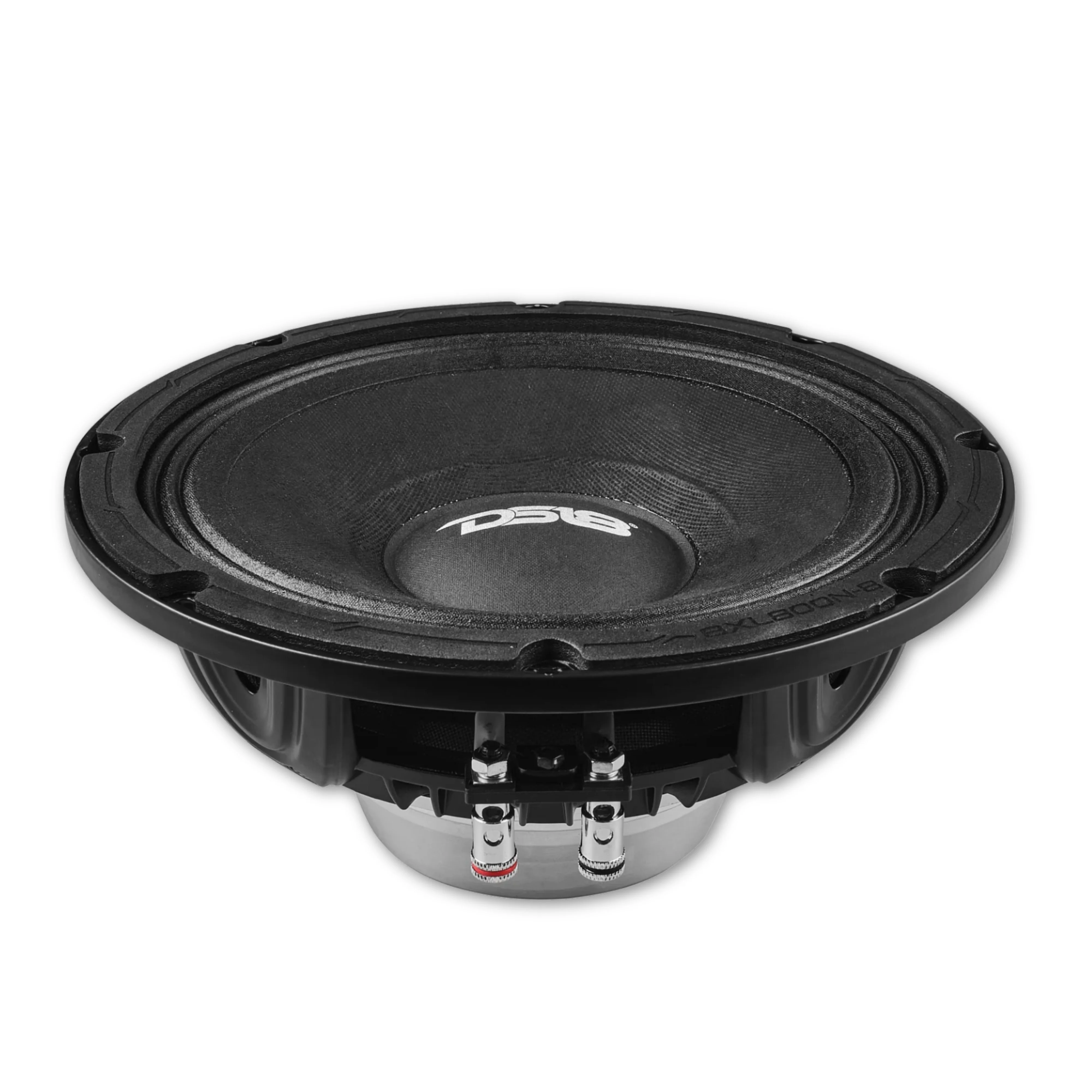

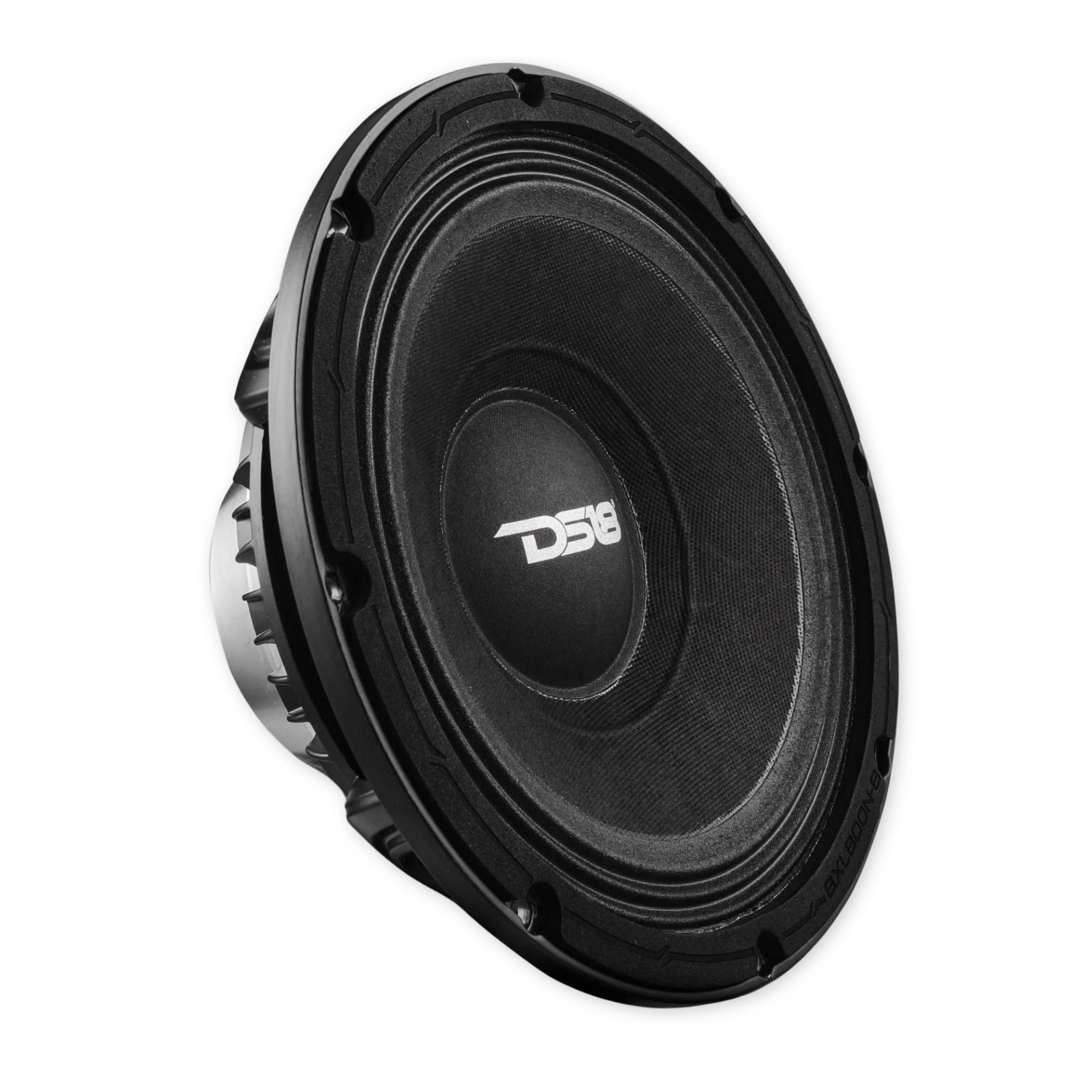

8" 400 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

This Listing Includes

• 8" 400 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

This 8" 400 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet is engineered for high-performance audio setups. It delivers clean, powerful sound with a focus on midrange frequencies, ideal for subwoofer enclosures, high-performance audio builds, and custom car audio installations. Built with a neodymium magnet for superior efficiency and reduced weight, this loudspeaker is a perfect choice for those seeking both durability and top-notch sound quality.

Features

• High Power Handling: 400 watts RMS power handling for loud, distortion-free audio


• Neodymium Magnet: Offers a lightweight and efficient magnet design for powerful sound without sacrificing weight


• 8-Ohm Impedance: Compatible with most car audio systems for optimized sound performance


• Mid-Range Frequency Response: Enhances clarity and balance in your audio setup, specifically tuned for midrange frequencies


• Durable Construction: Built to endure high-power audio environments with quality materials for long-lasting performance


• Versatile Applications: Perfect for subwoofer enclosures, custom car audio builds, and premium car audio setups

Specifications

• RMS Power Handling: 400 watts


• MAX Power Handling: 800 watts


• Sensitivity (1w/1m): 100.7dB


• Frequency Response: 100Hz-10KHz


• Recommended High-Pass Crossover: 160Hz


• Sold in Pair or Single: Single


• Interleaved Sandwich Voice Coil (ISV): No


• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes


• Cone Shape: Curvilinear


• Speaker Terminals: Push 12ga


• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-pressed Paper


• Dust Cap Material: Paper


• Bullet Material: N/A


• Bullet Color/Finish: N/A


• Surround Material: Cloth


• Spider Diameter: 5" / 127mm


• Leads Type: Direct to Cone


• Basket Material: Aluminum


• Basket Color/Finish: Satin Black


• Magnet Material: Neodymium


• Magnet Weight: 7.5 Oz


• Displacement Volume: 0.03L / 0.00105ft3


• Equivalent Volume Vas: 17.09L / 0.603ft3


• Excursion (one way) Xmax: 2.3mm


• Free Air Resonance Fs: 87Hz


• Mechanical Factor Qms: 5.68


• Electrical Factor Qes: 0.27


• Total Factor Qts: 0.26


• Mechanical Mass Mms: 12.66g


• Mechanical Compliance Cms: 0.26mm/N


• BL Factor BL: 12


• Voice Coil Inductance Le: 0.06mH


• Cone Area Sd: 213.82cm2


• DC Resistance Re: 5.6 ohm


• Mechanical Mass w/o air Mmd: 11g

Dimensions

• Overall Diameter: 8.2" / 210mm


• Overall Depth: 3.85" / 98mm


• Front Mount Baffle Cutout: 7.2" / 183mm


• Mounting Depth: 3.38" / 86mm


• Motor Diameter: 4" / 102mm
