• Immerse yourself in gut-wrenching power with the American Bass HD-10-D2 10" Subwoofer from the Ultra-Heavy-Duty HD Series.
• Boasting a massive 4000W MAX Power and 2000W RMS Power Handling, this subwoofer delivers serious low-end frequencies with reliability in mind.
• Features a black powder finish heavy-duty stamped basket with perimeter vents for enhanced voice coil cooling.
• High-temp 2 Ohm 4-layer voice coil with Nomex protection and Kevlar enforced non-pressed paper cone for durability and superior performance.
• Custom-made rubber gasket and magnet boot, along with double-stacked high-energy magnets, ensure a robust and reliable subwoofer for Die-Hard bass enthusiasts.

American Bass 10" Subwoofer HD Series 2000W RMS Dual 2 Ohm Voice Coil HD-10-D2

This listing includes

• (1) American Bass 10 Subwoofer HD-10-D2

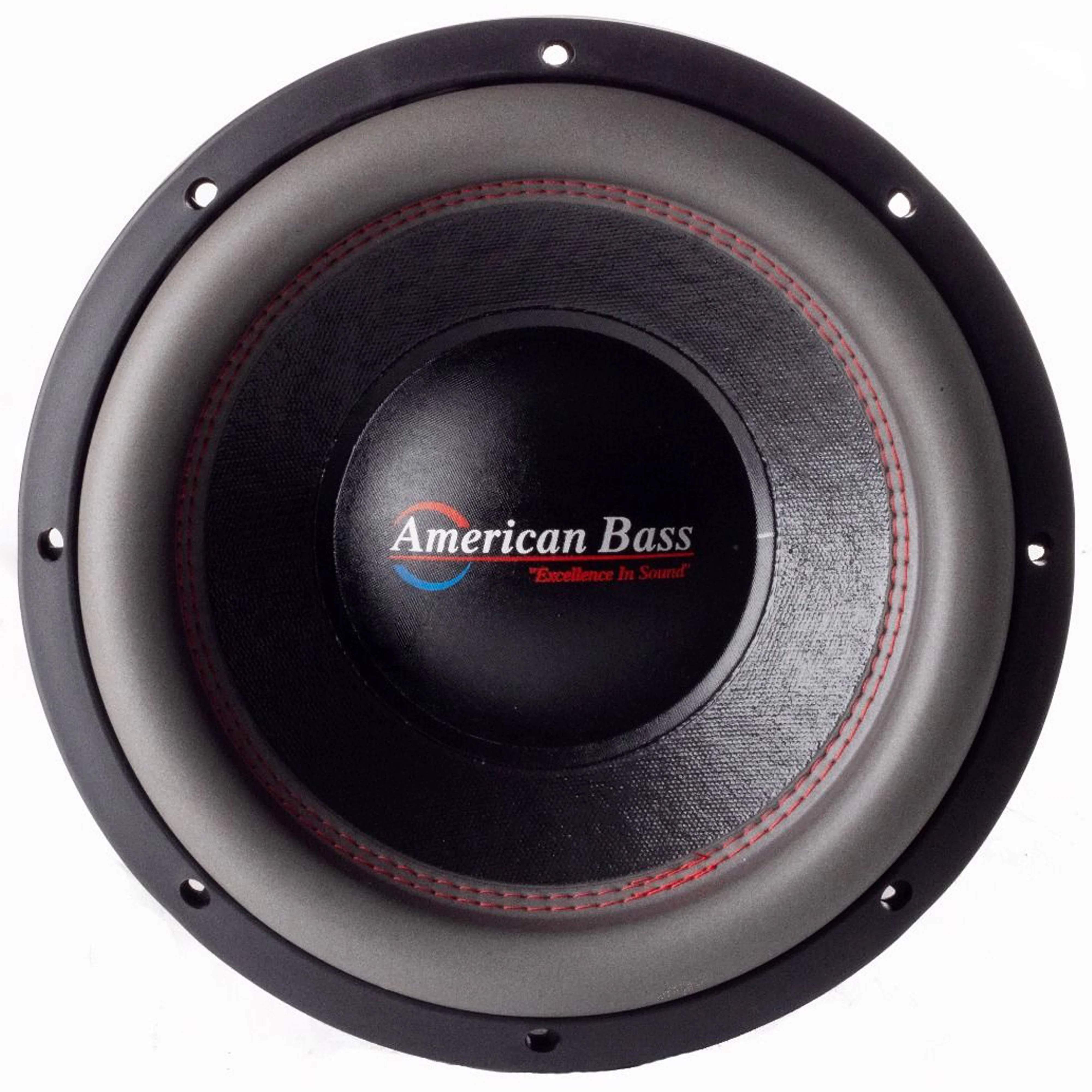

The American Bass HD Series presents the HD-10-D2, a 10" Subwoofer designed for the ultimate bass experience. This subwoofer is part of the Ultra-Heavy-Duty line, ensuring gut-wrenching power and unwavering reliability. With a massive 4000W MAX Power and 2000W RMS Power Handling, the HD-10-D2 is a powerhouse that can rattle the most Die-Hard bass enthusiasts.

Highlighted by a black powder finish heavy-duty stamped basket with perimeter vents for superior voice coil cooling, this subwoofer is engineered for optimal performance. The high-temp 2 Ohm 4-layer voice coil with Nomex protection and Kevlar enforced non-pressed paper cone contribute to its durability and exceptional sound reproduction.

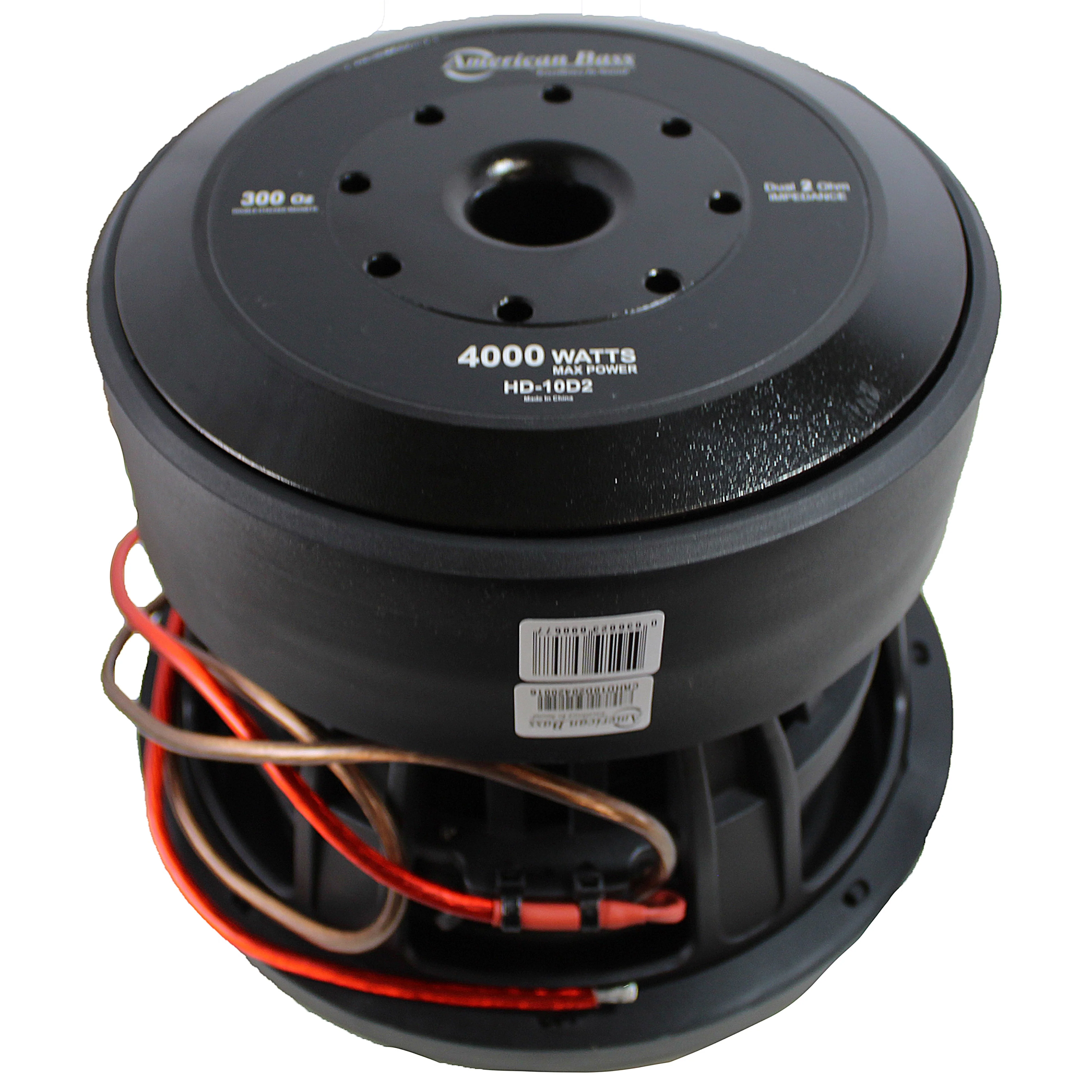

Featuring a mirror image double Conex spider system, double-stacked high-energy magnets, custom-made rubber gasket, and a custom-made rubber magnet boot, the HD-10-D2 is a subwoofer that stands out in both design and performance.

Specifications

• Nominal Diameter: 10"


• Nominal Impedance: 2 Ohm


• Frequency Reponse: 20Hz to 200Hz


• MAX Power Handling: 4000 Watts


• RMS Power Handling: 2000 Watts


• Sensitivity (1w/1m): 87.2dB

Motor Specifications:

• Voice Coil Diameter: 3"


• Cone Material: Kevlar enforced non-pressed paper


• Surround Material: Foam


• Magnet Material: Ferrite


• Magnet Weight: 300 oz

Recommended Enclosures:

• Ported Box: 1.5 ~ 1.75ft


• Cutout Size: 9.25"

Dimensions:

• Overall Diameter: 10.82" (275mm)


• Front Mount Baffle Cutout: 9.25" (235mm)


• Mounting Depth: 7.71" (196mm)


• Overall Depth: 8.85" (225mm)


• Motor Diameter: 8.89" (226mm)


• Unit Weight: 48 lbs.
