• EXTREME POWER HANDLING: 12-inch subwoofer rated at 4700W RMS and 12,000W max power, engineered for high-output bass systems and competition-level builds
• DUAL 1-OHM VOICE COILS: Dual 1-ohm configuration allows flexible wiring options for powerful monoblock amplifier setups
• HEAVY-DUTY MOTOR DESIGN: Features a massive triple-stacked high-energy magnet structure for strong magnetic force and deep, controlled low-frequency output
• HIGH-TEMPERATURE VOICE COIL: 3.5" 8-layer flat-wire voice coil designed to handle sustained power levels with improved thermal stability
• LOW-DISTORTION CONE ASSEMBLY: Carbon cone with foam surround and carbon fiber dust cap provide rigidity, durability, and accurate bass response
• ADVANCED COOLING SYSTEM: Direct cooling T-yoke with black anodized treatment promotes efficient heat dissipation during extended high-power operation
• RIGID DIE-CAST BASKET: Green-textured die-cast aluminum basket offers structural strength and vibration resistance
• HEAVY-GAUGE CONNECTIONS: 4-gauge copper push terminals ensure secure, high-current power transfer

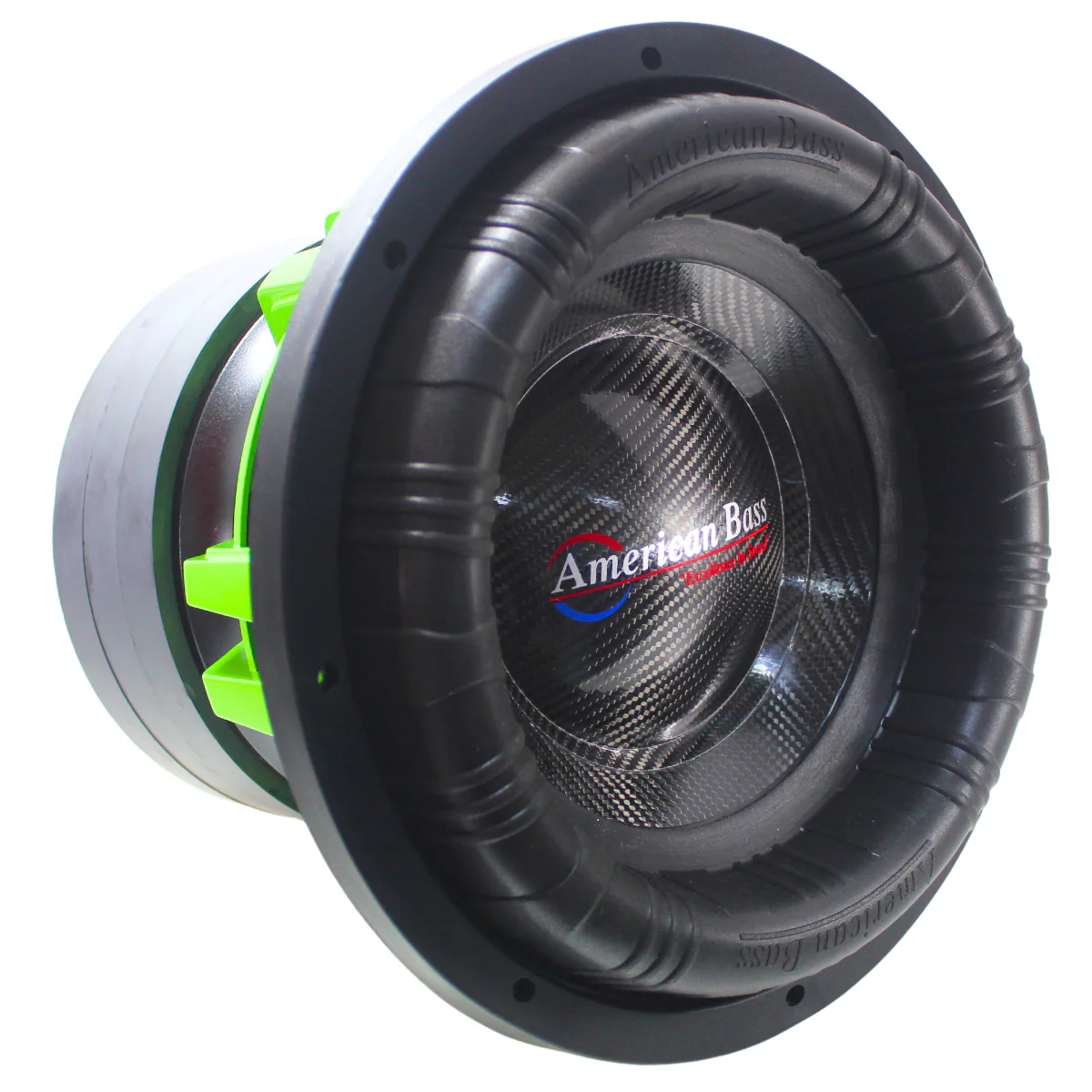

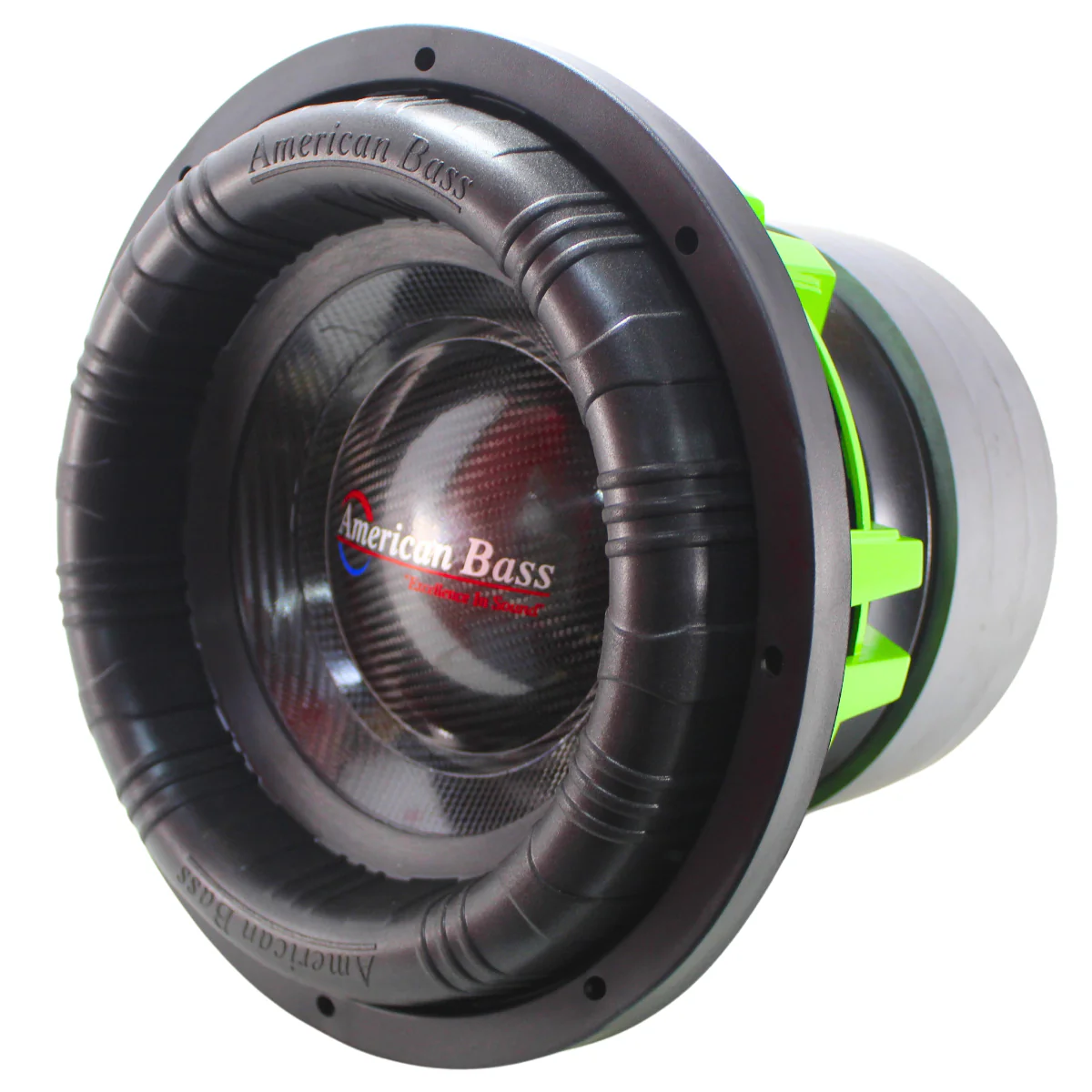

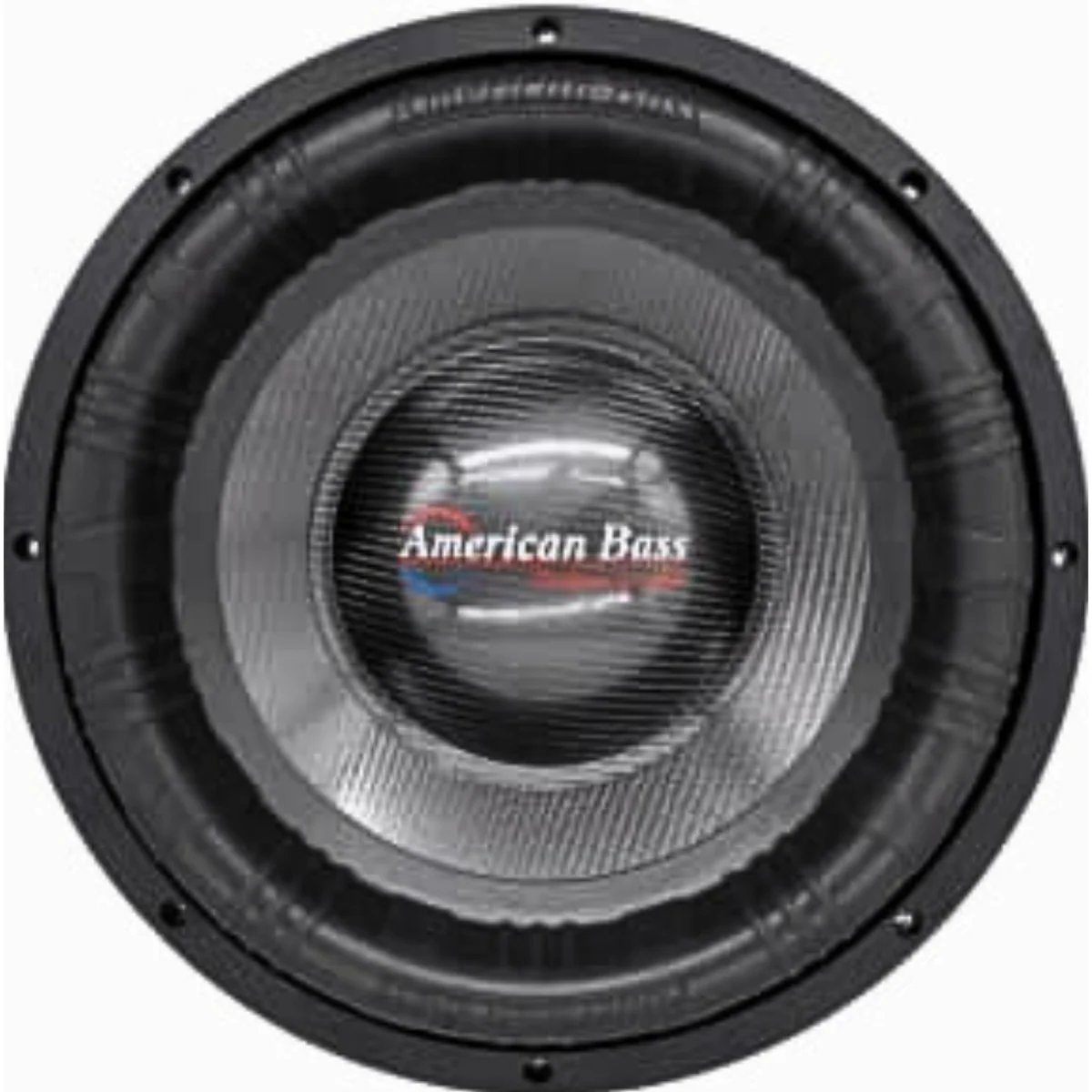

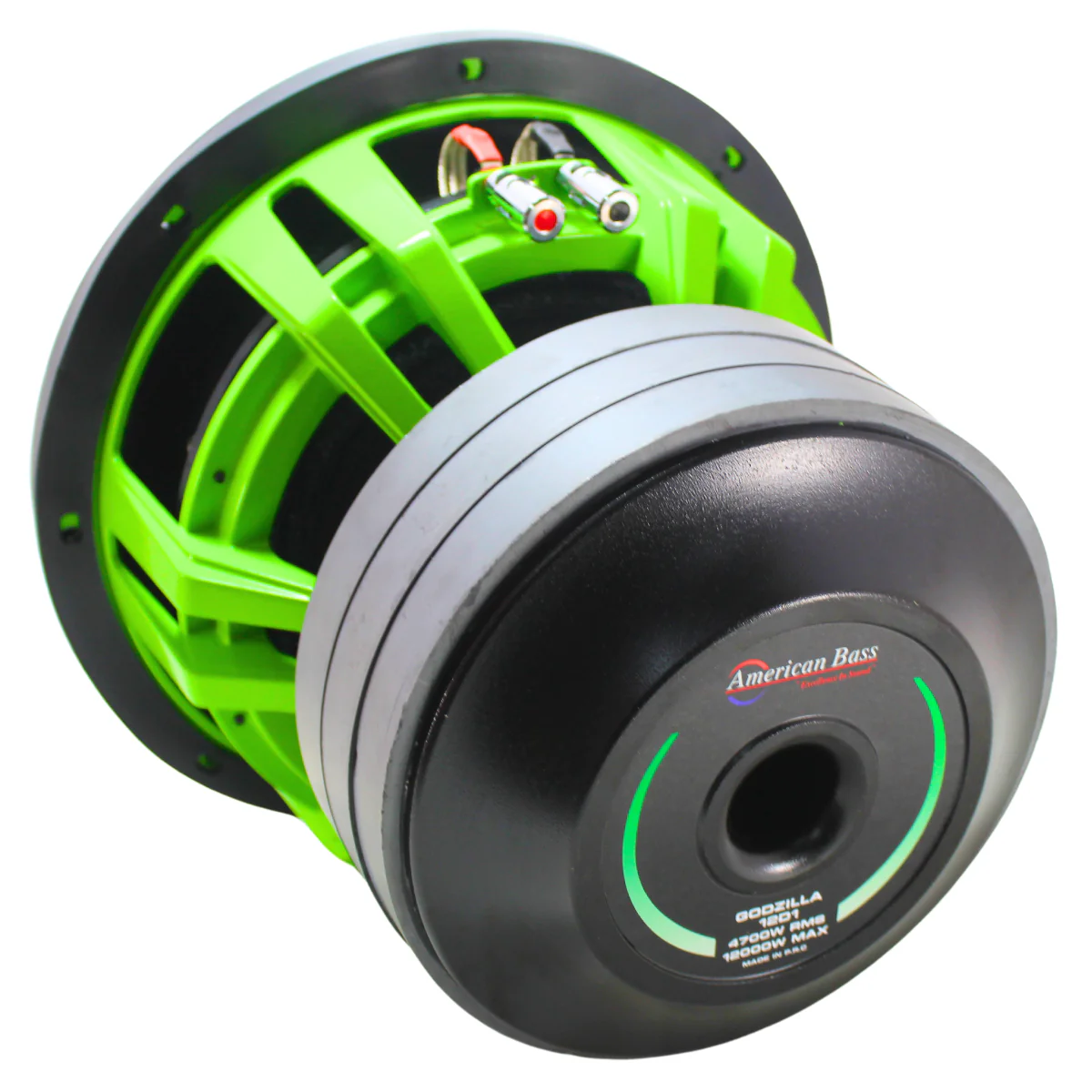

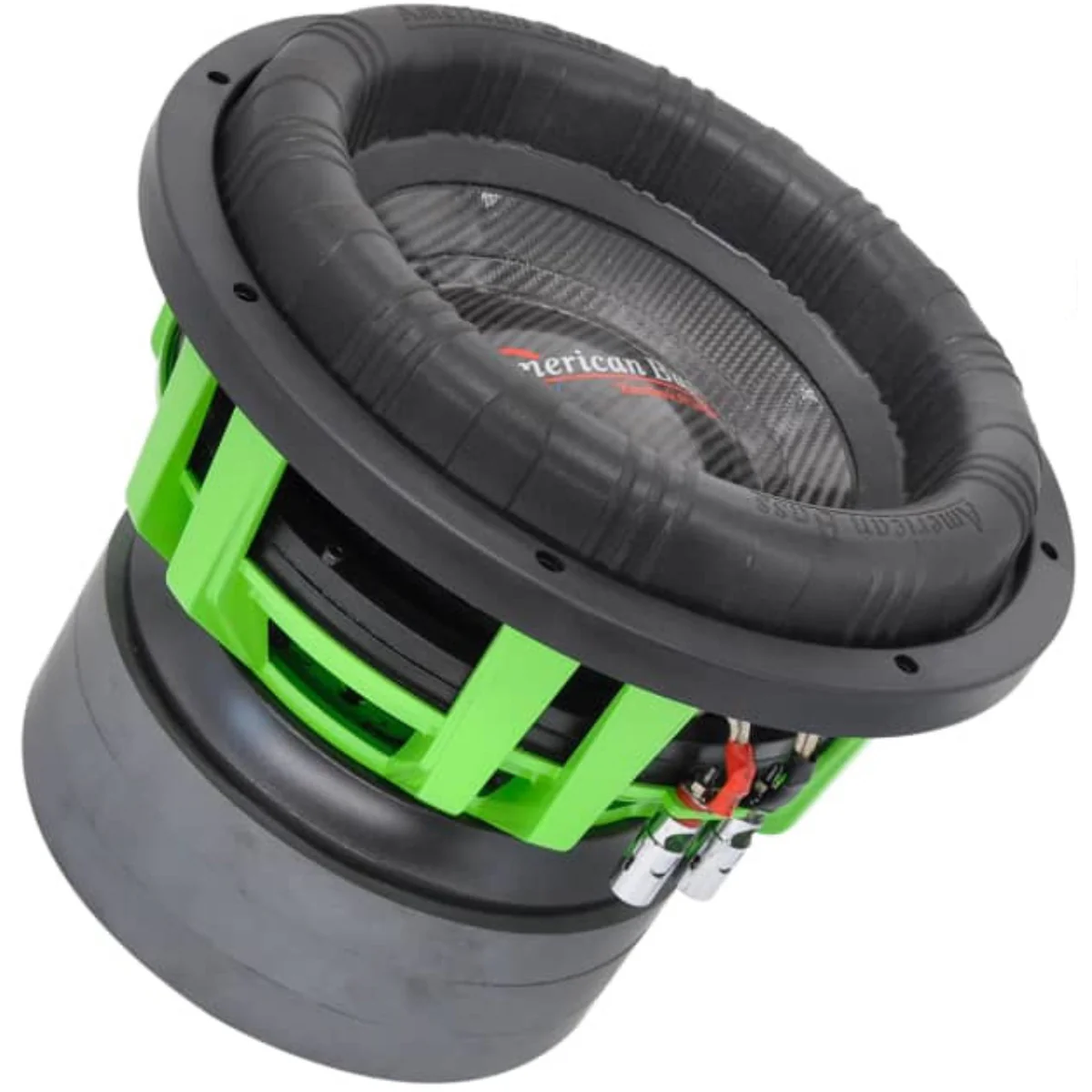

American Bass 12" Dual Voice Coil 1-Ohm 4700 Watt Subwoofer GODZILLA-12-D1

This Listing Includes:

• (1) American Bass 12" 1-Ohm GODZILLA-12-D1

The American Bass GODZILLA-12-D1 is a high-power 12-inch subwoofer engineered for extreme bass performance, durability, and long-term reliability in aggressive car audio systems. Built to handle serious power, this sub is designed for enthusiasts and competitors who demand deep, controlled low-frequency output without compromise.

At the core of the GODZILLA-12-D1 is a 3.5-inch 8-layer high-temperature flat-wire voice coil, allowing the subwoofer to manage sustained power levels while maintaining control and efficiency. Rated at 4700 watts RMS with a massive 12,000-watt maximum power handling, this subwoofer is built to withstand abuse and continue performing.

A carbon cone with foam surround and carbon fiber dust cap provides added rigidity while minimizing distortion at high excursion levels. The subwoofer’s motor structure features triple-stacked high-energy magnets, delivering strong magnetic force for authoritative low-end impact. A direct cooling T-yoke with black anodized treatment promotes efficient heat dissipation, helping prevent thermal overload during extended play.

The green-textured die-cast aluminum basket adds both structural integrity and visual impact, while dual black spiders in a mirrored layout help maintain cone stability under heavy load. Heavy-duty 4-gauge copper push terminals ensure secure power transfer for high-current applications.

Optimized for ported enclosures, the GODZILLA-12-D1 is a serious subwoofer designed for street builds and competition systems where output, control, and durability are critical.

Features:

• 12" high-output subwoofer with dual 1-ohm voice coils


• 4700W RMS / 12,000W max power handling


• Green textured die-cast aluminum basket


• Carbon cone with foam surround for rigidity and control


• Carbon fiber dust cap


• 3.5" 8-layer high-temperature flat-wire voice coil


• Triple-stacked high-energy magnet motor


• Direct cooling T-yoke with black anodized treatment


• Dual mirrored black spiders for cone stability


• Heavy-duty 4-gauge copper push terminals


• Designed for ported enclosure applications

Specifications:

• RMS Power Handling: 4700 Watts


• Maximum Power Handling: 12,000 Watts


• Impedance: Dual 1-Ohm


• Sensitivity: 81.7 dB


• Voice Coil Diameter: 3.5 inches


• Basket Type: Die-Cast Aluminum


• Magnet Structure: Triple-stacked high-energy magnets


• Recommended Enclosure Type: Ported


• Recommended Ported Box Volume: 2.75 ft


• Recommended Amplifier: American Bass Godfather 11D

Thiele & Small Parameters:

• Sd: 490


• Md g: 150


• BL: 26


• Qms: 6.79


• Qes: 0.46


• Qts: 0.43


• No: 0.093


• SPL dB: 81.7


• Vas L: 8.7


• Cms: 25.67


• Krm: 119.1


• Erm: 0.619


• MMS g: 720.6


• MMd: 714.4


• Kxm: 119.1


• Exm: 0.61


• Xmax mm: 22.5

Dimensions:

• Overall Diameter: 12.99"


• Mounting Depth: 9.64"


• Overall Depth: 11.33"


• Magnet Diameter: 5.11"
