• EXTREME BASS PERFORMANCE: 15-inch high-output subwoofer engineered for massive low-frequency impact in high-power car audio systems
• DUAL 2-OHM VOICE COILS: Dual 2-ohm configuration allows flexible wiring options for powerful monoblock amplifier setups
• HIGH-POWER VOICE COIL DESIGN: 3.5-inch 8-layer high-temperature flat wire voice coil built to handle extreme power levels with improved thermal stability
• HEAVY-DUTY MOTOR STRUCTURE: Triple-stacked high-energy magnet assembly delivers strong magnetic force for deep, controlled bass response
• LOW-DISTORTION CONE ASSEMBLY: Carbon cone with foam surround and carbon fiber dust cap provide rigidity, durability, and accurate bass reproduction

American Bass 15" 4700 Watts RMS 2-Ohm Dual Voice Coil Subwoofer GODZILLA-15-D2

This Listing Includes:

• (1) American Bass 15" 2-Ohm AB-GODZILLA-15-D2

Experience thunderous bass like never before with the American Bass Godzilla 15" Dual 2 Ohm Subwoofer. This powerhouse of a subwoofer delivers unparalleled performance, with a peak power handling of 12000W, ensuring you feel every beat with astonishing clarity and depth.

Featuring a striking green textured die-casting basket, this subwoofer not only looks impressive but also boasts durability to withstand intense vibrations. The carbon cone foam surround and carbon fiber dust cap enhance rigidity and minimize distortion, allowing for precise and accurate bass reproduction.

Equipped with a 3.5" 8-layer high-temperature resistant flat wire voice coil, the Godzilla subwoofer can handle high power levels without sacrificing performance. Its triple stacked high-energy magnets ensure maximum magnetic flux for enhanced bass response.

Designed for optimal performance, the subwoofer incorporates a direct cooling design T-yoke with black anodized treatment, facilitating efficient heat dissipation to prevent thermal overload during extended use. The double black spider with mirrored layout and 4GA copper push terminals ensure stable connectivity and reliable operation.

Upgrade your car audio system with the American Bass Godzilla 15" Subwoofer and unleash the beast within your music.

Features:

• 15" high-output subwoofer with dual 2-ohm voice coils


• 4700W RMS / 12,000W max power handling


• Green textured die-cast aluminum basket


• Carbon cone with foam surround for rigidity and control


• Carbon fiber dust cap


• 3.5" 8-layer high-temperature flat-wire voice coil


• Triple-stacked high-energy magnet motor


• Direct cooling T-yoke with black anodized treatment


• Dual mirrored black spiders for cone stability

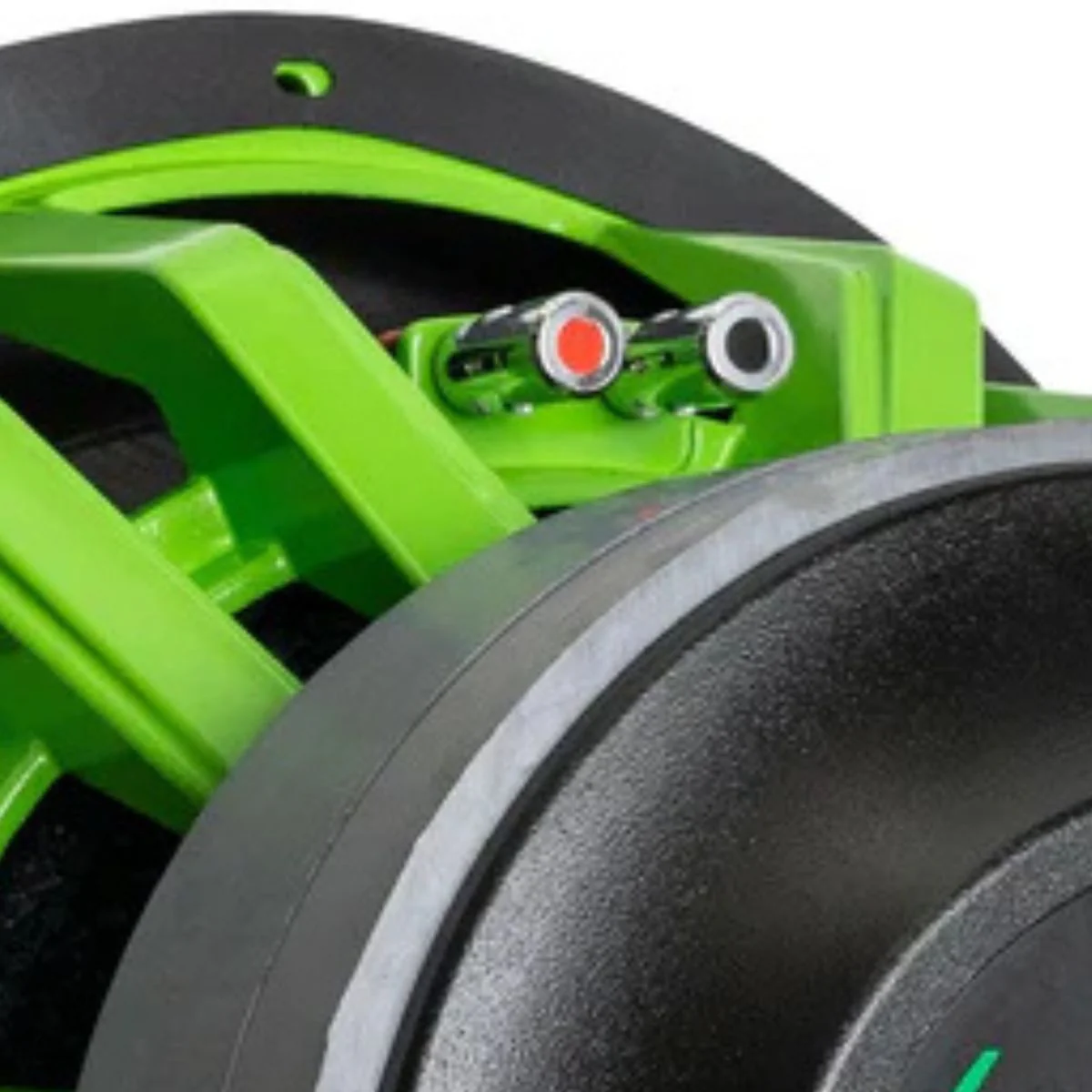

• Heavy-duty 4-gauge copper push terminals


• Designed for ported enclosure applications

Specifications:

• RMS Power Handling: 4700 Watts


• Maximum Power Handling: 12,000 Watts


• Impedance: Dual 2-Ohm


• Sensitivity: 81.8 dB


• Voice Coil Diameter: 3.5 inches


• Basket Type: Die-Cast Aluminum


• Magnet Structure: Triple-stacked high-energy magnets


• Recommended Enclosure Type: Ported


• Recommended Ported Box Volume: 3.824 ft


• Recommended Amplifier: American Bass Godfather 11D

Thille & Small Peramitters:

• Sd: 498.76


• Md g: 300


• BL: 27


• Qms: 5.66


• Qes: 0.69


• Qts: 0.64


• No: 0.07


• SPL dB: 80.7


• Vas L: 6.3


• Cms: 17.89


• Krm: 45.194


• Erm: 0.65


• MMS g: 582.9


• MMd: 576.5


• Kxm: 94.9


• Exm: 0.61


• Xmax mm: 22.5

Dimensions:

• Diameter: 395mm/15.55in


• Mounting Depth: 280mm/11.02in


• Overall Depth: 350mm/13.77


• Magnet Diameter: 130mm/5.11in
