• High-Output 10 Inch Subwoofer: HD Velocity Series sub built for strong low-frequency performance in high-power car audio systems
• 2200W RMS Power Handling: Equipped with a 3.0 inch 4-layer high-temperature voice coil for reliable performance at extreme power levels
• Triple Magnet Motor Structure: Massive 315 oz triple-stacked magnet system delivers strong motor force and deep, controlled bass
• Carbon Fiber Reinforced Cone: Non-pressed paper cone enhanced with carbon fiber for strength, accuracy, and improved bass response
• Rugged Die-Cast Basket: Heavy-duty aluminum basket with blue finish provides rigidity, cooling, and long-term durability

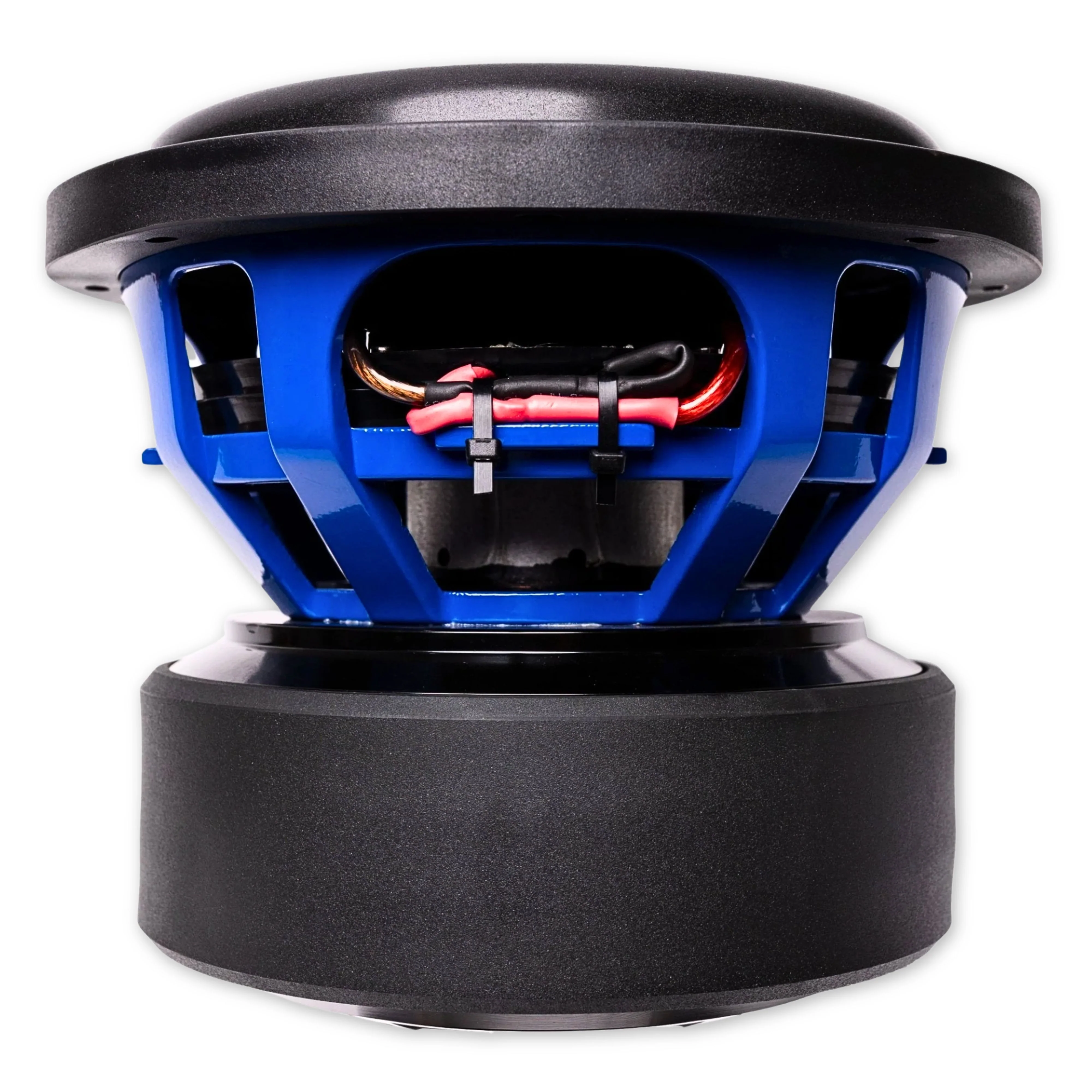

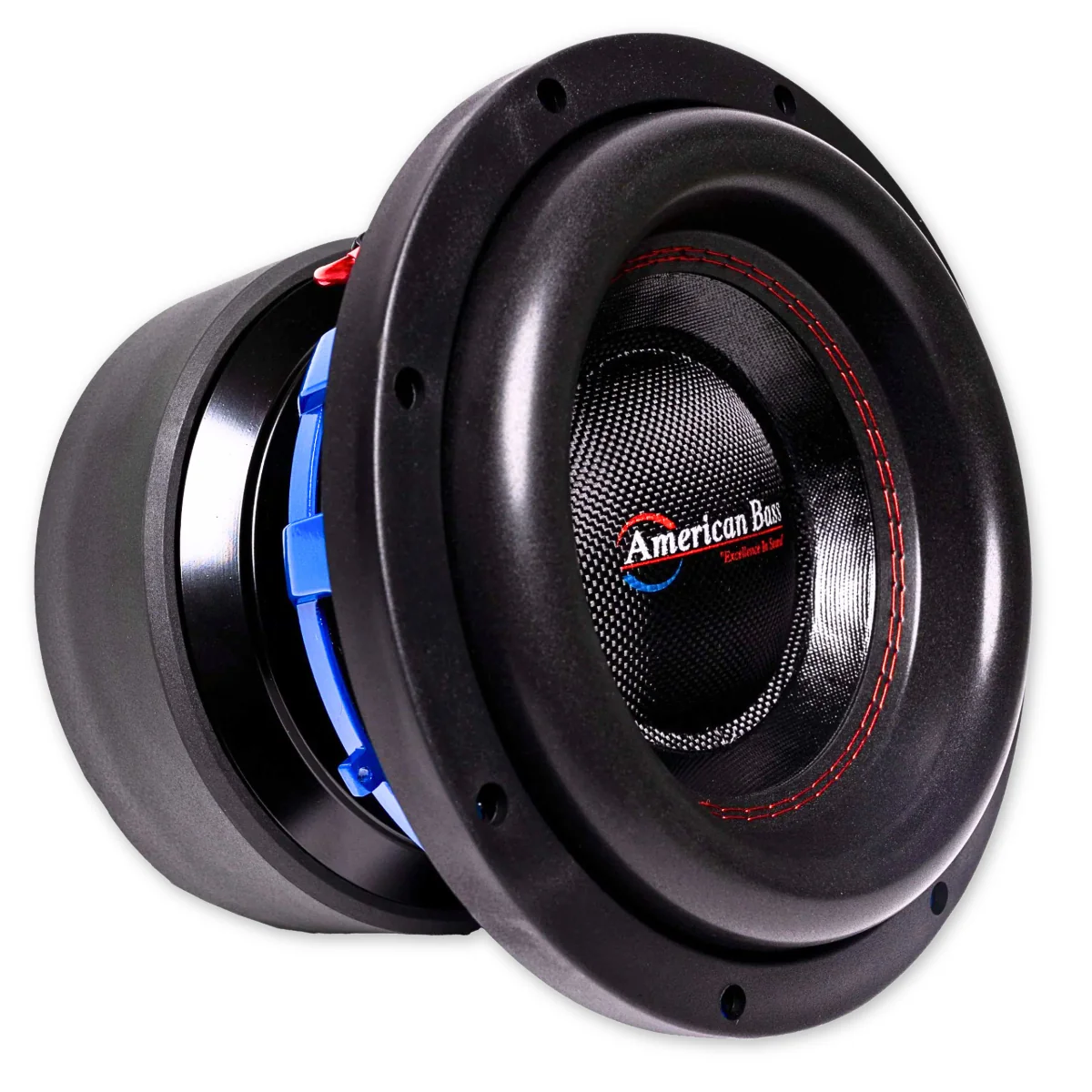

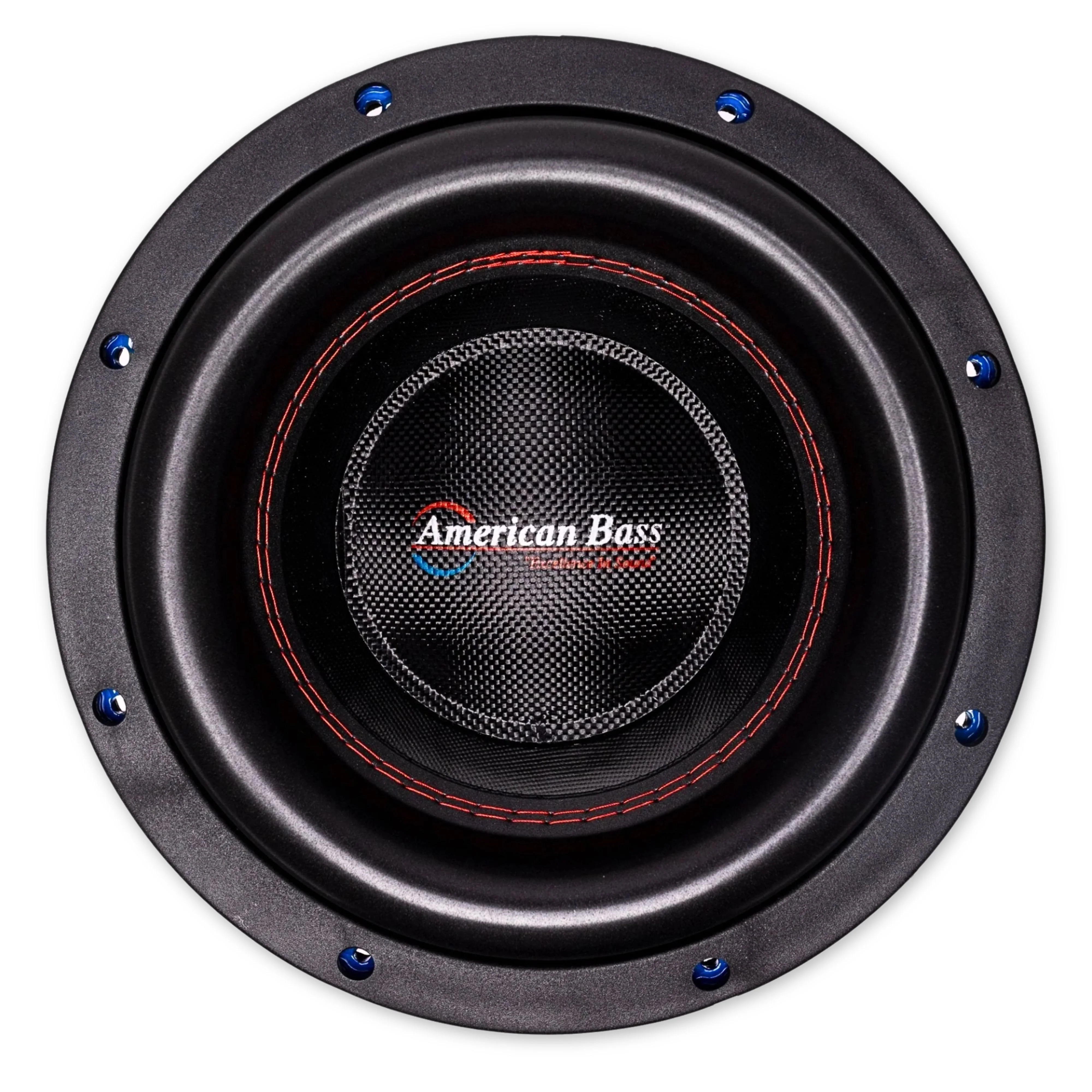

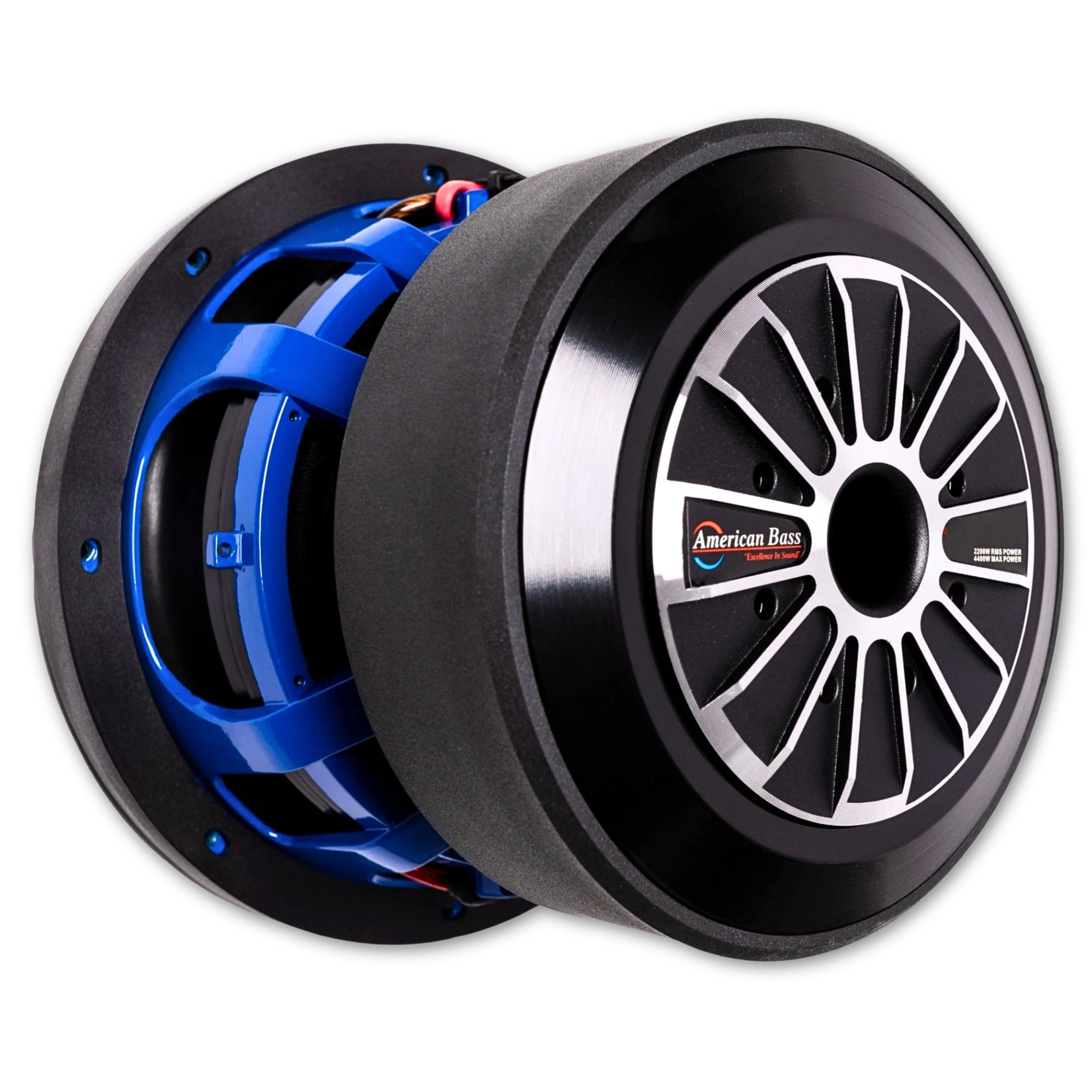

American Bass 10" 1-Ohm 2200W RMS Triple Stack Magnet Subwoofer HD-VELOCITY10-D1

This Listing Includes

• (1) American Bass 10" 1-Ohm Subwoofer HD-VELOCITY10-D1

The American Bass HD Velocity Series 10" subwoofer is engineered for bass enthusiasts who want serious output, durability, and efficiency in a compact high-performance design. Built to handle demanding power levels, this sub delivers deep, clean, hard-hitting bass with the control needed for both daily-driven systems and competition-inspired builds.

At the core of the HD Velocity 10 is a carbon-fiber-enhanced non-pressed paper cone that balances strength and responsiveness for accurate low-frequency reproduction. A massive triple-stacked 315 oz magnet structure provides strong motor force, while the rigid die-cast aluminum basket with a blue finish maintains stability and cooling under high output.

The high-temperature 3.0-inch 4-layer voice coil is designed to handle sustained power levels up to 2200 watts RMS, resisting heat buildup during aggressive play. With a 1-ohm impedance, this subwoofer is ideal for maximizing output from high-power monoblock amplifiers. Whether installed in a compact ported enclosure or a high-output street system, the HD Velocity 10 delivers powerful, controlled bass with authority.

Features

• 10-inch high-performance subwoofer


• 1-Ohm impedance for maximum amplifier efficiency


• Carbon-fiber-reinforced non-pressed paper cone


• Triple-stacked 315 oz magnet motor structure


• High-temperature 3.0-inch 4-layer voice coil


• Die-cast aluminum basket with blue finish


• Designed for ported enclosures and high-output systems

Specifications

• Subwoofer Size: 10 inch


• Impedance: 1 Ohm


• RMS Power Handling: 2200 Watts


• Max Power Handling: 4400 Watts


• Sensitivity: 84.4 dB


• Voice Coil Diameter: 3.0 inches


• Voice Coil Type: 4-Layer High Temperature


• Basket Type: Die-Cast Aluminum


• Magnet Structure: Triple Magnet


• Magnet Weight: 315 oz


• Recommended Ported Enclosure Volume: 1.8 – 2.5 ft


• Cutout Diameter: 9.25 inches


• Mounting Depth: 7.72 inches

Thiele & Small Parameters

• Sd: 31.4


• BL (Tm): 11.791


• Qms: 4.788


• Qes: 0.301


• Qts: 0.283


• SPLo dB: 84.5


• Vas L: 11.297


• Cms: 82.113


• MMS g: 255.626


• MMd: 252.475


• Vd (L): 5.85


• Xmax mm: 12.5

Dimensions

• Total Diameter: 10.83"


• Mounting Diameter: 10.04"


• Cutout Diameter: 9.25"


• Baffle Depth: 0.75"


• Mounting Depth: 7.72"


• Total Depth: 9.25"


• Weight: 38 lbs
