• 12 INCH SHALLOW MOUNT SUBWOOFER: American Bass Titanium 1244 subwoofer delivers powerful low-frequency bass while fitting into tight and space-limited vehicle installations.
• 600W RMS POWER HANDLING: Handles 600 watts RMS and 1200 watts max, providing strong and controlled bass output for daily driver and truck applications.
• DUAL 4 OHM VOICE COILS: Dual voice coil design allows flexible wiring options to match a wide range of car audio amplifiers.
• SLIM 4.45 INCH MOUNTING DEPTH: Shallow profile is ideal for trucks, compact vehicles, and custom enclosures where space is limited.
• HIGH PERFORMANCE MOTOR DESIGN: Features a 2.5 inch high-temperature voice coil and 70 oz magnet structure for reliable power handling and consistent performance.

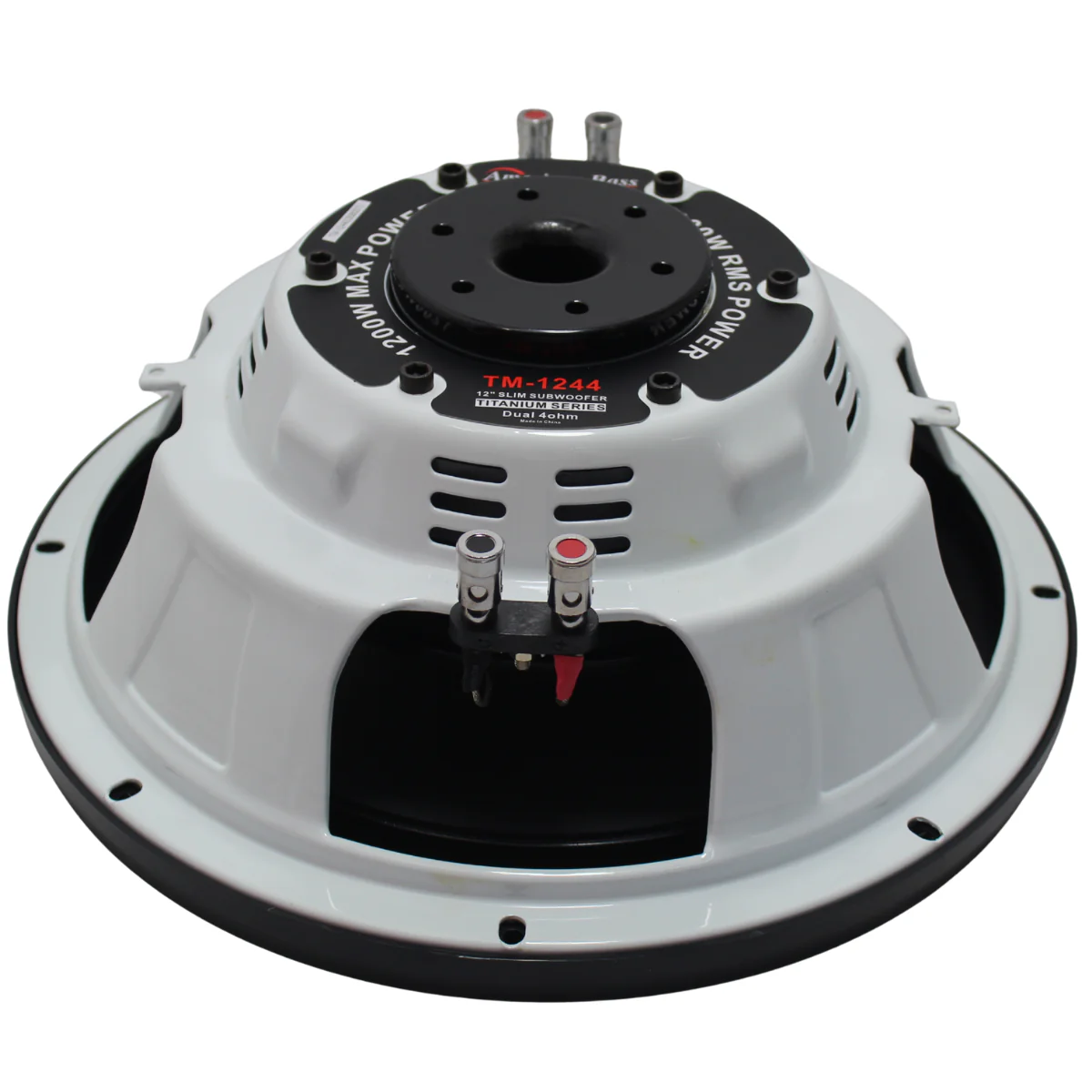

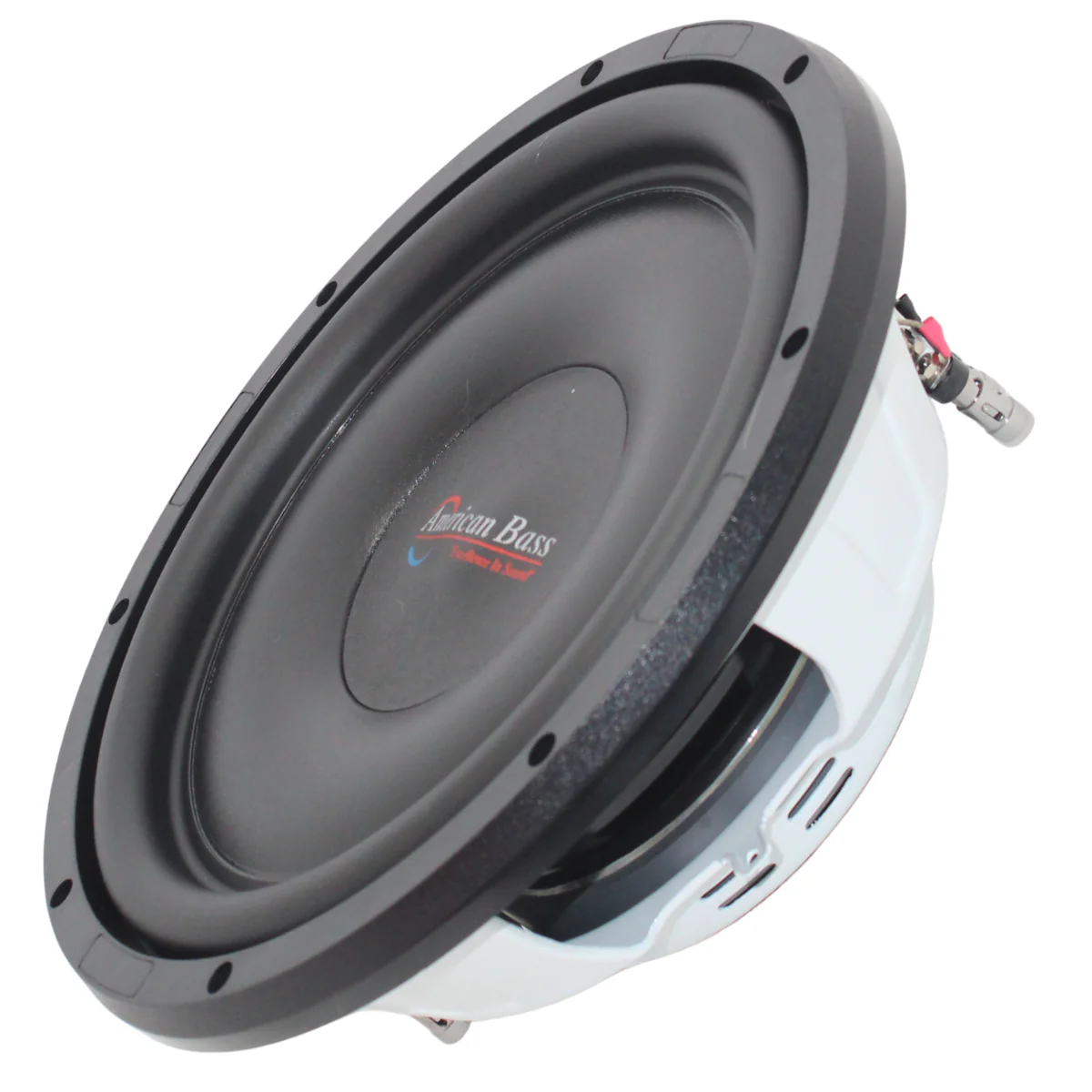

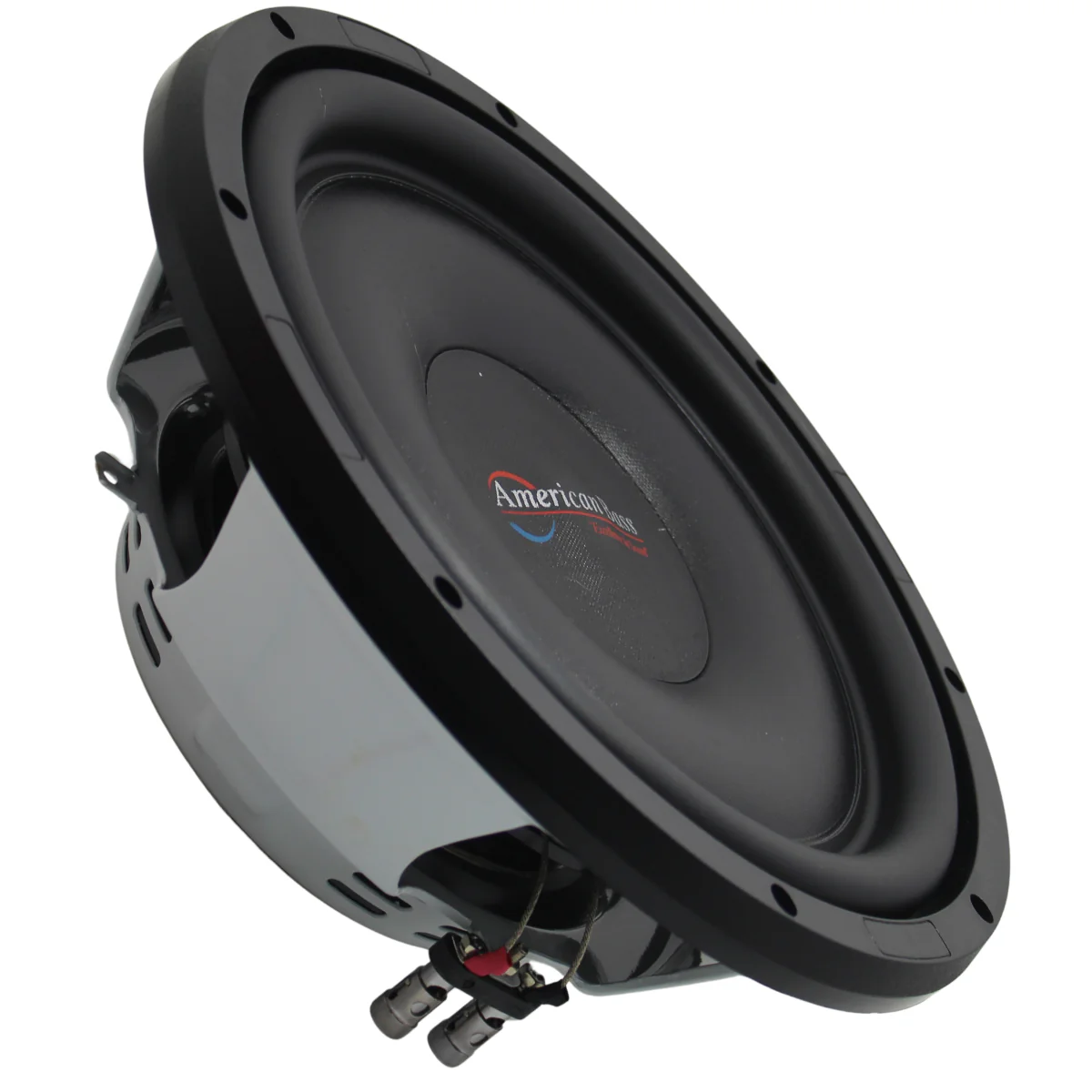

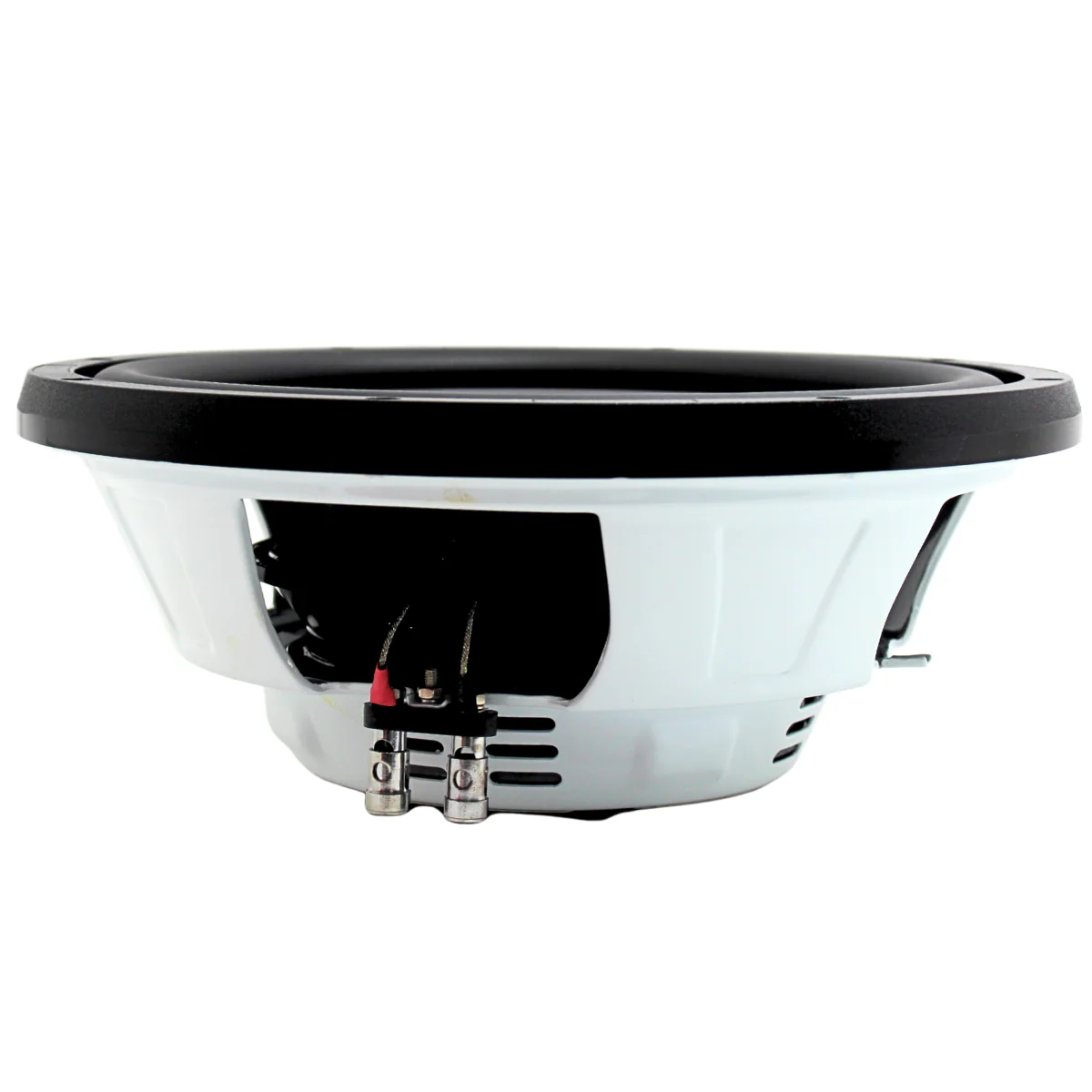

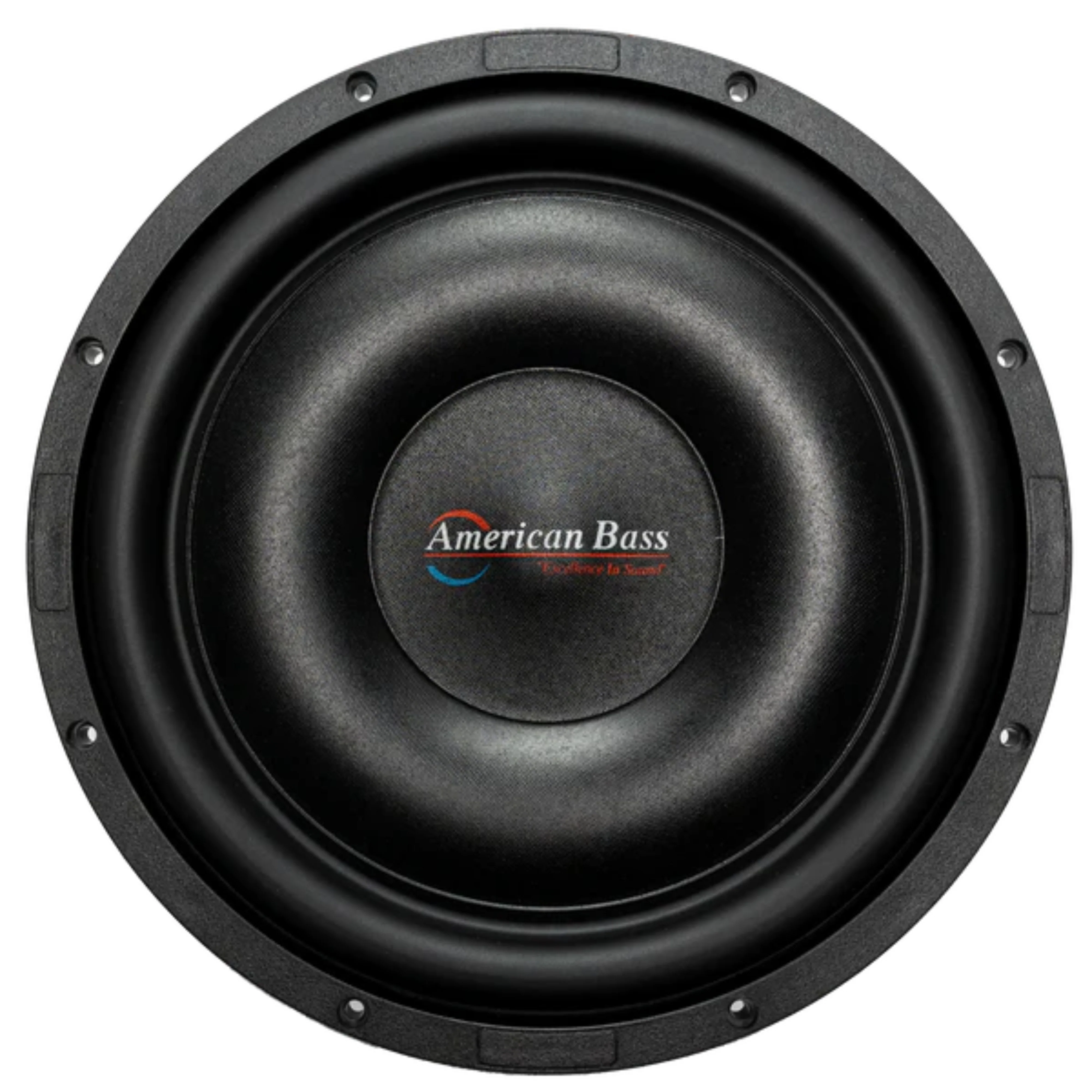

American 12" 600 Watt RMS 4-Ohm DVC Shallow Subwoofer Bass Titanium 1244

This Listing Includes:

• (1) AB-TITANIUM-1244 Subwoofer

The American Bass Titanium 1244 is a 12 inch shallow-mount subwoofer engineered for powerful low-frequency performance in space-limited installations. Designed with a slim profile and high-output components, this subwoofer delivers deep, controlled bass without requiring a large enclosure.

Rated at 600 watts RMS and 1200 watts max, the Titanium 1244 features a dual 4 ohm voice coil configuration for flexible wiring options with a wide range of amplifiers. A 2.5 inch high-temperature voice coil and 70 oz magnet structure provide strong motor force and thermal stability, allowing the subwoofer to maintain performance during extended listening sessions.

With a mounting depth of just 4.45 inches, this subwoofer is ideal for trucks, compact vehicles, and custom enclosures where space is limited. Optimized for small ported enclosures around 0.5 cubic feet, the Titanium 1244 combines efficiency, durability, and impactful bass in a shallow-mount design.

If you need serious low-end without sacrificing cargo space, the Titanium 1244 delivers the output, reliability, and installation flexibility expected from American Bass.

Features:

• 12-inch shallow-mount subwoofer for tight installations


• 600W RMS / 1200W MAX power handling


• Dual 4 ohm voice coils for flexible wiring configurations


• Slim 4.45-inch mounting depth


• 2.5-inch 4-layer pure copper wire voicecoil


• Strong motor design for deep, controlled bass


• Ideal for trucks and compact vehicle installs

Specifications:

• Subwoofer Size: 12 inch


• Power Handling (RMS): 600W


• Power Handling (MAX): 1200W


• Impedance: Dual 4 Ohm


• Sensitivity: 87.5 dB


• Voice Coil Size: 2.5 inch


• Magnet Weight: 70 oz


• Basket Material: Stamped Steel

T/S Parameters

• RE: 1.7 Ohms


• Fs: 30.744 Hz


• SD: 53.093 msqM


• BL: 10.564 Tm


• Qms: 4.779


• Qes: 0.428


• Qts: 0.441


• SPLo: 87.5 dB


• Vas: 67.227 L


• Cms: 168.262 um/N


• Mms: 170.479 g


• Mmd: 156.410 g


• Xmax: 12 mm

Enclosure Recommendation:

• Enclosure Type: Ported


• Recommended Ported Volume: 0.5 cubic feet

Recommended Amplifier:

• American Bass VFL Hybrid 2800.1 (pair configuration)

Dimensions:

• Total Diameter: 316 mm


• Mounting Diameter: 2.96 mm


• Cutout Diameter: 282 mm


• Voice Coil Diameter: 88 mm


• Depth: 10 mm
