• This Listing includes : (1) Aquatic AV Marine Digital Media Receiver MP-5UBT-HS
• (2) DS18 5.25" Coaxial Speakers ZXI-5254 (1) Mounting hardware
• (2) User manual (1) Face-plate
• (1) Rear speaker harness (1) 5FT USB extension cable
• (1) Protective dust cover

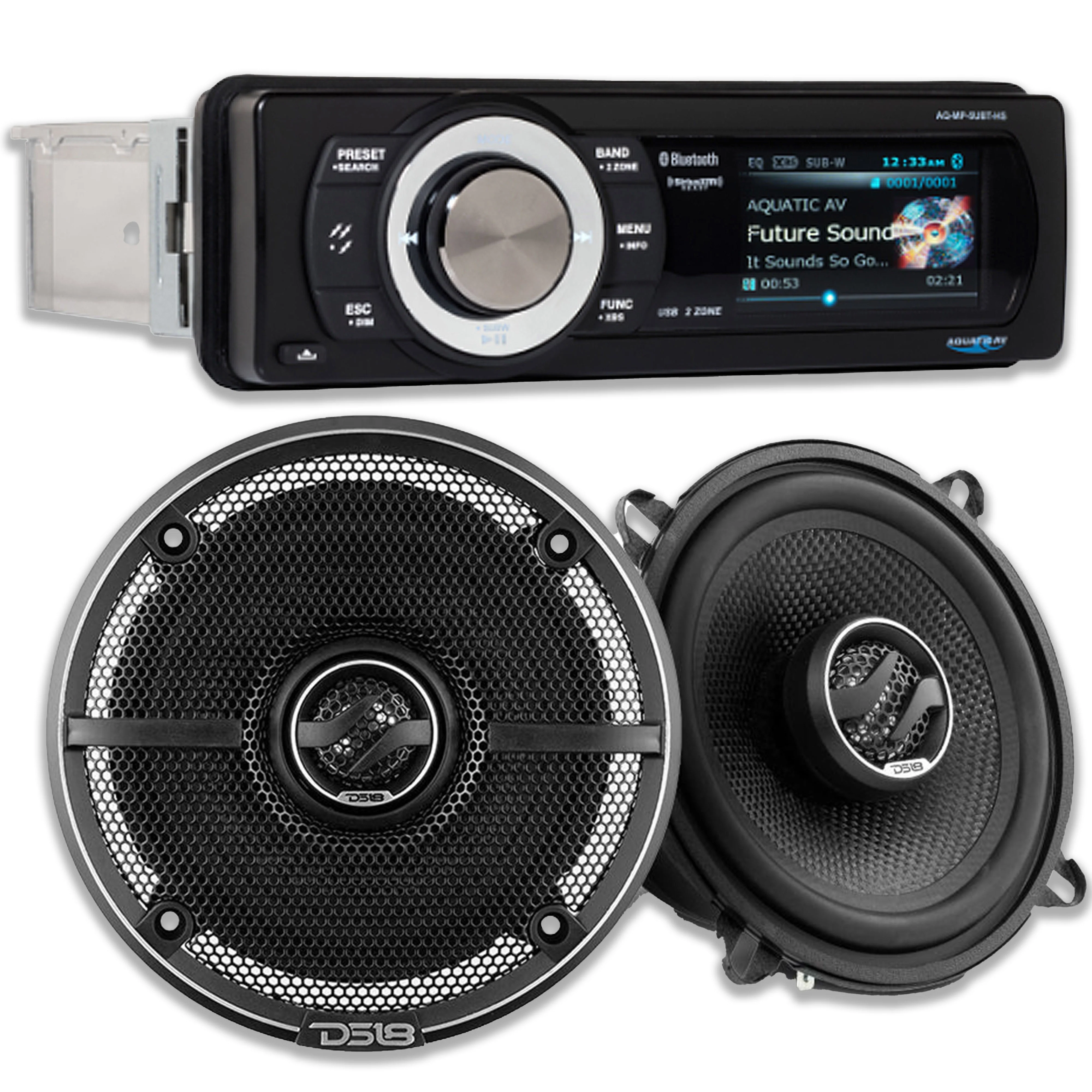

Aquatic Harley Motorcycle Single Din Bluetooth Radio MP-5UBT-HS & Free DS18 5" Coaxial Speakers ZXI-5254

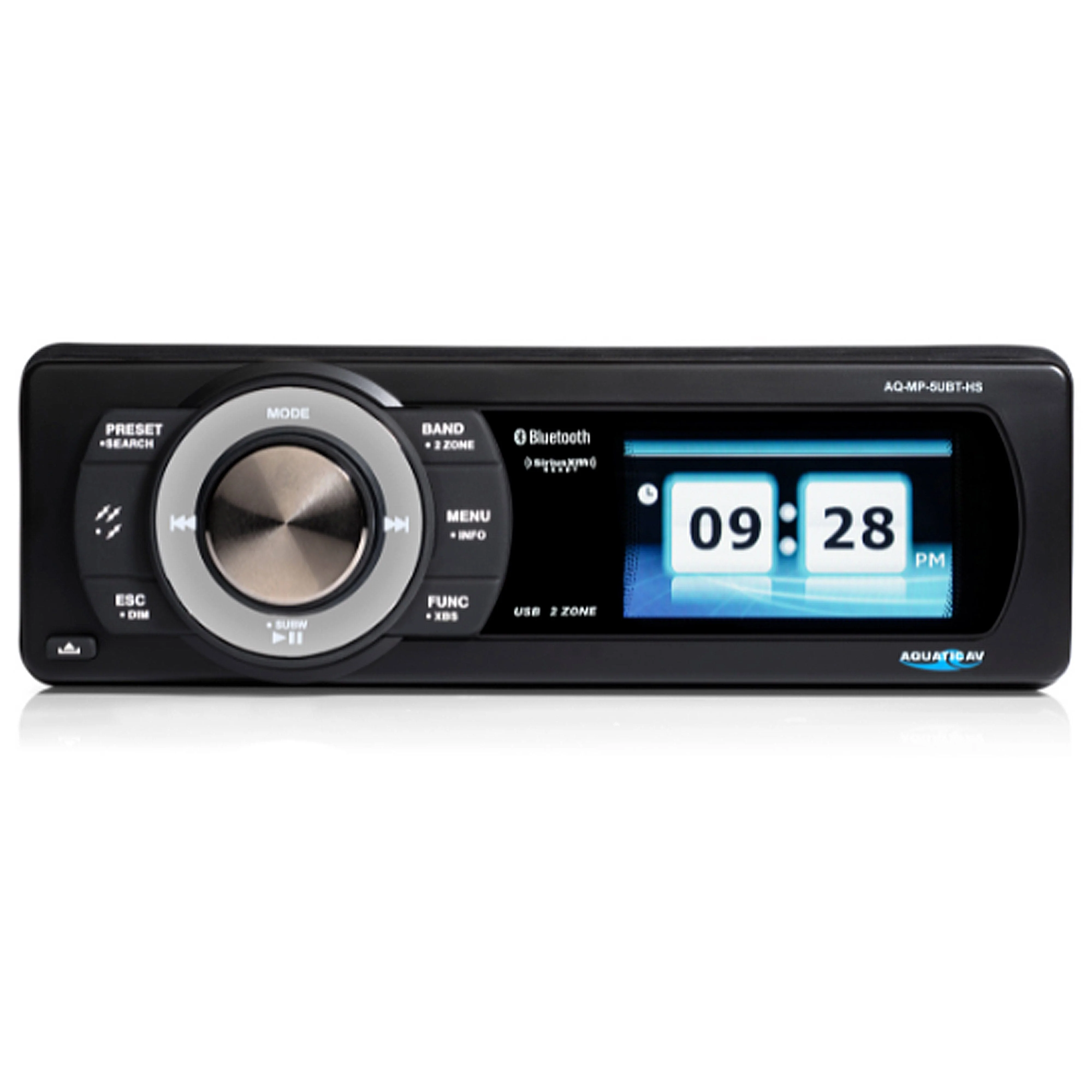

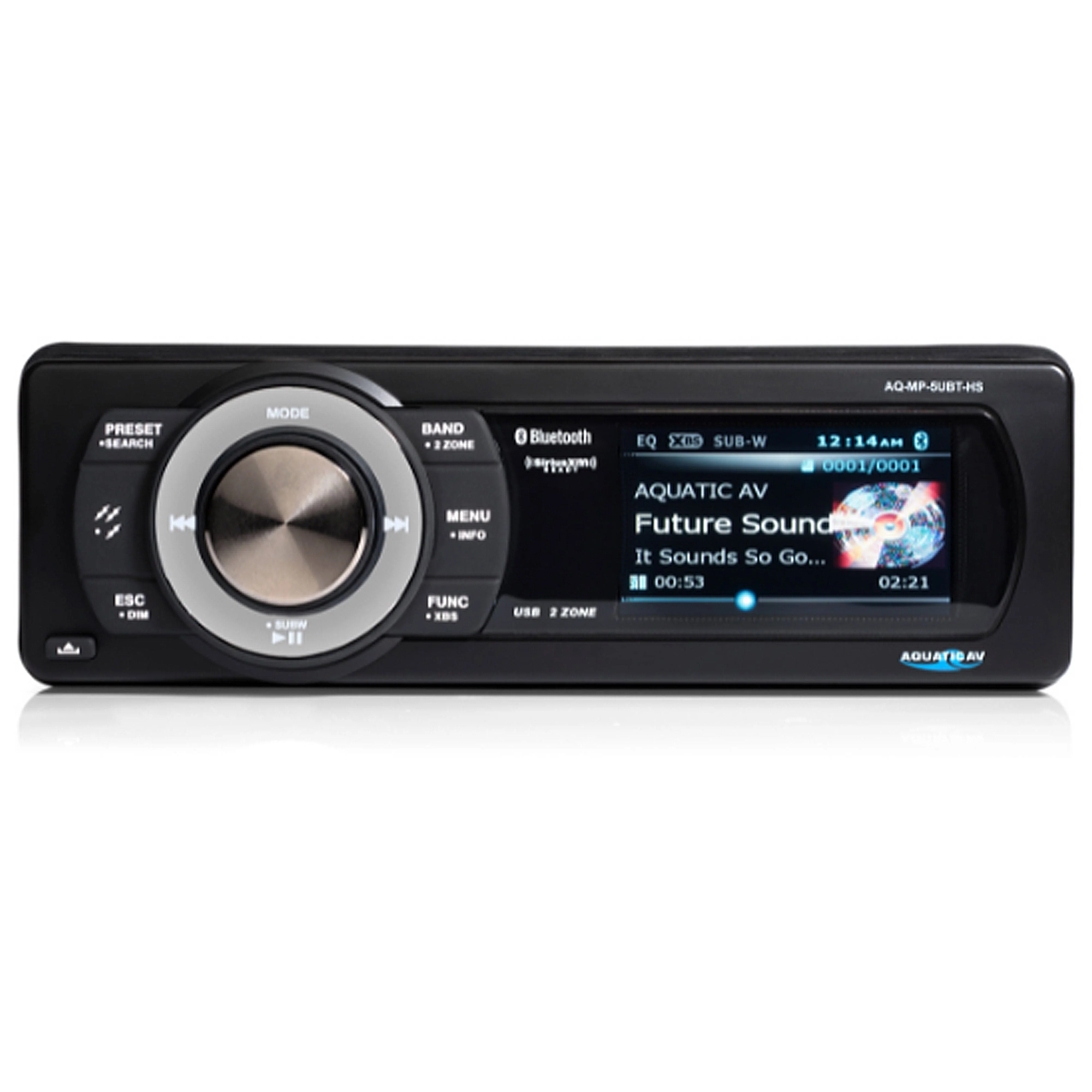

Ready to upgrade your Harley's audio system? Aquatic AV's AQ-MP-5UBT-HS is a tough, smart all-weather digital media receiver that's ready for the road. It has built-in Bluetooth connectivity, a super-sharp color LCD screen, and a clever internal device shelf that'll hold your smartphone or media player. Plus, it gives you the option of adding satellite radio, always a good thing on a long trip. Designed to fit select 1998-2013 touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.

The AQ-MP-5UBT-HS gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to the internal USB port or the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob makes it easier to manage your music when you're underway, plus you can also control the music directly from the handlebar controls.

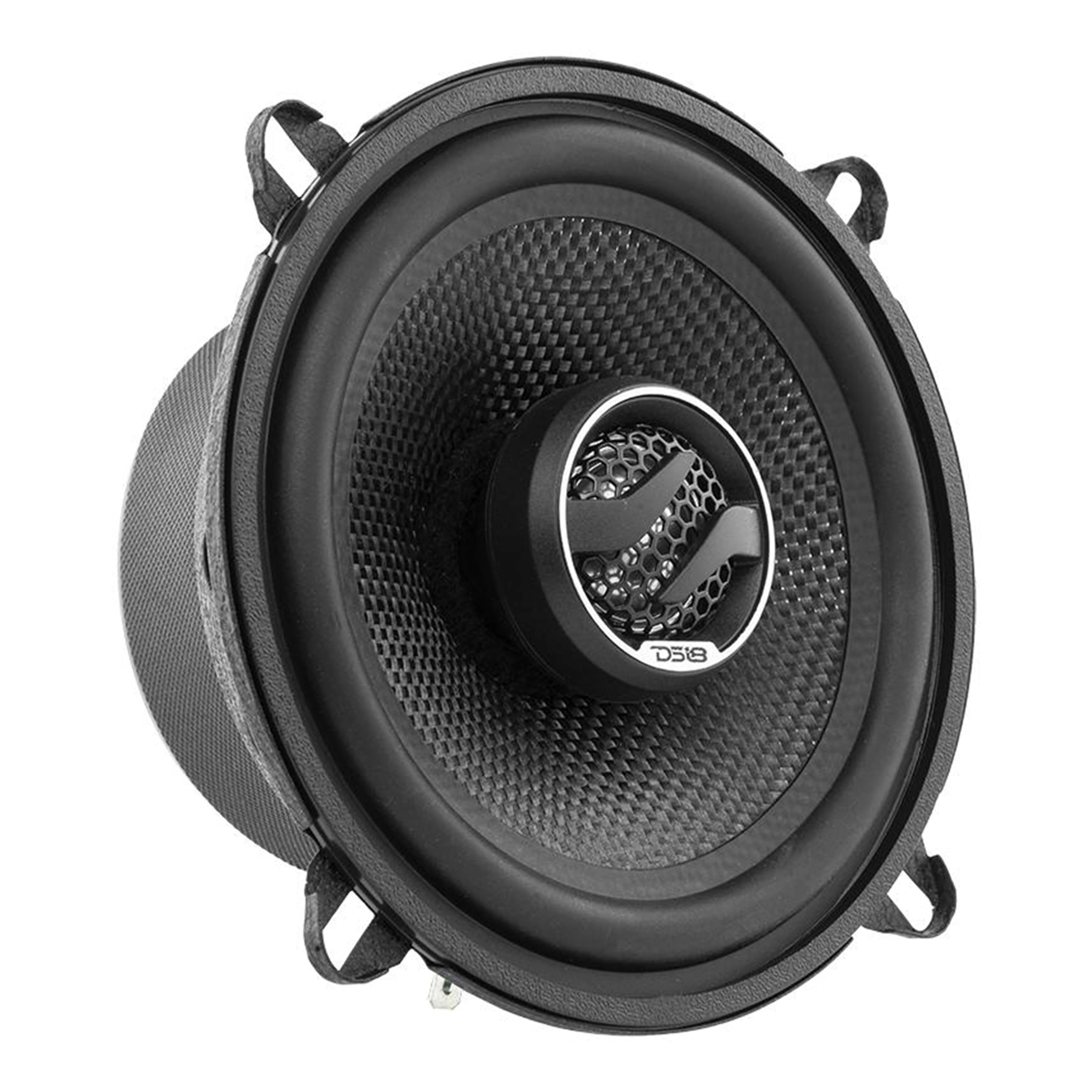

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 5254 is a 5.25" inch, 4 ohm coaxial speaker designed for audio enthusiasts as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

This Listing includes :

(1) Aquatic AV Marine Digital Media Receiver MP-5UBT-HS

(2) DS18 5.25" Coaxial Speakers ZXI-5254

(1) Mounting hardware

(2) User manual

(1) Face-plate

(1) Rear speaker harness

(1) 5FT USB extension cable

(1) Protective dust cover

GENERAL FEATURES OF RECEIVER MP-5UBT-HS:

- Waterproof digital media receiver with AM/FM tuner.

- Designed for 1998-2013 Harley-Davidson motorcycles.

- Built-in Class A/B amplifier.

- Color LCD screen.

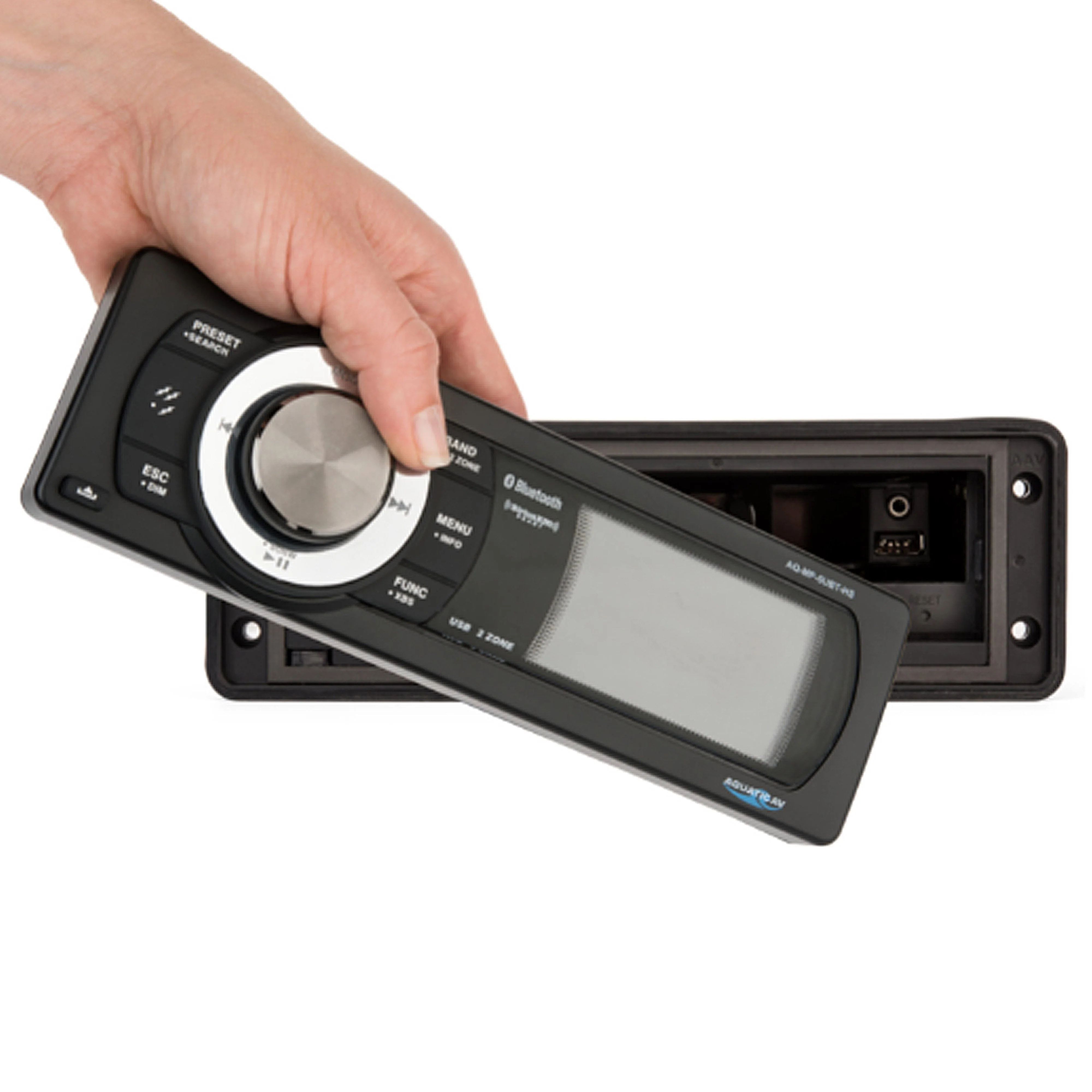

- Water-resistant storage pocket behind removable face.

- Built-in Bluetooth connectivity for Apple and Android phones.

- Connect your iPhone to the USB port.

- SiriusXM Ready (requires SiriusXM tuner and subscription, sold separately).

- Control your music directly from the handlebar controls.

- Includes Harley-specific mounting brackets for easy installation.

- Plugs directly into your bike's factory wiring harness.

- IP55-rated for moisture and dust.

SPECIFICATIONS:

Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)

Frequency response: 20-20,000 Hz

Current draw: 6mA (standby), 7A (max)

OTHER INFORMATION:

- Inputs: aux (minijack), aux (stereo RCA), internal USB, rear USB (charging only)

- Outputs: 2-channel 4-volt preamp outputs; 1-channel sub out

- UV-resistant face, conformal-coated circuit board

- Manufacturer Warranty: 2 years

--------------------------------------------------------------------

SPECIFICATIONS PER ZXI-5254 SPEAKER:

Nominal Diameter: 5.25" (129mm)

Nominal Impedance: 4 Ohm

RMS Power Handling: 60 Watts

MAX Power Handling: 180 Watts

Sensitivity (1w/1m): 89dB

Frequency Response: 40Hz-20Khz

Recommended HI Pass Crossover: 60Hz

Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:

Voice Coil Diameter: 1" (25.5mm)

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 10.9 Oz / 310g

TWEETER SPECIFICATIONS:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:

Equivalent Volume: 4.86L

Excursion (one way): 2.3mm

Free Air Resonance: 77Hz

Mechanical Factor: 8.39

Electrical Factor: 0.87

Total Factor: 0.79

Mechanical Mass: 9.93g

Mechanical Compliance: 457mm/N

BL Factor: 4.321

Cone Area: 86.5cm

DC Resistance: 3.5 Ohm

Mechanical Mass w/o air: 9.0g

MEASUREMENTS:

Overall Diameter: 5.08" (129mm)

Overall Depth: 2.80" (71mm)

Front Mount Baffle Cutout: 4.45" (113mm)

Mounting Depth: 2.28" (58mm)

Motor Diameter: 3.31" (84mm)
