• This listing includes:

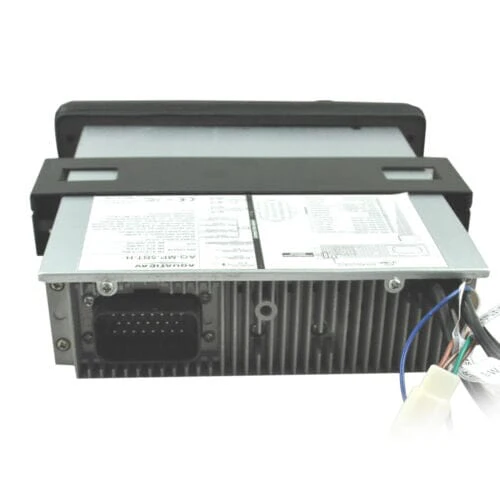

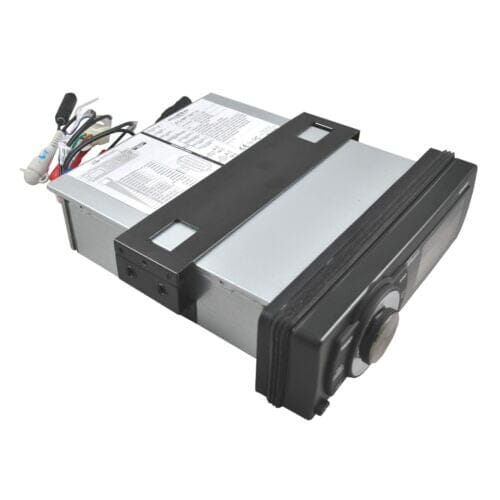

• (1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
• (2) DS18 6.5" 2-Way Coaxial Speakers ZXI.654
• (1) Face-plate (1) Rear speaker harness
• (2) Mounting hardware and Owner's Manual

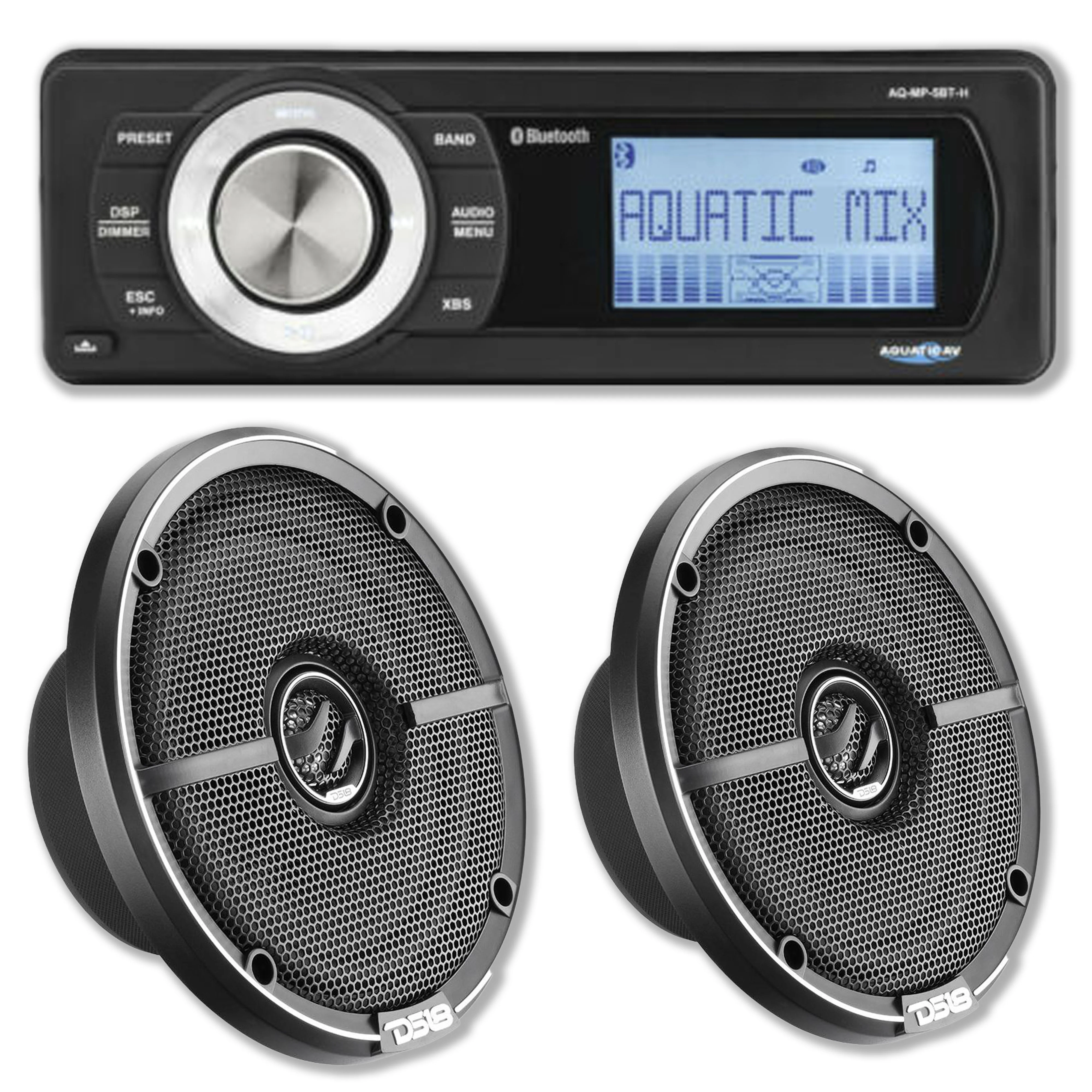

Aquatic AV Harley Davidson Motorcycle Marine Bluetooth Receiver MP-5BT-H & Free DS18 6 Coaxial Speakers ZXI.654

Ready to upgrade the radio on your Harley-Davidson motorcycle? Aquatic AV's is a tough, smart all-weather digital media receiver that's ready for the road. With features like built-in Bluetooth connectivity and a clever internal device shelf for your smartphone or media player, the AQ-MP-5BT-H is a great choice. Designed to fit select 1998-2013 Harley-Davidson touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.

The AQ-MP-5BT-H gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to one of the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob make it easier to manage your music when you're underway, and you can also control your music directly from your motorcycle's handlebar controls

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This pair of two-way 6.5 takes 80w RMS and 240 max watts and with an 89 DB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average everyday to extreme audiophile!

This listing includes:

(1) Aquatic AV Marine Digital Media Receiver MP-5BT-H

(2) DS18 6.5" 2-Way Coaxial Speakers ZXI.654

(1) Face-plate

(1) Rear speaker harness

(2) Mounting hardware and Owner's Manual

GENERAL FEATURES OF RECEIVER MP-5BT-H:

- Waterproof digital media receiver with AM/FM tuner.

- Designed for 1998-2013 Harley-Davidson motorcycles.

- Built-in Class A/B amplifier.

- Monochrome LCD screen.

- Water-resistant storage pocket behind removable face.

- Built-in Bluetooth connectivity.

- Works with Apple and Android phones.

- Control your music directly from the handlebar controls.

- Includes Harley-specific mounting brackets for easy installation.

- Plugs directly into your bike's factory wiring harness.

- IP55-rated for moisture and dust.

SPECIFICATIONS:

Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)

Frequency response: 20-20,000 Hz

Current draw: 6mA (standby), 7A (max)

OTHER INFORMATION:

- Inputs: aux (minijack), aux (stereo RCA), rear USB (charging only)

- Outputs: 2-channel 2-volt preamp outputs

- UV-resistant face, conformal-coated circuit board

- Manufacturer Warranty: 2 years

--------------------------------------------------------------------

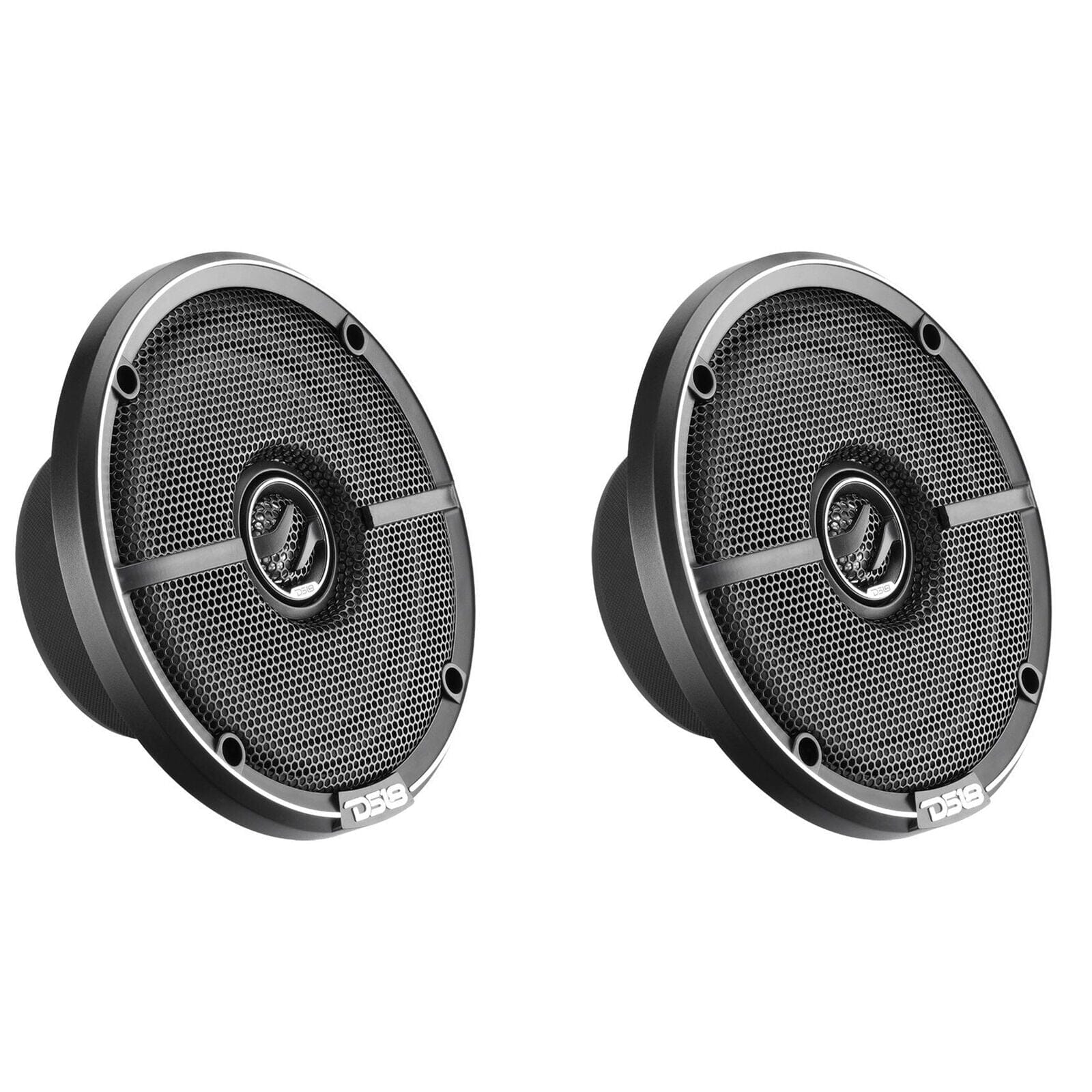

SPECIFICATIONS PER ZXI-654 SPEAKER:

Nominal Diameter- 6.5"

Nominal Impedance- 4 ohm

RMS Power Handling- 80 Watts

MAX Power Handling- 240 Watts

Sensitivity (1w/1m) - 89dB

Frequency Response- 40Hz-20KHz

Recommended HI Pass Crossover- 60Hz

Speaker Type- 2-Way

MEASUREMENTS

Overall Diameter 6.50" / 165mm

Overall Depth 2.83" / 72mm

Front Mount Baffle Cutout 5.55" / 141mm

Mounting Depth 2.36" / 60mm

Motor Diameter 3.70" / 94mm

MOTOR

Voice Coil Diameter 1" / 25.5mm

Voice Coil Former Material KSV

Winding Material EISV

Cone Material Glass fiber

Surround Material Rubber

Basket Material Steel

Magnet Material Barium Ferrite

Magnet Weight 14.46 oz / 410g

TWEETER

Nominal Diameter 1" (25.4mm)

Voice Coil Diameter 0.8"(20.4mm)

Voice Coil Former Material KSV

Winding Material EISVM

Diaphragm Material PEI

Magnet Material Neodymium

Magnet Weight 0.3 oz / 8.5g

Equivalent Volume 10.84L

Excursion (one way) 2.7mm

Free Air Resonance 64Hz

Mechanical Factor 9.44

Electrical Factor 0.79

Total Factor 0.73

Mechanical Mass 13.72g

Mechanical Compliance 444mm/N

BL Factor 5.1

Voice Coil Inductance 228mH

Cone Area 131cm2

DC Resistance 3.5 ohm

Mechanical Mass w/o air 12g
