• High-Power Performance: Delivers 300W RMS and 600W peak power for strong, punchy bass in a compact shallow-mount design.
• Durable Construction: Features a 3-inch, 4-layer high-temp BASV voice coil and 60 oz magnet for reliable performance under load.
• Advanced Cooling & Ventilation: Improved coil ventilation and heat sink design keep things cool even during heavy use.
• Premium Materials: Non-press textured paper cone with foam surround ensures rich, accurate low-end response.
• Sleek & Functional Design: Piano black aluminum basket, composite glass fiber dust cap, and patented multi-connect terminals provide strength, style, and ease of installation.

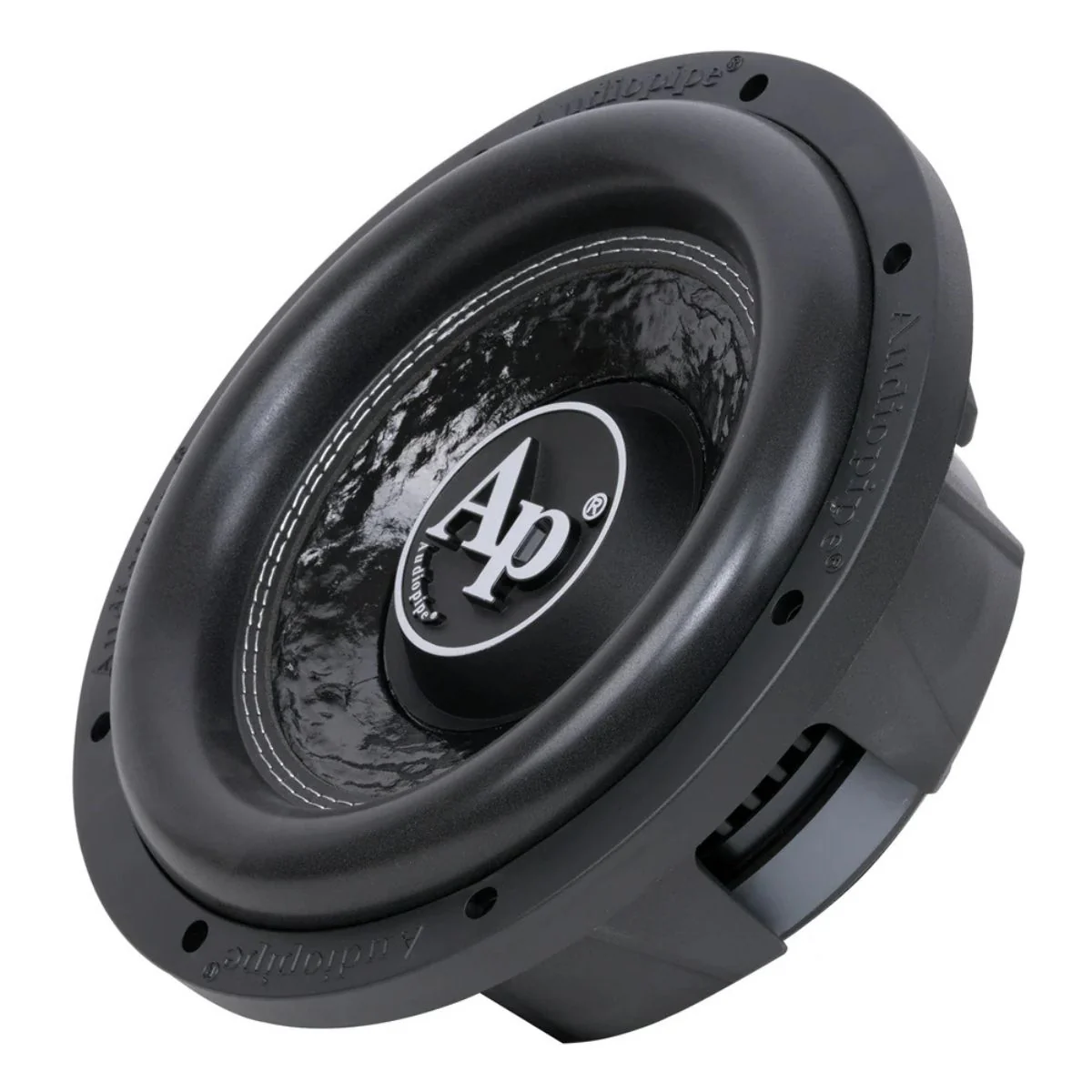

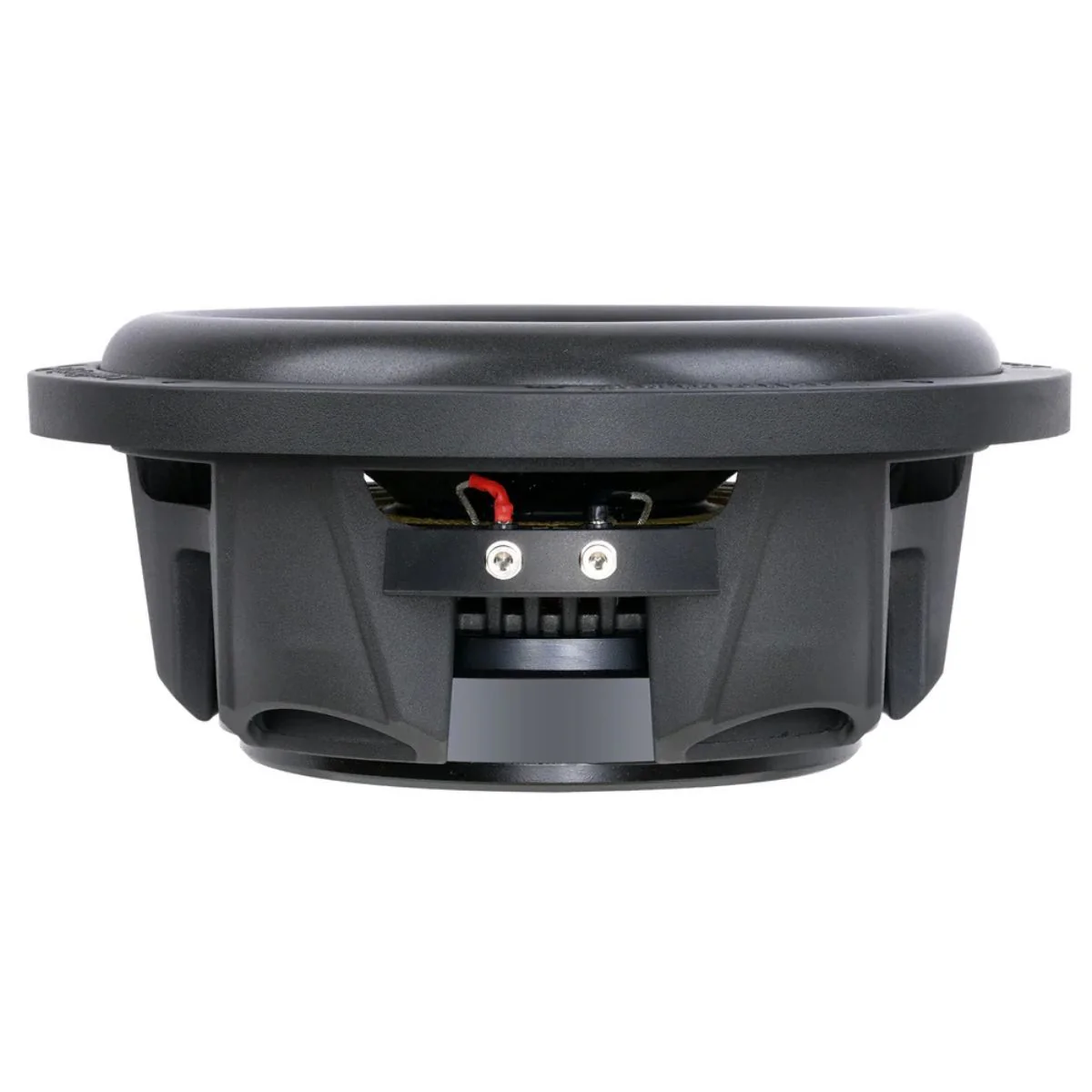

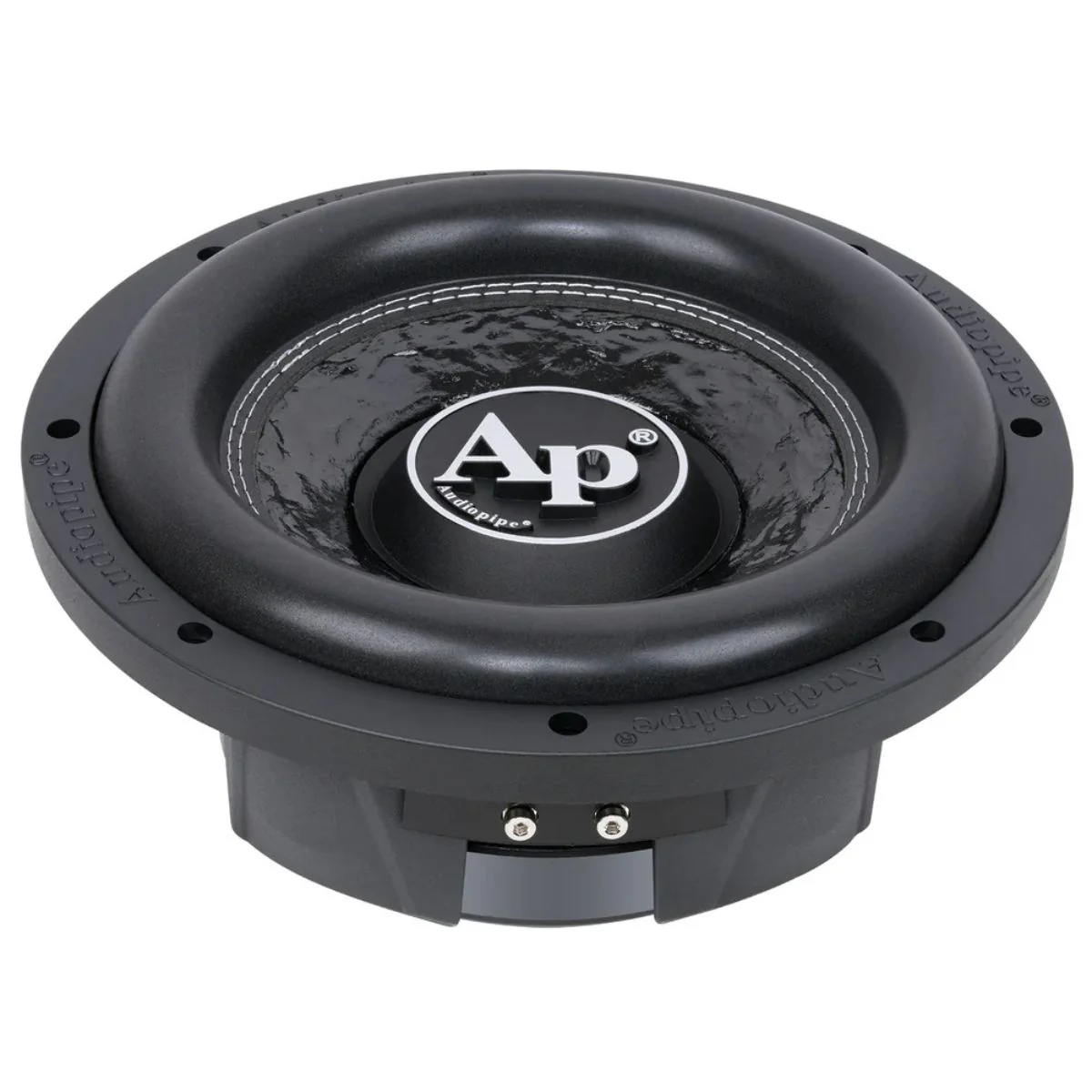

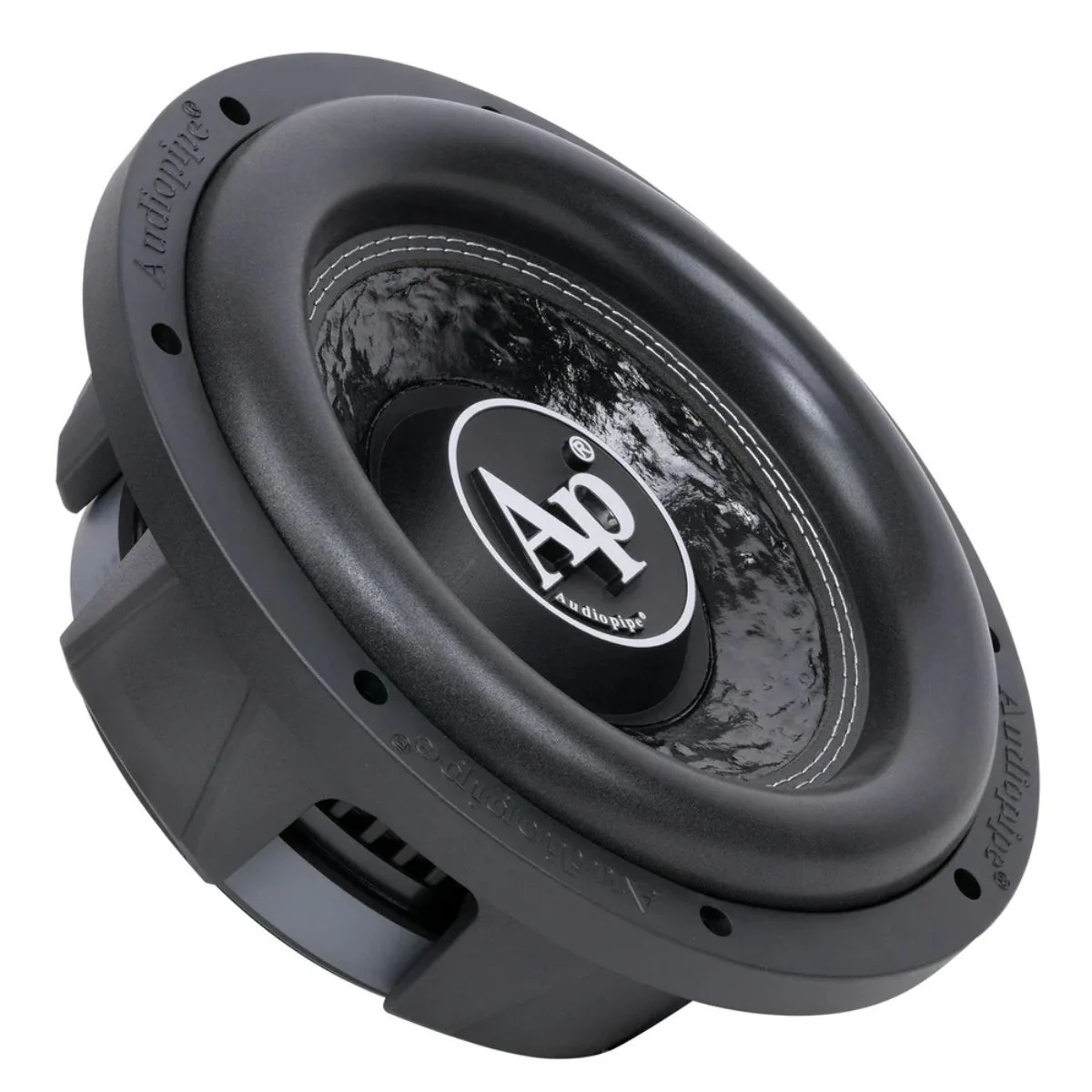

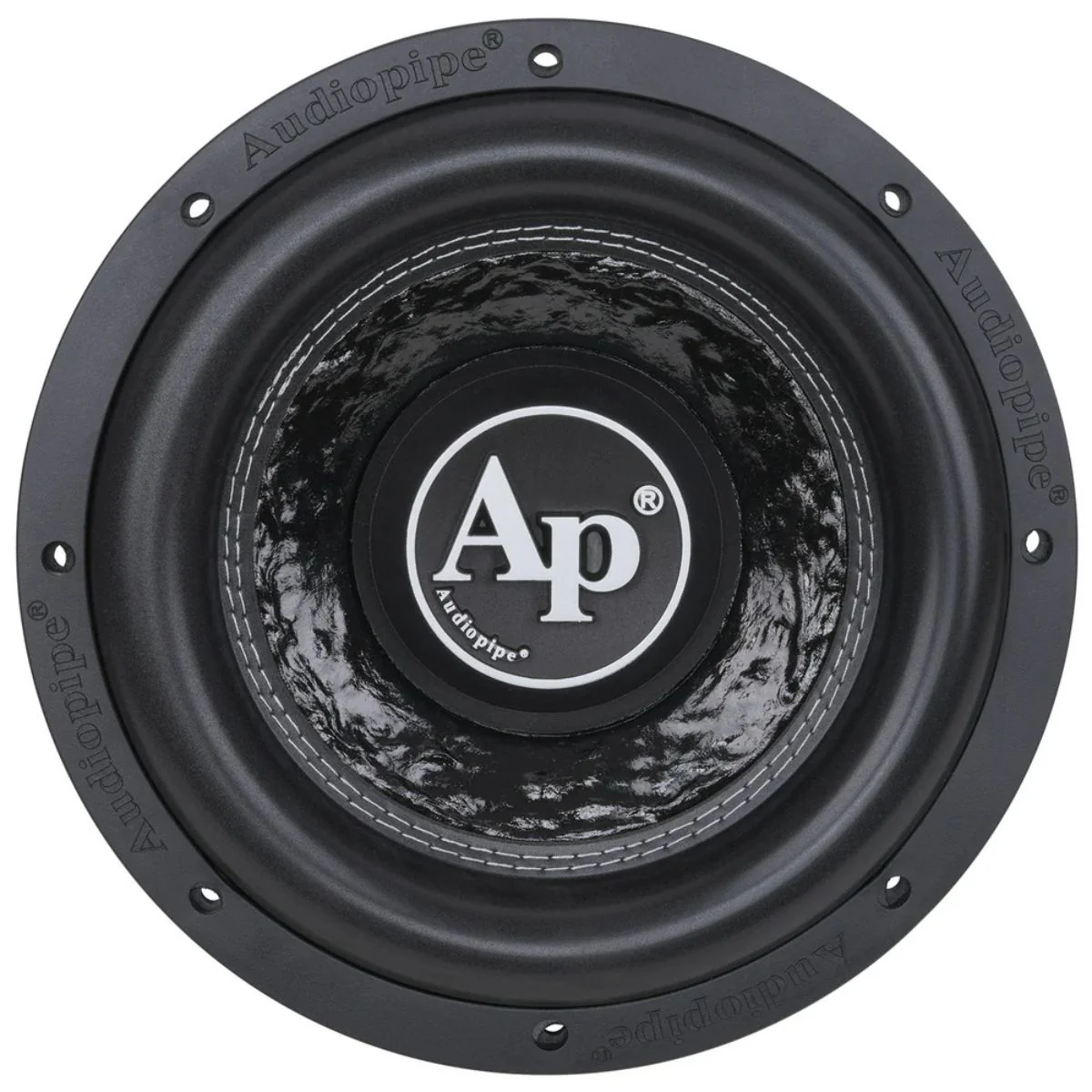

Audiopipe 10" 300 Watt RMS 4-Ohm Shallow Mount Car Audio Subwoofer TXX-FB1000-S4

This listing includes:

• (1) 10" TXX-FB1000-S4 Subwoofer


• User Manual

Big bass. Slim footprint. Built for tight installs.

The Audiopipe TXX-FB1000-S4 is engineered for vehicles with limited depth, but output still matters. With just 3.7 inches of mounting depth, this 10" shallow sub fits cleanly into compact enclosures, truck boxes, and custom stealth builds without sacrificing performance.

Rated at 300 watts RMS and powered by a 3-inch high-temperature 4-layer BASV voice coil, it's built to manage heat while delivering tight, controlled low frequencies. The 60 oz magnet motor delivers strong torque for punchy response and reliable daily performance.

The non-pressed textured paper cone and foam surround maintain clarity while reducing unwanted distortion. A rigid, powder-coated black aluminum basket keeps everything stable under load, while Audiopipe's Patent Pipe multi-connect terminals make wiring simple for parallel or series configurations.

Compact. Clean. Confident low end.

Features

• Ultra-slim 3.7" mounting depth


• 300W RMS / 600W Max power handling


• 3" high-temp 4-layer BASV voice coil


• Heavy 60 oz magnet motor


• Patent Pipe multi-connect terminals


• Powder-coated black aluminum basket


• Designed for sealed or shallow enclosures

Specifications:

• Power Rating: 300W RMS / 600W Max


• Impedance: Single 4 Ohm


• Frequency Response: 40–1,600 Hz


• Sensitivity: 88 dB


• Voice Coil Diameter: 3" (High-temp BASV, 4-layer)


• Magnet: 60 oz


• Mounting Depth: 3.7 in (94 mm)


• Magnet Structure Height: 1.3 in (33 mm)


• Woofer Displacement: 0.9 L


• Net Weight: 14.3 lbs / 6.5 kg


• Cone: Non-press textured paper cone


• Basket: Powder-coated black aluminum with composite glass fiber dust cap

Dimensions:

• Length: 12"


• Width: 5.8"


• Height: 12"


• Weight: 14.3 lb
