• 1800W Max / 900W RMS Power Handling – Built for powerful, distortion-free bass in high-output car audio systems
• Quad Stack Magnet + 2.5" 4-Layer BASV Voice Coil – Designed for superior excursion and heat management
• Dual 2-Ohm Voice Coils – Allows for flexible wiring in 1-Ohm or 4-Ohm setups
• Frequency Response: 30Hz–1300Hz – Delivers rich low-end with punchy mid-bass clarity
• EASY CONNECT Terminals – Heavy-duty push terminals simplify parallel or series wiring

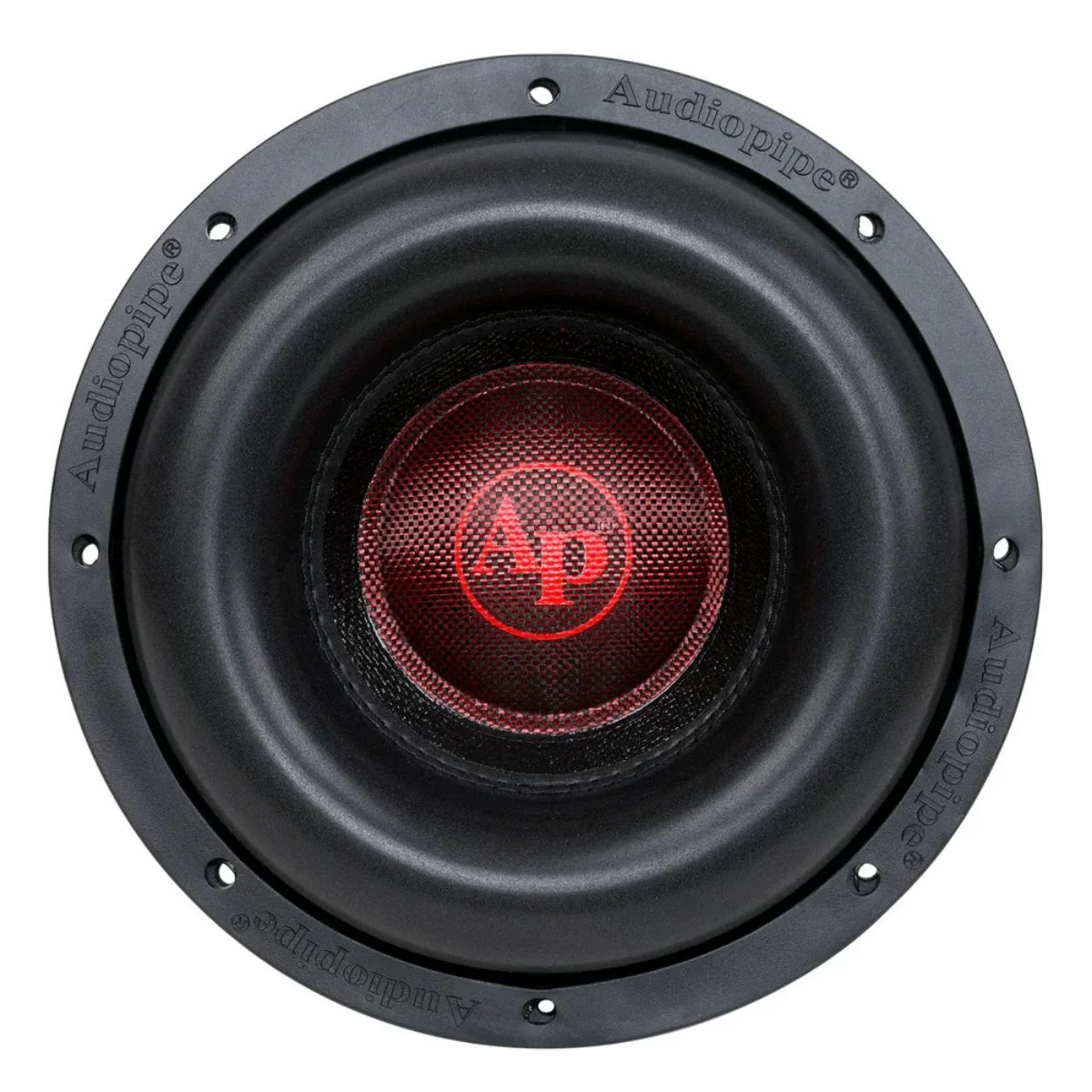

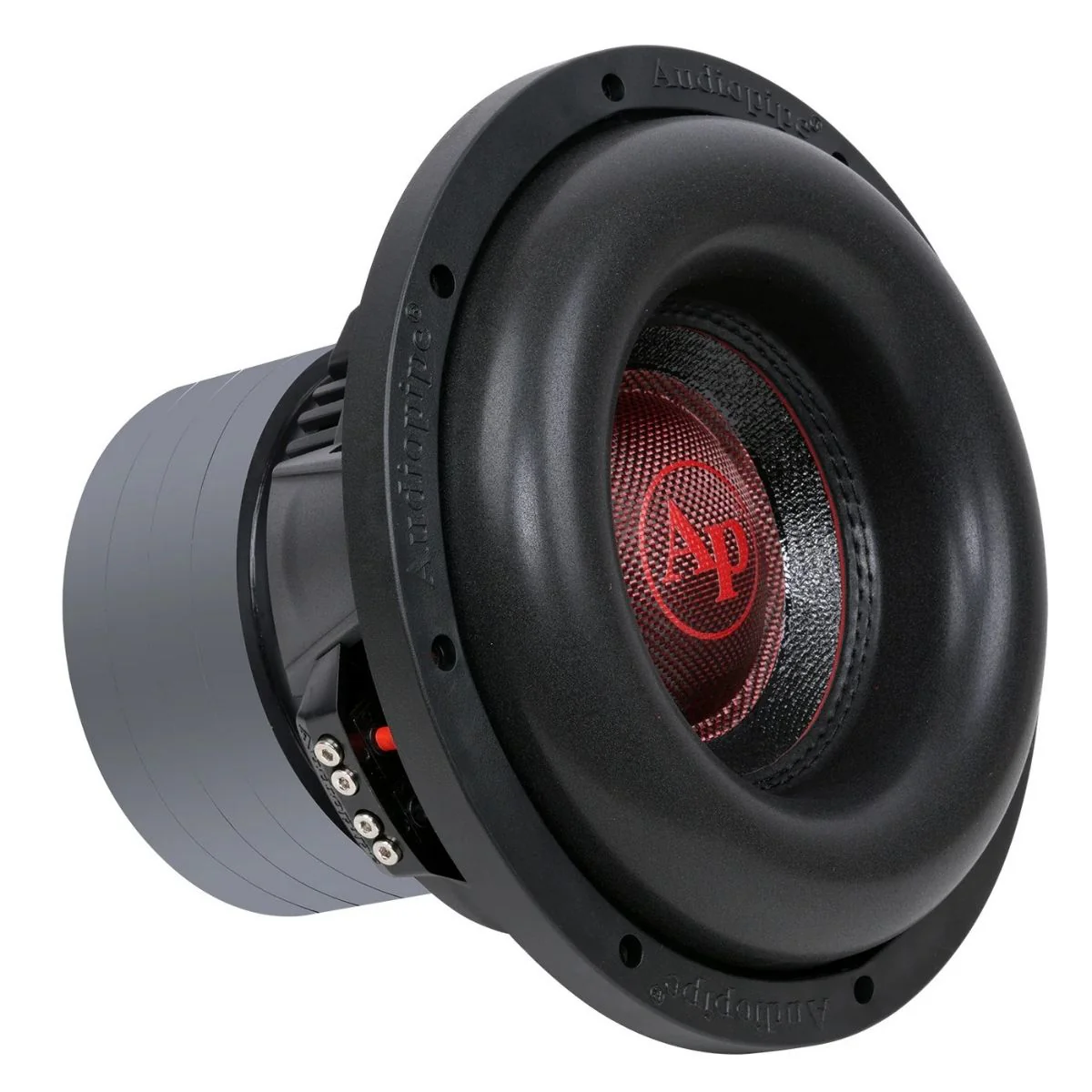

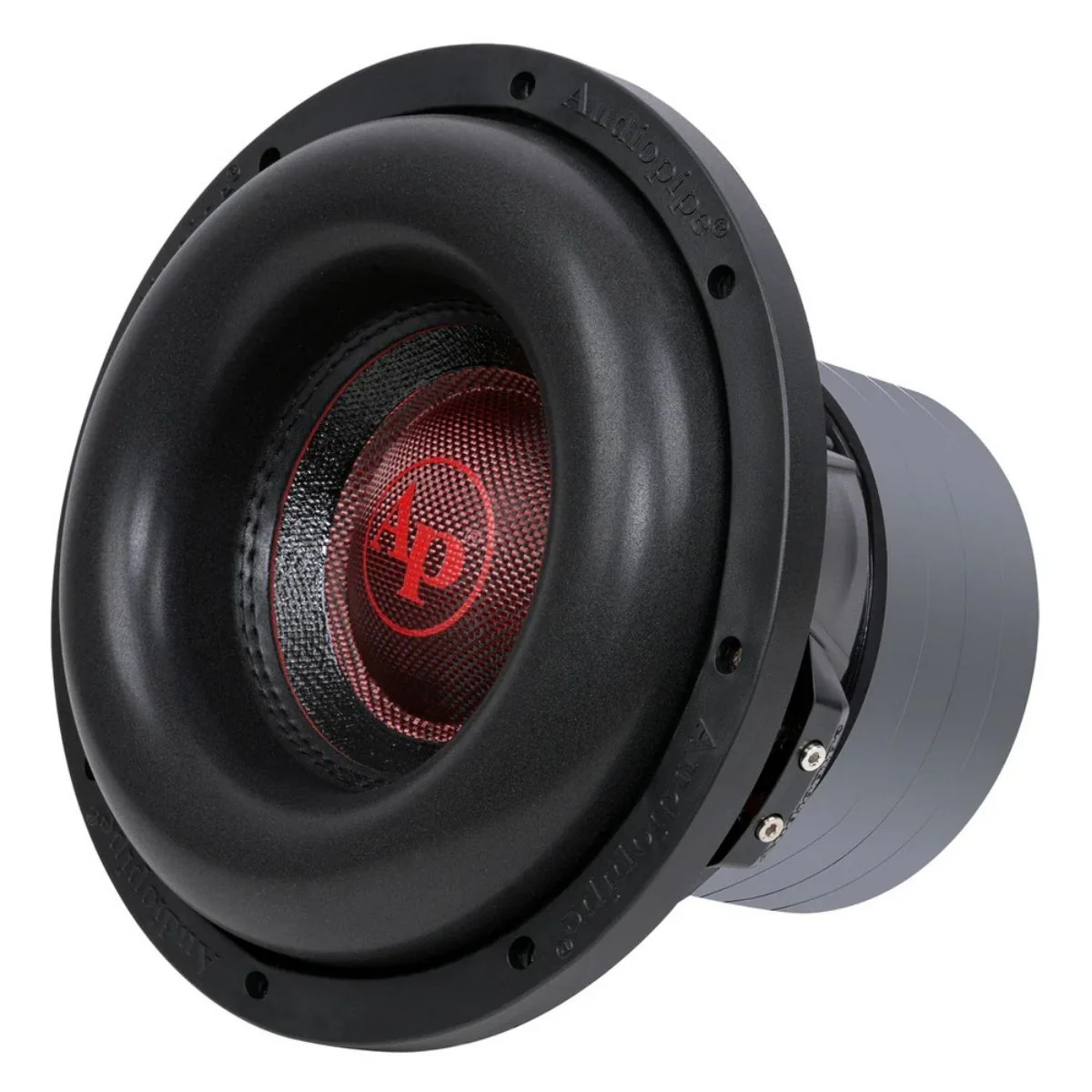

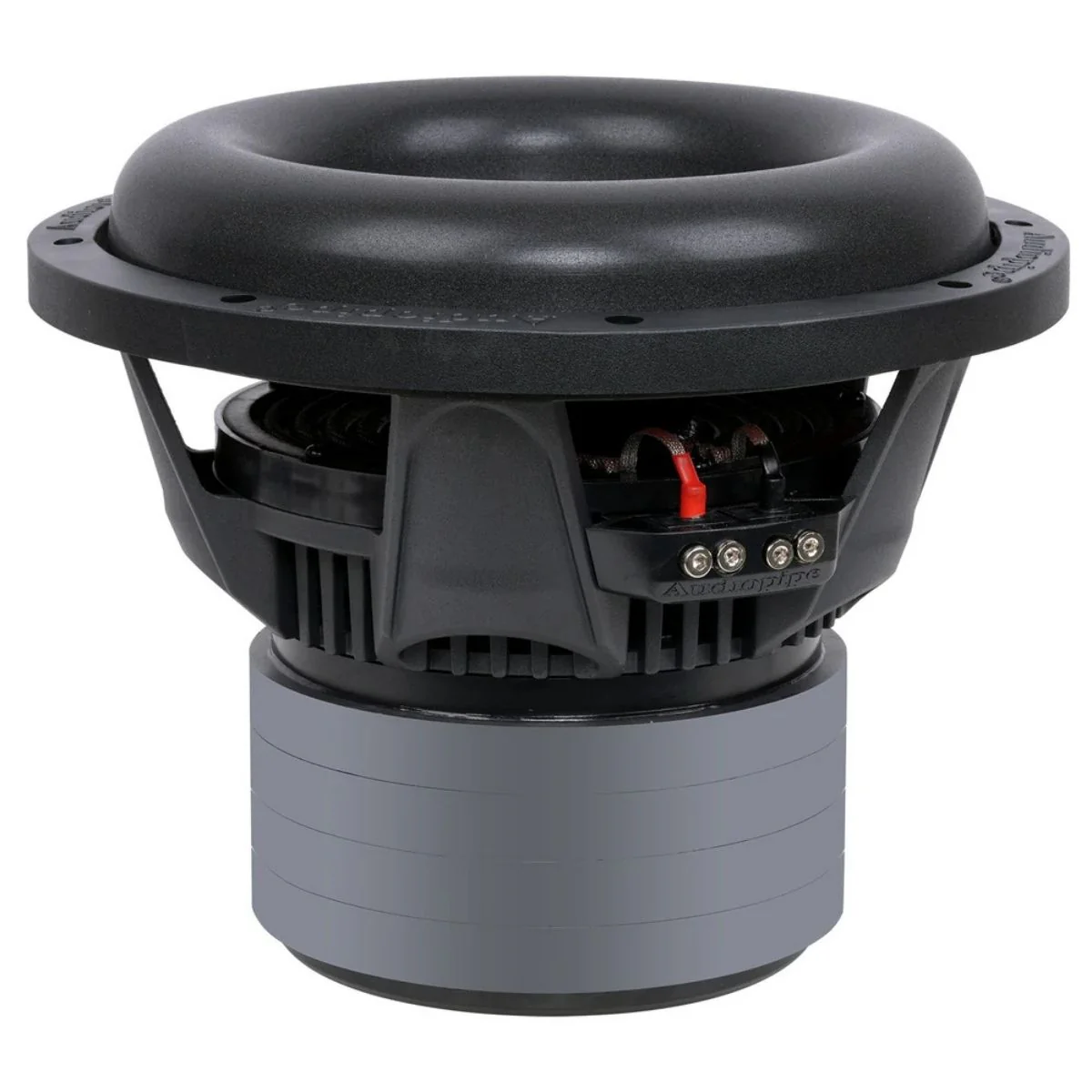

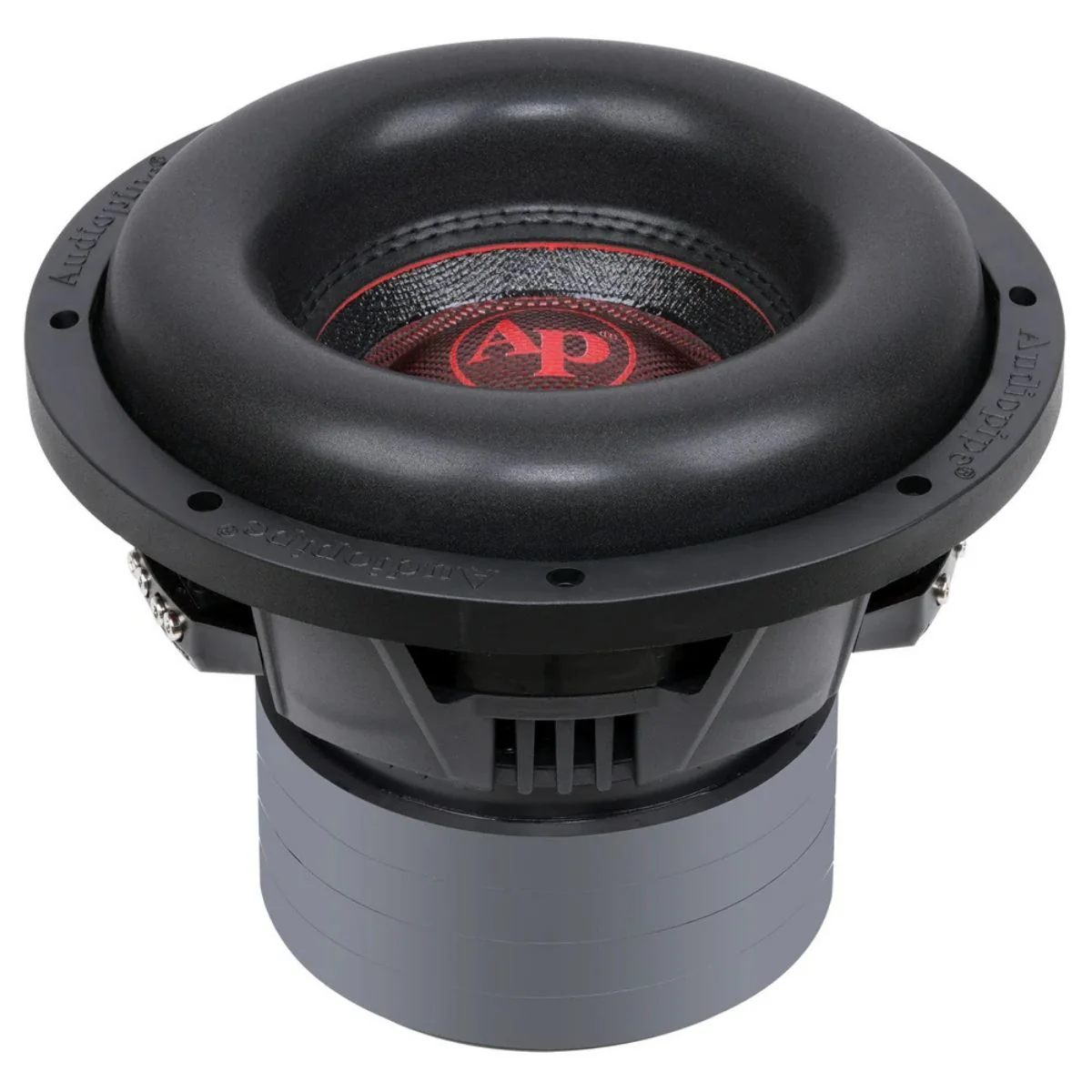

Audiopipe 10" 900 Watt RMS 2.5" Voice Coil Dual 2-Ohm Subwoofer TXX-BDC-IV-10D2

This Listing Includes

• (1) Audiopipe TXX-BDC-IV-10D2 10" Subwoofer

Bring the bass with the Audiopipe TXX-BDC-IV-10D2 10" Dual 2-Ohm Subwoofer. Engineered for serious SPL performance, this subwoofer delivers up to 900W RMS of clean, hard-hitting bass. The quad-stacked ferrite magnet and 2.5" 4-layer BASV voice coil work together to provide deep excursion, high thermal durability, and tight low-end control.

Whether you're building a ground-pounding daily driver or a competition-ready system, the TXX-BDC-IV-10D2 gives you the power, flexibility, and build quality to take your setup to the next level.

Features:

• High Power Handling: Delivers up to 1800W Peak Power and 900W RMS for deep, clean bass output


• Quad Stack Magnet Structure: 170 oz magnet provides powerful magnetic force for maximum motor strength and excursion


• 2.5" 4-Layer BASV Voice Coil: Built to withstand heat and increase durability under high-load conditions


• Dual 2 Ohm Voice Coils: Enables multiple wiring options for flexibility with mono or multi-channel amp setups


• Durable Aluminum Basket: Powder-coated black cast basket resists corrosion and supports rigid structure stability


• Easy Connect Terminals: Heavy-duty push terminals allow fast and secure wiring in parallel or series


• Precision Frequency Response: 30Hz to 1300Hz range provides smooth low-end with tight midbass clarity


• Heavy-Duty Suspension: Engineered for long excursion and reduced distortion at high SPL


• Built for SPL Systems: Ideal for sealed or ported enclosures in high-output competition and daily-driver builds

Specifications:

• Subwoofer Size: 10"


• Peak Power: 1800 Watts


• RMS Power: 900 Watts


• Impedance: Dual 2 Ohm (2x2 ohm)


• Sensitivity: 85 dB


• Frequency Response: 30Hz - 1300Hz


• Voice Coil Diameter: 2.5" / 4-Layer Single BASV


• Basket Material: Powder-Coated Black Aluminum


• Magnet Weight: 170 Oz (Quad Stack Ferrite Magnet)


• Mounting Depth: 175mm / 6-7/8"


• Terminal Type: Easy Connect Push Terminals

Dimensions

• Mounting Depth: 175mm (6-7/8")


• Nominal Diameter: 10 inches


• Mounting Depth: 175 mm (6-7/8")


• Overall Diameter (Frame): 10.16 inches (258 mm) (typical 10" subframe)


• Cutout Diameter (Baffle Opening): Approx. 9.13 inches (232 mm) (standard for 10" subs with similar frame)


• Magnet Structure Height: ~3.5-4 inches (based on quad stack design)

Box Size (Shipping):

• Length:12.2"


• Width: 9.8"


• Hight; 12.2"
