• 900 WATTS RMS / 1,800 WATTS MAX POWER: Built for high-output bass performance in daily systems and SPL-oriented setups.
• SINGLE 4-OHM VOICE COIL: Straightforward wiring configuration compatible with a wide range of mono amplifiers.
• 2.5-INCH 4-LAYER BASV VOICE COIL: High-temperature black aluminum coil designed for consistent performance and thermal durability.
• 170 OZ QUAD-STACK MAGNET MOTOR: Heavy-duty motor structure improves motor strength and enhances low-frequency control.
• KEVLAR-REINFORCED COMPOSITE CONE: Engineered for durability, reduced flex, and improved sound clarity under heavy excursion.

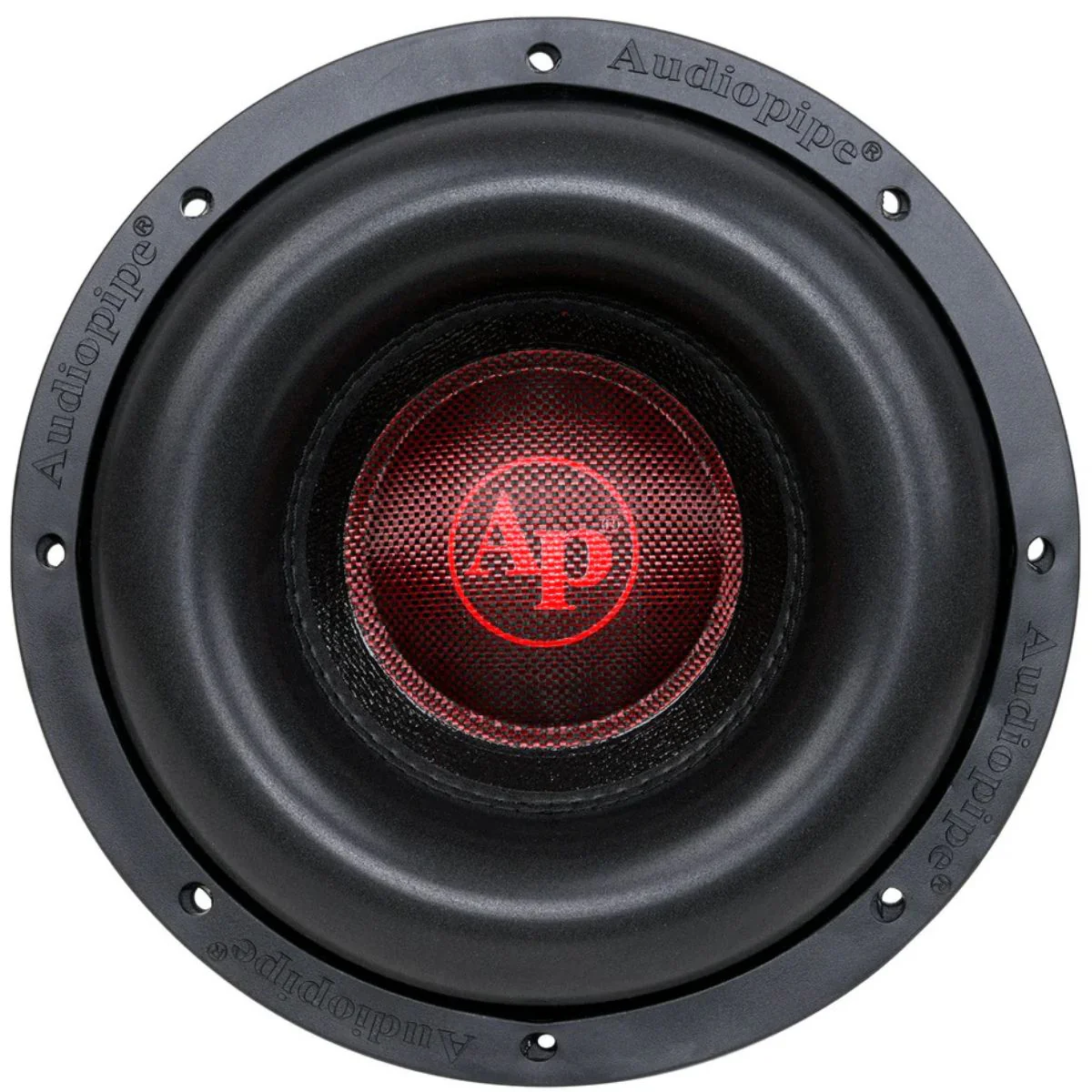

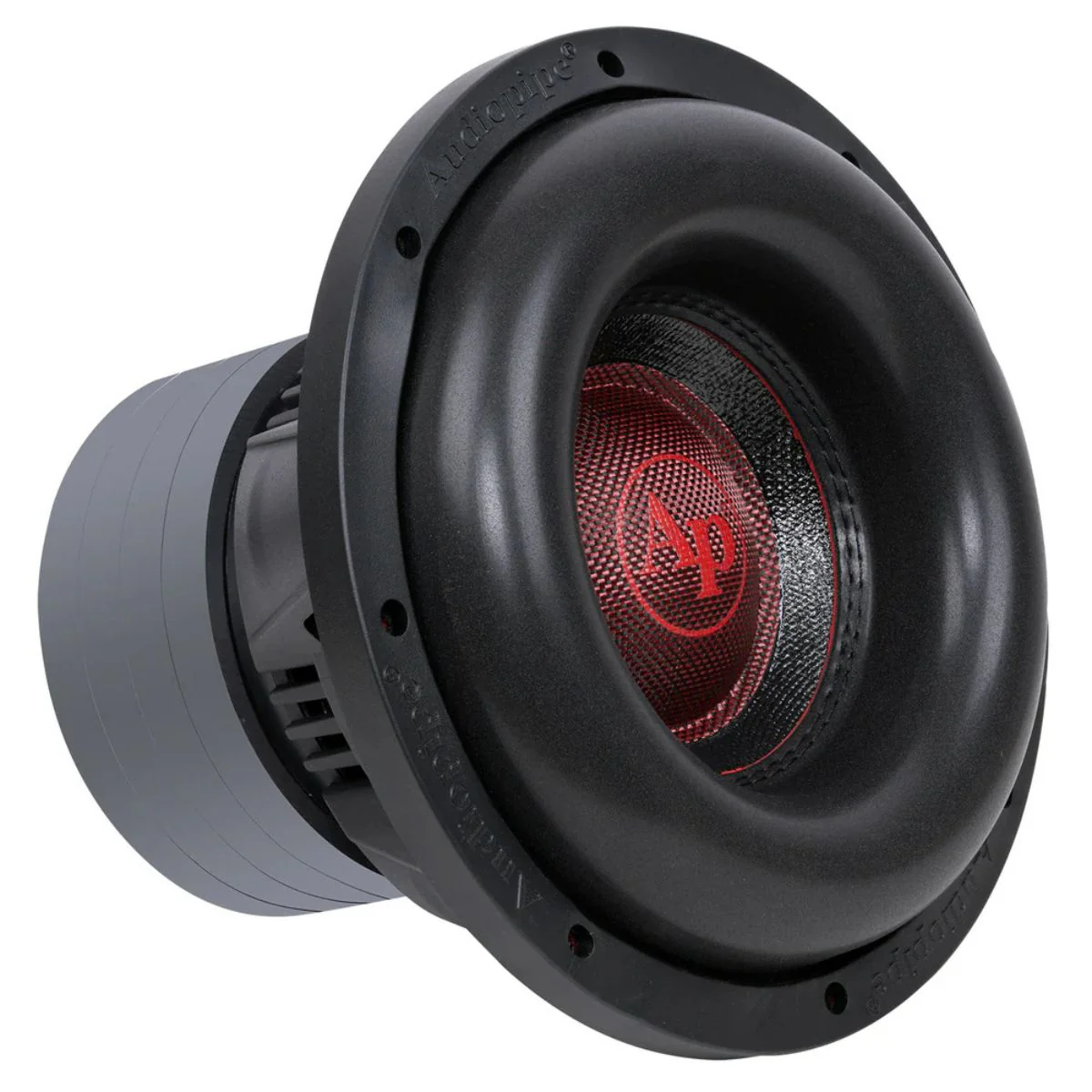

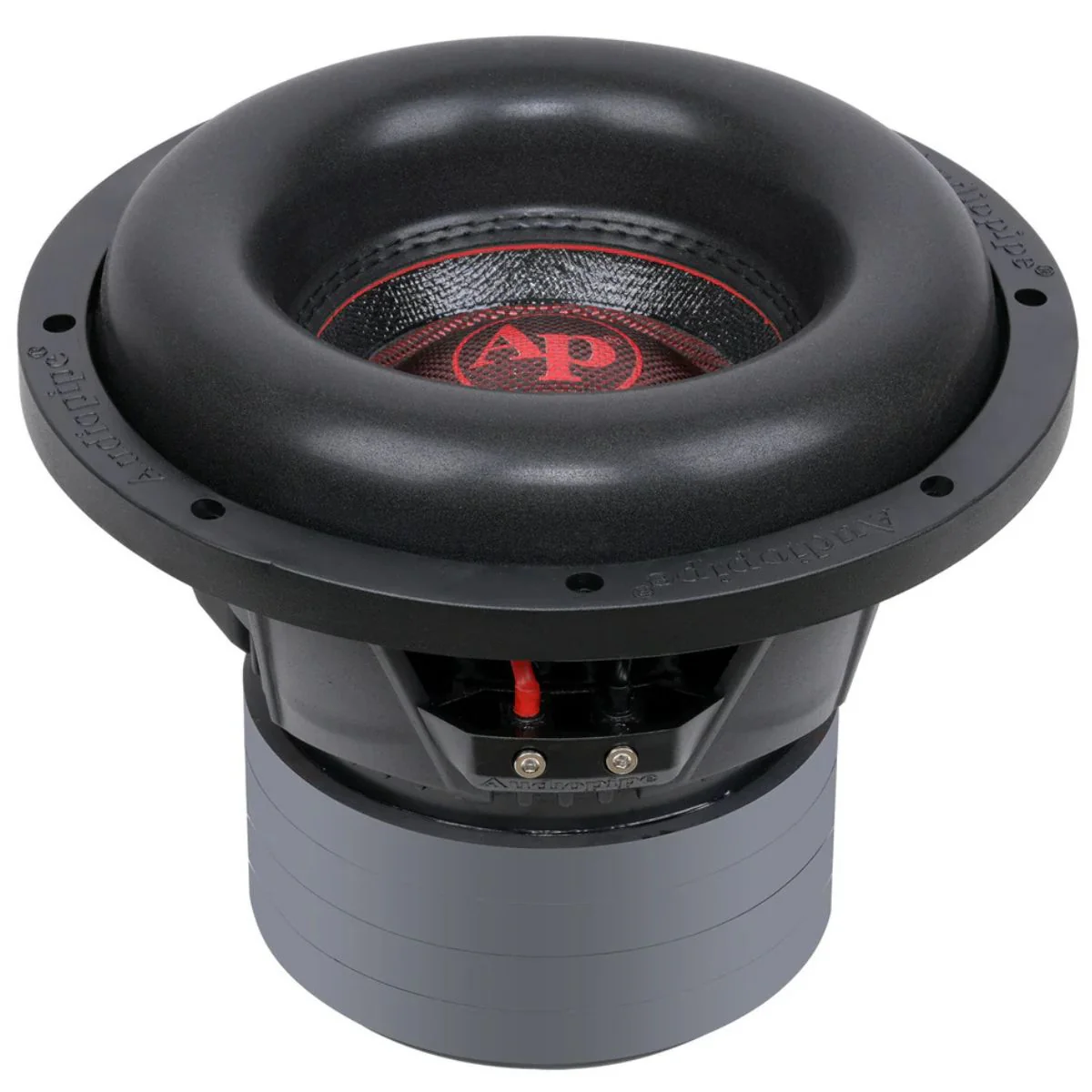

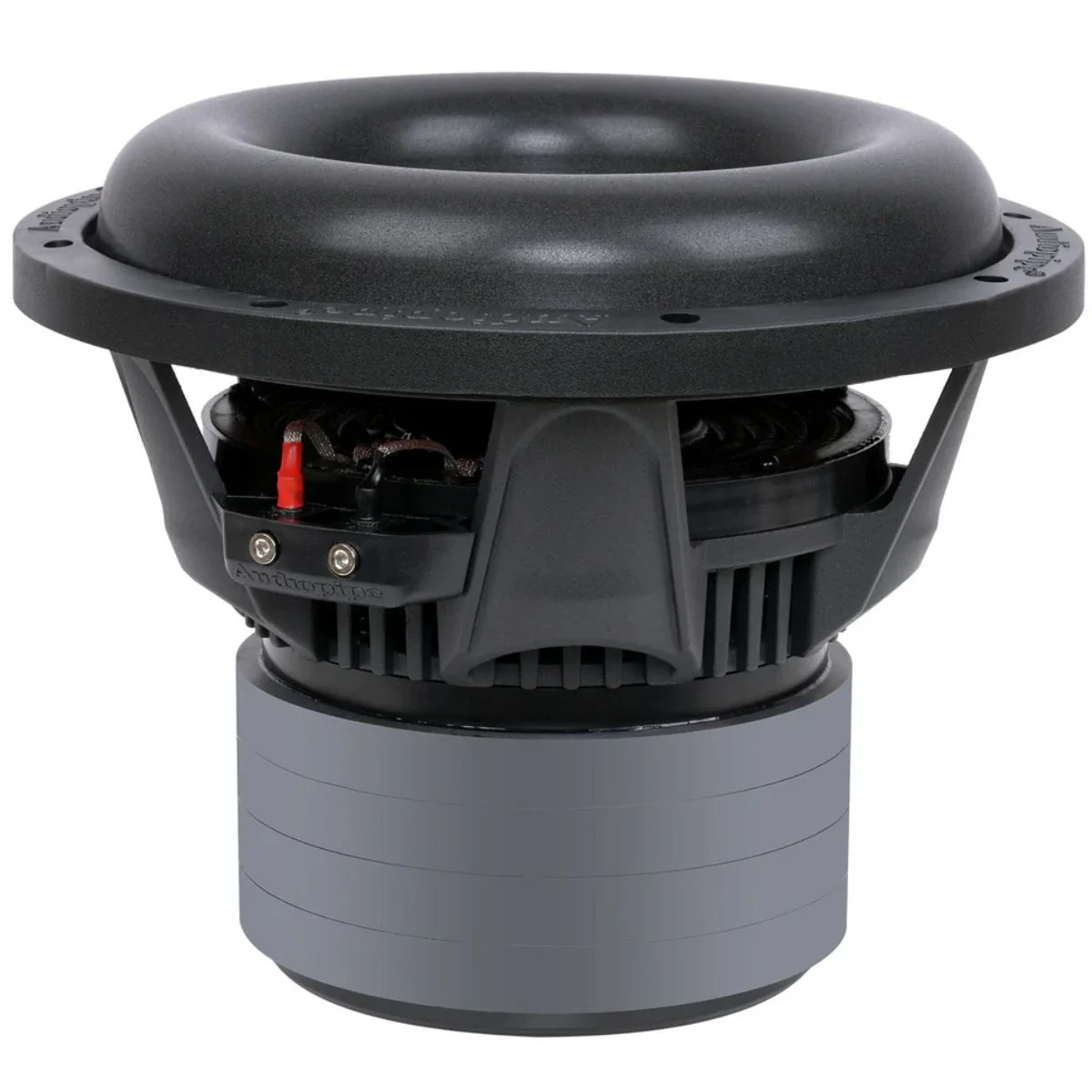

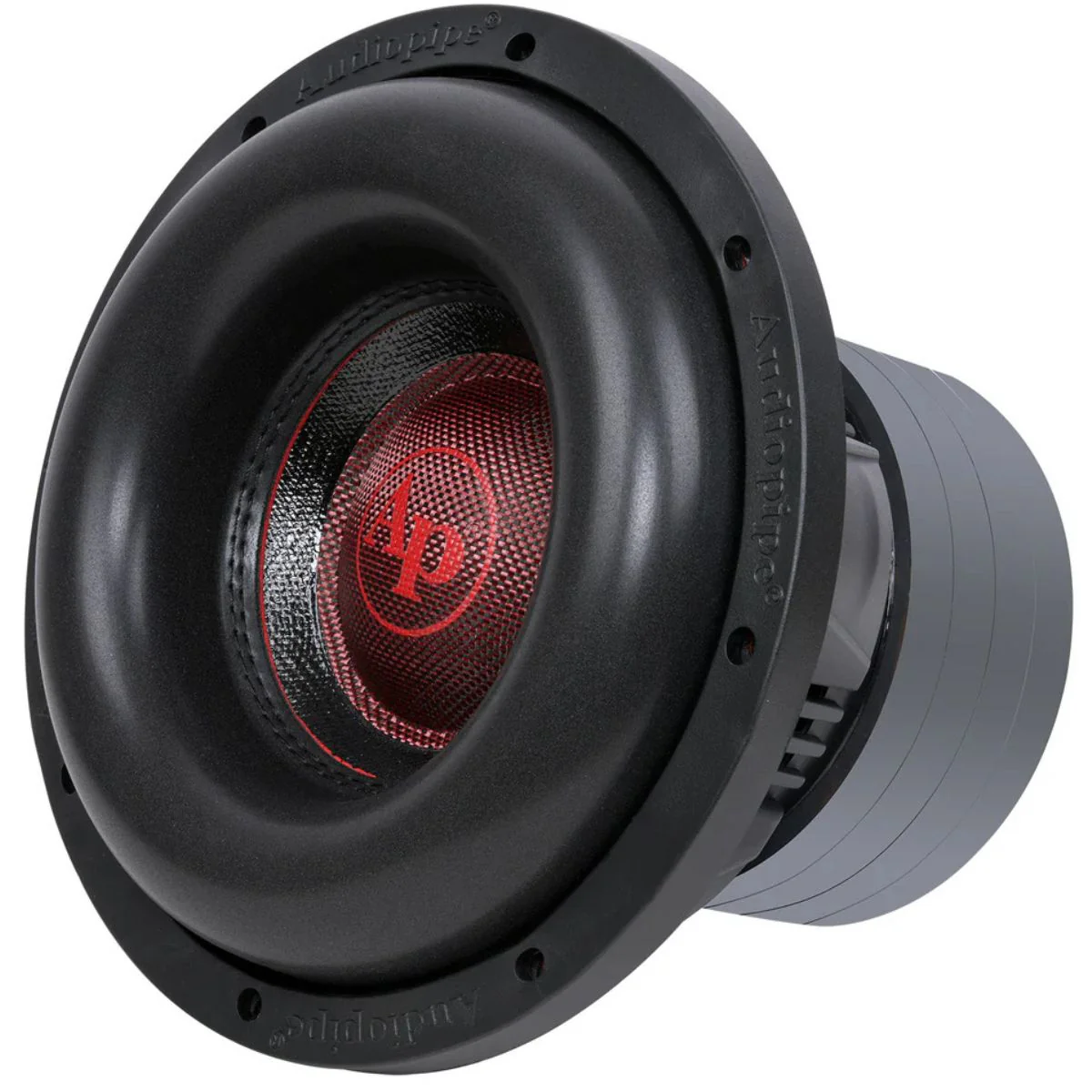

Audiopipe 10" 900 Watts RMS SVC 4-Ohm Composite Cone Subwoofer TXX-BDC-IV-10-S4

This Listing Includes

• (1) Audiopipe TXX-BDC-IV-10-S4 10" Single 4-Ohm Subwoofer

The Audiopipe TXX-BDC-IV-10-S4 is a high-power 10-inch subwoofer engineered for strong, controlled bass output in both daily systems and high-output builds. Rated at 900 watts RMS and 1,800 watts peak power, this subwoofer is built to handle serious amplifier power while maintaining low-frequency accuracy.

Featuring a Kevlar-reinforced composite cone and a rigid powder-coated aluminum basket, it delivers durability under demanding excursion. The 2.5-inch 4-layer high-temperature BASV voice coil provides improved thermal stability, while the 170 oz quad-stack magnet motor structure enhances cone control and motor force.

Designed for use in sealed or ported enclosures, the TXX-BDC-IV-10-S4 offers flexible installation options while delivering tight, responsive bass performance.

Features

• 1800 Watts Peak Power (P.M.P.O.)


• 900 Watts RMS Power Handling


• Frequency Response: 30Hz–1300Hz


• Sensitivity: 85 dB


• 2.5" 4-layer Dual Voice Coil BASV


• Powder-coated black aluminum basket


• Kevlar-reinforced composite cone


• Multi-connect spring-loaded terminals


• 170 oz quad-stack magnet motor


• Mounting Depth: 175 mm (6-7/8")


• Impedance: 4 Ohms


• Designed for sealed or ported enclosures

Specifications:

• Voice Coil Diameter: 2.5"


• Power Handling (RMS): 900 Watts


• Peak Power: 1800 Watts


• Impedance: 4 Ohm SVC


• Frequency Response: 30Hz–1300Hz


• Sensitivity: 85 dB


• Magnet Weight: 170 oz


• Weight: Approx. 24 lbs (10.9 kg)

Dimensions

• Mounting Depth: 6-7/8" (175 mm)


• Display Width: 10.75 inches (273 mm)


• Display Height: 10.75 inches (273 mm)


• Display Depth (Mounting): 6.875 inches (175 mm)


• Box Dimensions: 12.2" x 9.8" x 12.2"
