• Powerful Performance: With 200 Watts RMS power output and 400 Watts peak power, this loudspeaker delivers impressive sound reproduction, filling your space with rich and dynamic audio.
• Wide Frequency Response: Enjoy a wide frequency response ranging from 55Hz to 20,000Hz, ensuring crisp and detailed sound across the entire audio spectrum.
• High Sensitivity: Boasting a sensitivity of 92dB, this speaker efficiently converts power into sound, delivering loud and clear audio even at lower power levels.
• Durable Construction: The reinforced cloth surround combined with a carbon fiber cone ensures durability and longevity, while the liquid metal plastic basket provides strength and stability.
• Versatile Installation: With a mounting depth of 102mm (4 inches), this speaker is easy to install in various vehicles or home speaker enclosures.

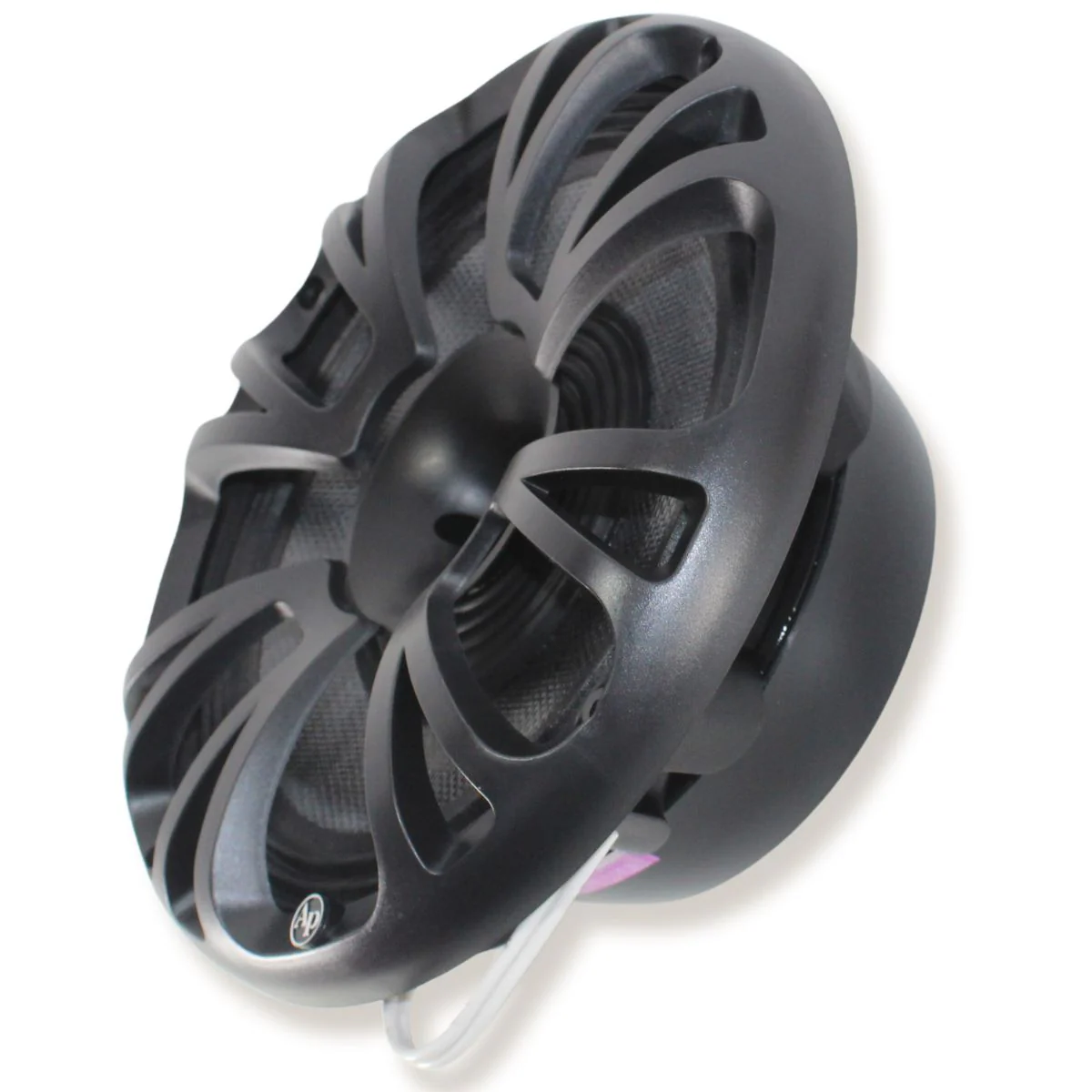

Audiopipe 10" 200 Watt RMS Marine Mid-Range Compression Loudspeaker APMP-1043CHF

This Listing Includes:

• (1) Audiopipe APMP-1043CHF 10" Loudspeaker


• (1) Black Grill (Pre-Installed)


• (1) White Grille


• (1) Positive Negative Speaker wire


• (2) Pink Ferrules

Upgrade your sound system with the Audiopipe APMP-1043CHF 10" Mid-Range Compression Horn Loudspeaker. Built to deliver crisp mids and highs with outstanding power handling, this speaker is engineered with a carbon fiber cone, reinforced cloth surround, and a liquid metal plastic basket that provides the strength of steel without the weight. Perfect for cars, trucks, or marine audio setups (note: not waterproof), this loudspeaker combines durability with precision sound for serious audio enthusiasts.

Features:

• Powerful Performance - 400W Peak / 200W RMS


• Wide Frequency Response - 55Hz to 20kHz for detailed mids & highs


• High Sensitivity - 92dB for efficient output


• Durable Construction - Carbon fiber cone, reinforced surround, and strong liquid metal basket


• Compression Horn Design - 3.5" horn-loaded driver for clear, projecting sound


• Versatile Mounting - Flush mount design with only 4" depth required


• Stylish Options - Includes both black and white grills for a custom look

Specifications:

• Model: APMP-1043CHF (Compression Horn Series)


• Speaker Size: 10"


• RMS Power: 200W


• Peak Power: 400W


• Frequency Response: 55Hz-20kHz


• Sensitivity: 92dB


• Voice Coil: 2" Kapton (heat-resistant)


• Magnet Weight: 40 oz


• Impedance: 4 Ohms


• Crossover: 12dB OCT. Separated Crossover


• Mounting Depth: 102mm (4")


• Basket: Liquid Metal Plastic (as strong as steel)


• Color: Black (with optional white grill)


• Speaker weight(w/BLKgrill): 7.7 lbs

Thiele & Small Parameters:

• Equivalent Volume (VAS): 23L / 0.81 ft


• Excursion (Xmax): 1.5mm


• Free Air Resonance (Fs): 65Hz


• Mechanical Factor (Qms): 3.0


• Electrical Factor (Qes): 0.7


• Total Factor (Qts): 0.55


• Mechanical Mass (Mms): 40g


• Mechanical Compliance (Cms): 228mm/N


• BL Factor: 9


• Voice Coil Inductance (Le): 0.28 mH


• Cone Area (Sd): 146 cm


• DC Resistance (Re): 3.6 Ohms


• Mechanical Mass w/o Air (Mmd): 36g

Dimensions:

• Grille Diameter: 10-9/16"


• Mounting Diameter: 9-11/16"


• Cutout Diameter: 9-3/16"


• Mounting Depth: 4"


• Overall Diameter: 10.6"


• Overall Depth: 5.4"


• Motor Diameter: 4"

Why Choose the Audiopipe APMP-1043CHF?

If you want loud, clean midrange with projection that cuts through any environment, this loudspeaker delivers. Whether you're upgrading your car, truck, or marine setup, the APMP-1043CHF offers professional-grade sound in a durable package.
