• POWERFUL COMBO – Includes (2) 12" 600W RMS Dual 4-Ohm Subwoofers and a 1500W Monoblock Class D Amplifier for massive bass performance
• OPTIMIZED MATCH – Amp and subwoofers are engineered to work together, delivering up to 1414W RMS at a 1-ohm load
• CLEAN EFFICIENCY – Class D amplifier provides high output with low distortion and advanced protection circuitry
• DEEP BASS RESPONSE – Subwoofers feature a 25Hz–1500Hz frequency range and 2.5" voice coils for rich, precise low-end
• COMPACT BUILD – Space-saving amp design (13.4" x 6.3" x 2.3") fits easily into tight installations without sacrificing power

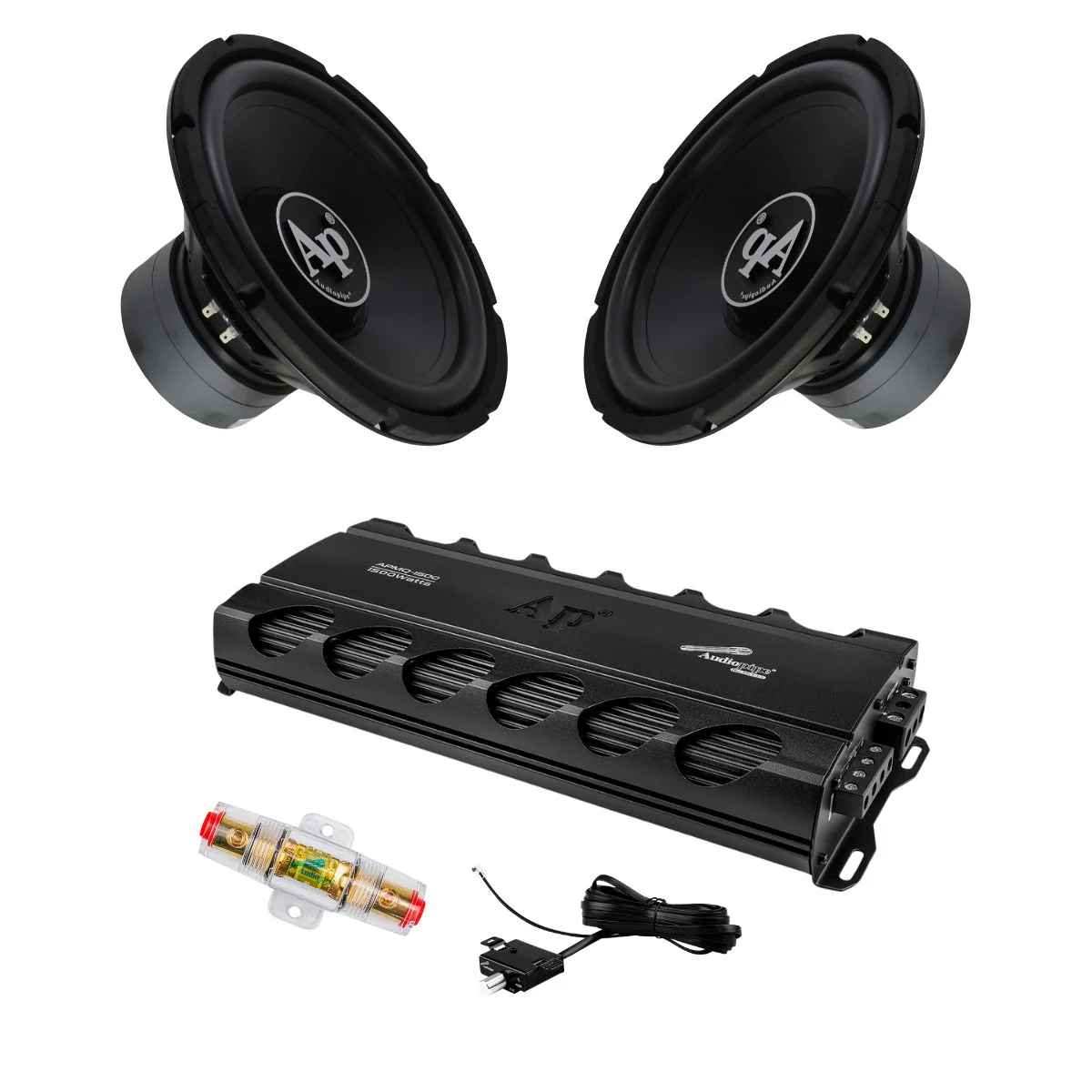

Audiopipe 12" 600W RMS Subwoofers Pair & 1500W Monoblock Class D Amplifier

This listing includes:

• (2) Audiopipe 12" 600 Watt RMS 4-Ohm Subwoofer TS-PP3-12-D4


• (1) Monoblock Class D Mini Car Audio Amplifier Audiopipe APMQ-1500

Description:

This combo features two Audiopipe 12" 600W RMS Dual 4-Ohm Subwoofers paired with the APMQ-1500 1500W Monoblock Class D Amplifier, engineered to work seamlessly together for maximum performance. The subwoofer’s dual 4-ohm voice coils can be wired to a 1-ohm load, allowing the amplifier to deliver up to 1414W RMS—ideal for unleashing the full potential of your bass. The sub handles high power with precision, while the compact Class D amp offers clean, efficient output with advanced controls and protection. Whether you're upgrading a daily driver or building a competition-level setup, this pairing delivers hard-hitting, reliable low-end sound. Wiring Method: Each sub’s coils wired in parallel (2-Ohm each), then both subs in parallel.

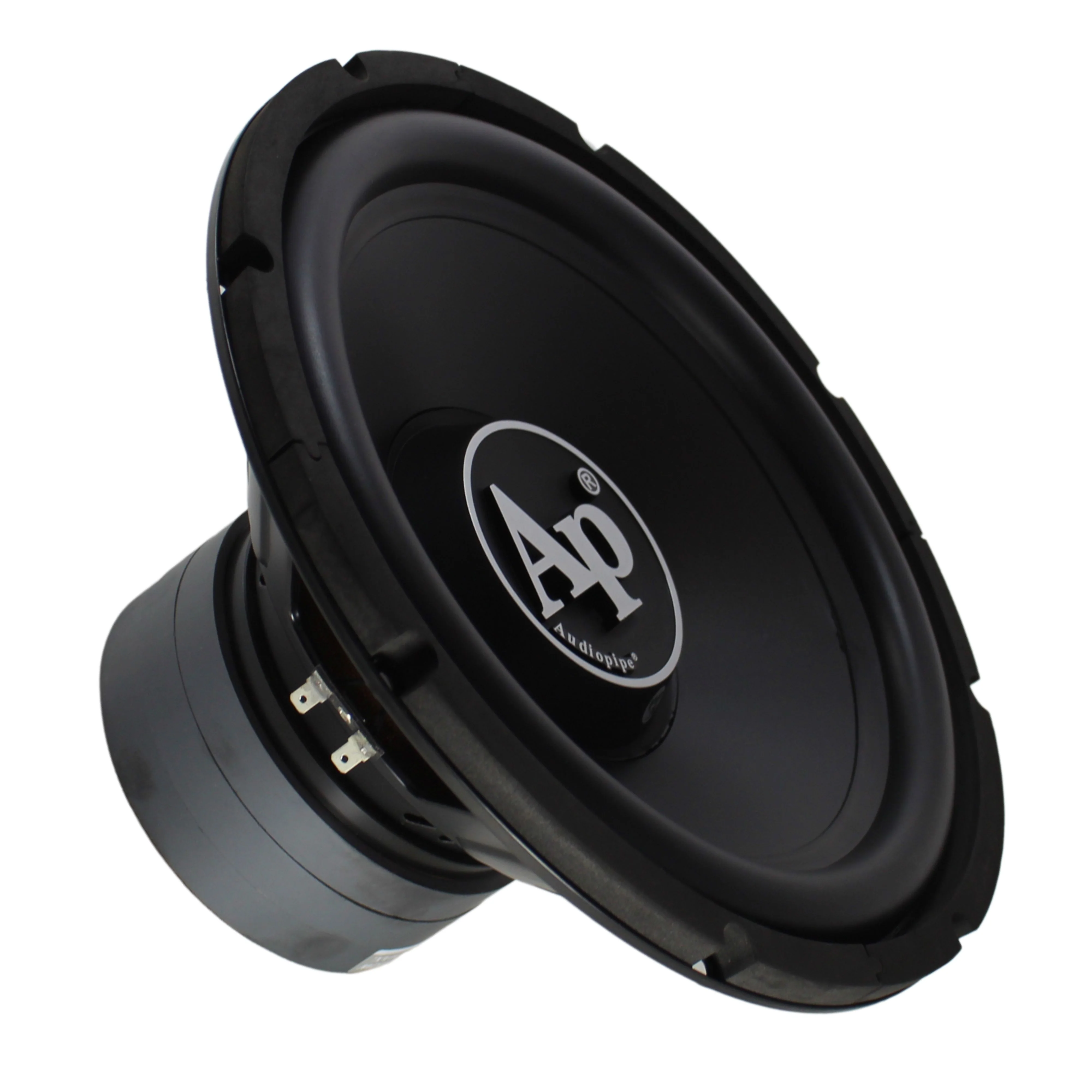

TS-PP3-12-D4 Subwoofer Specifications:

• Diameter: 12" (305mm)


• Sensitivity (2.83V@1m) : 88dB


• Power Handling: 600 Watts RMS


• Frequency Response: 25-1500Hz


• Nominal Impedance: Dual 4 Ohms


• Voice Coil Diameter: 2.5" (51mm)

TS-PP3-12-D4 Subwoofer Thiele-Small Parameters:

• Voice Coil DC Resistance Revc (Ohms): 2x3.6


• Voice Coil Inductance @1kHz:  Levc(mH) 3.0


• Driver Radiating Area Sd(in): 35


• Motor Force Factor Bl(Tm): 20


• Compliance Volume Vas(ft):  2.3


• Free-air Resonance: Fs(Hz) 31


• Maximum Excursion Xmax(in): 0.39

TS-PP3-12-D4 Subwoofer Dimensions:

• Length: 12-3/16"


• Height: 6.75"


• Width: 12-3/16"


• Weight: 13.2 lbs

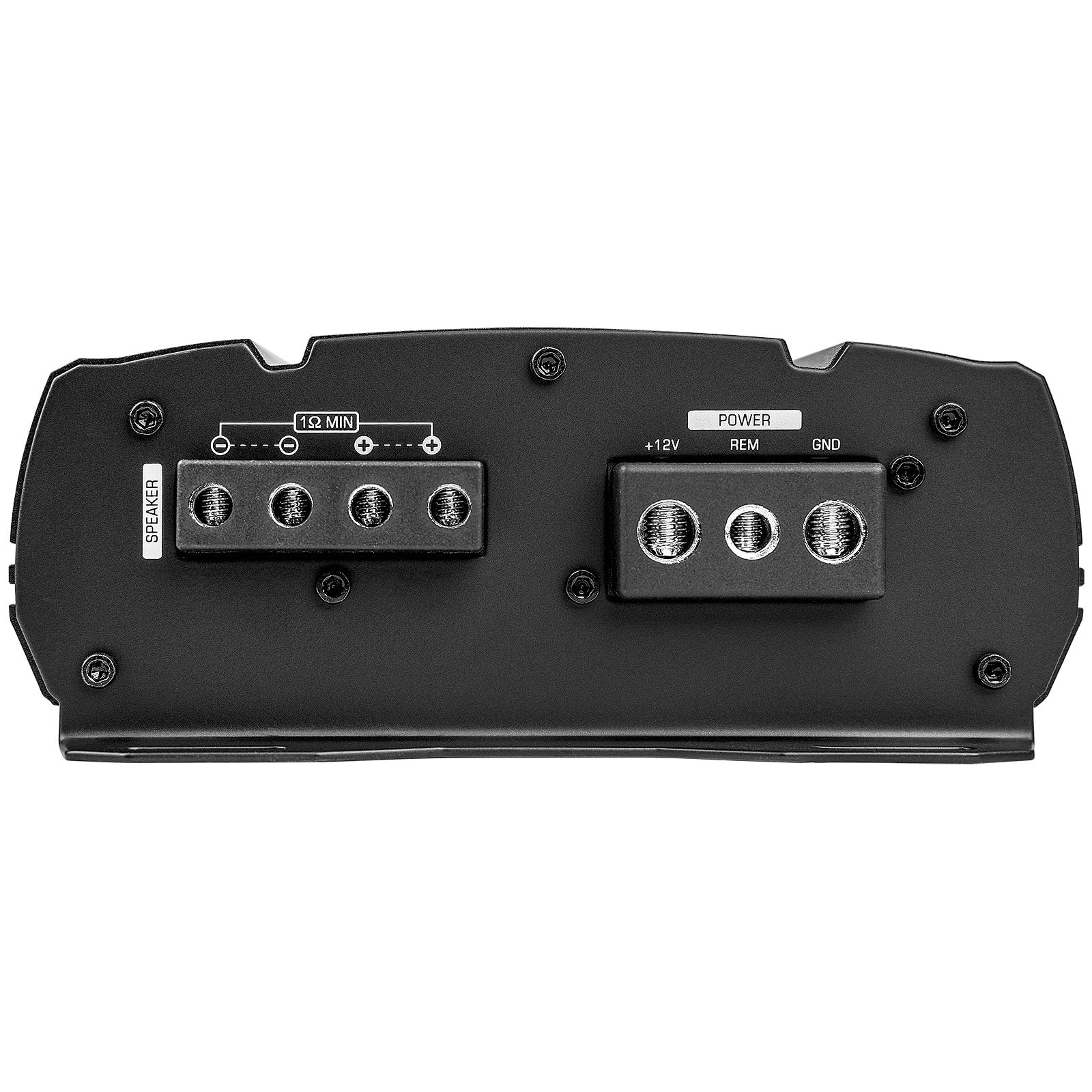

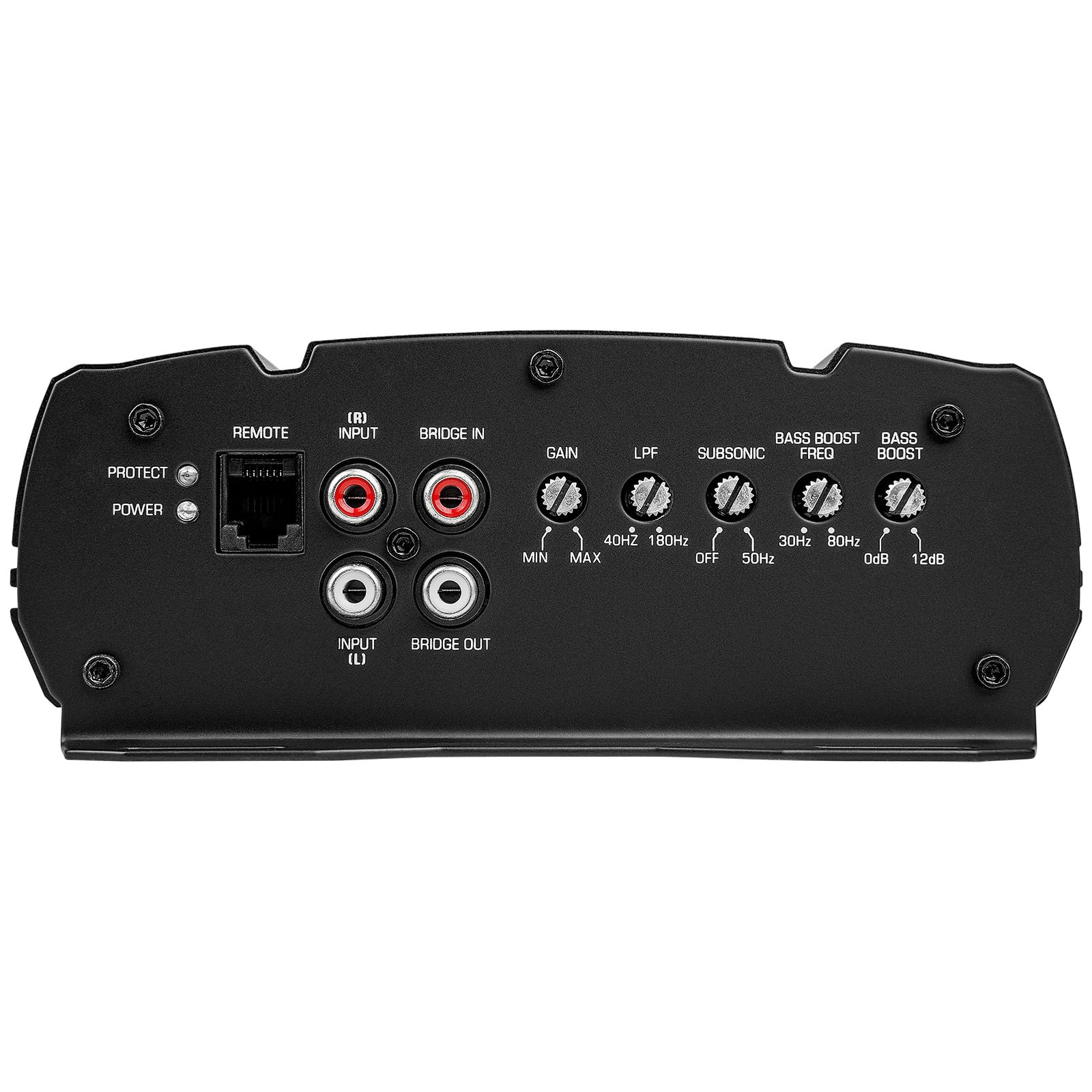

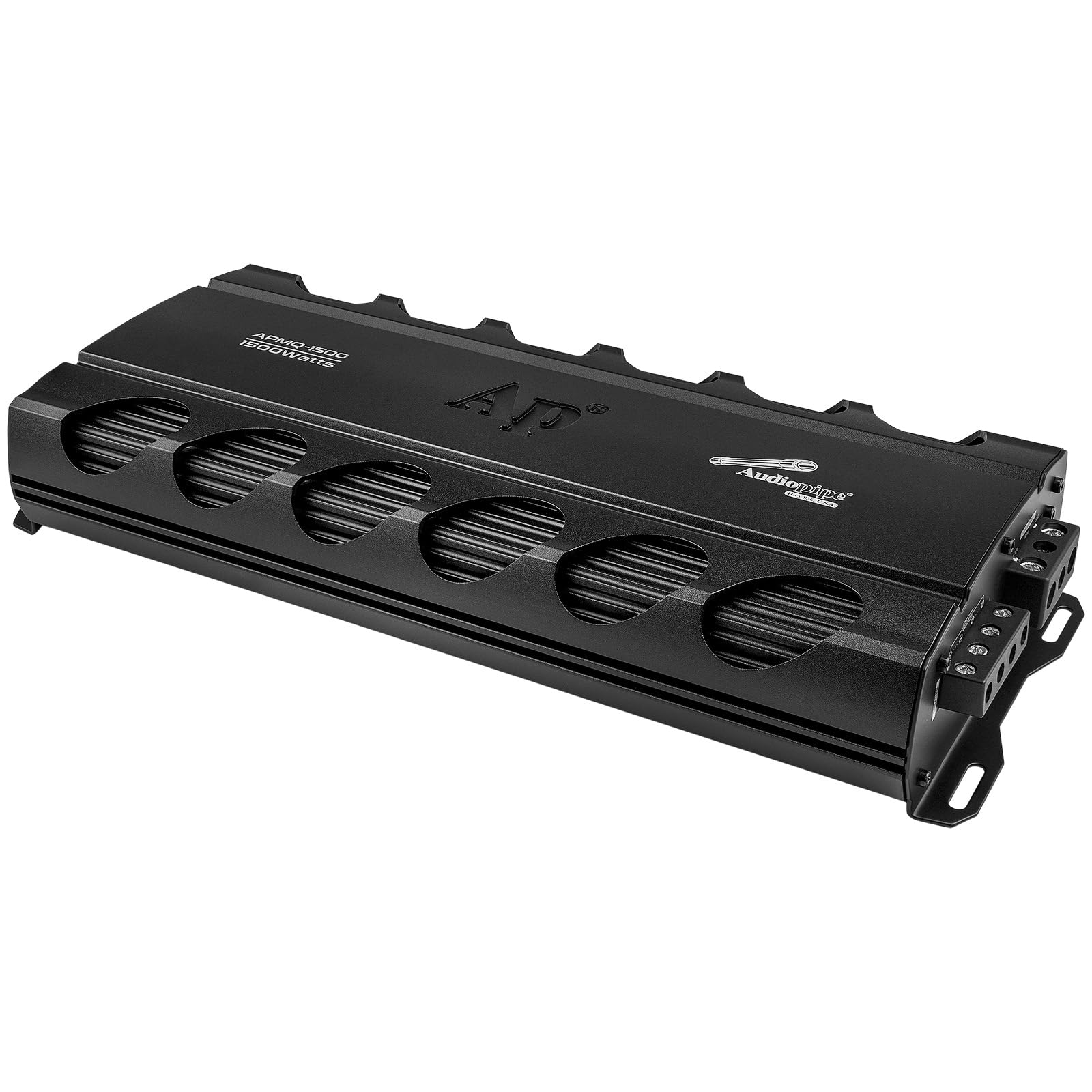

APMQ-1500 Amplifier Specifications:

• PEAK POWER: 1500 WATTS


• RMS @ 4 Ohm (<1% Distortion): 540W


• RMS @ 2 Ohm (<1% Distortion): 964W


• RMS @ 1 Ohm (<1% Distortion): 1414W


• FREQUENCY RESPONSE: 18Hz~180Hz


• S/N RATIO: >80dB


• INPUT SENSITIVITY: 0.2-5V


• THD: 0.5%


• WORKING VOLTAGE: 9V~16V

APMQ-1500 Amplifier Dimensions:

• Length: 13.4"


• Width: 6.3"


• Height: 2.3"
