• Powerful Low-End Performance: Pushes 400W RMS and 800W peak power to deliver thunderous bass in limited spaces.
• Engineered for Heat & Pressure: 3" 4-layer BASV high-temperature voice coil and 65 oz magnet provide superior thermal stability and power handling.
• Tuned for Tight Installs: Only 4" mounting depth, ideal for custom enclosures and shallow applications.
• Premium Build Quality: Features a non-press paper cone with foam surround and a piano black powder-coated aluminum basket for rigidity and rich sound.
• Convenient Connectivity: Equipped with patented pipe multi-connect terminals for easy parallel or series wiring setups.

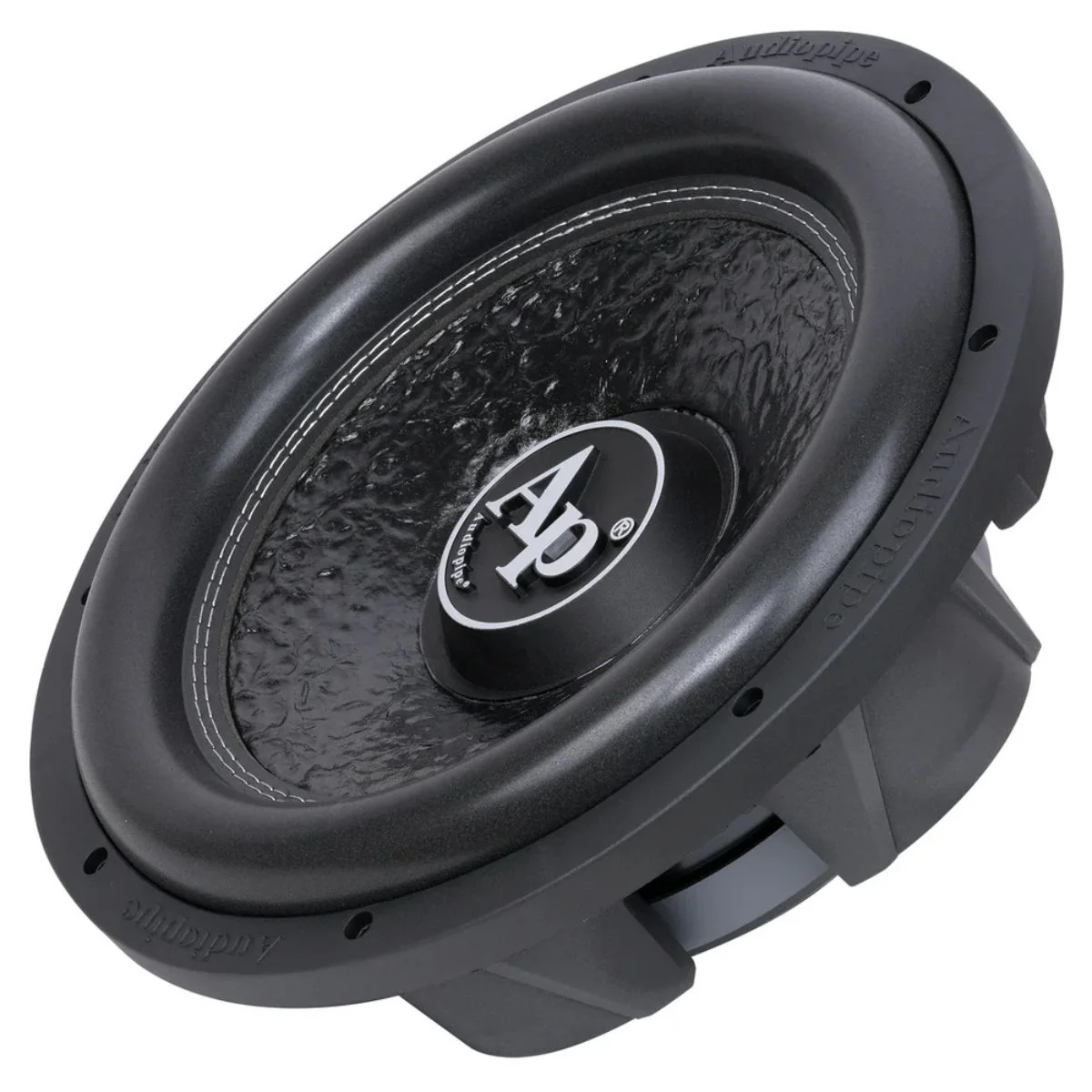

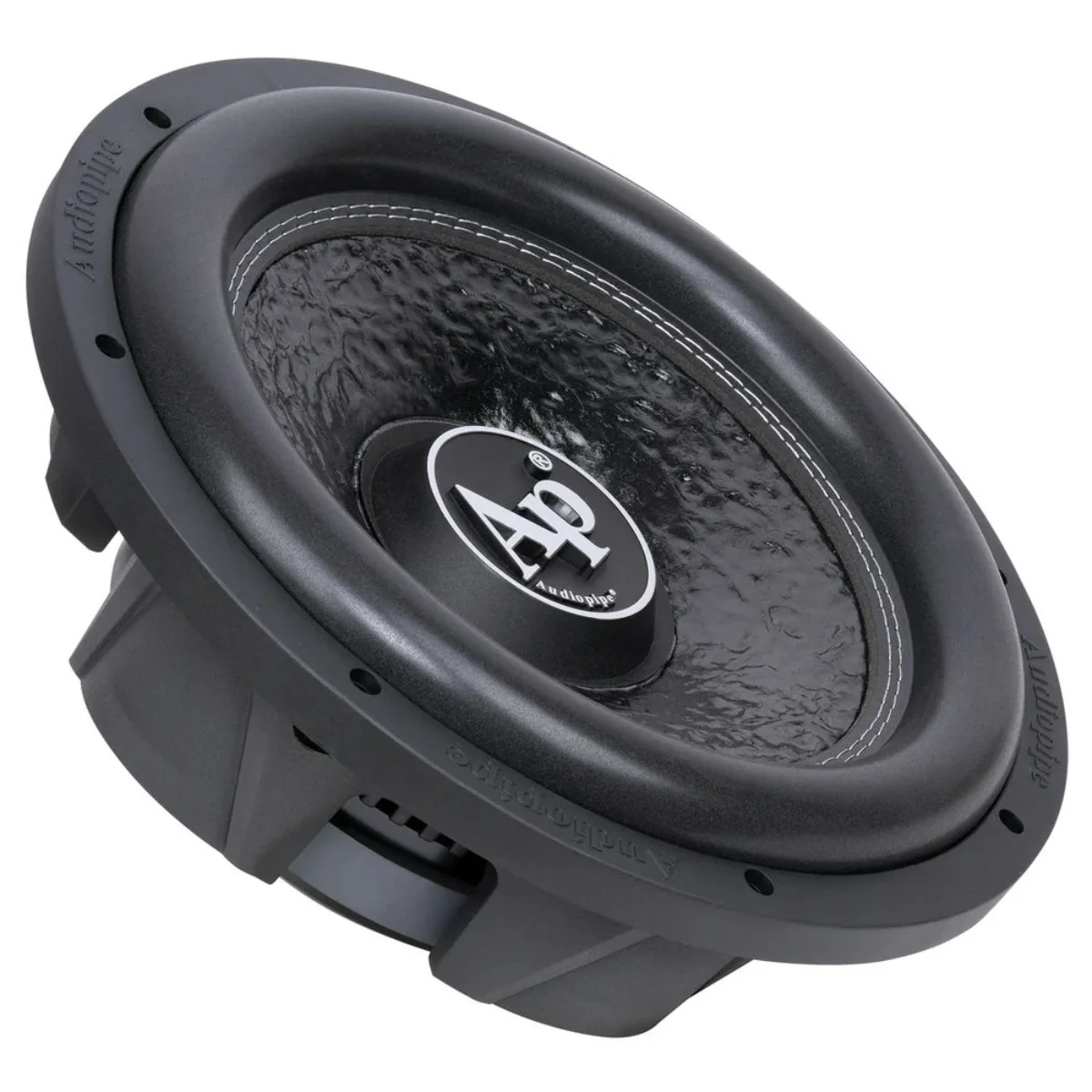

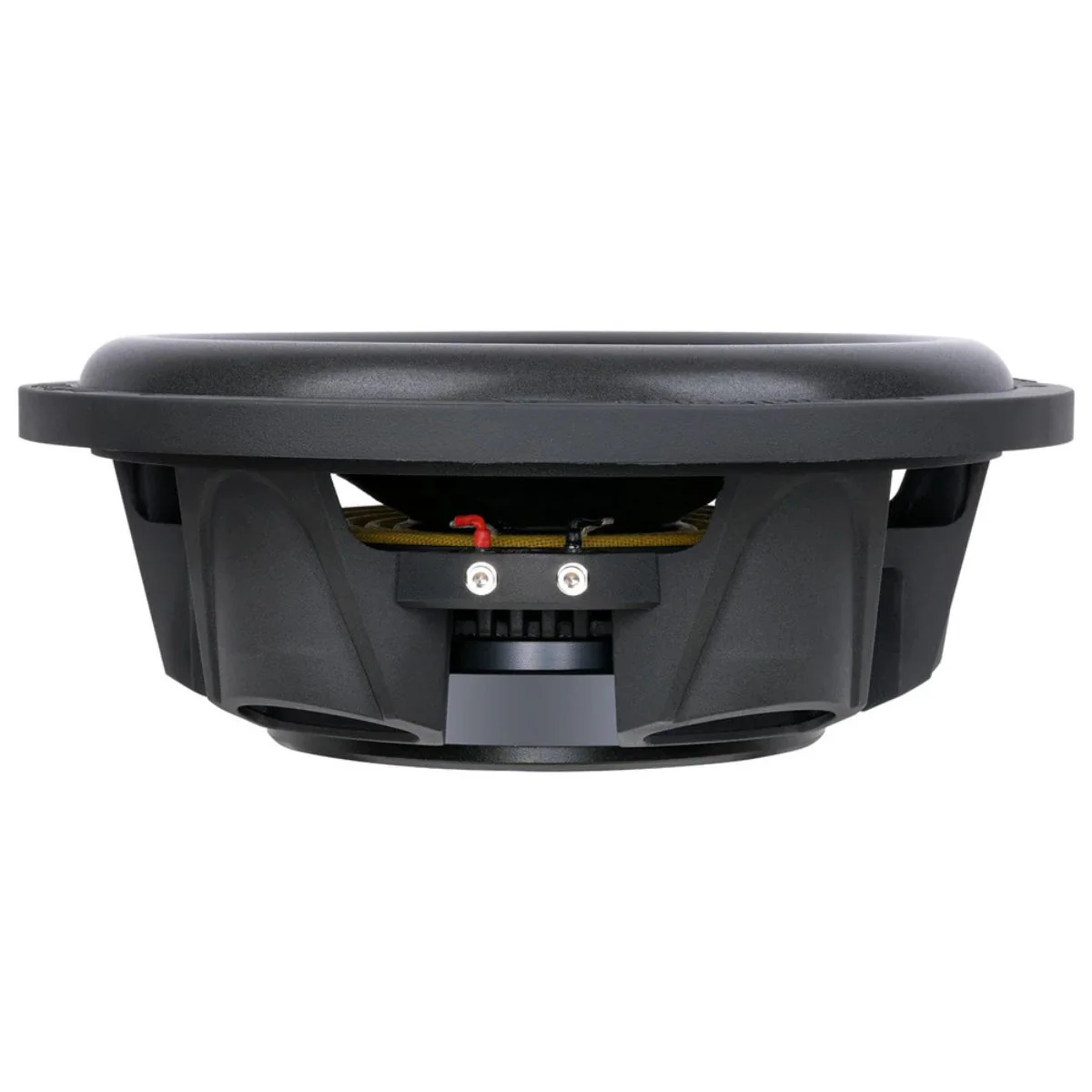

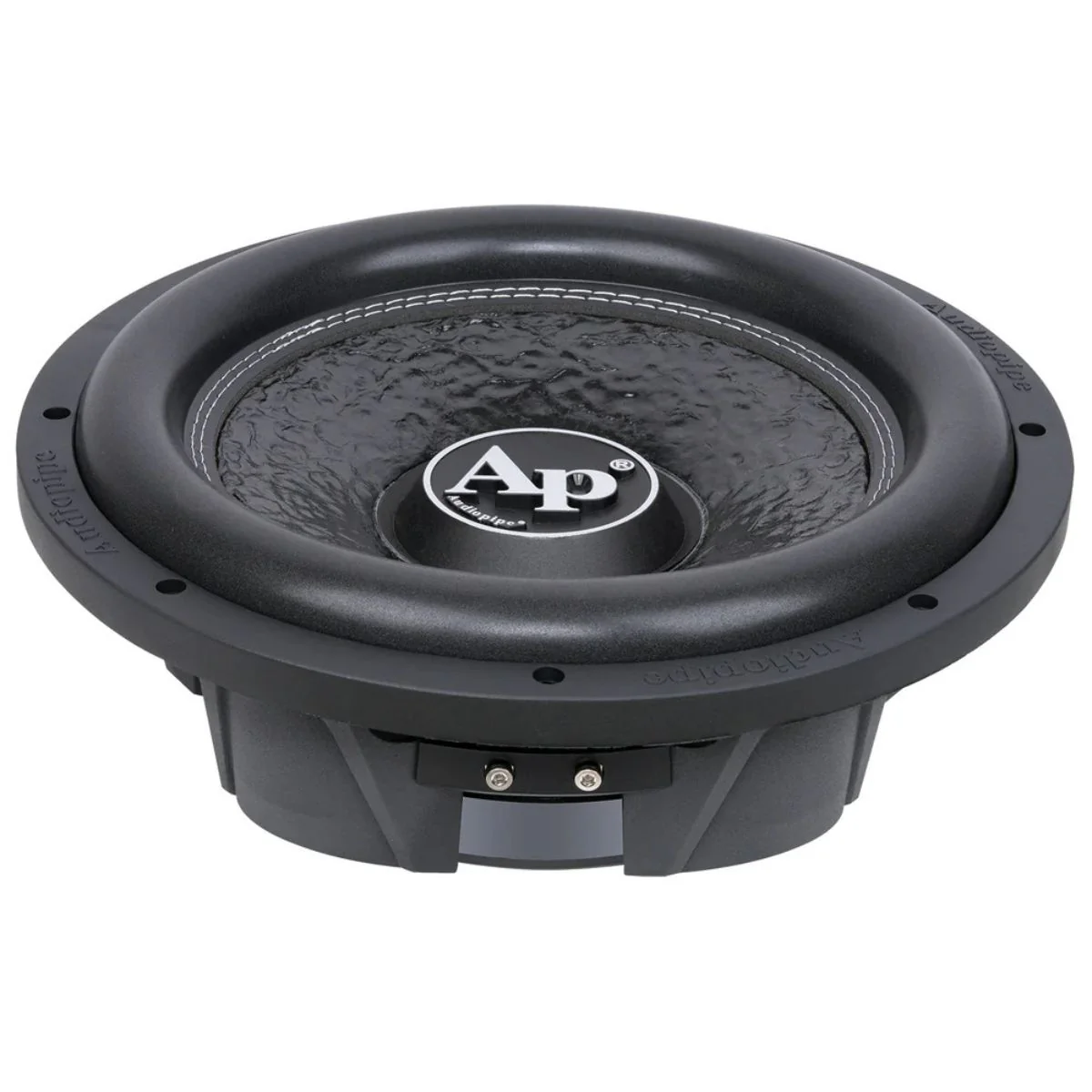

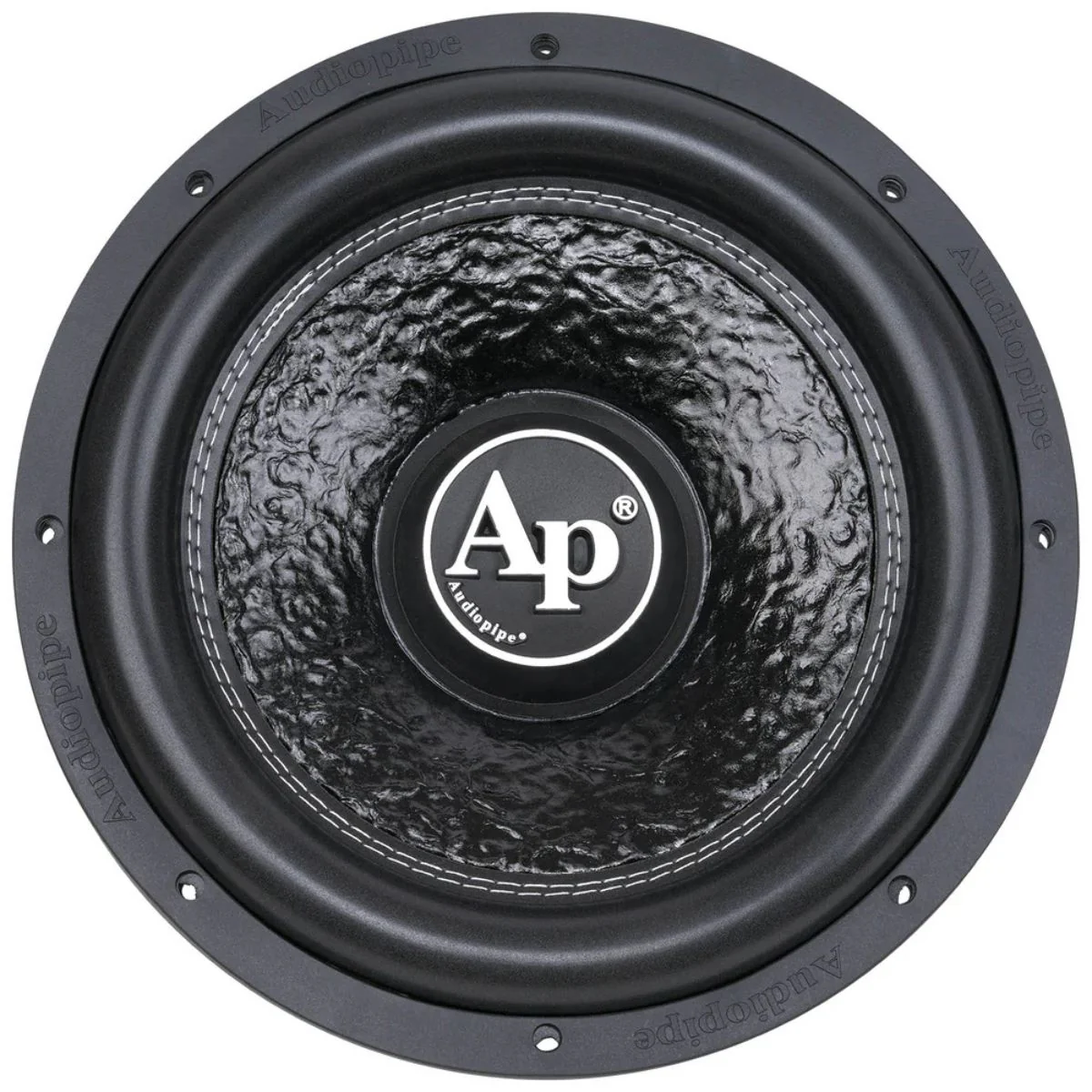

Audiopipe 12" 400 Watt RMS 4-Ohm Shallow Mount Car Audio Subwoofer TXX-FB1200-S4

This listing includes:

• (1) 12" TXX-FB1200-S4 Subwoofer


• User Manual

Big bass. Small space. Zero excuses.

The Audiopipe TXX-FB1200-S4 is built for systems where depth is limited but expectations aren't. At just 3.9 inches of mounting depth, this 12" shallow sub drops serious low-end punch into trucks, sedans, under-seat enclosures, and custom slim builds without sacrificing output or control.

Powered by a 3-inch high-temperature 4-layer BASV voice coil and backed by a 65 oz magnet, this subwoofer handles real power confidently at 400 watts RMS. The non-pressed textured paper cone and foam surround keep bass tight, musical, and distortion-controlled, while the rigid powder-coated aluminum basket keeps everything stable under pressure.

This isn't a "budget shallow." It's a slim powerhouse built to hit clean and hit hard.

Features

• Only 3.9" mounting depth for tight enclosures


• True 400W RMS power handling


• 3" BASV 4-layer voice coil for heat management


• High-strength 65 oz magnet motor


• Clean, tight low-frequency response


• Premium aluminum basket construction


• Perfect for trucks, sealed shallow boxes, and stealth installs

Specifications:

• Power Rating: 400W RMS / 800W Max


• Impedance: Single 4 Ohm


• Frequency Response: 35 -1,500 Hz


• Sensitivity: 89 dB


• Voice Coil Diameter: 3" (77.5 mm, 4-layer BASV)


• Magnet: 65 oz


• Mounting Depth: 3.9 in (100 mm)


• Woofer Displacement: 1.0 L


• Net Weight: 16.1 lbs / 7.3 kg


• Cone: Non-press textured paper cone


• Basket: Powder-coated aluminum with composite glass fiber dust cap


• Linear Excursion (Xmax): 0.47" (12 mm)


• Maximum Excursion (pk-pk): 1.06" (27 mm)


• Re (Ohms): 3.6


• BL (T*M): 21.8


• SPL (1W/1M): 89 dB


• Cms (mm/N): 0.076


• Qts: 0.36


• Vas (L): 28

Dimensions:

• Length: 14"


• Width: 6"


• Height: 14"
