• 1700W RMS / 3400W Max Power – Delivers crushing bass with reliable continuous power
• 4" 4-Layer BASV Voice Coil – High-temp dual coil design for superior heat handling and performance
• Dual 4 Ohm Impedance (2x4-Ohms) – Flexible wiring for series or parallel configurations

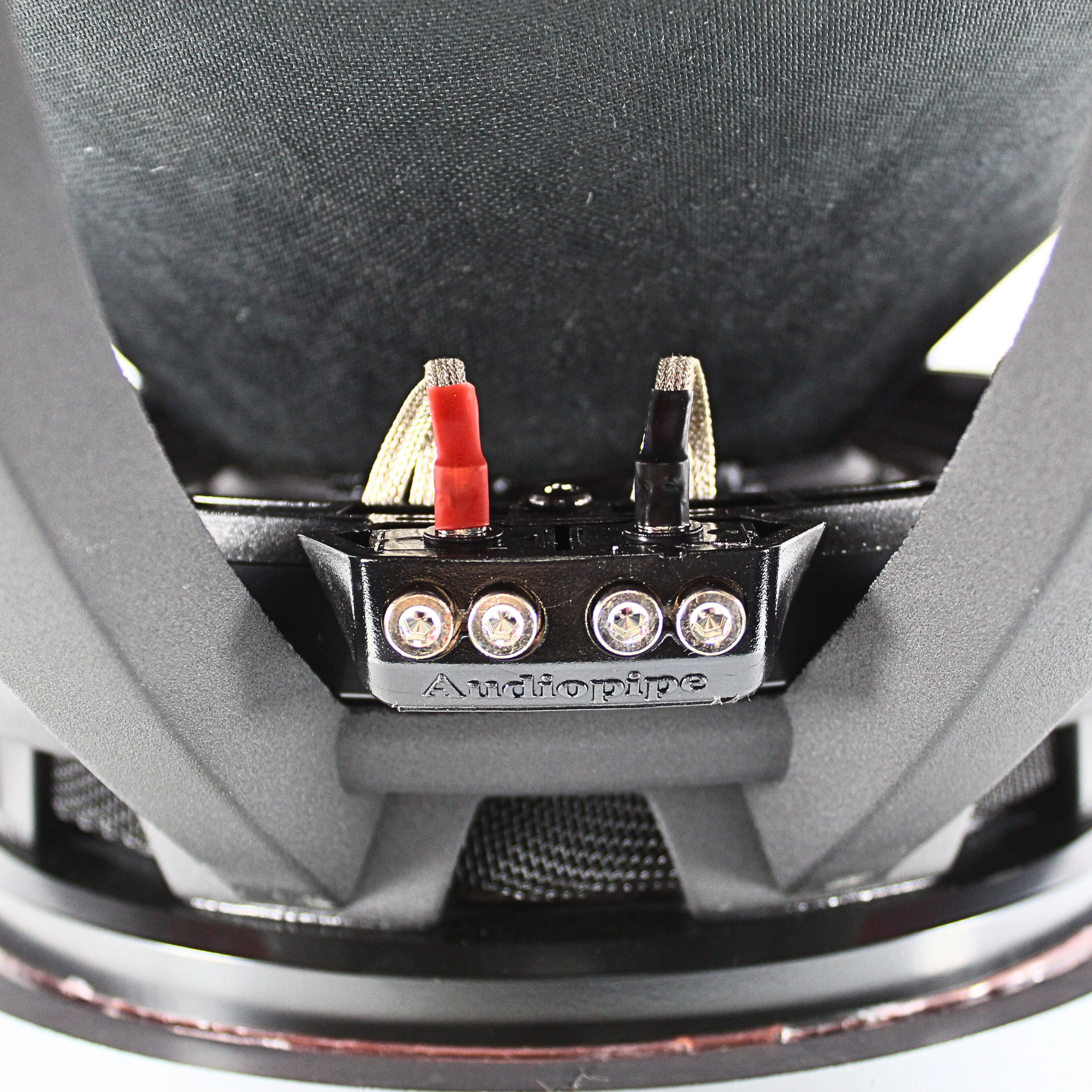

• "EASY CONNECT" Terminals – Simplifies secure wiring for fast, clean installations
• Triple-Stack 340 oz Magnet – Massive motor structure ensures deep excursion and high SPL output

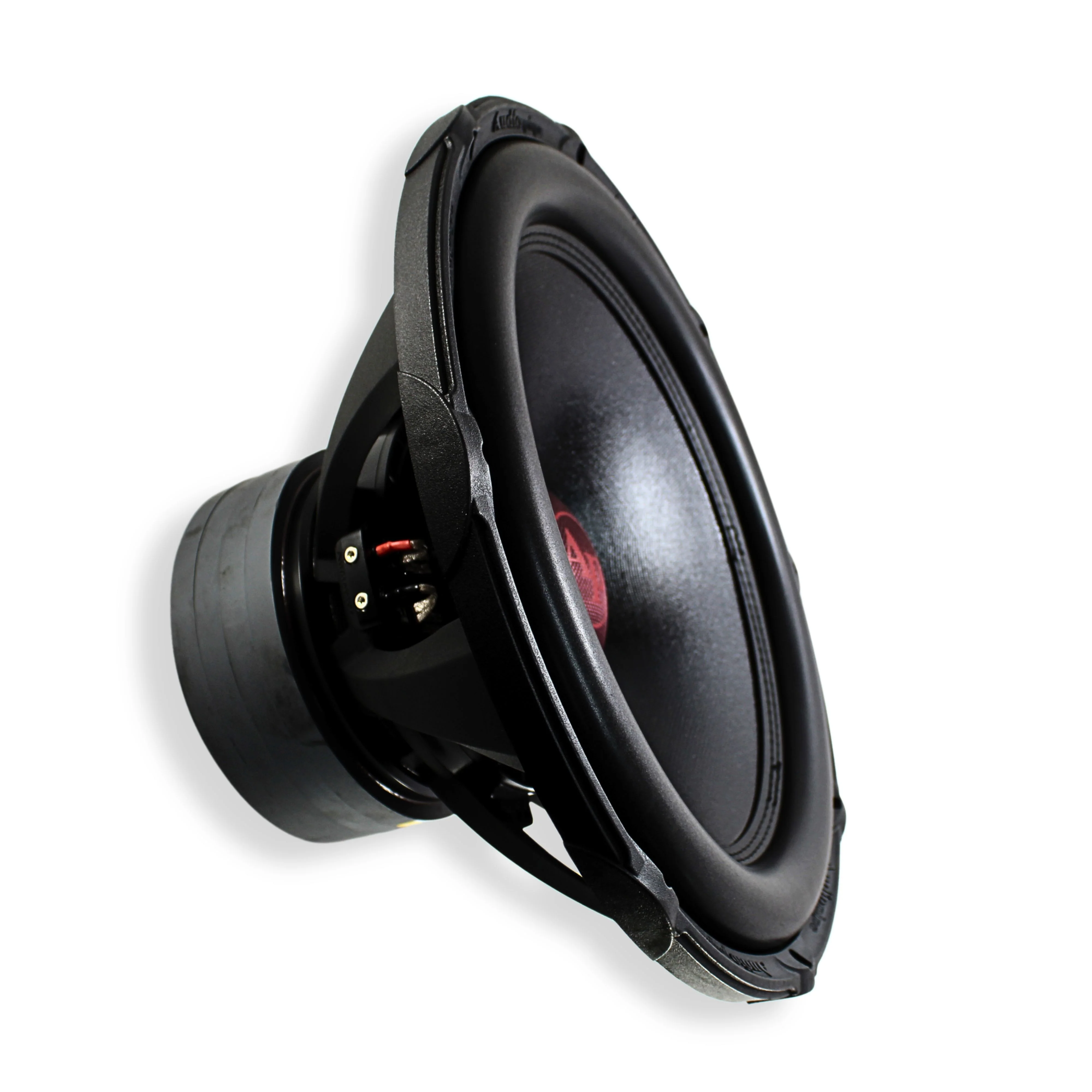

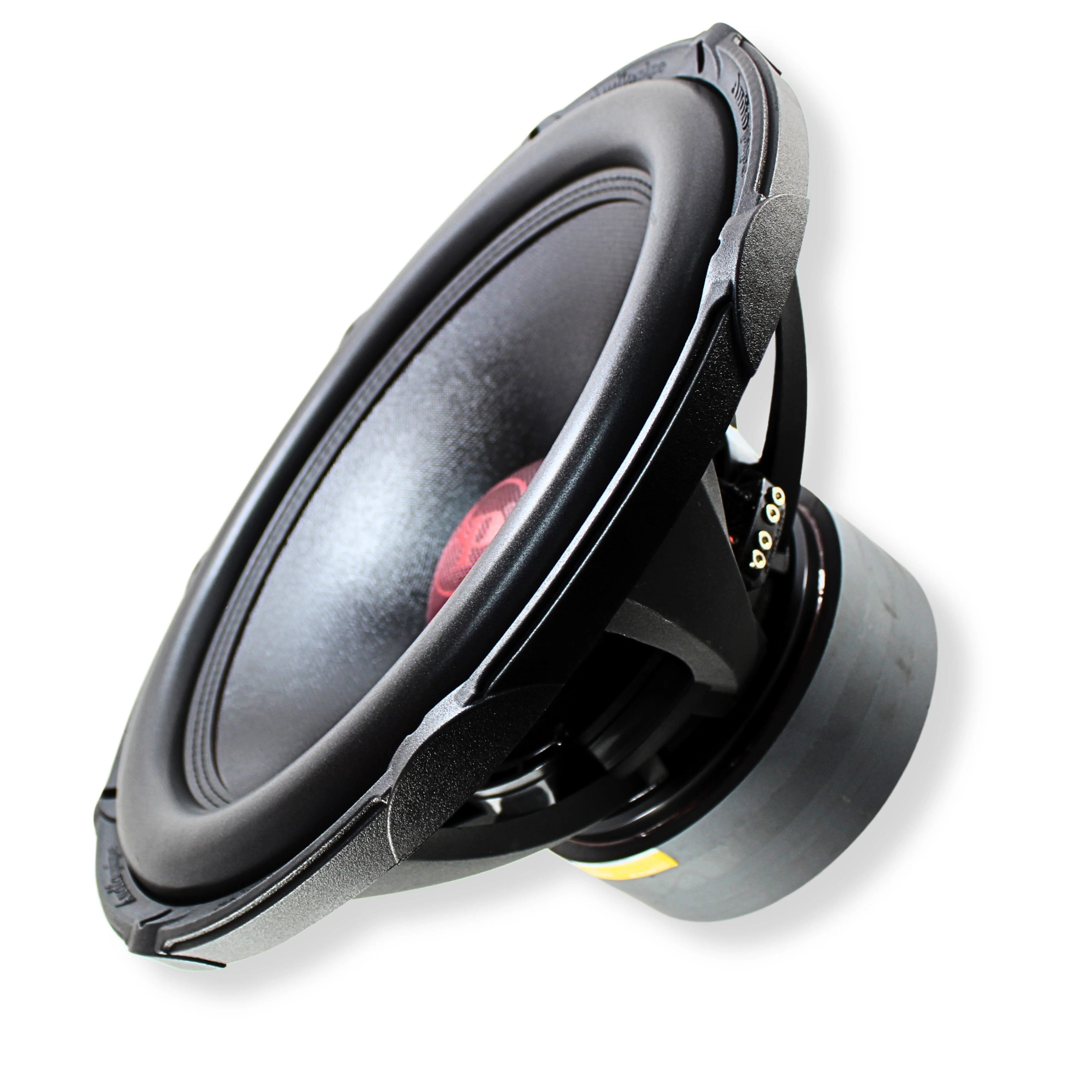

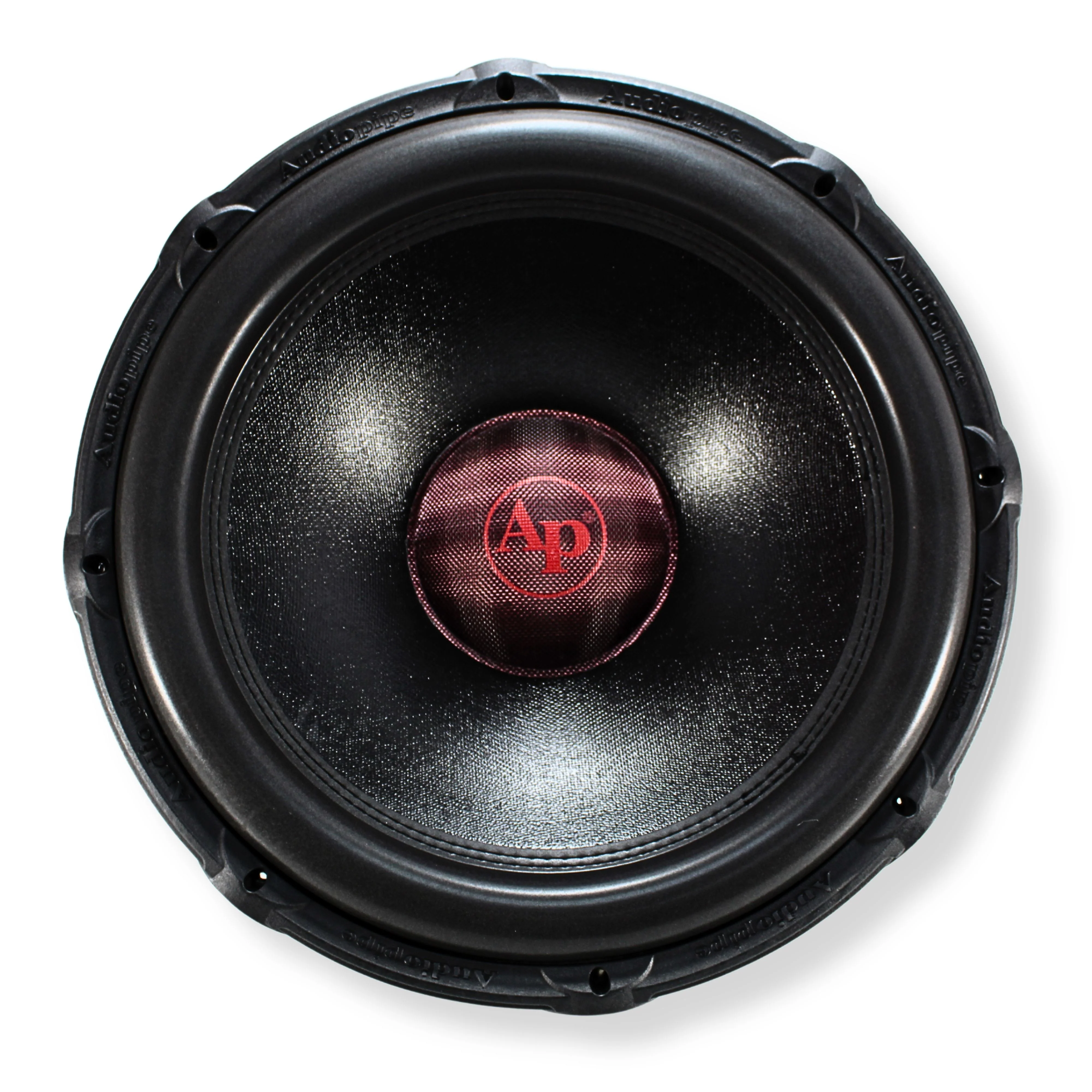

Audiopipe 18" 1700 Watt RMS Dual 4-Ohm 4" Voice Coil Subwoofer TXX-BDC-IV-18D2

Included In This Listing:

(1) 18" 1700 Watt Duel 4-Ohm VC Audiopipe Subwoofer

Push the limits of low-frequency power with the American Bass TXX-BDC-IV-18D2 - A beast built for serious bass heads and SPL competitors. Engineered to dominate in high-power systems, this 18-inch dual 2-ohm subwoofer delivers thunderous output and relentless performance. Featuring a massive triple-stacked magnet, 4" voice coil, and a high-roll foam surround, the TXX-BDC-IV-18D2 is built to take punishment and deliver clean, deep bass that shakes the block.

If you're building a monster system and need a sub that can handle insane wattage without breaking a sweat, this is your weapon of choice.

Features

• Massive Power Handling: Handles 1400W RMS and 2800W max for thunderous bass output


• Oversized 4" Voice Coil: High-temp, multi-layer voice coil for improved thermal performance and durability


• Triple Stack Magnet Motor: Delivers strong motor force for extreme excursion and cone control


• Heavy-Duty Cast Aluminum Basket: Provides rigid support and heat dissipation for high-performance longevity


• Non-Pressed Paper Cone: Lightweight yet durable cone for accurate low-frequency reproduction


• High-Roll Foam Surround: Allows for extended excursion and better air movement


• Dual 2-Ohm Voice Coils: Flexible wiring options for series, parallel, or 1-Ohm final impedance setups


• Optimized for Ported Enclosures: Designed to perform best in well-tuned ported boxes for deep, resonant bass

Specifications:

• Subwoofer Size: 18"


• RMS Power Handling: 1700 Watts


• Max Power (P.M.P.O.): 3400 Watts


• Voice Coil Size: 4" 4-Layer BASV


• Voice Coil Configuration: Dual 4 -Ohm (2x4-Ohm)


• Frequency Response: 15Hz - 800Hz


• Sensitivity (1W/1m): 90 dB


• Magnet Weight: 340 oz (21.25 lbs / 9.6 kg)


• Basket Material: Powder-coated black aluminum


• Cone Material: Non-pressed paper cone


• Surround Type: High-roll foam


• Mounting Depth: 9-5/8" (245mm)


• Cutout Diameter: - 16.75" (425mm)


• Overall Diameter: - 18.5" (470mm)


• Wiring Terminals: "Easy Connect" push-style terminals


• Subwoofer Weight: - 43 lbs (19.5 kg)

Recommended Enclosure Specs:

• Type: Ported


• Volume: 5.0 - 6.0 cu. ft.


• Tuning Frequency: 32-36 Hz


• Mounting Depth Clearance: Minimum 11"

Package Dimensions:

• Length: 19.7"


• Width: 11.7"


• Height: 19.7"
