• Powerful 2-Way Design: Combines a high-output 6x9" mid-range driver with an integrated 3" compression horn for crystal-clear vocals and punchy mids
• High Power Handling: Delivers 200W RMS and 400W max power, ideal for high-volume car audio and pro sound setups without distortion
• Slim Fit, Easy Install: Flat steel basket with a shallow 3-7/8" mounting depth fits most car doors, speaker pods, and custom builds
• Hybrid Magnet System: Features an 18 oz ferrite and neodymium combo for stronger magnetic force and improved response
• Durable Protective Grill: Includes steel mesh grill for added protection against debris and impact, without compromising sound quality

Audiopipe 6x9 2-Way 200W RMS 4 Ohm Compression Horn Midrange Speaker

This listing includes:

• (1) Audiopipe APMB-698G-CHF 6x9" Mid-Range Horn Loudspeaker

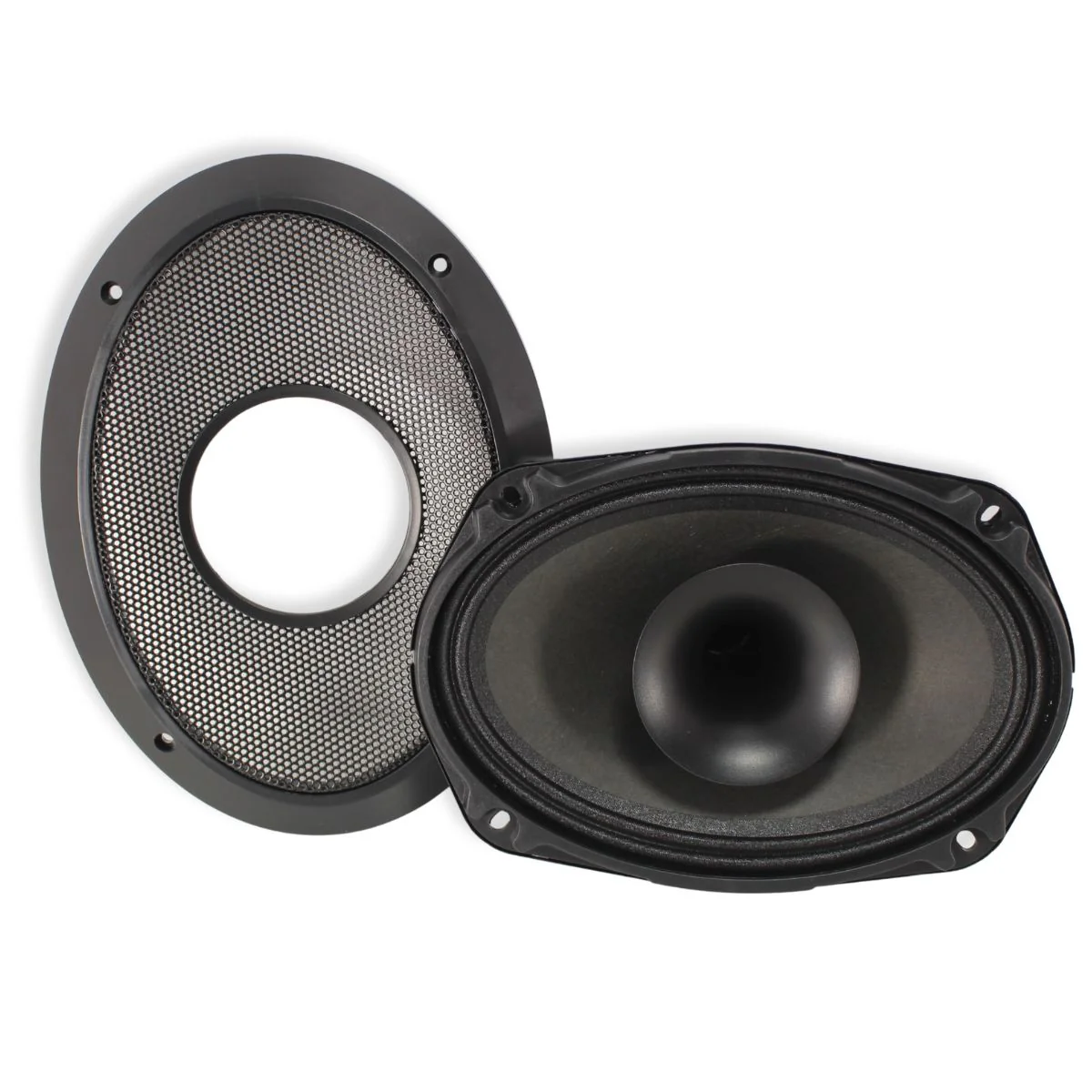

• (1) Protective Steel Grill

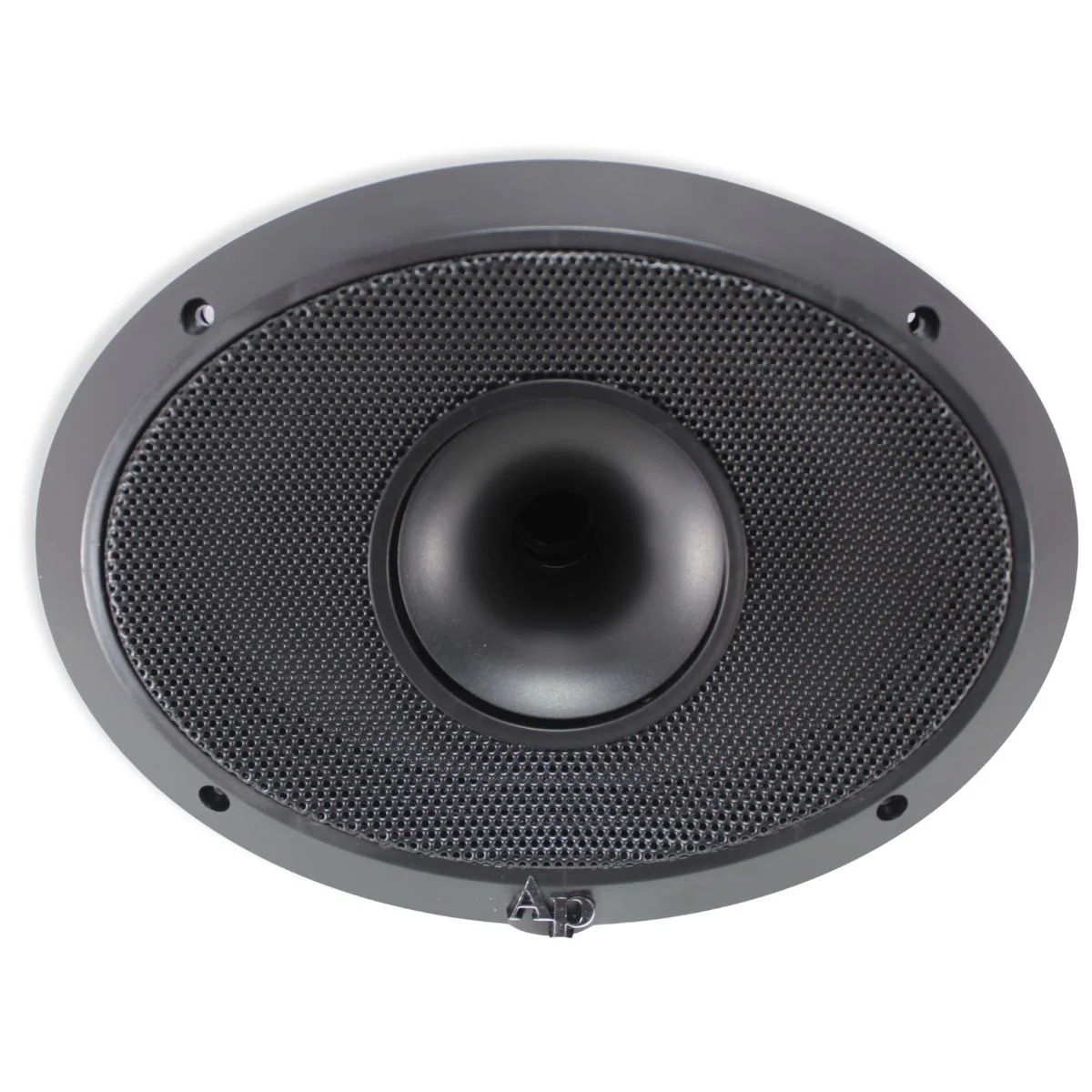

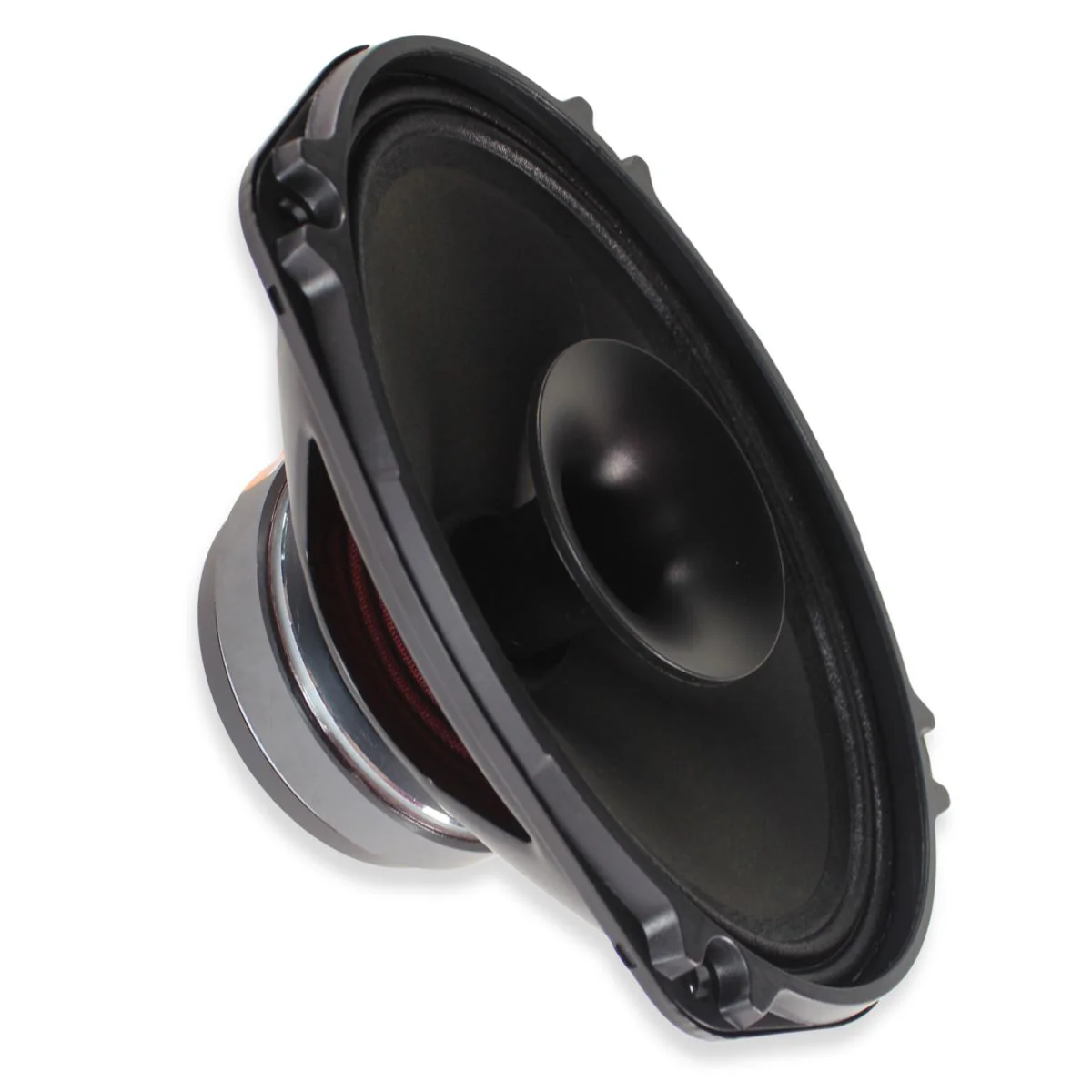

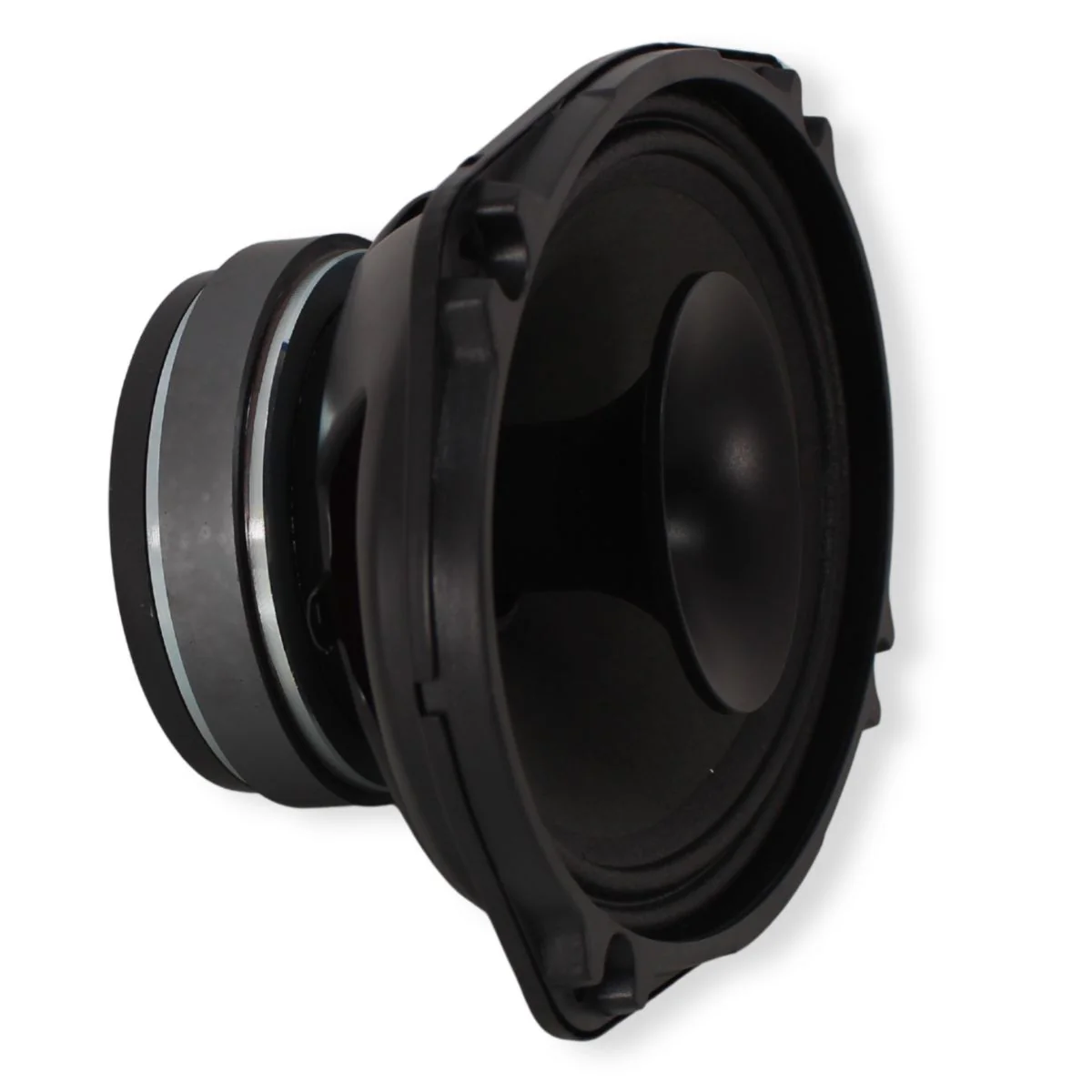

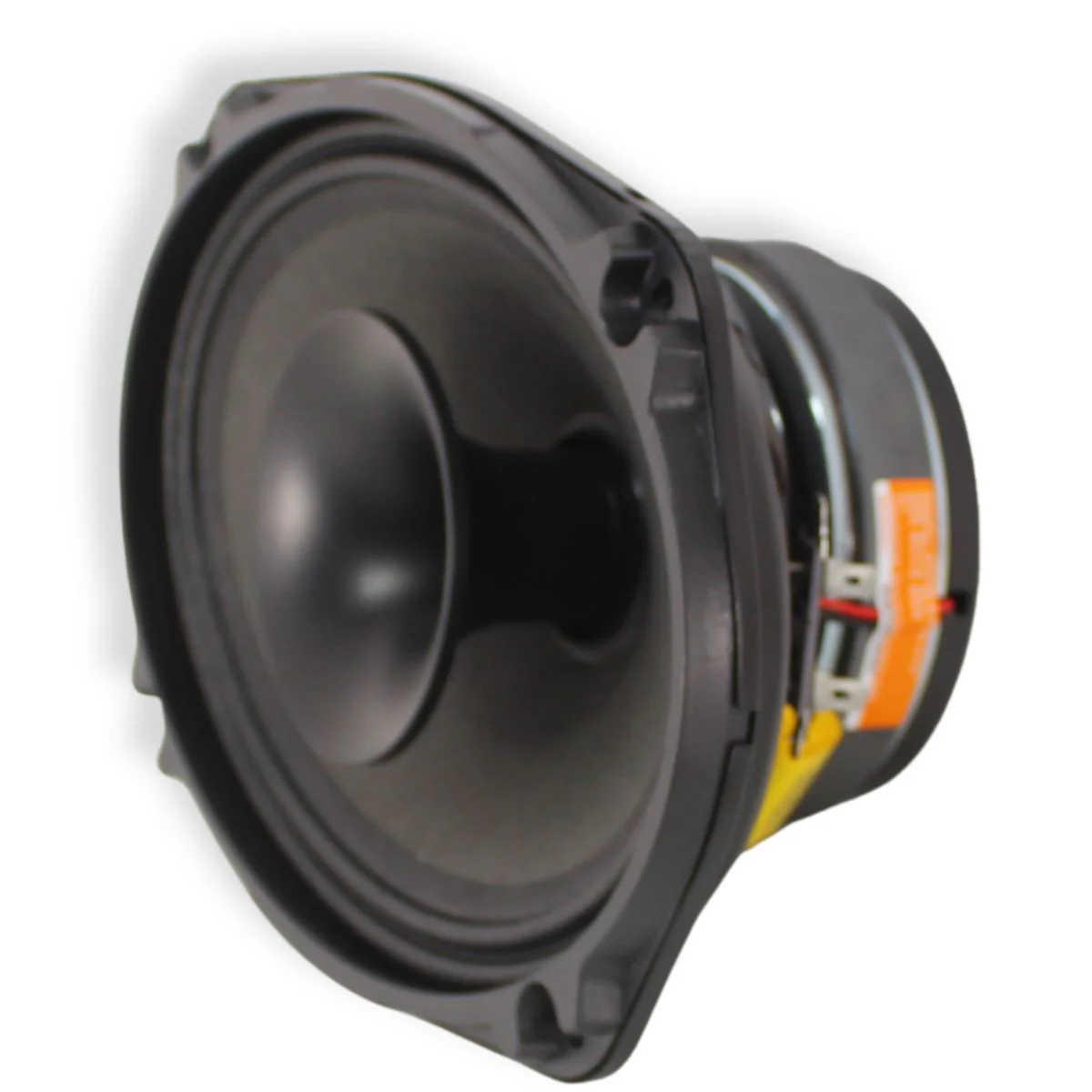

Elevate your car or stage audio setup with the Audiopipe APMB-698G-CHF, a powerful 6x9" compression horn mid-range loudspeaker designed for pro-level clarity and output. Its unique 2-way coaxial design integrates a high-output mid-range driver with a precision-loaded 3" compression horn, delivering an exceptional frequency response from 80Hz to 20kHz.

Key Features:

• Professional Mid-Range Performance: 2-way coaxial design with built-in 3" compression horn


• Power Handling: 400W Max / 200W RMS


• Wide Frequency Range: 80Hz – 20kHz (3dB)


• High Sensitivity: 91dB for louder, clearer output


• Voice Coil: 1.5" Kapton voice coil for heat resistance and durability


• Impedance: 4 Ohms


• Horn Diameter: 3"


• Magnet Structure: Hybrid 18 oz Ferrite + Neodymium


• Mounting Depth: 98mm (3-7/8")


• Protective Grill: Included to guard against debris and damage

Specifications:

• Model: APMB-698G-CHF


• Speaker Type: 2-Way Compression Horn Mid-Range


• Speaker Size: 6x9"


• Peak Power Handling: 400 Watts (P.M.P.O.)


• RMS Power Handling: 200 Watts


• Frequency Response: 80Hz – 20kHz (3dB)


• Sensitivity: 91 dB


• Impedance: 4 Ohms


• Voice Coil Diameter: 1.5" Kapton


• Horn Diameter: 3"


• Magnet Type: Hybrid Ferrite & Neodymium


• Magnet Weight: 18 oz


• Mounting Depth: 98 mm (3-7/8")


• Basket Type: Flat Steel


• Included Accessories: Protective steel grill


• Weight: 3.5 lbs


• Weight with Grill: 3.9 Lbs

Package Dimensions:

• Length: 10.9"


• Width: 8.3"


• Height: 5.6"
