• HIGH-OUTPUT SUBWOOFER – Delivers 300W RMS and deep bass from 29Hz–1500Hz for tight, powerful low-end sound.
• MATCHED MONOBLOCK AMPLIFIER – Pairs perfectly with the subwoofer, delivering up to 1024W RMS at 1 ohm for max output.
• ADVANCED VOICE COIL – 2.5" 4-layer Kapton coil ensures heat resistance and reliable performance at high power levels.
• CLASS D EFFICIENCY – Compact APMQ-1300 amp uses MOSFET circuitry for clean, efficient power with minimal distortion.
• FULL BASS CONTROL – Includes remote bass knob and variable filters for customizable, in-car audio tuning on the fly.

Audiopipe Pro 12" 300W 4-Ohm Subwoofer + 1000W Monoblock Class D Amp Combo

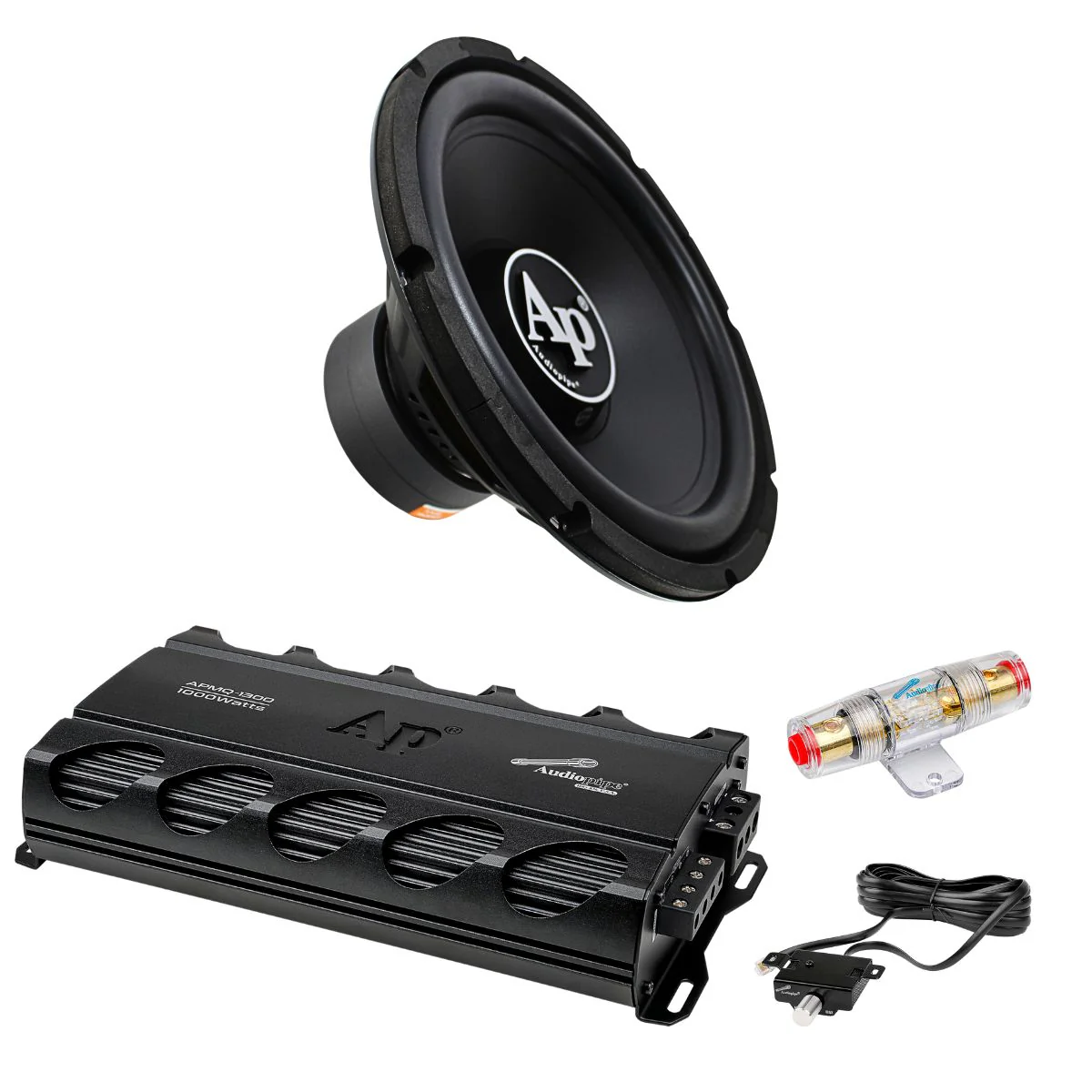

This listing includes:

• (1) Audiopipe Pro Car Audio 12"  300 Watt RMS 4-Ohm 29Hz-1500Hz Subwoofer TS-PP2-12


• (1) Monoblock Class D Mini Amplifier Audiopipe Series APMQ-1300

Description:

This subwoofer and amplifier combo has been carefully matched to deliver optimal performance, efficiency, and clarity for your car audio system. The Audiopipe TS-PP2-12 12" 300 Watt RMS 4-Ohm Subwoofer is engineered for deep, responsive bass with a broad frequency response of 29Hz–1500Hz and a high-strength 68 oz magnet. Its 2.5" 4-layer Kapton voice coil and durable steel frame ensure long-term durability and performance under pressure.

To power this subwoofer efficiently and effectively, we’ve paired it with the Audiopipe APMQ-1300 1000 Watt Monoblock Class D Amplifier, which delivers 1024 watts RMS at 1 ohm—perfect for extracting maximum output from the 4-ohm sub when wired correctly in a safe configuration. This Class D amp uses advanced MOSFET circuitry for clean, high-power output with low distortion, while a variable low-pass filter and remote bass knob give you total control over your sound.

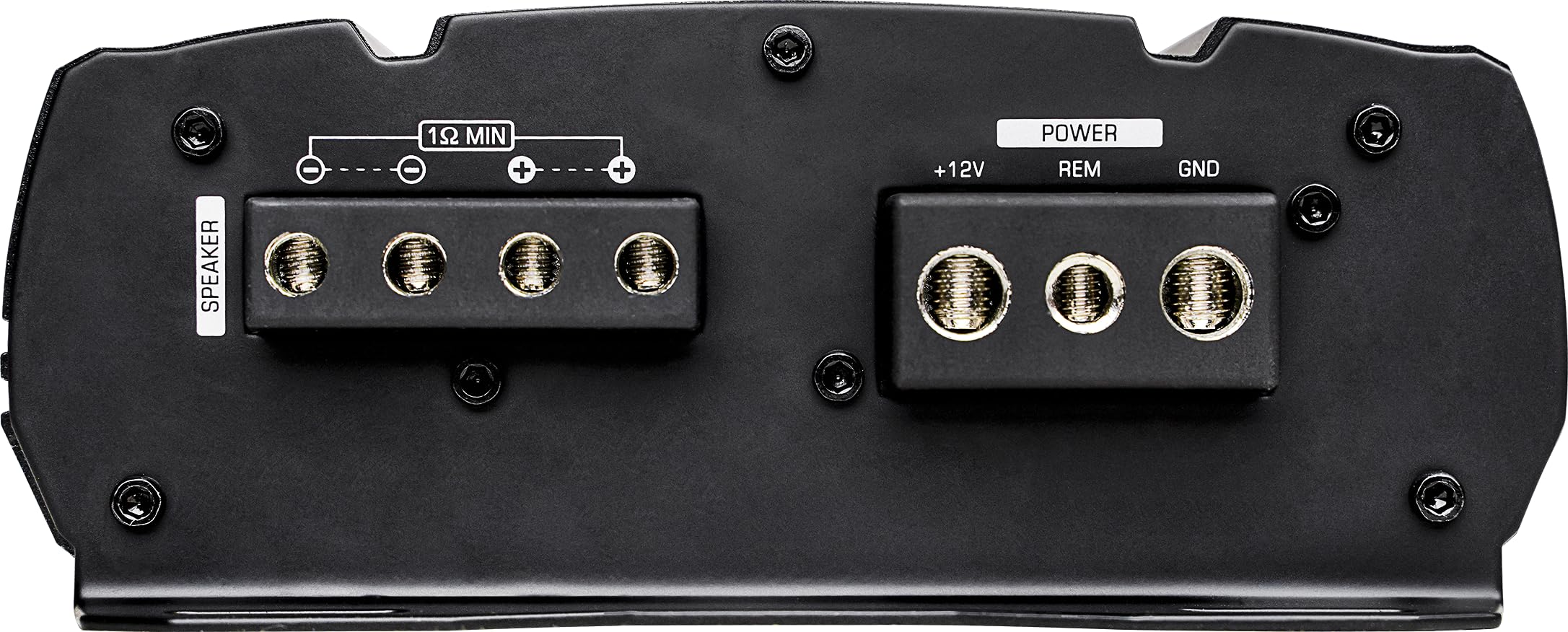

Wiring method: VC (+) to Amp (+), VC (–) to Amp (–)

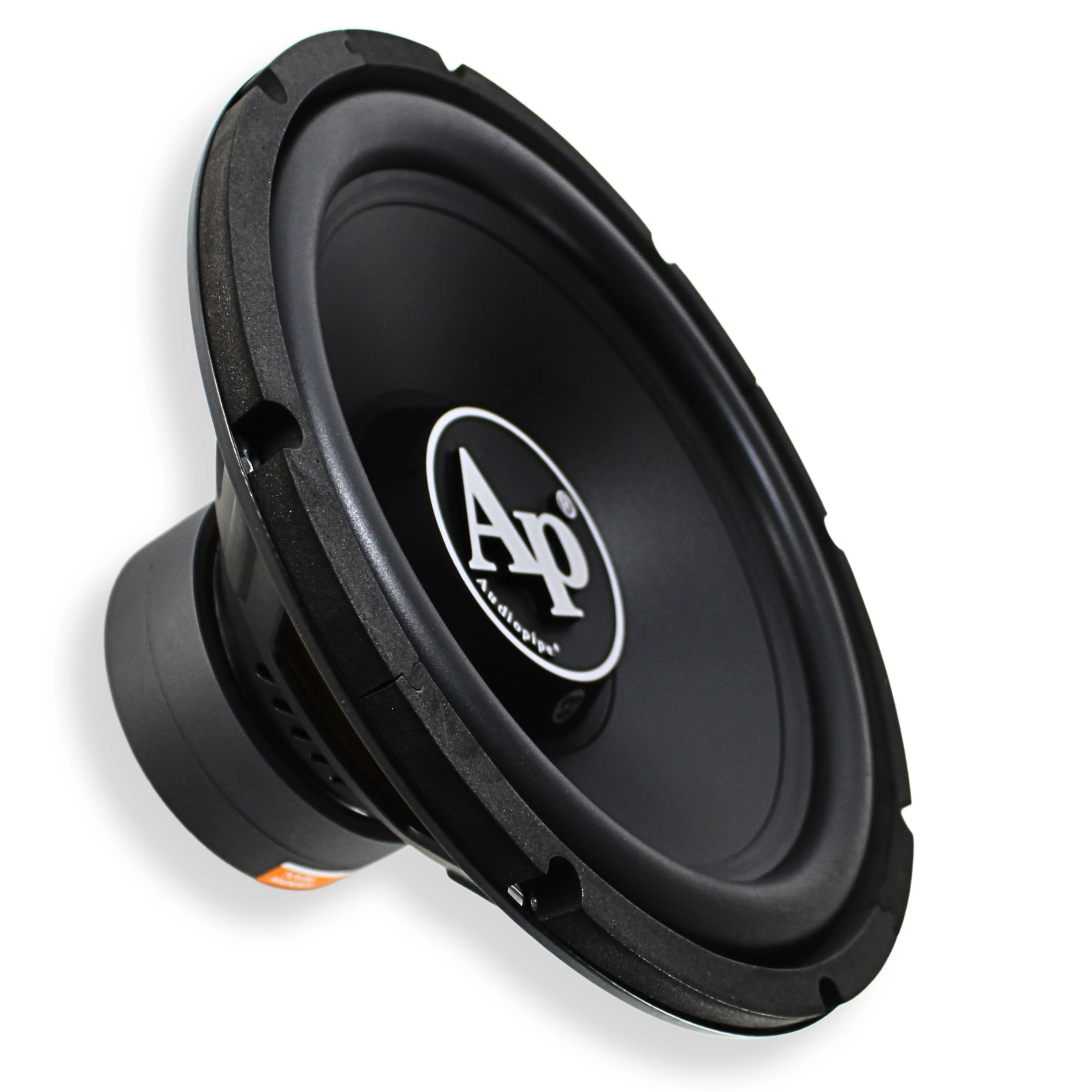

Subwoofer TS-PP2-12 Key Features:

• Peak Power Handling: 1000 Watts (P.M.P.O.)


• Continuous Power: 300 Watts RMS


• 2.5" 4-Layer High-Temperature Kapton Voice Coil


• Heavy-Duty Steel Frame for increased stability and reduced distortion


• Durable Polypropylene Cone with Rubber Surround


• 68 Oz Magnet for enhanced power and bass accuracy


• Mounting Depth: 5-5/8" (142mm)


• Impedance: 4 Ohms

Subwoofer TS-PP2-12 Specifications:

• Diameter: 12" (305mm)


• Sensitivity (2.83V@1m) : 86dB


• Power Handling: 300 Watts RMS


• Frequency Response: 29-1500Hz


• Nominal Impedance: 4 Ohms


• Voice Coil Diameter: 2" (51mm)

Subwoofer TS-PP2-12 Thiele-Small Parameters:

• Voice Coil DC Resistance - Revc (Ohms):  3.6


• Voice Coil Inductance @1kHz:  Levc(mH) " 2.0


• Driver Radiating Area Sd(in): 530


• Motor Force Factor Bl(Tm): 16


• Compliance Volume Vas(ft):  1.5


• Free-air Resonance: Fs(Hz) 32


• Maximum Excursion Xmax(in) 0.48

Subwoofer TS-PP2-12 Dimensions:

• Length: 12"


• Height: 6.5"


• Width: 12"


• Weight: 8.55 lb.

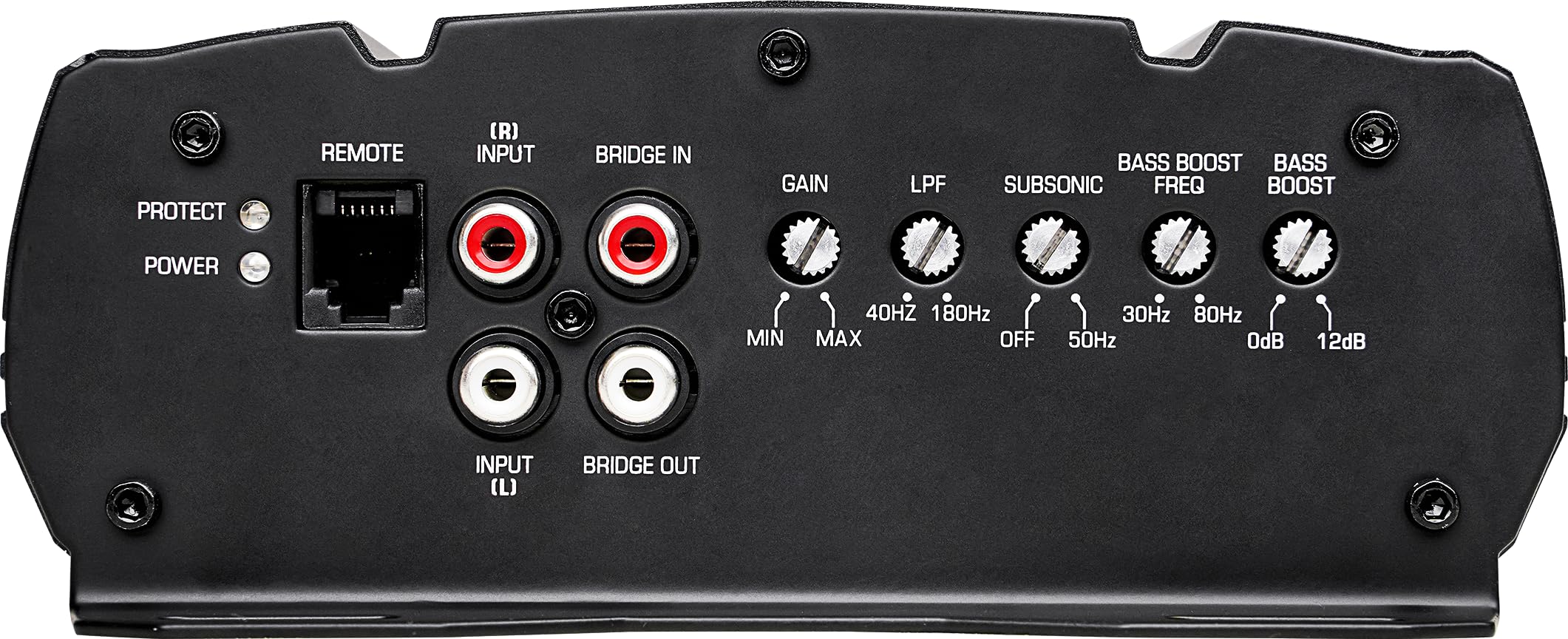

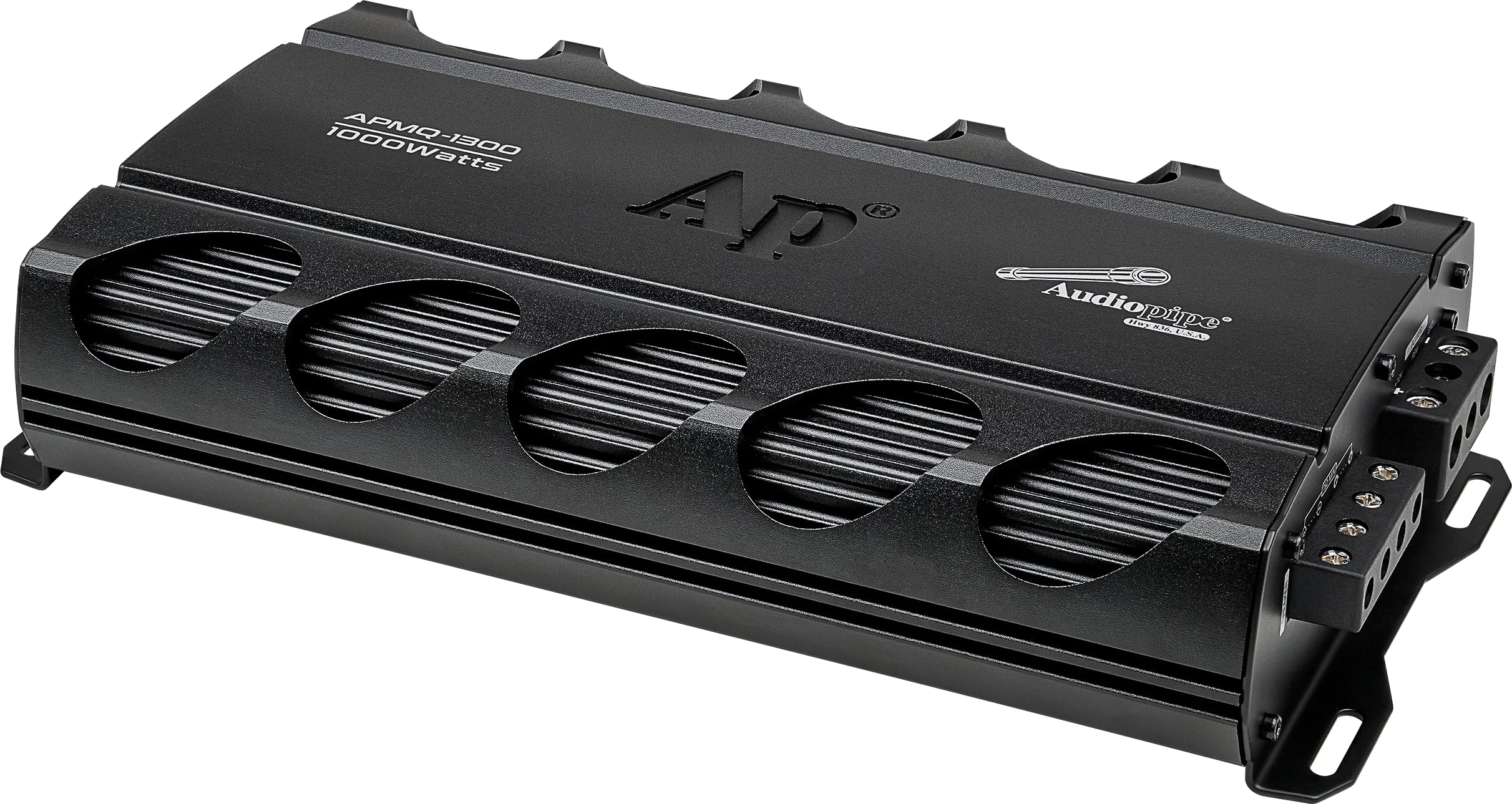

Amplifier APMQ-1300 Features:

• CLASS D MONO AMPLIFIER: Class D design delivers efficient power without sacrificing sound quality.


• COMPACT DESIGN: Slim build allows easy installation in most vehicle interiors.


• ADVANCED MOSFET CIRCUITRY: Uses MOSFETs for strong, low-distortion performance.


• VARIABLE SUBSONIC FILTER: Built-in filter removes low-end noise from 5–50Hz.


• VARIABLE LOW-PASS FILTER: Adjusts low-frequency output for optimal sound.


• LED INDICATOR: LED lights show amp status for easy monitoring and safety.


• RELIABLE PROTECTION: Built-in safeguards protect against heat, shorts, and low voltage.


• REMOTE BASS CONTROL: Includes bass knob for quick level adjustment from the dash.

Amplifier APMQ-1300 Specifications:

• PEAK POWER: 1000 WATTS


• RMS @ 4 Ohm (<1% Distortion): 376W


• RMS @ 2 Ohm (<1% Distortion): 648W


• RMS @ 1 Ohm (<1% Distortion): 1024W


• FREQUENCY RESPONSE: 18-180Hz


• SIGNAL TO NOISE RATIO: >70dB


• INPUT SENSITIVITY: 0.2-5V

Amplifier APMQ-1300 Dimensions (in inches):

• Length: 10.5"


• Width: 2.1"


• Height: 6.2"
