• POWERFUL BASS RESPONSE – 12" subwoofer delivers 300W RMS and hits deep with a 29Hz–1500Hz frequency range
• PERFECT MATCH – 800W Class D amp at 2 Ohms is tuned to drive the subwoofer to peak performance without distortion
• COMPACT DESIGN – Mini amplifier fits easily into tight spaces while delivering serious power and sound customization
• BUILT FOR DURABILITY – Subwoofer features a heavy-duty steel frame and 68 oz magnet for clean, distortion-free output
• CUSTOM TUNING OPTIONS – Amp includes subsonic filter, bass boost, and adjustable crossovers for tailored sound

Audiopipe Pro 12" 300W 4-Ohm Subwoofer Pair + 800W Class D Full-Range Amp Combo

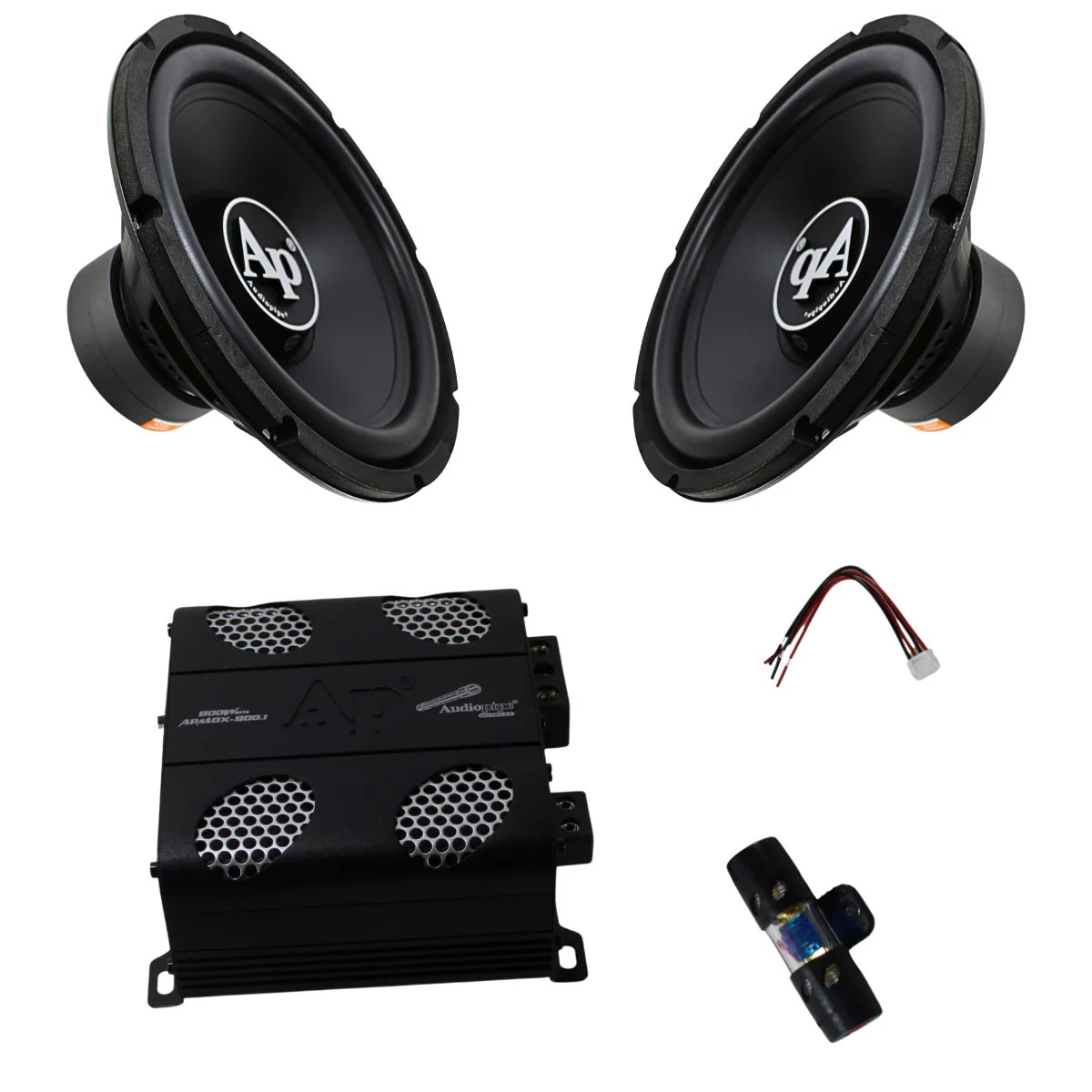

This listing includes:

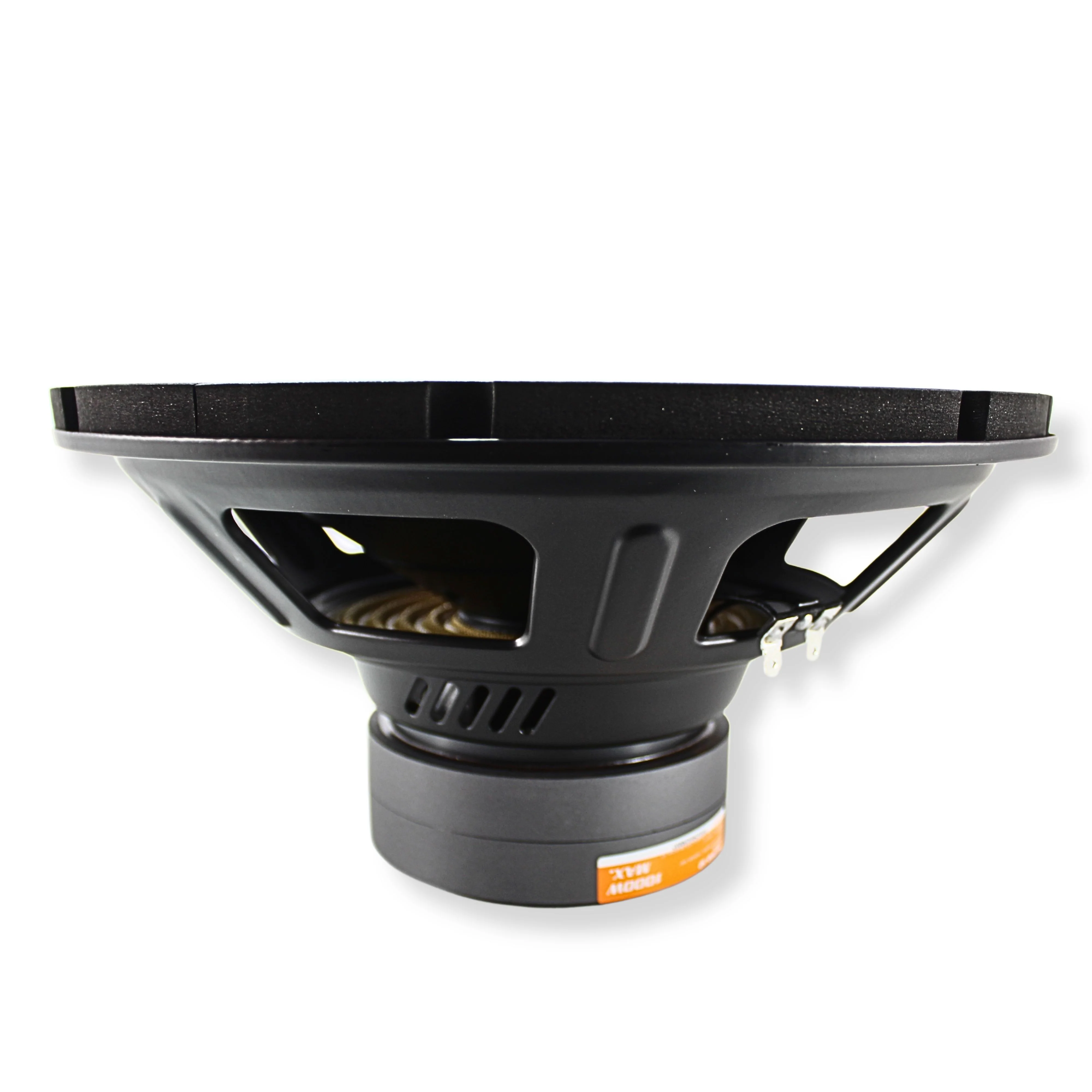

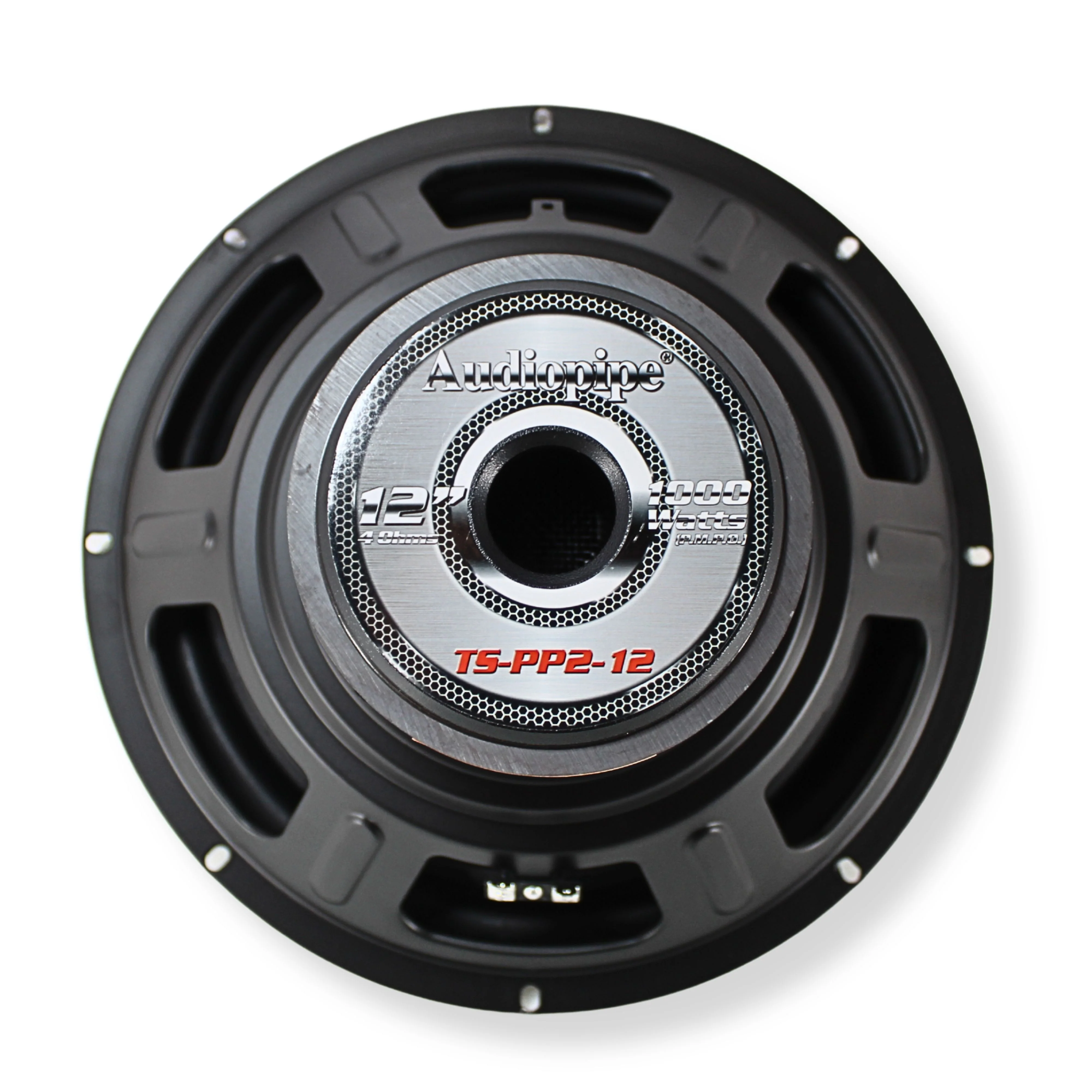

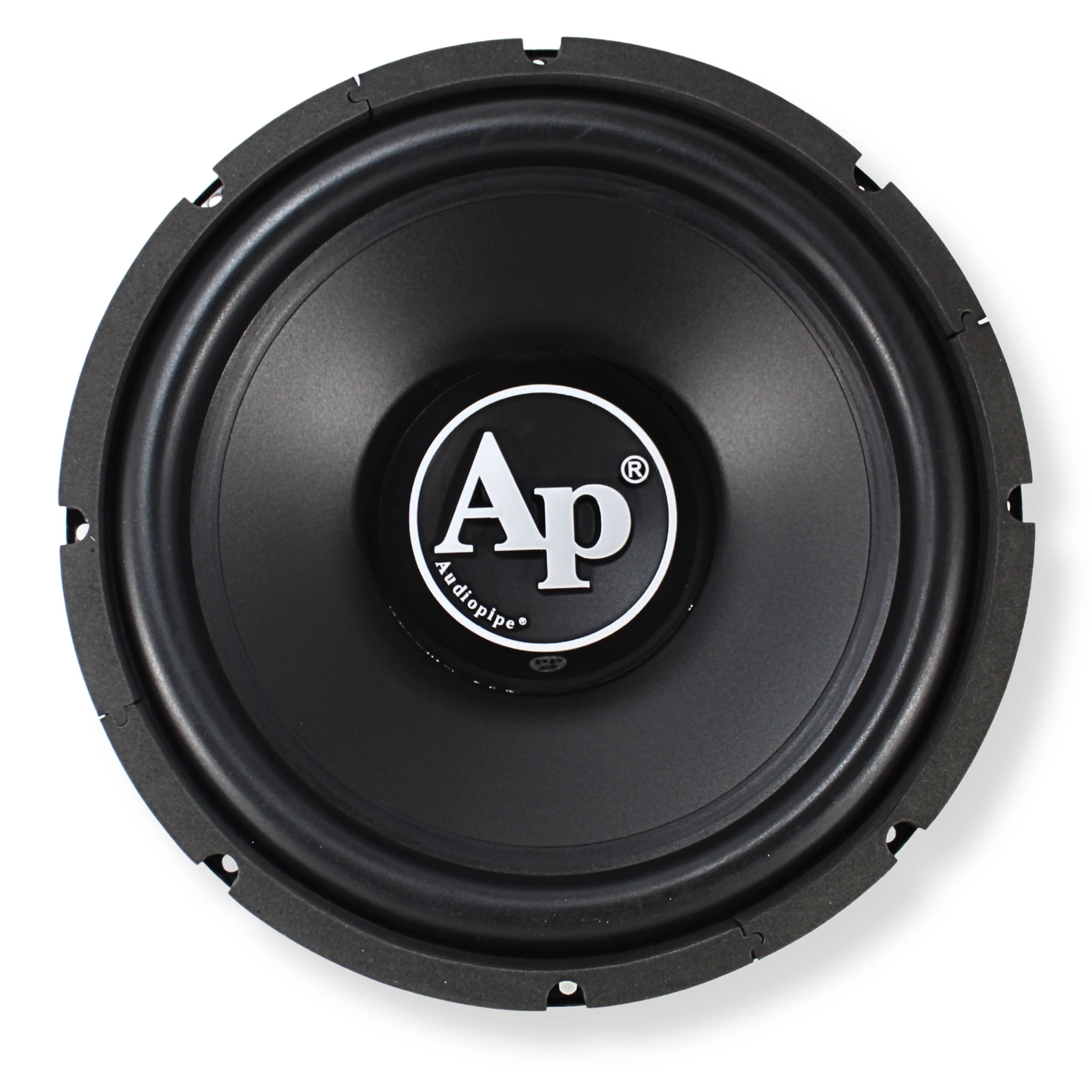

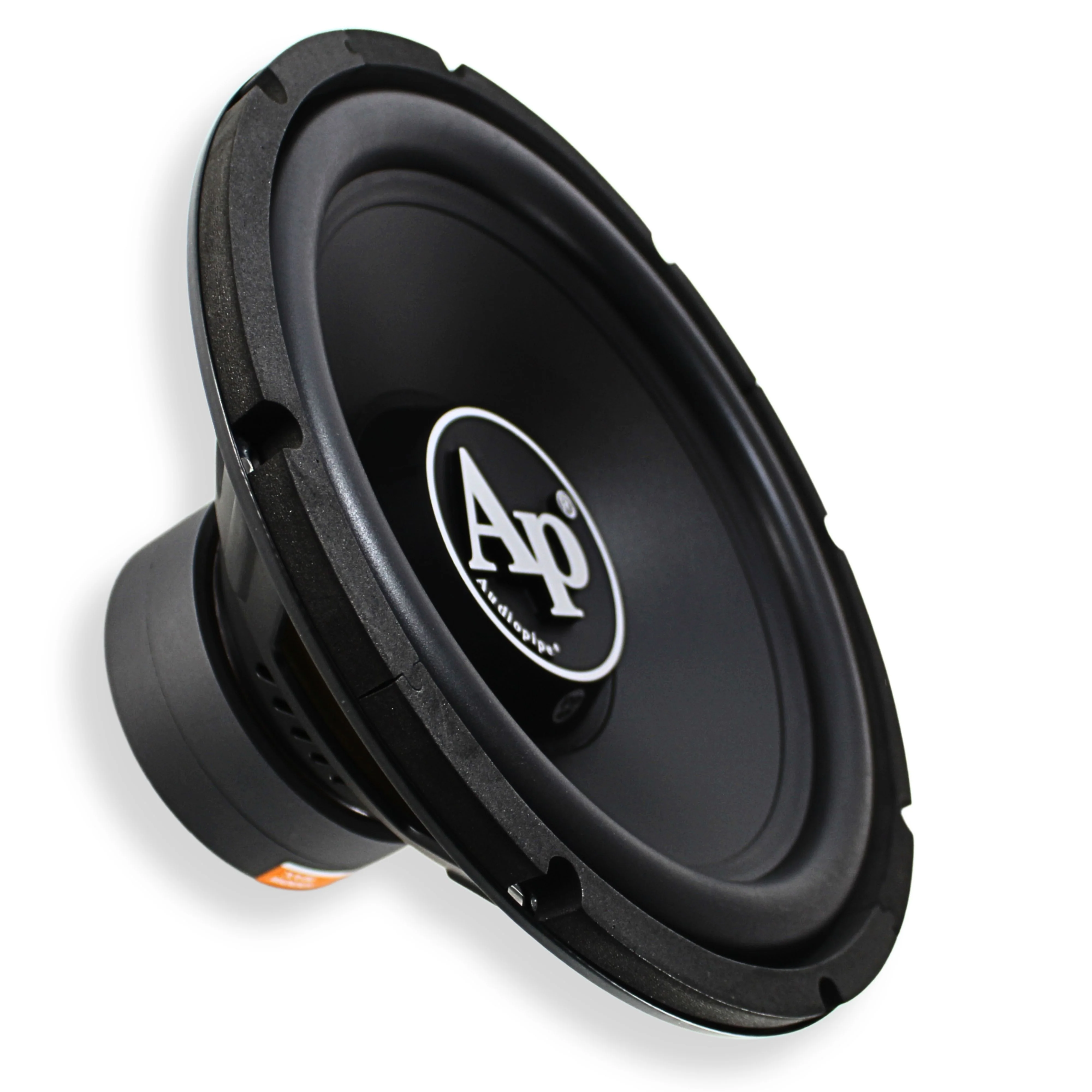

• (2) Audiopipe Pro Car Audio 12"  300 Watt RMS 4-Ohm 29Hz-1500Hz Subwoofer TS-PP2-12


• (1) Audiopipe APMOX-800.1 800W Monoblock Class D Mini Amplifier

Description:

Unleash clean, powerful bass in a compact setup with this matched Audiopipe combo featuring a 12" subwoofer and Class D amplifier. The Audiopipe TS-PP2-12 subwoofer delivers 300 Watts RMS and is engineered for rich low-end response with a frequency range of 29Hz–1500Hz. With a 2.5" 4-layer high-temp Kapton voice coil, heavy-duty steel frame, and a 68 oz magnet, it provides consistent, distortion-free performance that can handle the demands of any serious car audio build.

Perfectly paired with the APMOX-800.1 Monoblock Amplifier, this setup is optimized for both efficiency and power. The amp pushes 800W RMS at 2 Ohms—ideal for driving the subwoofer to its full potential. Featuring full-range Class D circuitry, MOSFET power management, subsonic filtering, bass boost, and thermal protection, it ensures reliable, tuned performance in any environment. Whether you're upgrading your daily ride or building out a compact sound system for off-road or recreational use, this duo delivers premium results with precision and power.

Wiring Method: Connect both positives together, both negatives together.

Subwoofer TS-PP2-12 Key Features:

• Peak Power Handling: 1000 Watts (P.M.P.O.)


• Continuous Power: 300 Watts RMS


• 2.5" 4-Layer High-Temperature Kapton Voice Coil


• Heavy-Duty Steel Frame for increased stability and reduced distortion


• Durable Polypropylene Cone with Rubber Surround


• 68 Oz Magnet for enhanced power and bass accuracy


• Mounting Depth: 5-5/8" (142mm)


• Impedance: 4 Ohms

Subwoofer TS-PP2-12 Specifications:

• Diameter: 12" (305mm)


• Sensitivity (2.83V@1m) : 86dB


• Power Handling: 300 Watts RMS


• Frequency Response: 29-1500Hz


• Nominal Impedance: 4 Ohms


• Voice Coil Diameter: 2" (51mm)

Subwoofer TS-PP2-12 Thiele-Small Parameters:

• Voice Coil DC Resistance - Revc (Ohms):  3.6


• Voice Coil Inductance @1kHz:  Levc(mH) " 2.0


• Driver Radiating Area Sd(in): 530


• Motor Force Factor Bl(Tm): 16


• Compliance Volume Vas(ft):  1.5


• Free-air Resonance: Fs(Hz) 32


• Maximum Excursion Xmax(in) 0.48

Subwoofer TS-PP2-12 Product Dimensions:

• Length: 12"


• Height: 6.5"


• Width: 12"


• Weight: 8.55 lb.

Amplifier APMOX-800.1 Features:

• Full-Range Class D Amplifier


• Compact, Space-Saving Design


• Advanced MOSFET Circuitry


• Variable Bass Boost (0-12dB)


• Built-in Subsonic Filter (50Hz)


• Adjustable High-Pass and Low-Pass Filters (50Hz - 500Hz)


• Remote Subwoofer Volume Control with LED Indicators


• Overload and Overheat Protection


• High and Low-Level Inputs

Amplifier APMOX-800.1 Specifications:

• RMS Power @ 4 Ohms: 1 x 560W


• RMS Power @ 2 Ohms: 1 x 800W


• Frequency Response: 10Hz - 500kHz


• Signal-to-Noise Ratio: 87dB


• THD: 0.08%


• Working Voltage: 9V - 16V

Amplifier APMOX-800.1 Dimensions:

• Length: 4.6" (117mm)


• Width: 5.7" (144mm)


• Height: 2.5" (64mm)
