• DEEP, POWERFUL BASS – 15" pressed paper cone subwoofer delivers rich low-end response for earth-shaking sound performance.
• WIDE FREQUENCY RESPONSE – Covers 25Hz–1000Hz for deep, punchy bass and smooth mids across a broad audio range.
• STANDARD 15" FIT – 15-3/16" overall diameter ensures compatibility with most standard 15" subwoofer enclosures.
• SPL-READY PERFORMANCE – Engineered for extreme sound pressure levels and precise output in high-demand car audio systems.

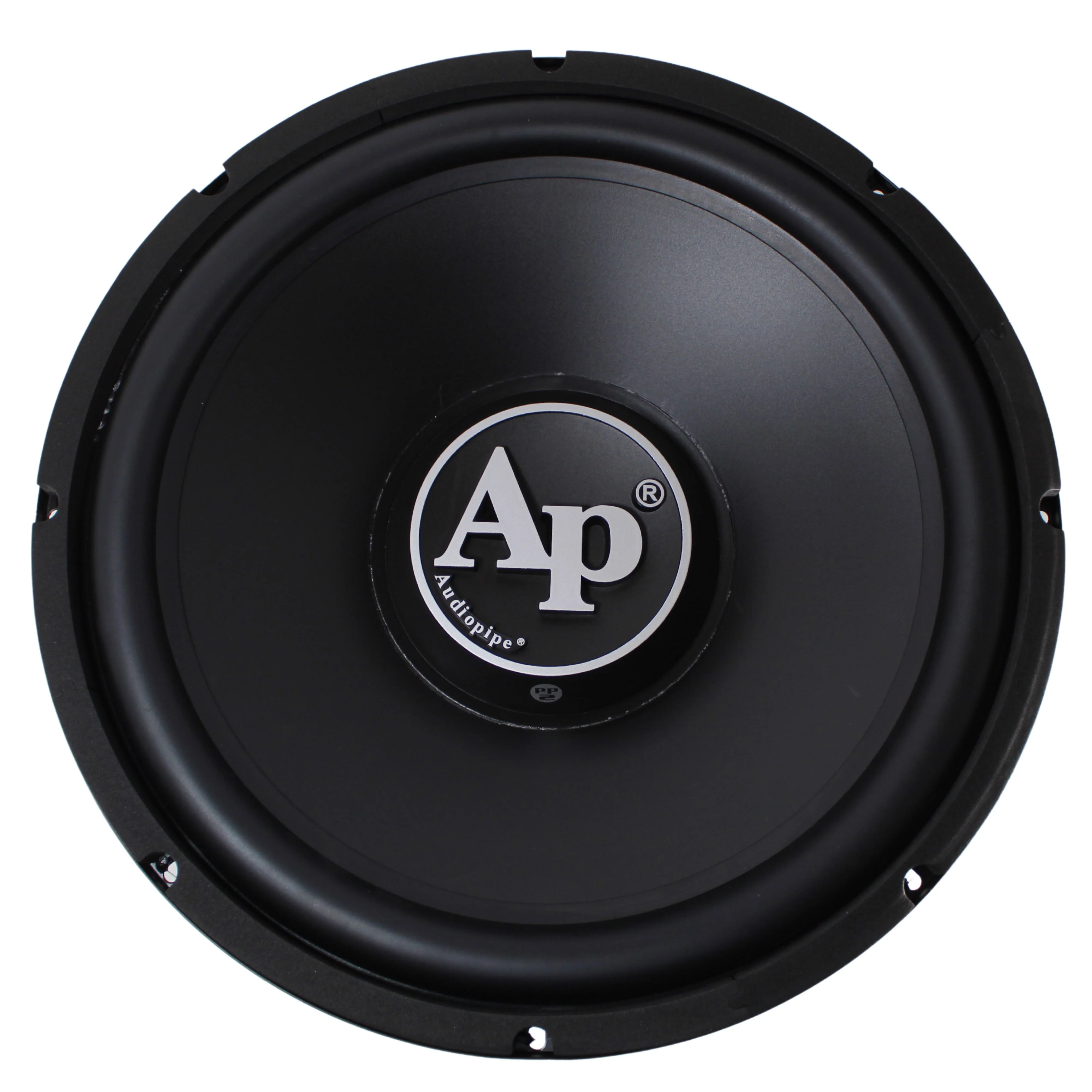

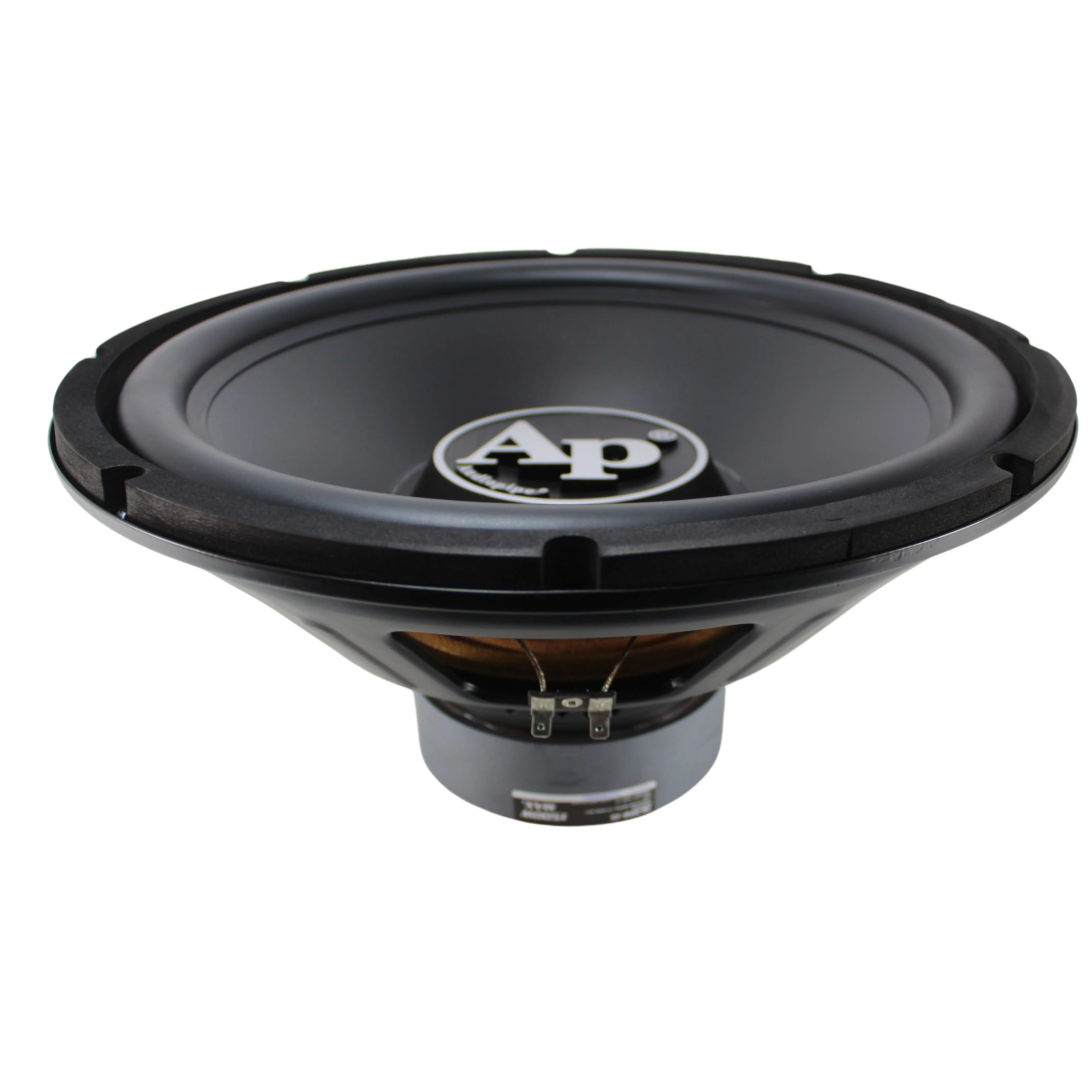

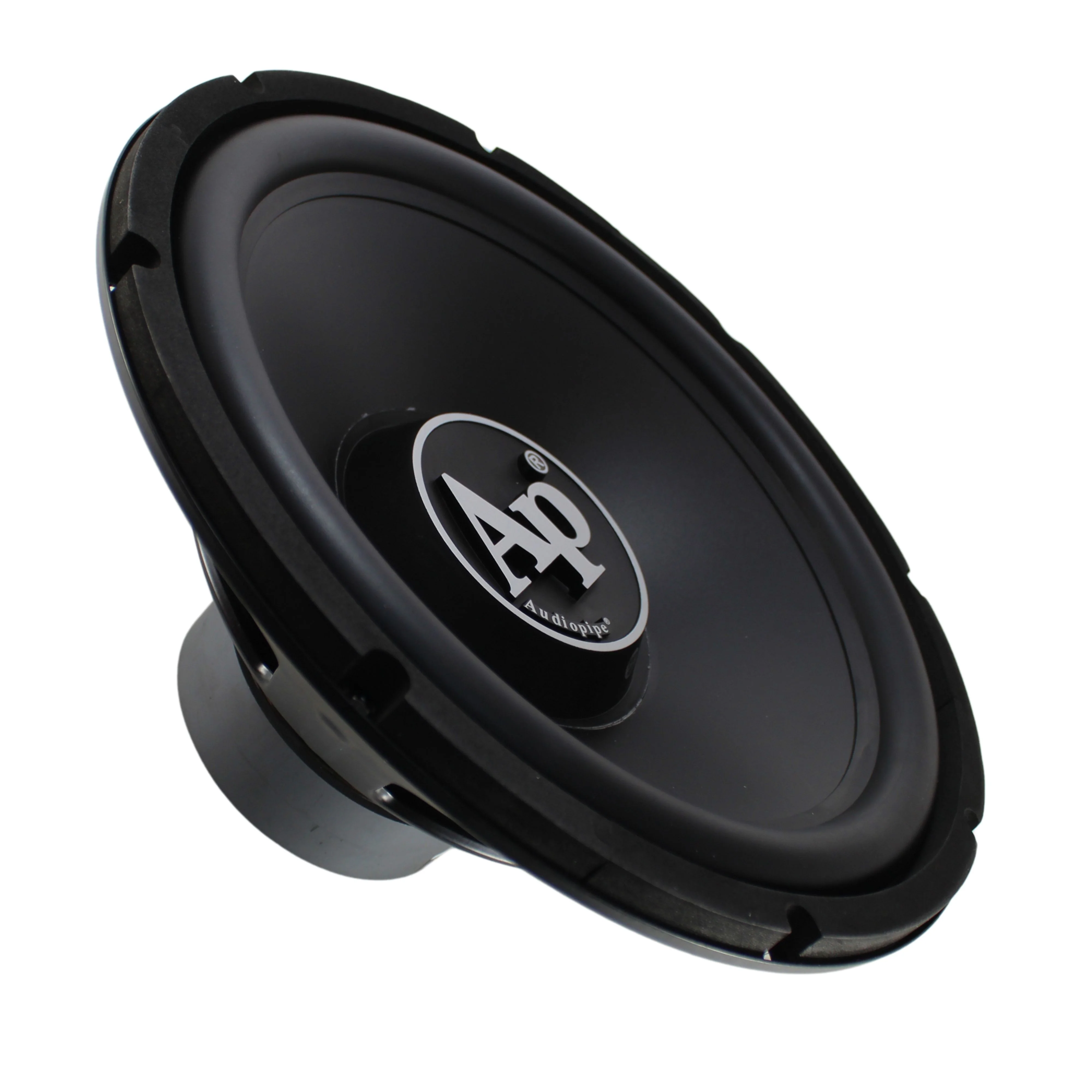

Audiopipe Pro Car Audio 15" 500 Watt RMS 2" SVC 4-Ohm Subwoofer

This listing Includes

• (1)  Pro Car Audio 15" 500 Watt RMS 4-Ohm Subwoofer

Delivering deep, accurate bass and built to handle serious power, the Audiopipe Pro 15" Subwoofer is a high-performance solution for demanding car audio setups. With a rugged motor structure, a 2.5" voice coil, and broad frequency response, this subwoofer brings both SPL and musical precision to your build.

Key Features:

• Peak Power Handling: 1500 Watts


• Continuous Power: 500 Watts RMS


• 2.5" High-Temperature Voice Coil


• Pressed Paper Cone for strong, natural bass response


• Dual 4-Ohm Voice Coil configuration


• Sensitivity: 88dB (2.83V @ 1m)


• Frequency Response: 25Hz – 1000Hz


• Xmax: 0.39" (10mm) for tight, responsive bass


• Mounting Depth: 6-3/4"


• Impedance: 4 Ohms

Specifications:

• Diameter: 15"


• Voice Coil Diameter: 2.5"


• Power Handling: 500 Watts RMS


• Frequency Response: 25 – 1000 Hz


• Nominal Impedance: 4 Ohms


• Sensitivity (2.83V@1m): 88dB

Thiele-Small Parameters:

• Voice Coil DC Resistance - Revc (Ohms): 3.6


• Voice Coil Inductance @1kHz - Levc (mH): 3.8


• Driver Radiating Area Sd (in/cm): 35 / 850


• Motor Force Factor Bl (Tm): 16


• Compliance Volume Vas (ft/liters): 4.3 / 156


• Compliance Cms (um/N): 152


• Moving Mass Mms (g): 208


• Diaphragm Mass Mmd (g): 194


• Free-air Resonance Fs (Hz): 28


• Mechanical Q Qms: 2.2


• Electrical Q Qes: 0.55


• Total Q Qts: 0.45


• Voice Coil Height Hvc: 1.2" (30mm)


• Gap Height Hag: 0.39" (10mm)


• Maximum Excursion Xmax (in): 0.39"

Product Dimensions:

• Length: 17"


• Width: 17"


• Height: 9"


• Weight: 14.95 lbs

Built for durability and precision, the Audiopipe Pro 15" subwoofer delivers tight, punchy bass with impressive clarity and power. Perfect for enthusiasts who demand more from their sound system.
