• Accurate Power and Voltage Monitoring: Measures true amplifier power, voltage, current, and more.
• Comprehensive Display Modes: Choose from wattage & impedance, voltage & current, or power factor & apparent power.
• High Power Capacity: Supports up to 20,000+ watts measurement.
• Fast, Adjustable Voltmeter: Customizable refresh rates for real-time voltage tracking.
• OLED Displays: Clear, easy-to-read 1.3" monochrome screens.
• Complete Set: Includes connectors and a 150A current transformer.
• Durable Build: Compact and sturdy PETG plastic construction.

Basshead Garage Wattmeter + Voltmeter Combo - Measure Wattage Impedance Voltage

This listing includes:

• (1) BHG Wattmeter


• (1) BHG Voltmeter

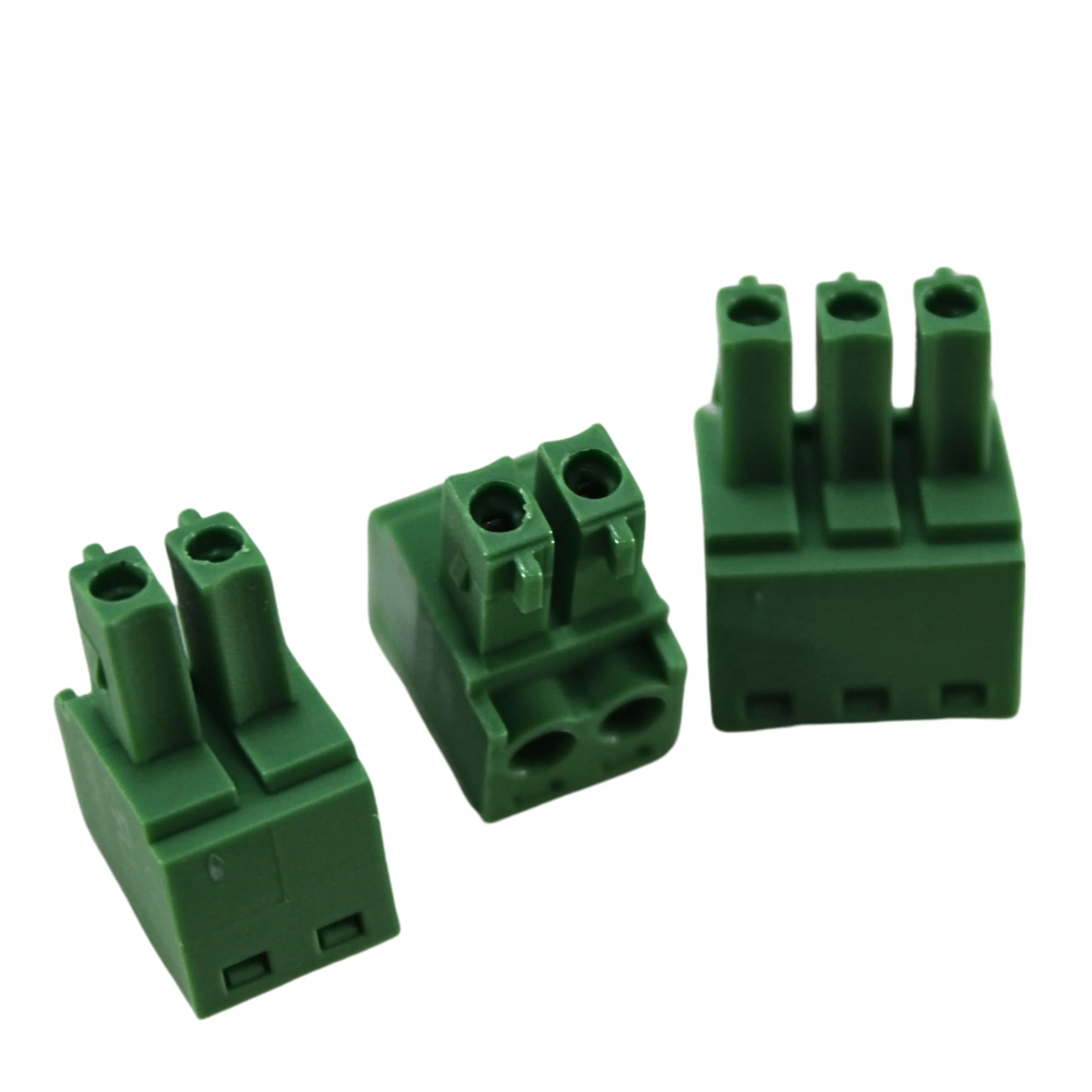

• (1) 3.81mm 3-Pin Connector for Volt meter


• (1) 150A Current Transformer for Wattmeter


• (1) 3.81mm 3-Pin Connector for Wattmeter


• (2) 3.81mm 2-Pin Connectors for Wattmeter

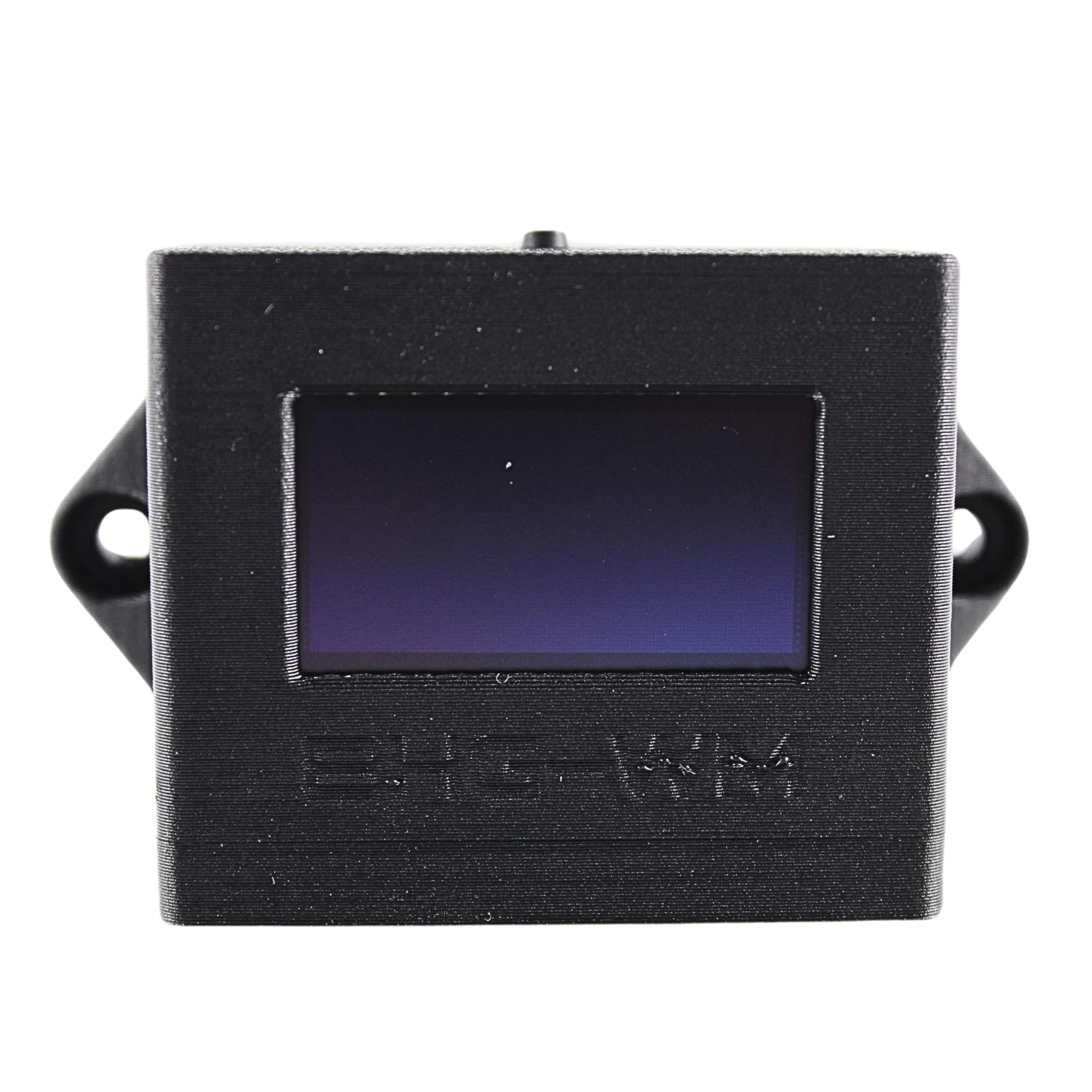

Introducing the Wattmeter by BASSHEAD Garage. This device accurately measures true amplifier power output (W), apparent power (VA), and the phase difference between voltage and current into reactive loads (PF). Capable of measuring AC volts (V), AC current (A), and maximum amplifier output in PEAK mode, this Wattmeter provides comprehensive insights into your audio system’s performance.

Features:

• Measure True Amplifier Power output (W)


• Measure Apparent Power (VA)


• Measure Phase Difference between Voltage and Current into reactive loads (PF)


• Measure AC Volts (V)


• Measure AC Current (A)


• Measure Max Amplifier Output with PEAK mode.

Display Modes:

• Wattage & Impedance


• Voltage & Current


• Apparent Power & Power Factor

Specifications:

• AC Voltmeter:  0 - 200 V Rms


• AC Ammeter: 0 - 150 A Rms


• Power Factor:  0.50 - 1.00


• Max Wattage:  20,000+ Watts


• Frequency range:  15 - 100 Hz


• Display: 1.3" OLED Monochrome


• Connectors: 3.81 mm Plug connectors


• Case material: PETG Plastic

Dimensions:

• Height: 1.6"


• Width: 2.75"


• Depth: 1"

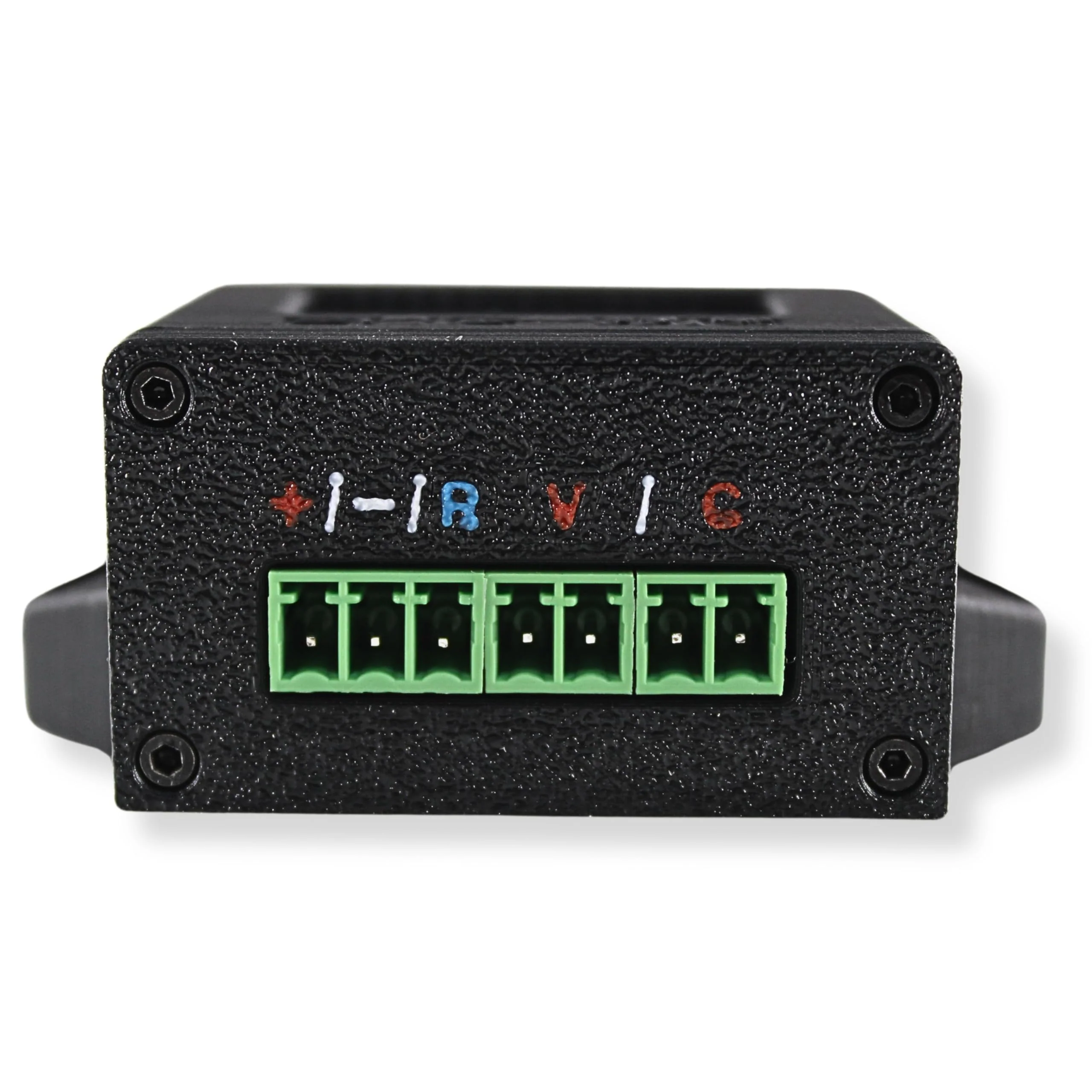

Wiring:

• + Battery Positive


• - Battery Ground


• R - Remote (Head Unit)


• V - Connect to Car Amplifier speaker output + & -


• C - Connect to the Current Transformer that goes around the positive or negative speaker wire.

Basshead Garage 0-18v OLED Precision Voltmeter w/ Adjustable Refresh Rate

Introducing the Voltmeter by BASSHEAD Garage. Fast and precise voltmeter with adjustable refresh rate, manual calibration, and the lowest voltage drop monitoring capability.

Specifications:

• Voltmeter Range: 0 - 18v DC


• Response Time: 15, 25, 50, 75, 150 M/s


• Lowest Voltage Monitor: Yes


• Voltmeter Calibration: Yes


• Display: 1.3" OLED Monochrome


• Wiring: B+, Ground, Remote - 3.81mm Connector


• Case Material: PETG Plastic

Dimensions:

• Height: 1.15"


• Width: 1.85"


• Depth: 1.5"
