• Perfect Fit: Specifically designed for 1998-2013 Harley-Davidson® Electra Glide®, Street Glide®, and Road Glide® models for easy and seamless installation.
• Wireless Music: Enjoy wireless freedom with Bluetooth® audio, allowing you to stream music from your devices without any messy wires.
• Built to Last: Designed to withstand the elements with a weather-resistant front panel (IPX6) and a durable, corrosion-resistant steel chassis coated with ZAM®.
• Personalized Lighting: Customize your bike's look with selectable amber or white button illumination and three brightness settings for a personalized touch.
• Powerful Sound: Experience impressive audio with a Class A/B amplifier delivering up to 72W x 4 @ 2 Ohms, ensuring a strong and clear sound while cruising.

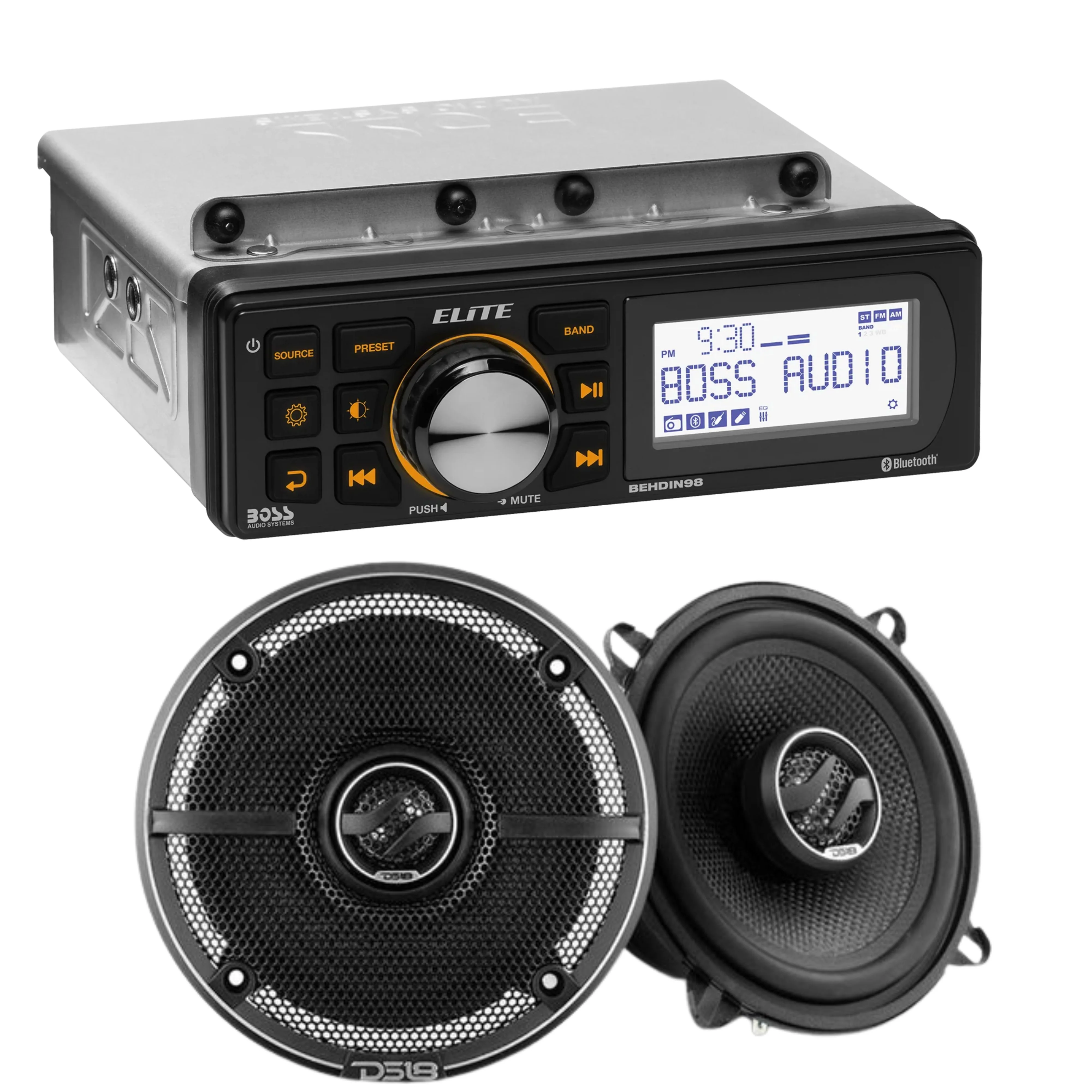

Boss Elite Harley 98-13 Bluetooth Receiver 3" BEHDIN98/W FREE DS18 5 SPEAKERS

Introducing the Ultimate Stereo Upgrade for Your Harley-Davidson Motorcycle!

Rev up your ride with our Direct Fit Stereo designed exclusively for 1998-2013 Harley-Davidson Electra Glide, Street Glide, and Road Glide models. This state-of-the-art stereo system seamlessly combines cutting-edge technology with a rugged design to enhance your biking experience like never before.

This listing includes:

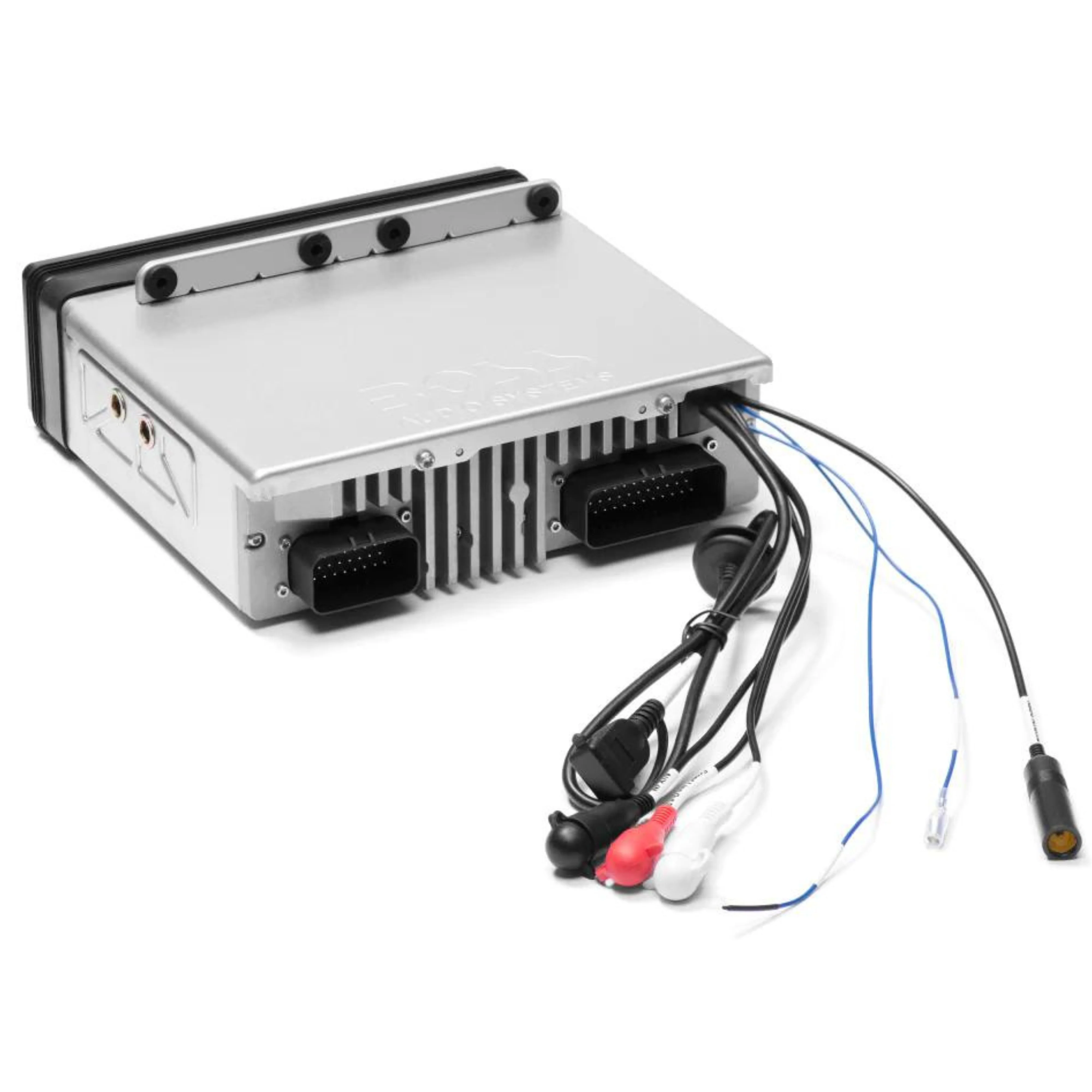

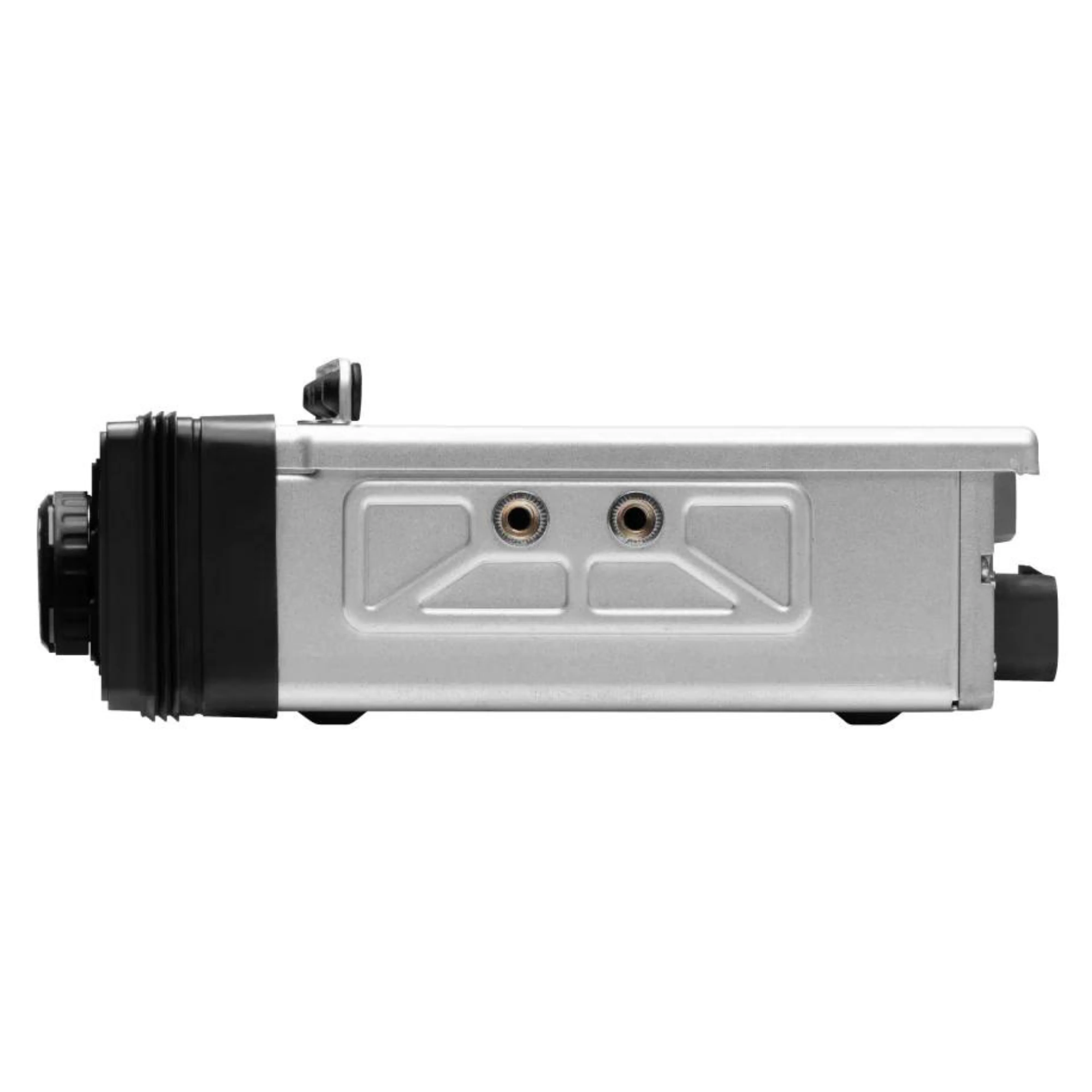

(1) Boss Elite Direct Fit Harley 98-13 Bluetooth MP3 AM/FM Receiver 3" BEHDIN98

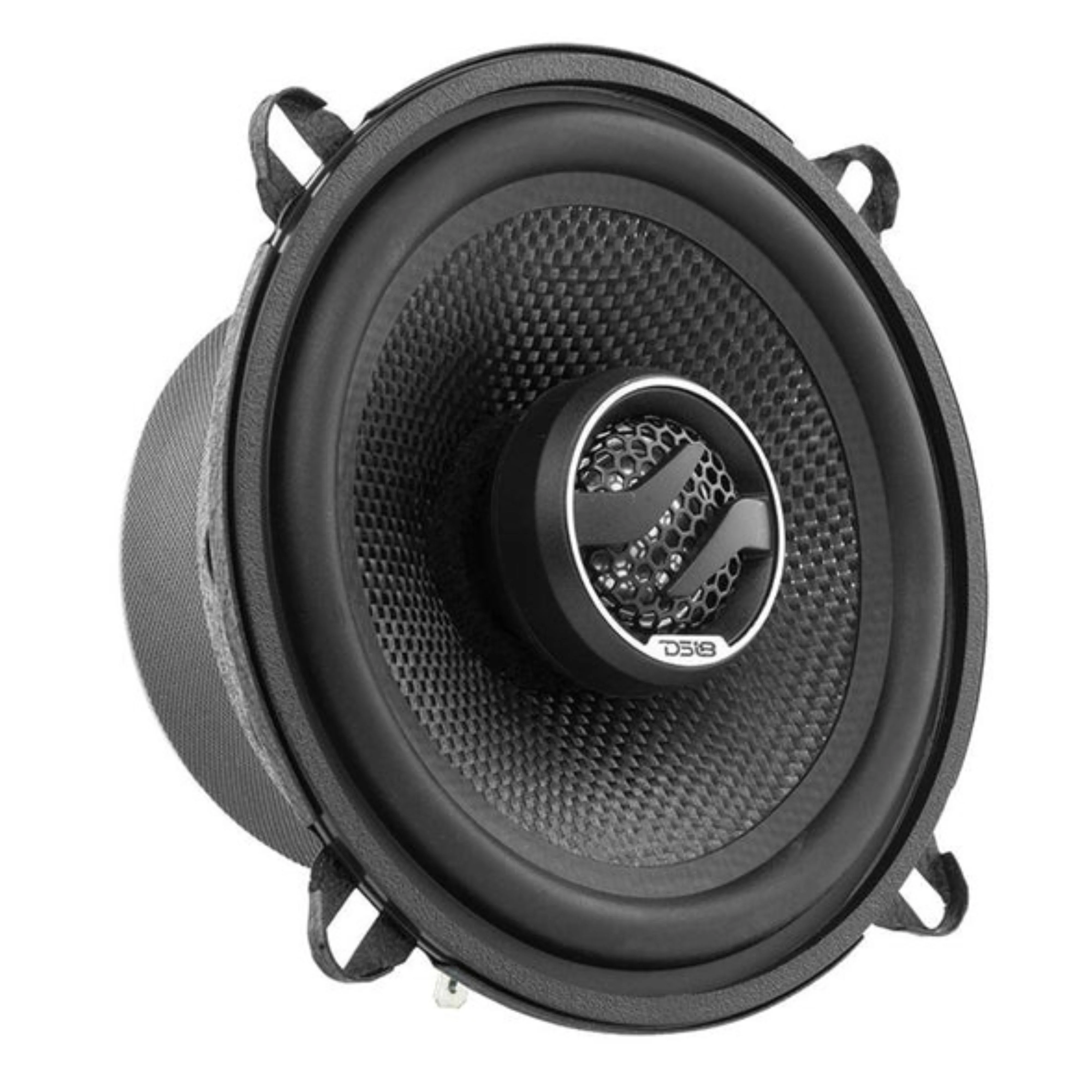

(2) DS18 5.25" Coaxial Speakers ZXI-5254

(1) Face-plate

(2) Mounting hardware and Owner's Manual

Features:

• Bluetooth Connectivity


• 3" Monochrome LCD Display


• AM/FM Receiver with Presets


• Zero Current Draw Memory


• Customizable Illumination


• Weather-Resistant and Durable Design


• Corrosion-Resistant Construction

Specifications:

• Amplifier Class A/B (2 Ohm Stable)


• Max Power: 72W x 4 @ 2 Ohms / 48W x 4 @ 4 Ohms


• Operation Voltage: 9.6V – 14.4V DC


• INPUTS & OUTPUTS:


• Aux In (3.5mm)


• Rear USB Port: Media & 1.5A Charging


• Front L/R Pre-Amp Outputs (2V)


• Factory OEM Rear Speaker Output, True Play and Play**


• Requires factory wiring harness and connectors to retain functionality.


• **Not compatible with factory amplified systems, intercom, CB, rear volume controls, 1998-2005 Ultra rear speakers, and factory equipped satellite radio systems.

Mounting Measurement:

• Width 8.36"


• Height 3.26"


• Depth 8.07"

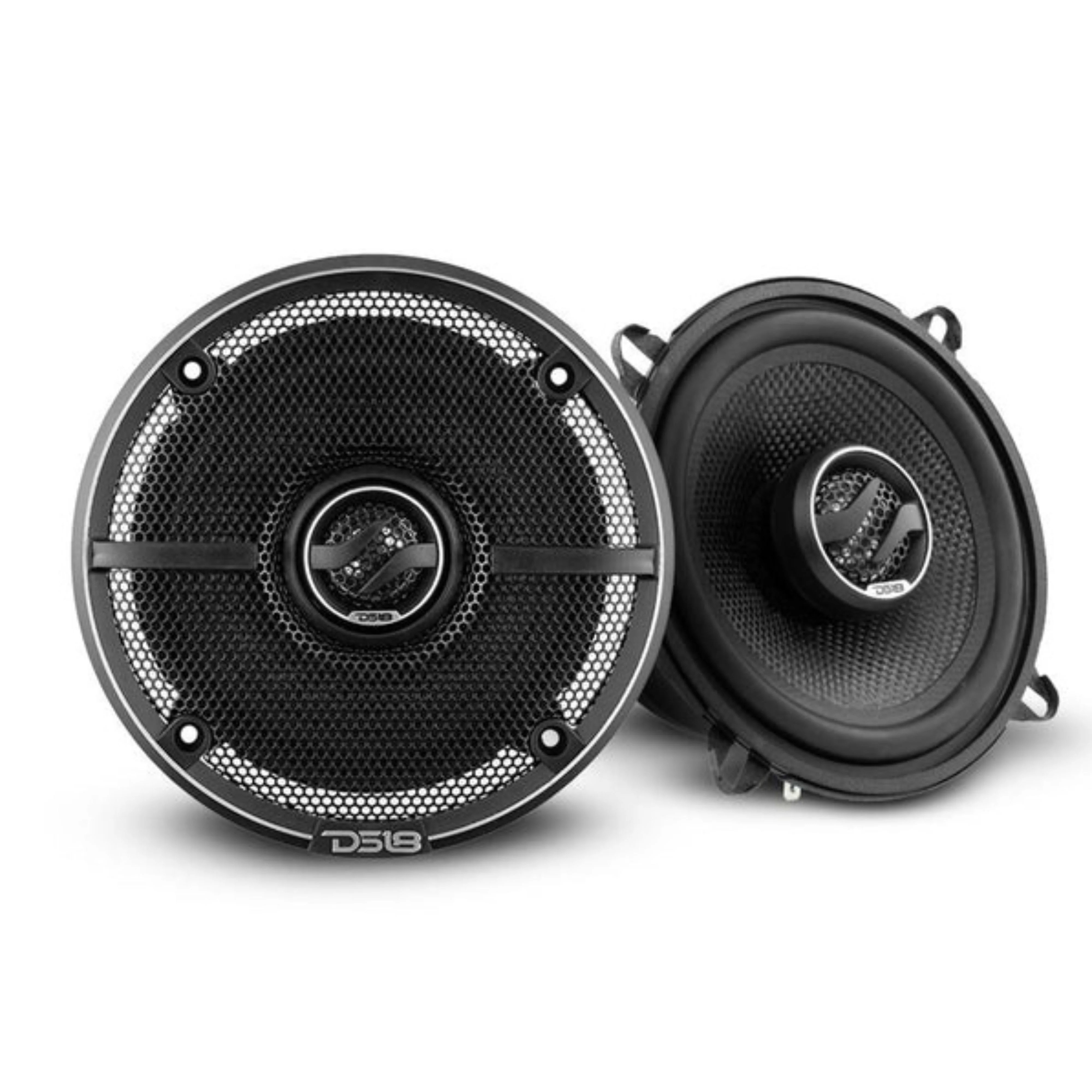

SPECIFICATIONS PER ZXI-5254 SPEAKER:

• Nominal Diameter: 5.25" (129mm)


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 60 Watts


• MAX Power Handling: 180 Watts


• Sensitivity (1w/1m): 89dB


• Frequency Response: 40Hz-20Khz


• Recommended HI Pass Crossover: 60Hz


• Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:

• Voice Coil Diameter: 1" (25.5mm)


• Voice Coil Former Material: KSV


• Winding Material: EISV


• Cone Material: Glass fiber


• Surround Material: Rubber


• Basket Material: Steel


• Magnet Material: Barium Ferrite


• Magnet Weight: 10.9 Oz / 310g

TWEETER SPECIFICATIONS:

• Nominal Diameter: 1" (25.4mm)


• Voice Coil Diameter: 0.8"(20.4mm)


• Voice Coil Former Material: KSV


• Winding Material: EISVM


• Diaphragm Material: PEI


• Magnet Material: Neodymium


• Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:

• Equivalent Volume: 4.86L


• Excursion (one way): 2.3mm


• Free Air Resonance: 77Hz


• Mechanical Factor: 8.39


• Electrical Factor: 0.87


• Total Factor: 0.79


• Mechanical Mass: 9.93g


• Mechanical Compliance: 457mm/N


• BL Factor: 4.321


• Cone Area: 86.5cm


• DC Resistance: 3.5 Ohm


• Mechanical Mass w/o air: 9.0g

MEASUREMENTS:

• Overall Diameter: 5.08" (129mm)


• Overall Depth: 2.80" (71mm)


• Front Mount Baffle Cutout: 4.45" (113mm)


• Mounting Depth: 2.28" (58mm)


• Motor Diameter: 3.31" (84mm)
